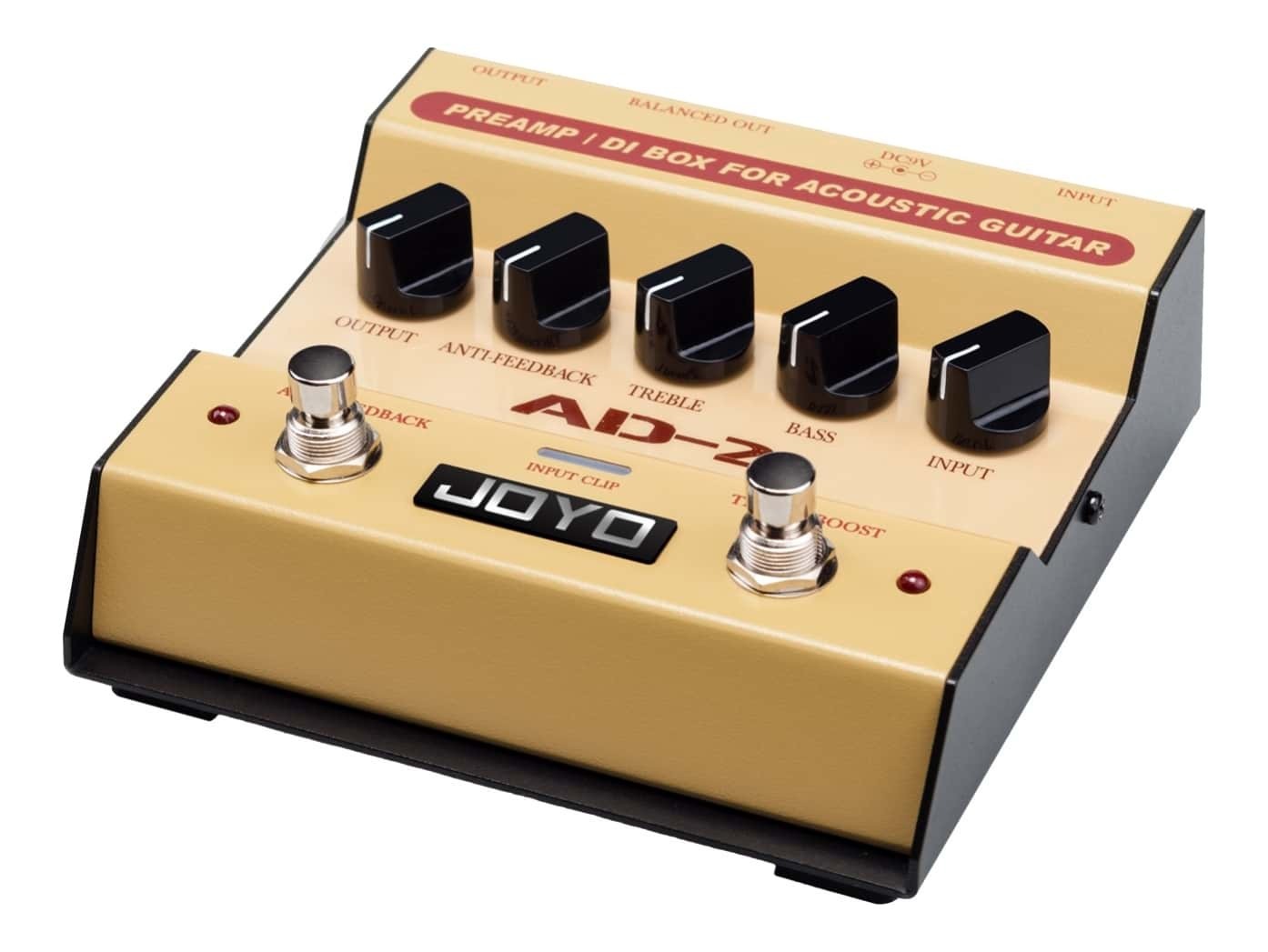

JOYO AD-2 Acoustic Guitar Preamp and DI Box Pedal

The JOYO AD-2 is designed for acoustic/electric guitars, and can be used with other acoustic stringed instruments that use a pickup. Featuring dual-band EQ's anti-feedback switch, treble boost, and a clipping LED. Perfect for live and recording.

AD-2 Acoustic Guitar Preamp and DI Box Pedal
The JOYO AD-2 is designed for acoustic/electric guitars, and can be used with other acoustic stringed instruments that use a pickup. Featuring dual-band EQ's anti-feedback switch, treble boost, and a clipping LED.  Perfect for live and recording.

Full Featured
A very helpful feature for live performance is the anti-feedback circuit. Ideal for those stage issues, and clicking the pedal removes feedback quickly. The clipping LED shows if your input is too high, with the LED will go from Orange to Red, so it's easy to prevent any unwanted distortion. The AD-2 is perfect for performing and recording with a balanced output to your mixer or recording device, at the same time enabling you to continue to use your acoustic amp as a stage monitor if you wanted. The AD-2 can be powered with a battery or a 9v DC power adapter.

Connections

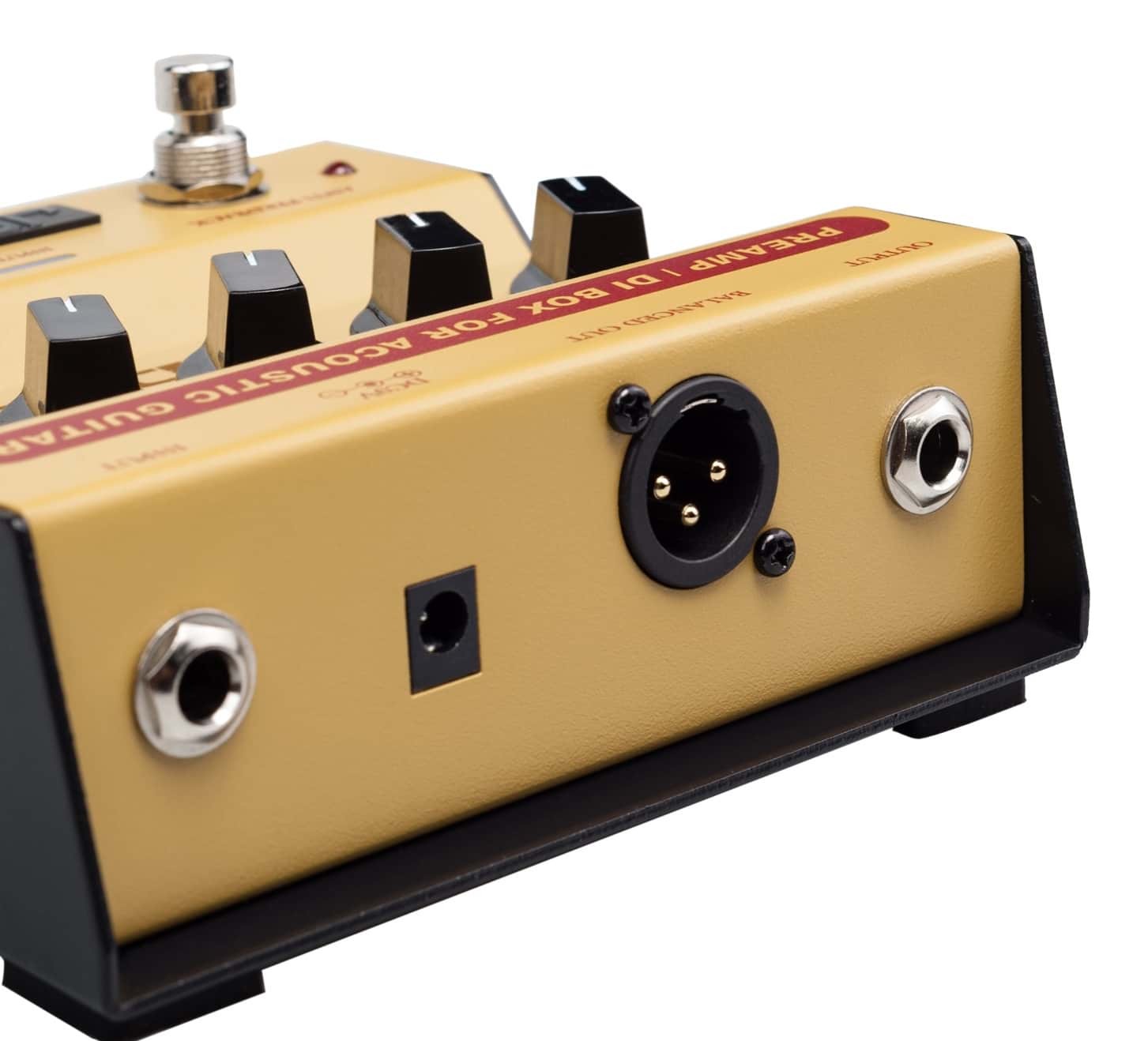

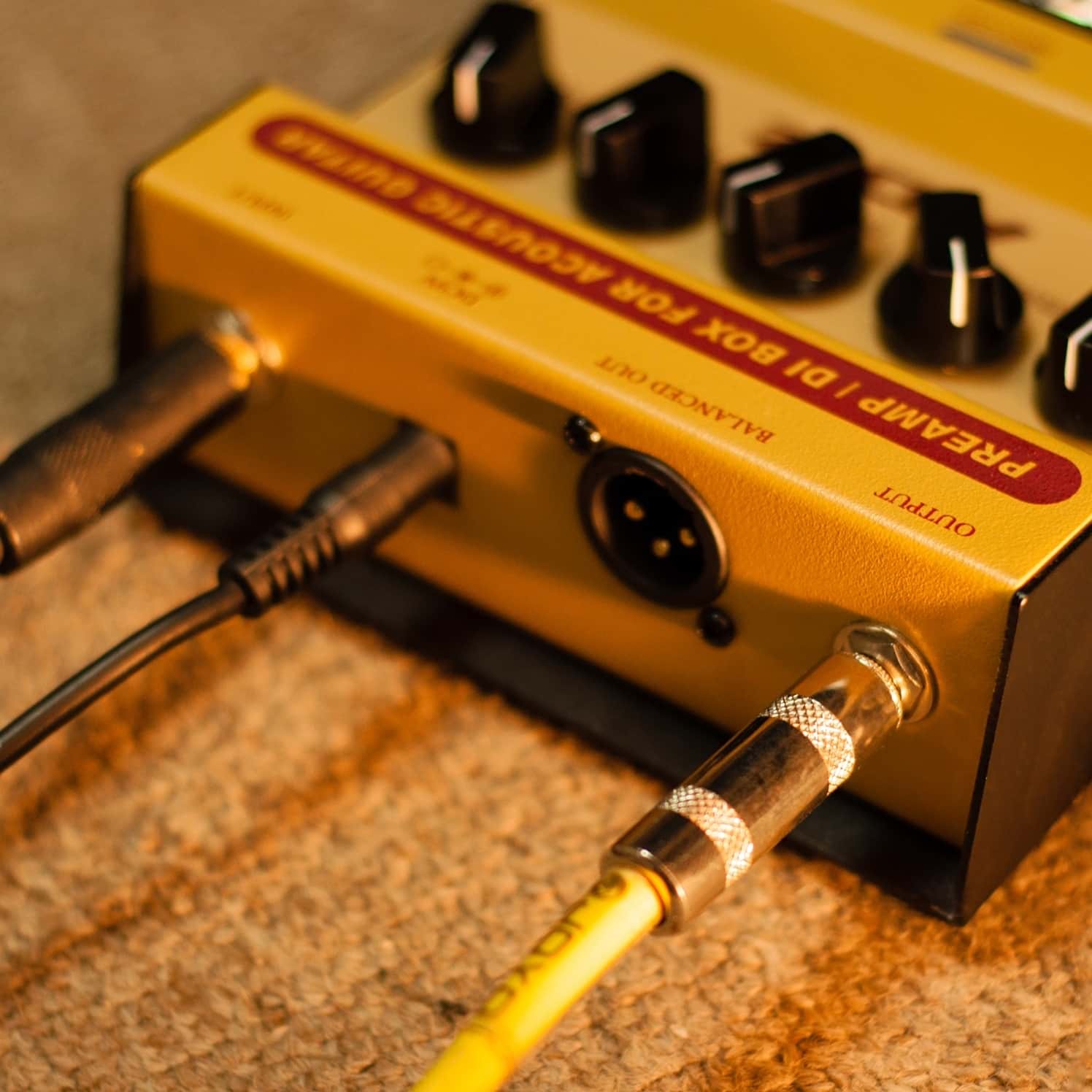

The AD-2 features an input jack for your guitar, an output jack to go out to your acoustic guitar amp (so you could use it as a monitor), and an XLR Balanced out to go straight to a mixing desk or your recording interface using the XLR input.

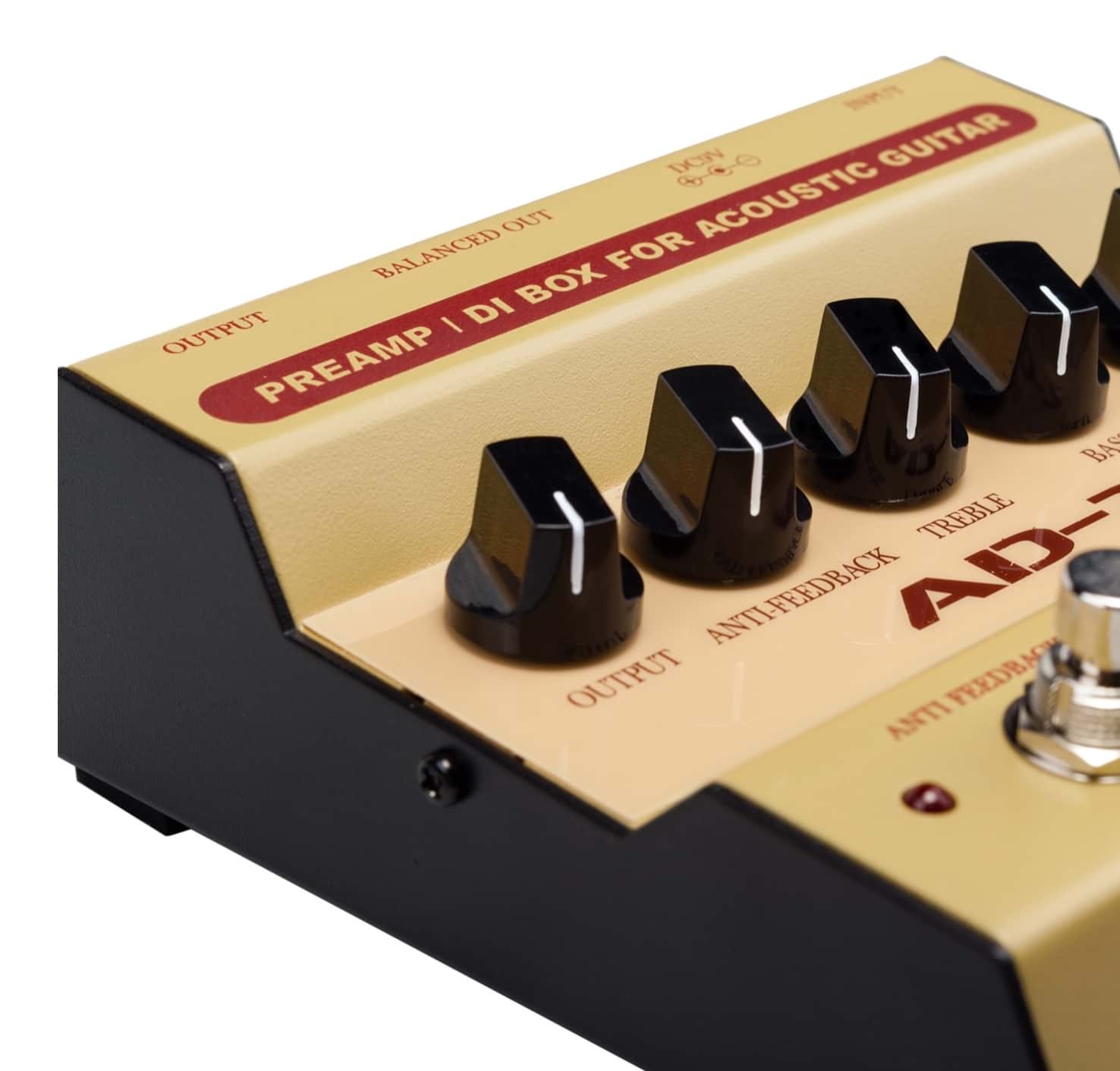

Features:

  • Input level - controls the level of the signal input
  • Treble - boost or cut the treble band frequency
  • Bass - boost or cut the bass band frequency
  • Anti-feedback - use this to manually filter the howling frequency point (range from 80hz to 300hz), the anti feedback button must be activated.
  • Output level - controls the output signal level
  • Anti-feedback - activate or deactivate the feedback filter
  • Treble boost - boosts the treble.

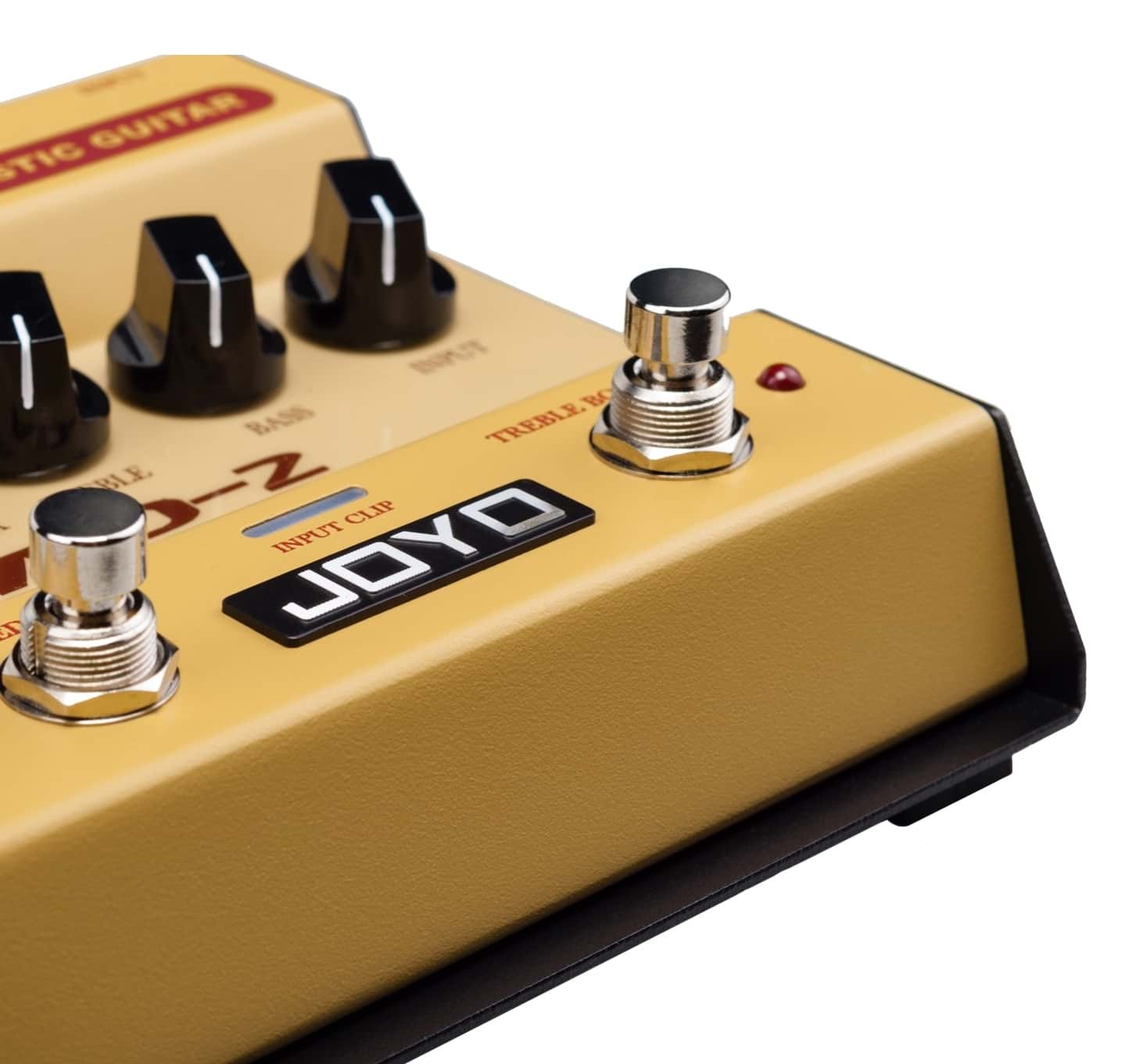

  • Input clip - This LED indicates if the input signal level. if it is distorted this will be red, amber is acceptable but some clipping may occur.

Specifications:

  • Input impedance 3.9 M ohm +/-5% @1k Hz
  • External Power supply DC9V 100mA / 9V layer-built battery (not included)
  • Operational current: 8mA
  • Unbalanced output impedance:1k
  • Balanced output Impedance: 820ohm
  • Item Weight: 800g
  • Product Dimensions: 140 x 145 x 55mm
View PDF brochure for JOYO AD-2 Acoustic Guitar Preamp and DI Box Pedal
