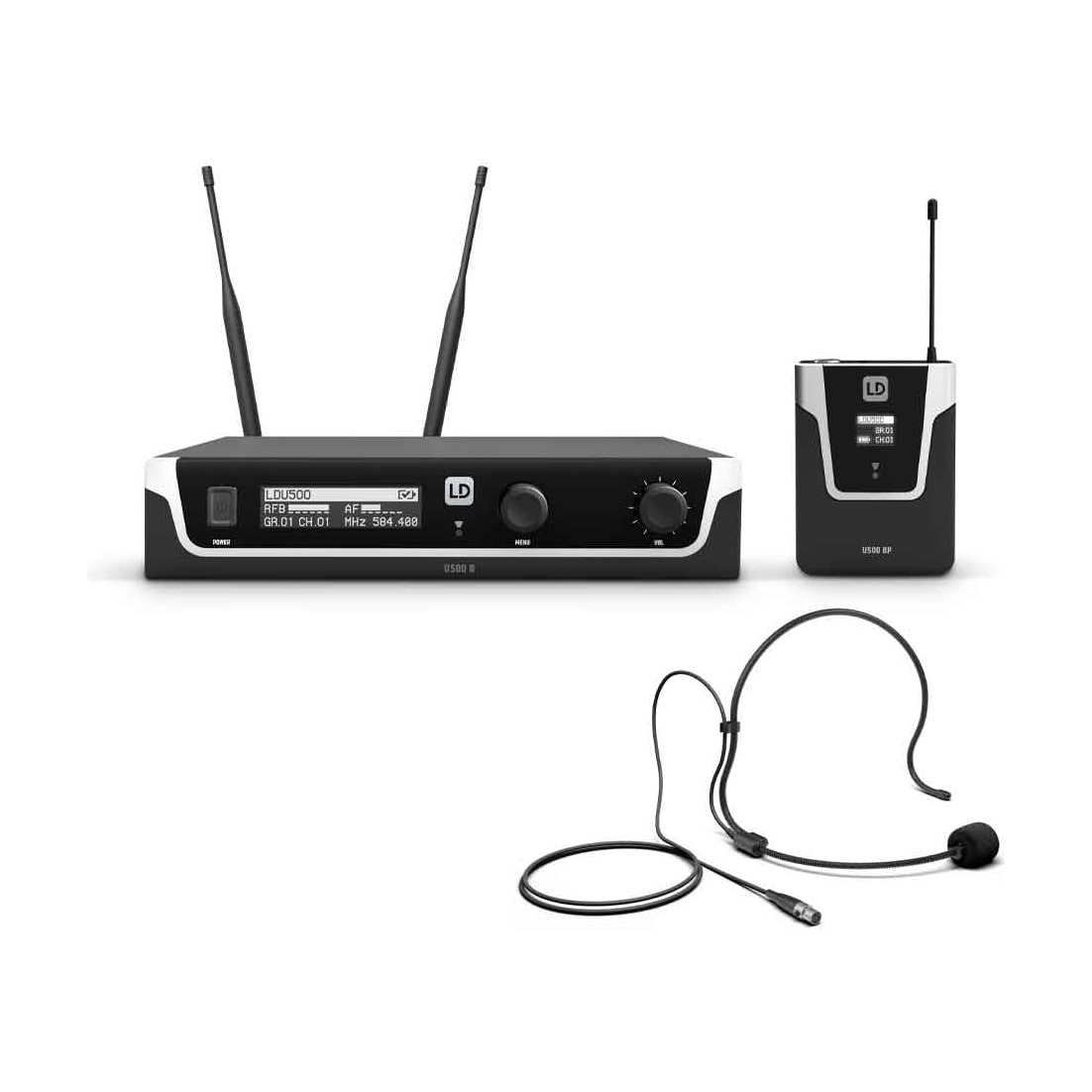

LD Systems U505 BPH Wireless Microphone System with Bodypack and Headset

584 – 608 MHz

Makers of professional wireless systems, the LD System's U505 BPH is an excellent true diversity solution for vocals and speeches. Developed in Germany, it includes a bodypack and headset microphone transmitting power up to 30Mw, range of up to 100m.

LD Systems U505 BPH Wireless Microphone System with Bodypack and Headset - 584 – 608 MHz
Makers of quality professional wireless systems, the LD System's U505 BPH is an excellent solution for vocals and speeches. Developed in Germany,  the U505 BPH includes a bodypack and headset microphone transmitting power up to 30Mw, range of up to 100m.

True Diversity, Auto Scan and OLED Screens
A true diversity system, the U505 BPH is equipped with an automatic scan facility which finds the best free frequency. As well as convenient one-touch infrared synchronisation of your transmitter and receiver. There’s also high-contrast OLED displays which provide an excellent overview of functions. Including indicators for group, channel, radio frequency, signal strength, and battery. You can even use individual user names.

Efficient Technology
Not only does the U505 BPH feature the squelch function. But the transmitters silent pilot tone ensures fail-safe operation. Protecting against interference and muting the receiver if there are similar tones present. This efficient technology and high-quality components mean the U505 BPH provides clear and distortion free transmission without any latency. It’s also capable of running for up to 10 hours with 2 AA batteries.

Also available with handheld transmitters, lavaliers, and double sets.

Features:

  • True diversity UHF wireless system
  • Shock-mounted dynamic and condenser microphone capsules
  • Automatic channel scan
  • Easy one-touch infrared frequency syncing
  • Pilot tone squelch circuit prevents noise
  • Switchable RF transmitter output (2, 10 or 30 mW)
  • Rugged enclosures
  • High-contrast OLED display

Specifications:

Transmission Frequency Range 584 - 608 MHz

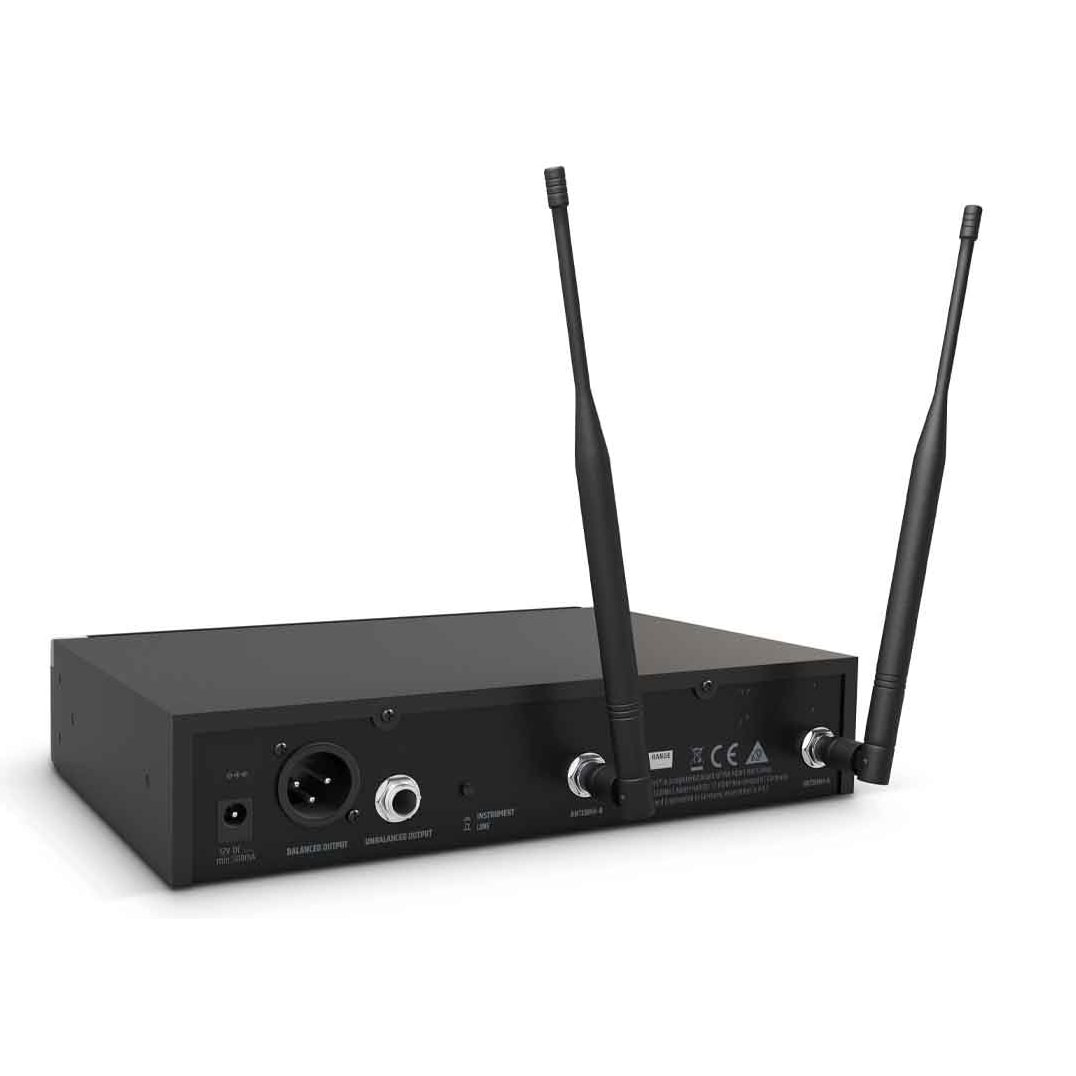

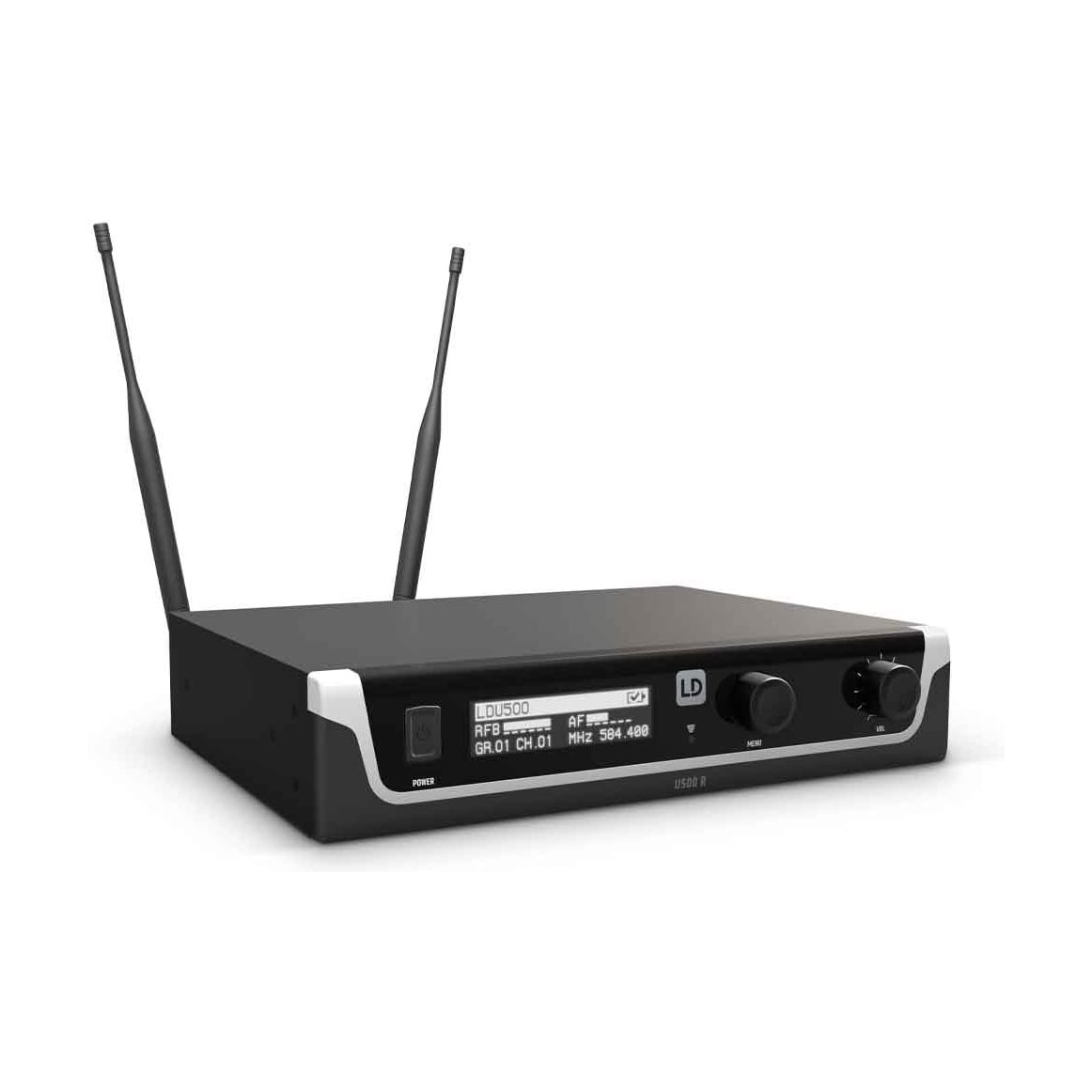

LD Systems U505 BPH Receiver
Channels 96 (8 groups of 12 channels)
Antenna Connector BNC
Audio Output, Balanced XLR
Audio Output, Unbalanced 6.3mm jack
Dimensions (H x W x D) 44mm x 212mm x 159mm
Weight 0.85kg

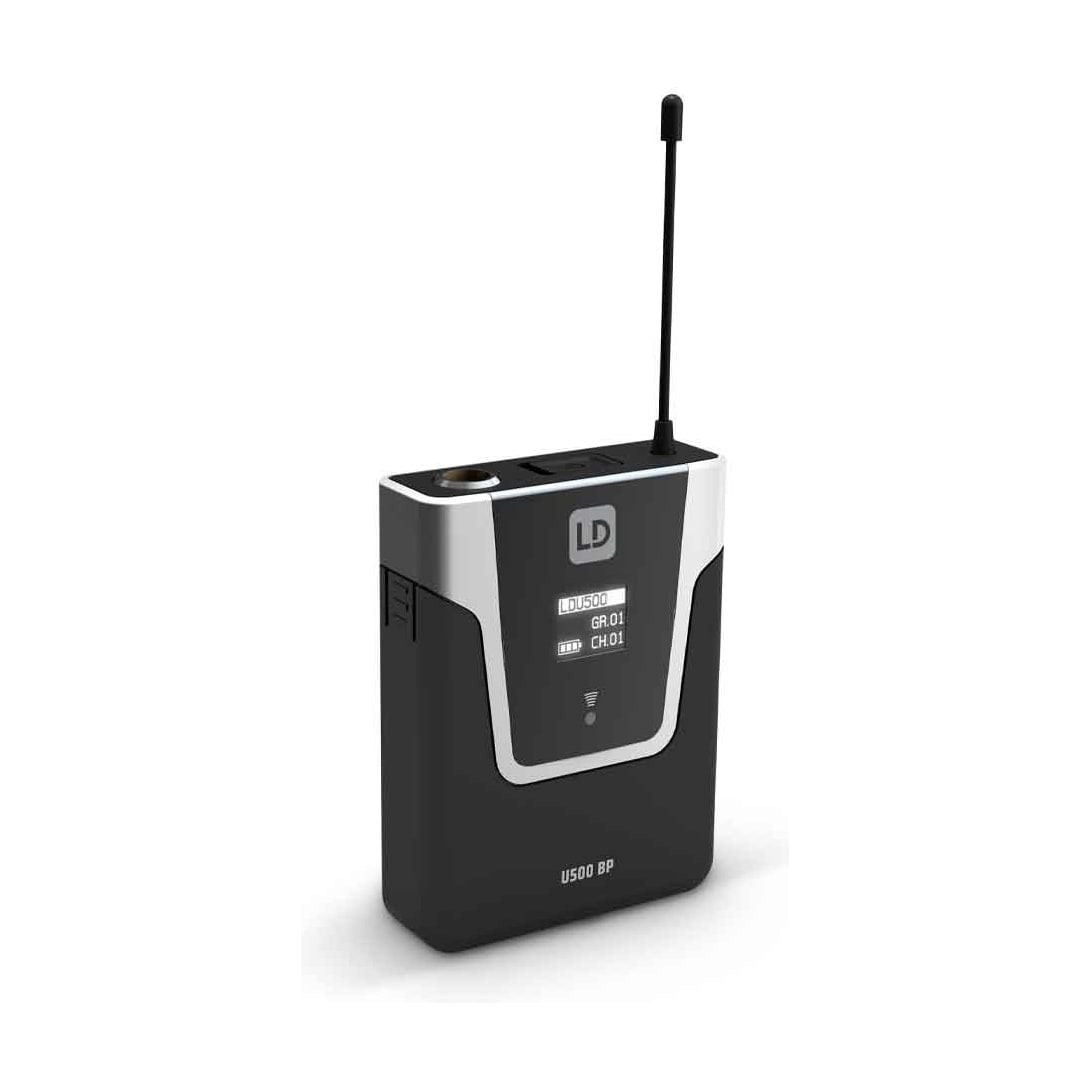

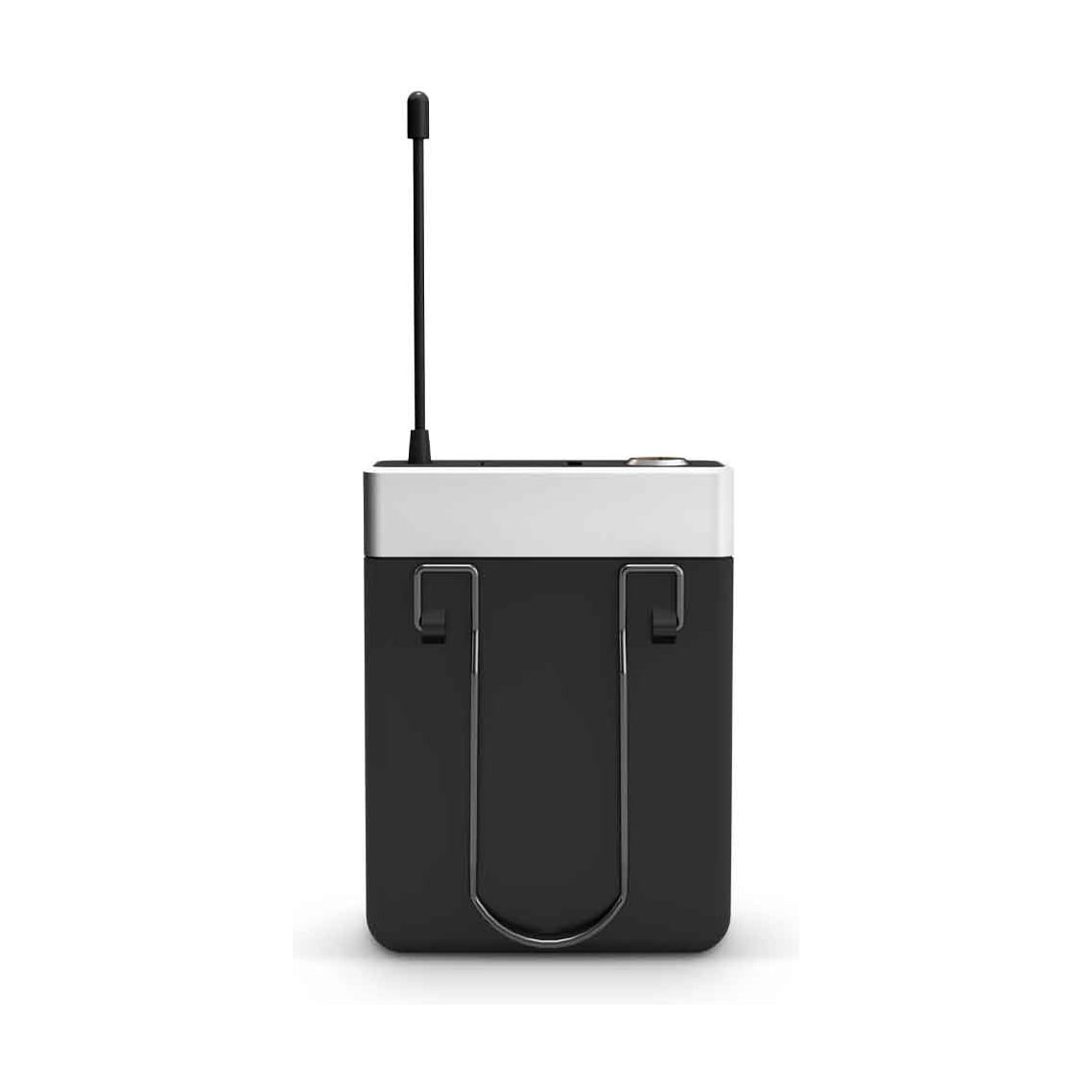

U505 BPH Bodypack Transmitter
Inputs Mini-XLR (3-pin)
Power 2 x AA battery
Dimensions (H x W x D) 86mm x 65mm x 23mm
Weight 0.09kg
U505 BPH Headset
Directivity Cardioid
Nominal impedance 680 Ohm(s)
Microphone Input Mini-XLR (3-pin, female)
Weight 0.049kg
View PDF brochure for LD Systems U505 BPH Wireless Microphone System with Bodypack and Headset

Be The First To Review This Product!

Help other SWAMP Industries users shop smarter by writing reviews for products you have purchased.

Write a product review

Product Enquiry Form Complete this form to email us your enquiry.




MPN: LD-U505-BPH

ID: 296796
