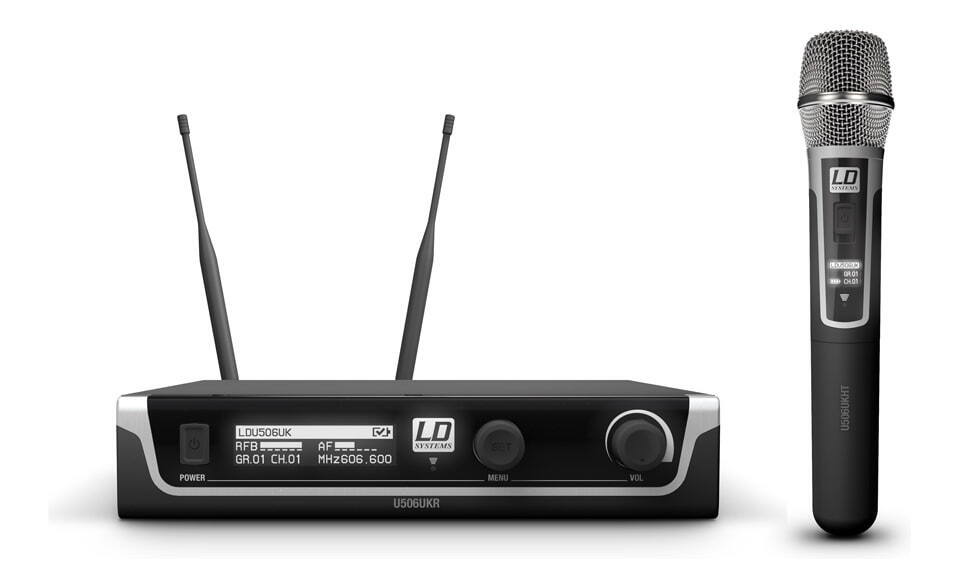

LD Systems U505 HHC Wireless Microphone System with Condenser Microphone

Makers of professional wireless systems, the LD System's U505 HHC offers an excellent condenser mic for vocalists. Featuring true diversity, OLED display, frequency bands - 584 - 608MHz and up to 12 systems can be operated simultaneously. 100m range.

LDSystems U505HHC Wireless Microphone System with Handheld Condenser Microphone
Makers of professional wireless systems, the LD System's U505 HHC offers an excellent condenser mic for vocalists. Featuring true diversity, OLED display, frequency bands - 584 - 608MHz and up to 12 systems can be operated simultaneously. 100m range.

Legendary Series
The U500® Series vocal sets were developed in Germany to bring you affordable professional technology and sound quality. The radio systems for vocals and speech deliver impressive performance and high reliability, which will certainly exceed your expectations. We have designed the range specifically for professional users to ensure that your performance is an impressive and emotional experience. Selectable transmit power up to 30 mW provides the U500® vocal sets with a free-field range of over 100 metres. They are available in three frequency bands: 584 - 608 MHz and 655 - 679 MHz, where 12 systems can be operated simultaneously, and 823 - 832 MHz + 863 - 865 MHz, where six systems can be operated at the same time. The True Diversity UHF wireless systems are equipped with an automatic scan facility to find the best free frequency, and convenient one-touch infrared synchronisation of transmitter and receiver to facilitate easy set up.

Efficient Technology

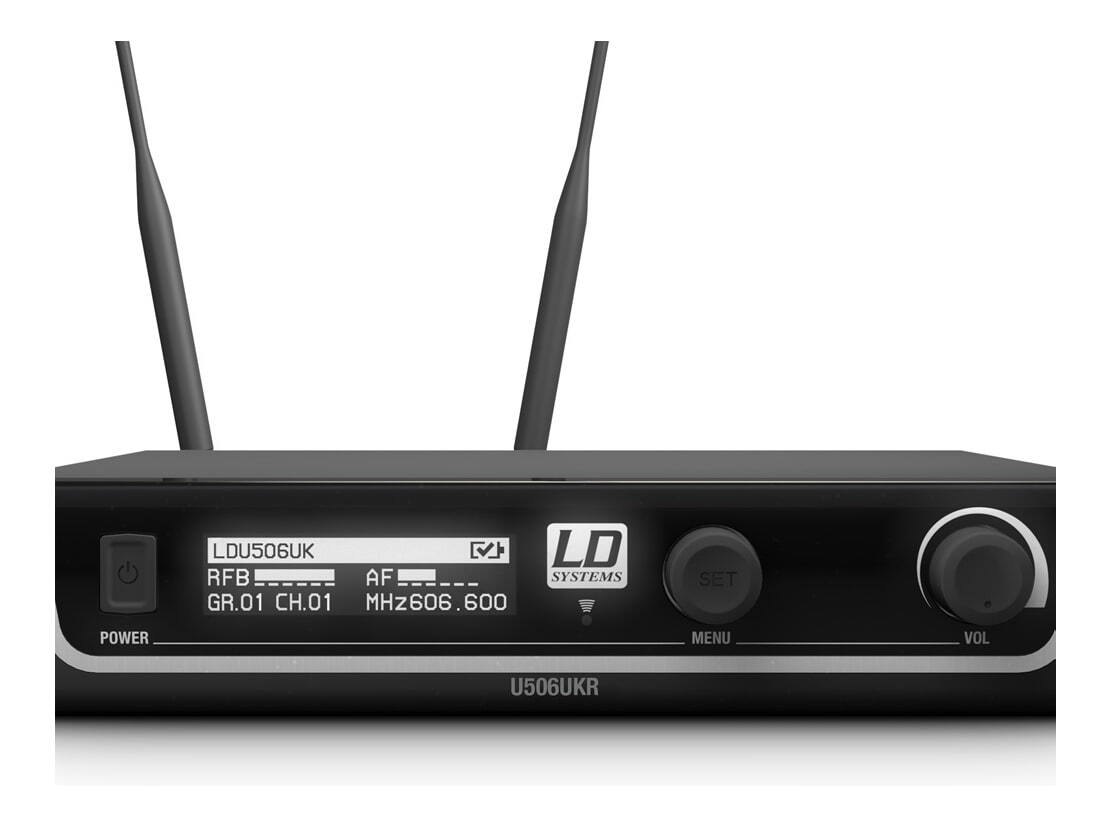

High-contrast OLED displays provide an excellent overview of functions, with indicators for group, channel, radio frequency, and signal strength and battery status. You can even enter individual usernames. In addition to the squelch function, the transmitter’s silent pilot tone ensures fail-safe operation. It protects against interference and mutes the receiver if signals without this tone are present. The U500®’s efficient technology and high-quality components provide clear, distortion-free transmission without latency or artefacts. Low power consumption means that the transmitter can run for up to 10 hours with 2 x AA batteries.

Features:

  • True diversity UHF wireless system

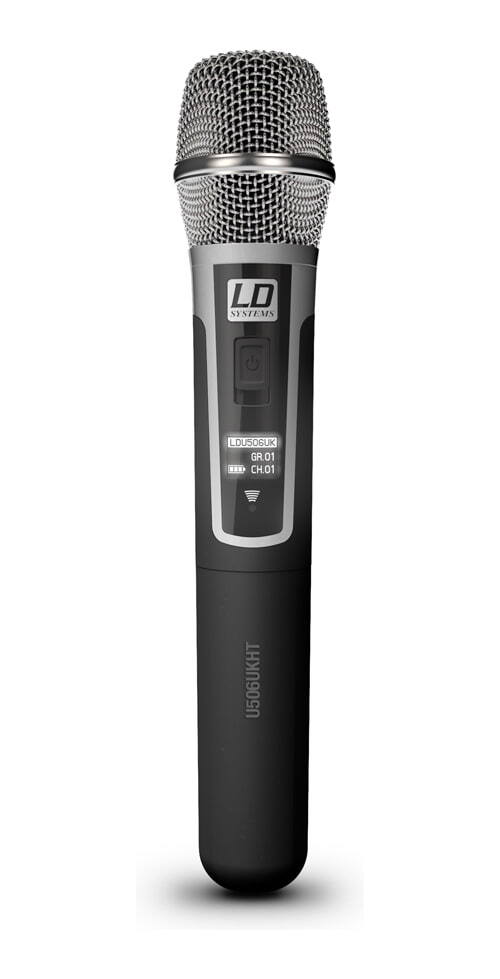

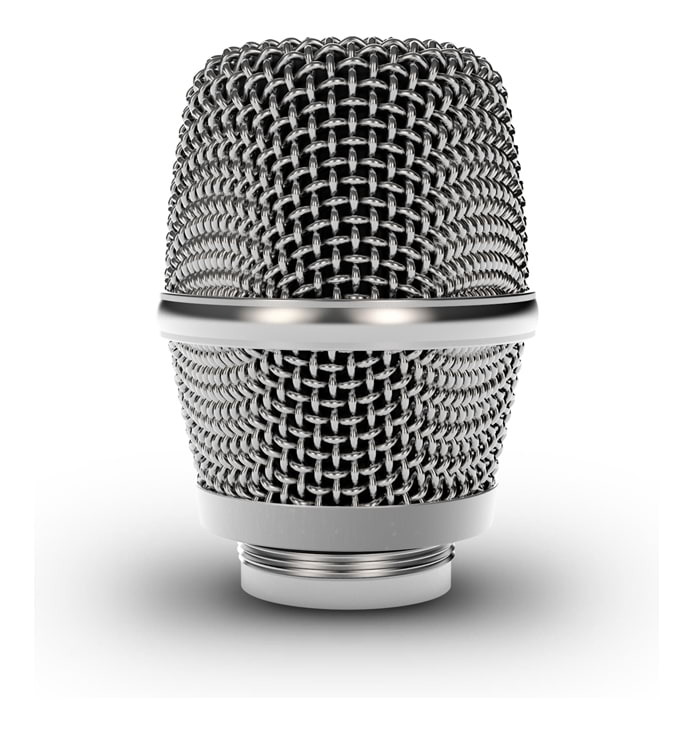

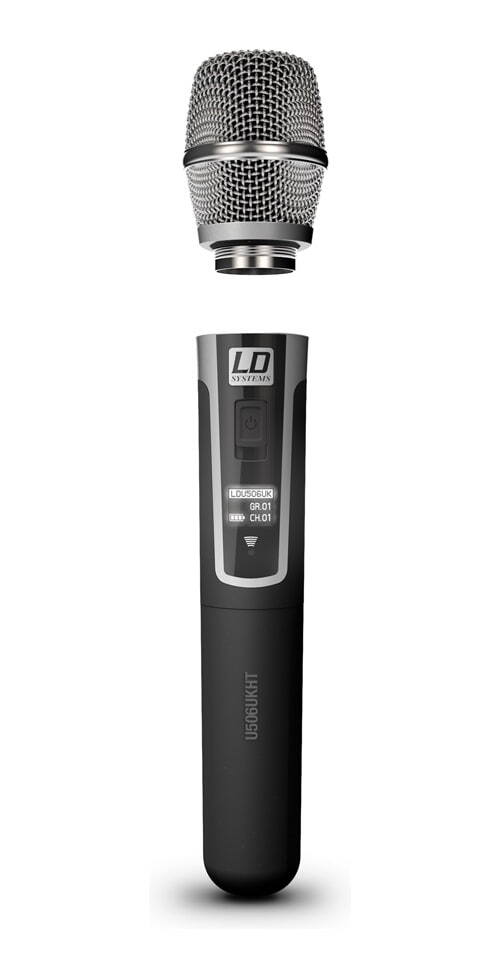

  • Shock-mounted condenser microphone capsule
  • Automatic channel scan
  • Easy one-touch infrared frequency syncing
  • Pilot tone squelch circuit prevents noise
  • Switchable RF transmitter output (2, 10 or 30 mW)
  • Rugged enclosures
  • High-contrast OLED display
  • U505 // 584 - 608 MHz // 12 systems can be used simultaneously

Specifications:

Capsule Type Condenser, Cardioid
Transmission frequency range 584 – 608MHz
Channels 96 (8 groups of 12 channels)
Frequency Response 60Hz – 16kHz

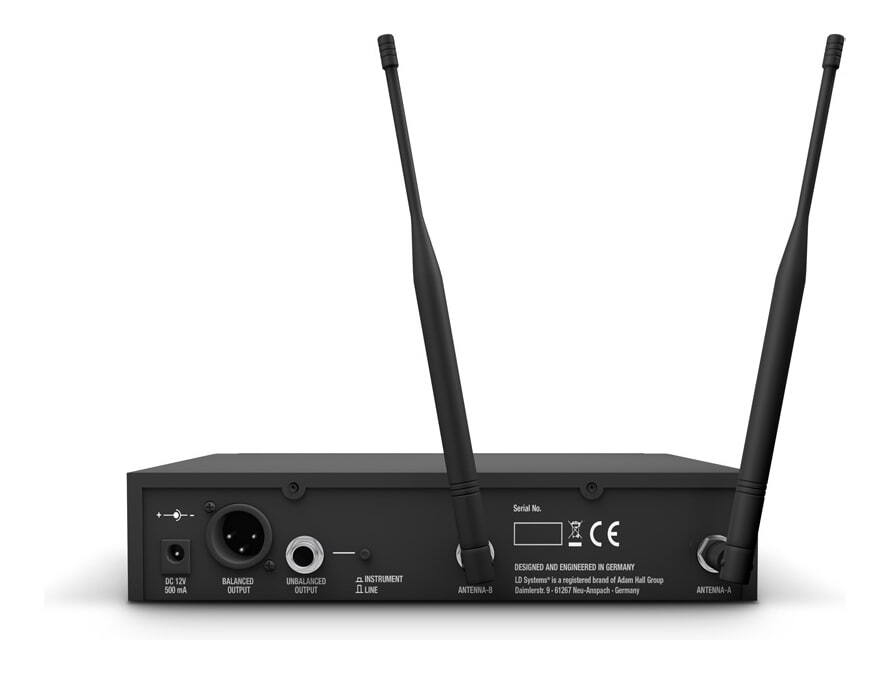

Antenna inputs:    2x BNC
Noise reduction Squelch
THD < 0.1 %
Signal-to-noise ratio > 95dB
Rated HF output power Variable (2mW, 10mW, 30mW)
Audio output, balanced 2 x XLR (balanced), 2 x 6.3 mm TS (unbalanced)
Audio mix output, balanced 1x XLR (balanced), 6.3 mm TS
Max. output level +10dBu
Headphones output 1 x 6.3mm TRS
Operating voltage 2 x AA battery
Operating time >10 h (with alkaline batteries)
Dimensions Receiver: 484mm x 44mm x 200mm
Microphone:  257mm x 51mm
Weight Receiver: 0.85kg
Microphone: 0.25kg



View PDF brochure for LD Systems U505 HHC Wireless Microphone System with Condenser Microphone
