LD Systems U506 BPH2 Dual Wireless Headset Microphone System

True Diversity 655–679 MHz

A highly professional wireless system which is easy to use, the LD Systems U506BPH2 is a true diversity dual wireless headset system, featuring automatic channel scanning, infrared synchronisation, intuitive menu navigation and OLED display. 655–679 MHz.

LD Systems U506 BPH2 Dual Wireless Headset Microphone System
A highly professional wireless system which is easy to use, the LD Systems U506BPH2 is a true diversity dual wireless headset system, featuring automatic channel scanning, infrared synchronisation, intuitive menu navigation and OLED display. 655–679 MHz.

Professional Technology and Sound Quality
The LD Systems U506BPH2 is a dual wireless headset microphone system that provides exceptional performance. Developed in Germany to bring you affordable, professional technology and sound quality. The radio systems for vocals and speech deliver impressive performance and high reliability, which will certainly exceed your expectations. Designed specifically for professional users to ensure that your performance is an impressive and emotional experience. This professional wireless microphone system with a bodypack and headset operates between 655 and 679 MHz. The True Diversity UHF wireless system is equipped with an automatic scan facility so it finds the best free frequency. Furthermore, its convenient one-touch infrared synchronization of transmitter and receiver facilitates an easy setup. The U506BPH2 high-contrast OLED displays provide an excellent overview of functions, with indicators for group, channel, radiofrequency, and signal strength and battery status. You can even enter individual usernames. In addition to the squelch function, the transmitter’s silent pilot tone ensures fail-safe operation. As a result, the U506BPH2 is perfect for live vocal performances, speech and public addressing, and many more applications.

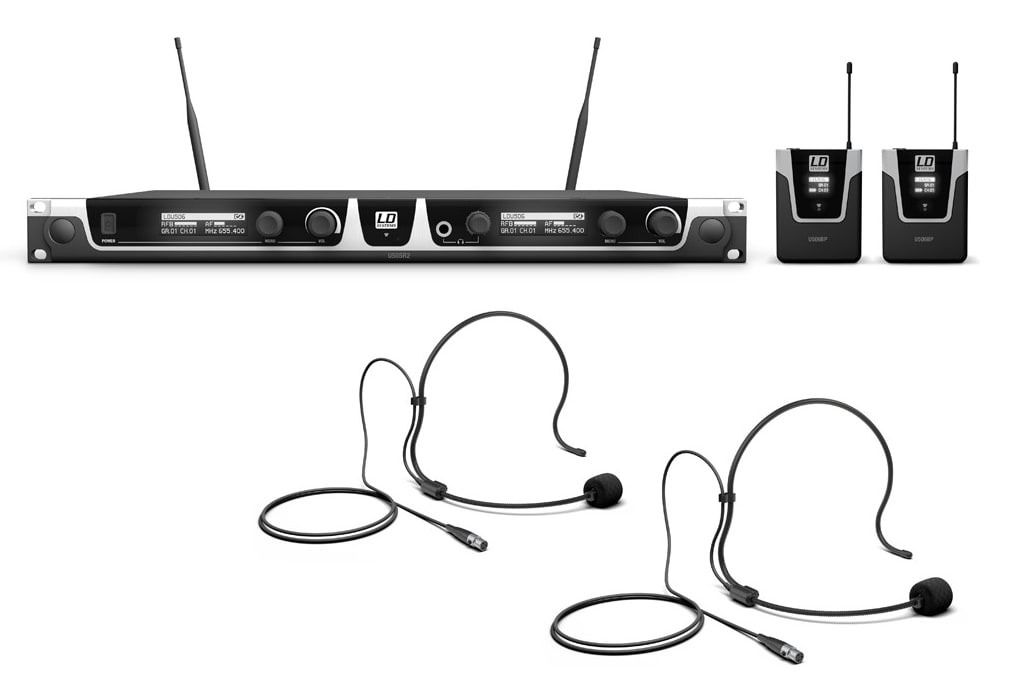

This pack comprises of 3x Products: 2x Bodypack Transmitters(LDU506BP), 2x Headsets(LDWS100MH1) and Receiver(LDU506R2).

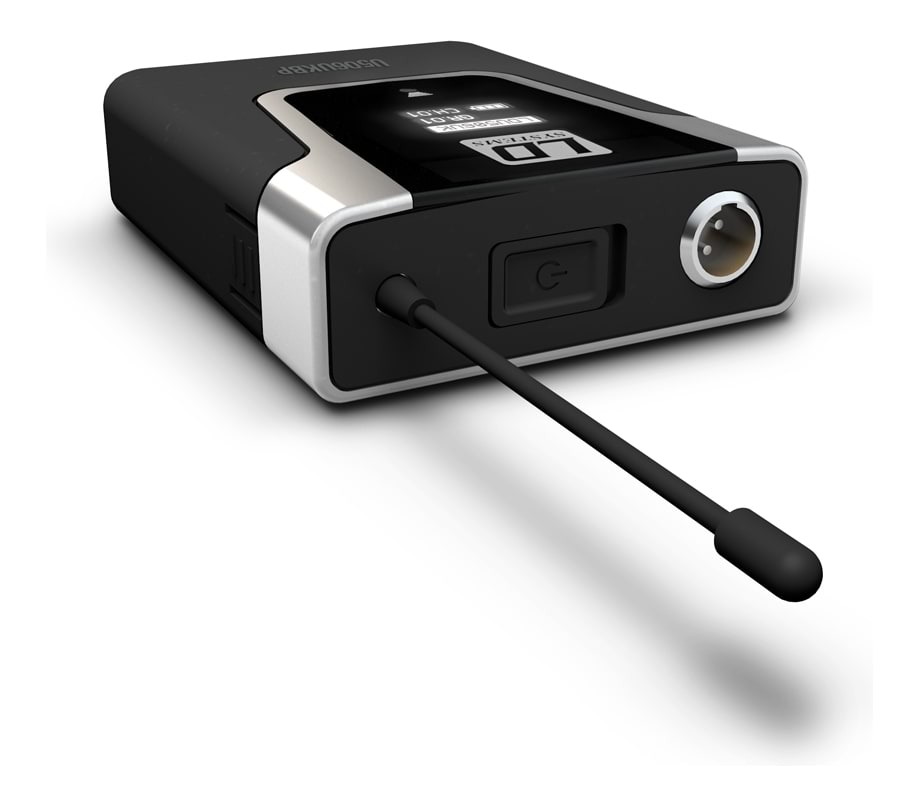

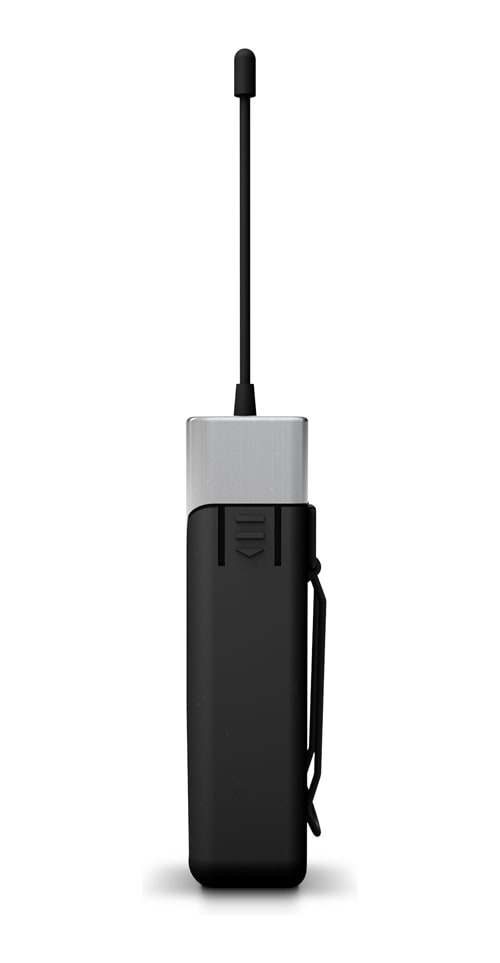

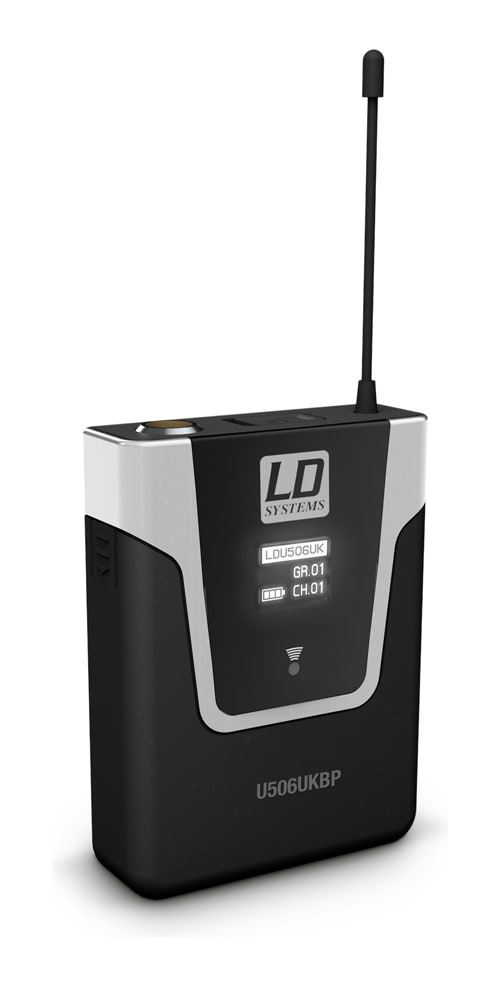

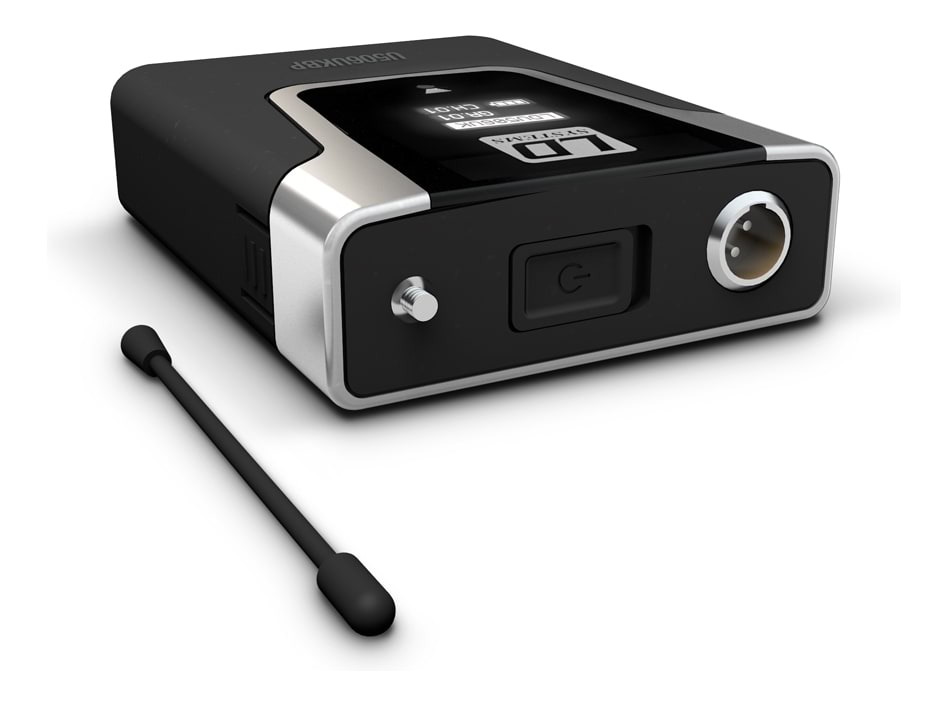

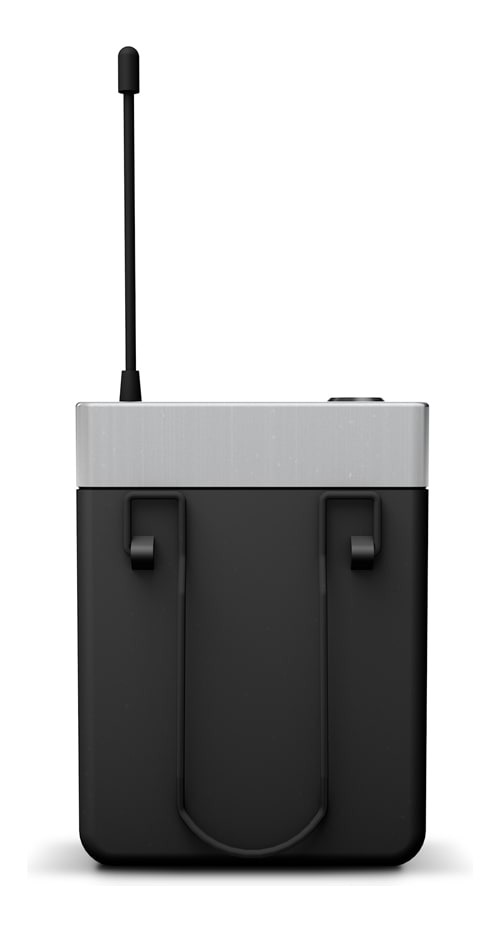

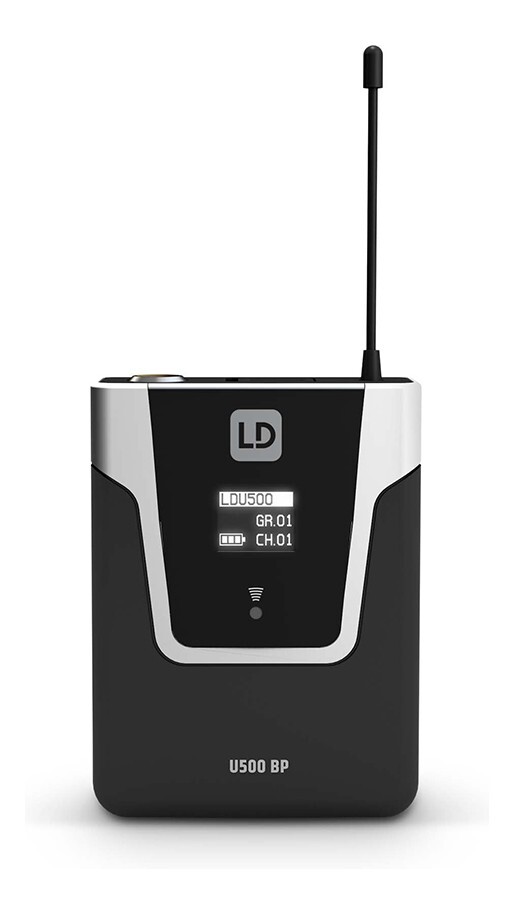

U506BPH2 Pack Includes 2x Bodypack Transmitter (LDU506BP)
The Transmitter is an essential accessory that is part of the Wireless Microphone System. It operates at a frequency range between 655 and 679 MHz and offer 96 (8 groups of 12 channels). It further features a Mini-XLR (3-pin) Input and provides a frequency response between 30Hz and 16kHz. Boasting a Signal-to-noise ratio of >90 dB the Transmitter provides great performance. It also boasts an OLED display that provides visual feedback and the transmitter is powered by 2x AA batteries.

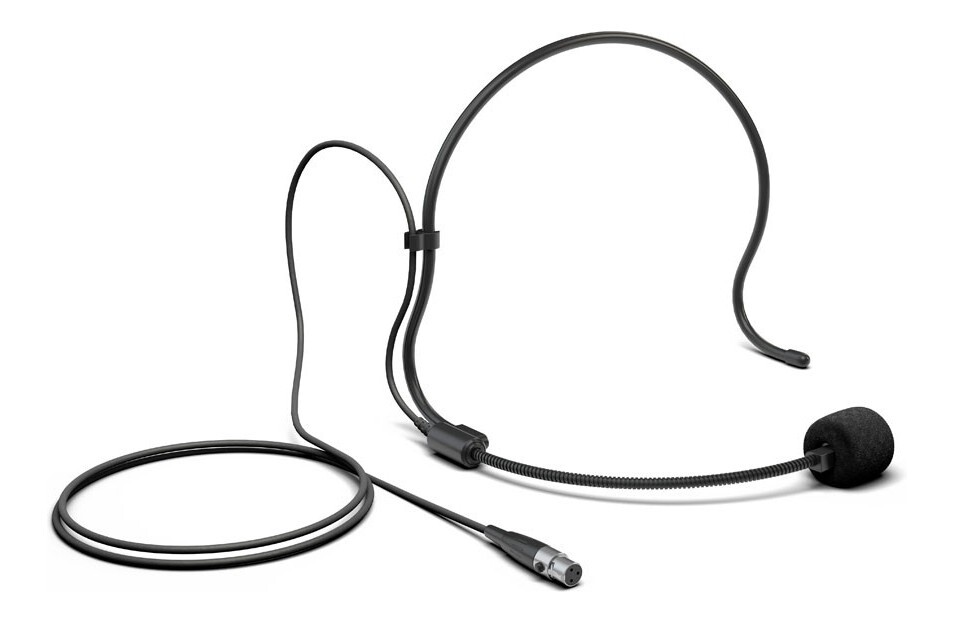

2x Headset (LDWS100MH1)
The U506BPH2 pack offers an LDWS100MH1 Headset featuring a Cardioid Microphone. It offers a frequency response between 20Hz and 20 kHz and requires phantom power of only 5V. You can connect the headset to the transmitter via the Mini-XLR (3-pin, female). The Headset also includes a convenient foam windscreen for controlling vocal plosives.

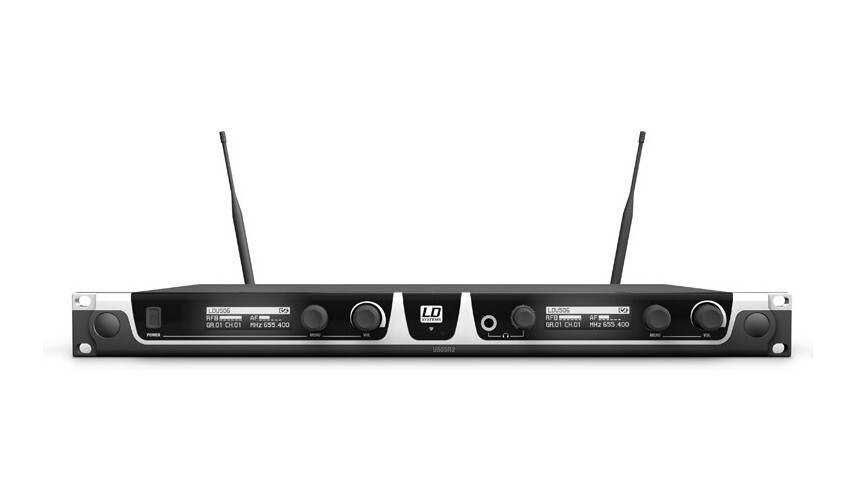

Duel Receiver (LDU506R2)

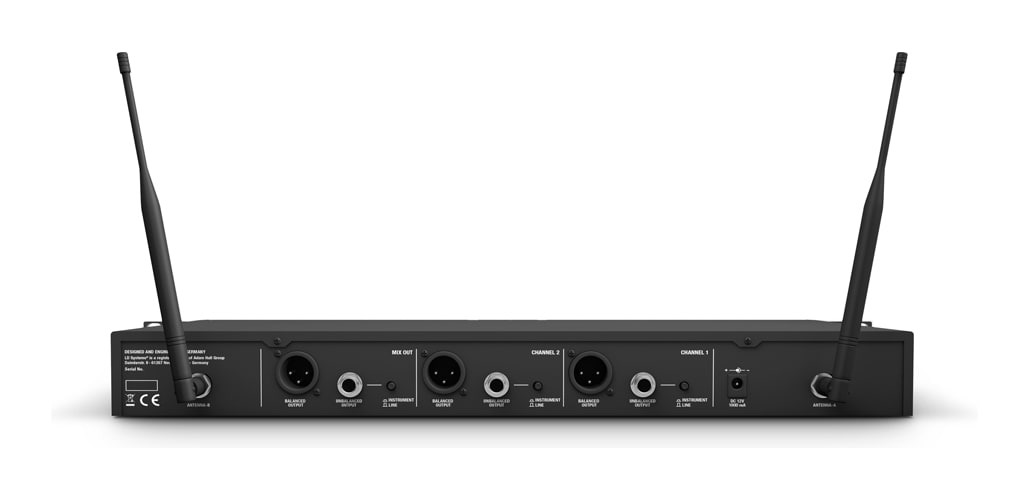

Finally, the last component to the U506BPH2 pack is the true diversity Duel Receiver with FM. This unit includes 2x antenna inputs with a BNC antenna connector. It offers a Signal-to-noise ratio of > 105 dB and features IR frequency synchronisation. It includes an audio output that uses balanced 2x XLR – 12 dBV or 2x 6.3 mm TRS – 18 dBV. For an unbalanced audio output, you can use the 6.3 mm jack.  The front panel also offers an LCD with independent knobs for Menu Functions and Output Volume. A power adapter is included.

Features:

  • True diversity UHF wireless system
  • Shock-mounted dynamic and condenser microphone capsules
  • Automatic channel scan
  • Easy one-touch infrared frequency syncing
  • Pilot tone squelch circuit prevents noise
  • Switchable RF transmitter output (2, 10 or 30 mW)
  • Rugged enclosures
  • High-contrast OLED display

Specifications:

Product Type Dual Wireless Microphone System
Channels 2 x 96 (8 groups of 12 channels)
Transmission method FM
RF Output Variable (2mW, 10mW, 30mW)
Transmission frequency 655 – 679 MHz
Frequency response 30 – 16000 Hz
THD < 0.1%
Signal to noise Receiver – > 105 dB
Bodypack – > 90 dB
Noise reduction Squelch
Connectors Receiver – 2 x XLR outputs, 1 x XLR mix output, 1 x ¼” TS Jack mix output
Bodypack – 1 x 3-Pin Mini XLR input
Antenna connection BNC
Power supply 12 – 18 V DC (supplied)
Bodypack – 2 x AA battery
Dimensions Receiver – 483 x 45 x 190mm
Bodypack – 65 x 86 x 23mm
Weight 5.3kg
View PDF brochure for LD Systems U506 BPH2 Dual Wireless Headset Microphone System
