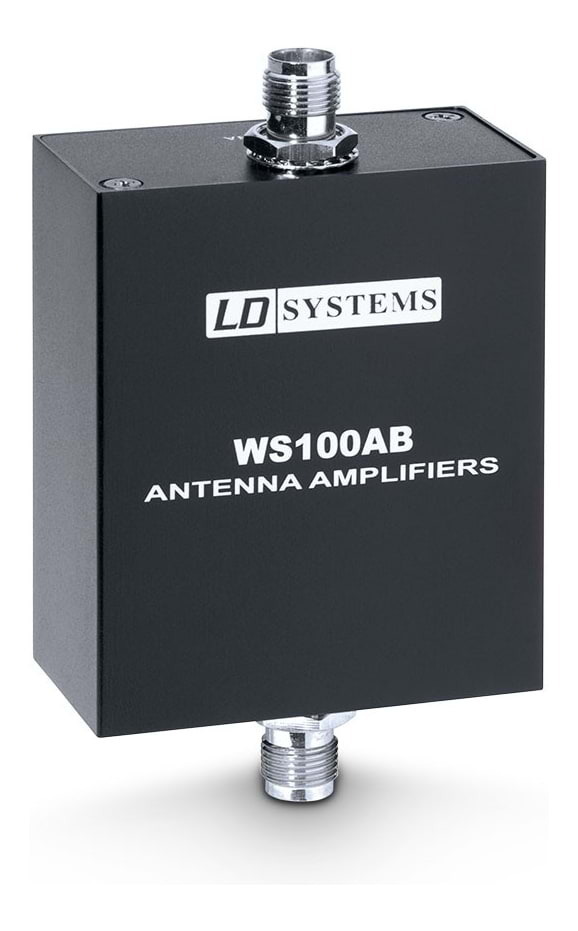

LD Systems WS100 Antenna Booster

LD Systems

LD Systems WS100 Antenna Booster

$198.99
  In Stock
Found a better Price? Price match now
or interest free for up to 6 months with
-
+

The LD Systems WS100 Antenna Booster increases your wireless microphone antenna gain by 13dB. Designed to be used with the LDWIN42 series, it is essential for installations where there is a long run of coaxial cable. Easy to fit, suitable for 500-900MHz.

Dispatch

LD Systems WS100 Antenna Booster
The LD Systems WS100 Antenna Booster increases your wireless microphone antenna gain by 13dB. Designed to be used with the LDWIN42 series, it is essential for installations where there is a long run of coaxial cable. Easy to fit, suitable for 500-900MHz.

Booster Essential
Antenna boosters are essential for systems with long runs of coaxial cable, the longer the cable the bigger the signal loss, and as a result microphone performance diminishes. The WS100AB boosts your signal level so that it is at optimal levels when it reaches the receiver.

Features:

  • Active antenna booster
  • +13dB gain
  • Supports 500MHz to 900MHz signals

Specifications:

  • Type: Antenna Amplifier
  • Frequency band: 500 – 900 MHz
  • Frequency bandwidth: 400 MHz
  • Signal gain: 13dB
  • Antenna input connection: TNC
  • Antenna output connection: TNC
  • Antenna input impedance: 50 Ohm(s)
  • Antenna output impedance: 50 Ohm(s)
  • Power consumption: 9VDC V
  • Dimensions: 65mm x 75mm x 35 mm
  • Weight: 0.276kg
  • Other features: Power supply via antenna output connector
View PDF brochure for LD Systems WS100 Antenna Booster
