  • LD Systems WS100-DA Directional Antenna Paddle 500-900 MHz - Pair

    $498.99
      In Stock
    Found a better Price? Price match now
    or interest free for up to 6 months with
    -
    +

    If you need to increase your increase wireless solution performance, then this LD Systems WS100DA directional antennae is the key. Sold in pairs, these aid to to boost signal reception and transmission. Gain of 13dB clean signal. BNC connector.

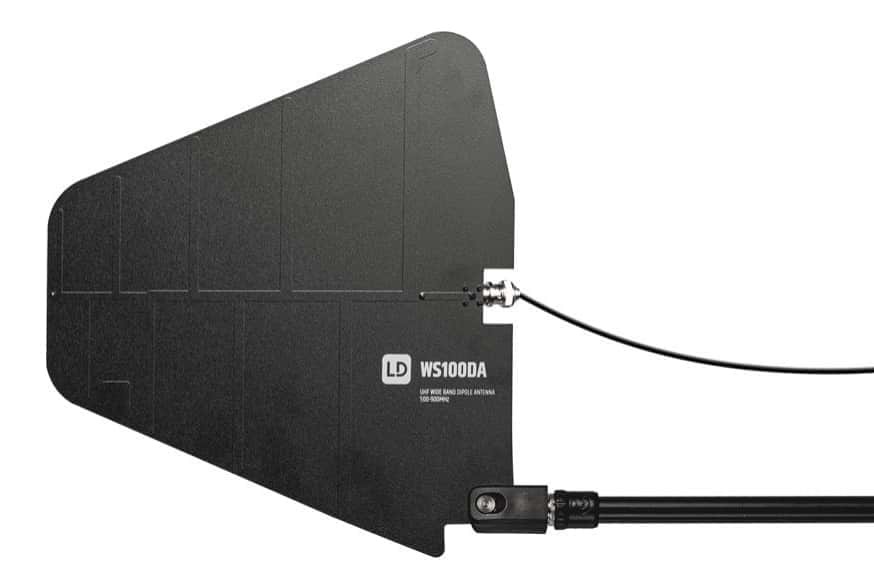

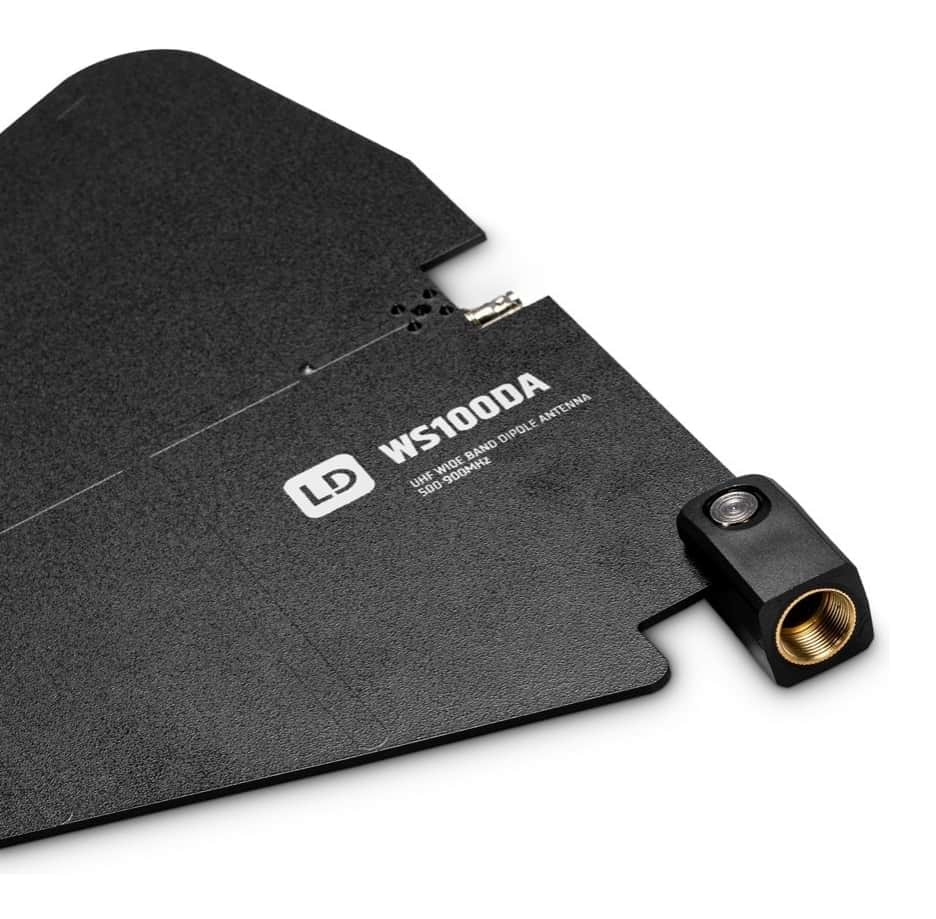

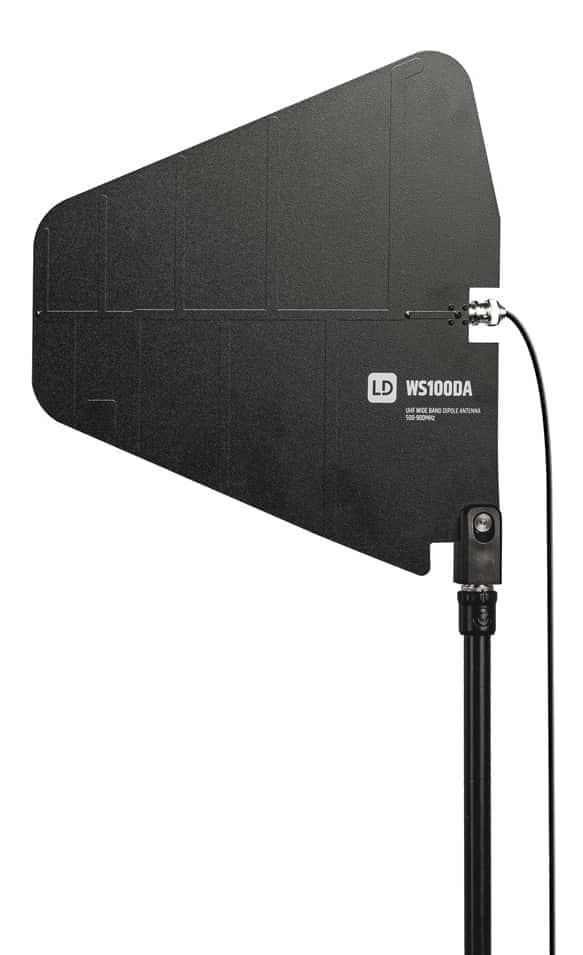

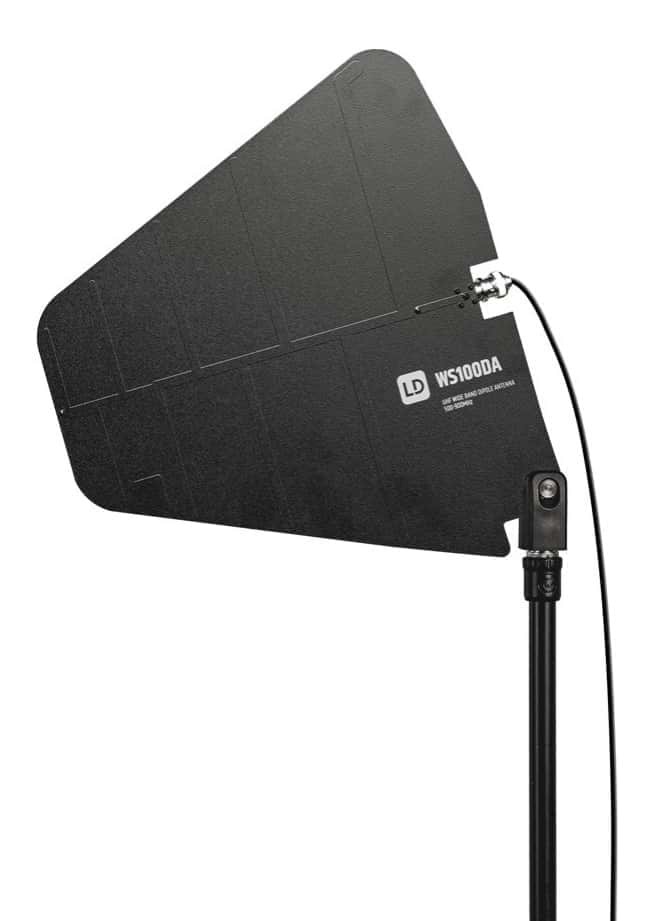

    LD Systems WS100-DA Directional Antenna Paddle 500-900 MHz - Pair
    If you need to increase your increase wireless solution performance, then this LD Systems WS100-DA directional antennae is the key. Sold in pairs, these aid to to boost signal reception and transmission. Gain of 13dB clean signal. BNC connector.

    Compatible with Vast Majority of Systems
    The WS100-DA directional antenna is an external antenna designed to enhance your receivers pickup. The directional antenna also helps you isolate where you want to receive the RF signal from, and reduce unwanted RF signals and interference. For the best results, it is recommended to combine with a high-quality coaxial cable and using signal boosters as required to keep your level as close to 0dB at the receiver as possible. For use with multiple microphone systems, an antenna splitter like the LD Systems Win42AD, which allows you to receive and direct signal to multiple microphones receives from 1 set of antennae.

    Features:

    • Passive Directional Antenna
    • Improve your wireless system signal
    • Directional for reducing unwanted interference and background RF
    • Frequency range: 500 ~ 900 MHz
    • +7 dBi gain
    • Supplied as a pair, cable and stand not included

    Specifications:

    Frequency band 500 - 900MHz
    Frequency bandwidth 400MHz
    Impedance 50 Ohm(s)
    Antenna gain 7 dBi

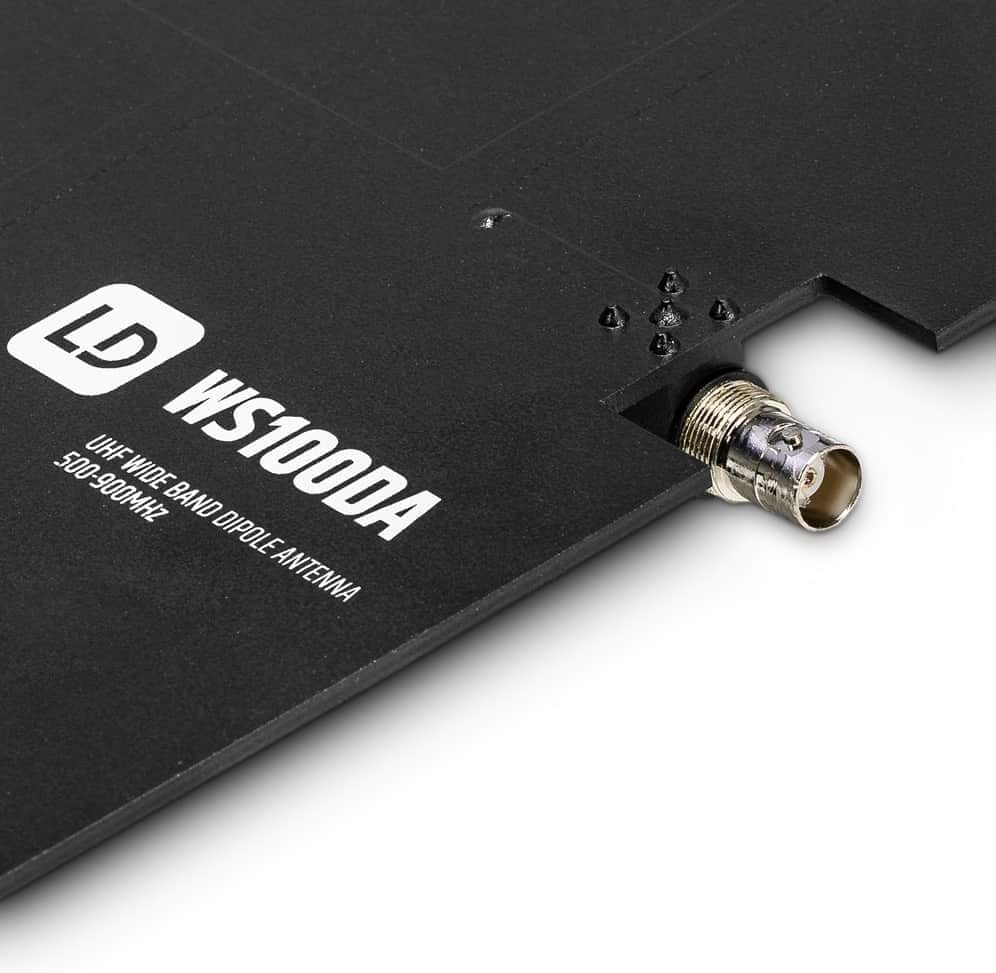

    Antenna connector BNC
    Threaded connector 5/8"
    Width 290mm
    Height 260mm
    Depth 3mm
    Weight 0.953kg
    Accessories (included) Adapter 5/8" to 3/8"



    View PDF brochure for LD Systems WS100-DA Directional Antenna Paddle 500-900 MHz - Pair
