  • CKMOVA UM100 Kit1 Ultra-Compact UHF Wireless Microphone

    Wireless Transmitter and Receiver

    $159.99
    $199.99
    In Stock
    SAVE 20%
    Sale Ends:

    The CKMOVA UM100 - Kit1 - is an ultracompact 3.5mm output, UHF wireless microphone with a dual-channel receiver for cameras and mobile devices, and 1 transmitter with lavalier. Reliable broadcast-quality audio, with 20 selectable channels in 2 groups.

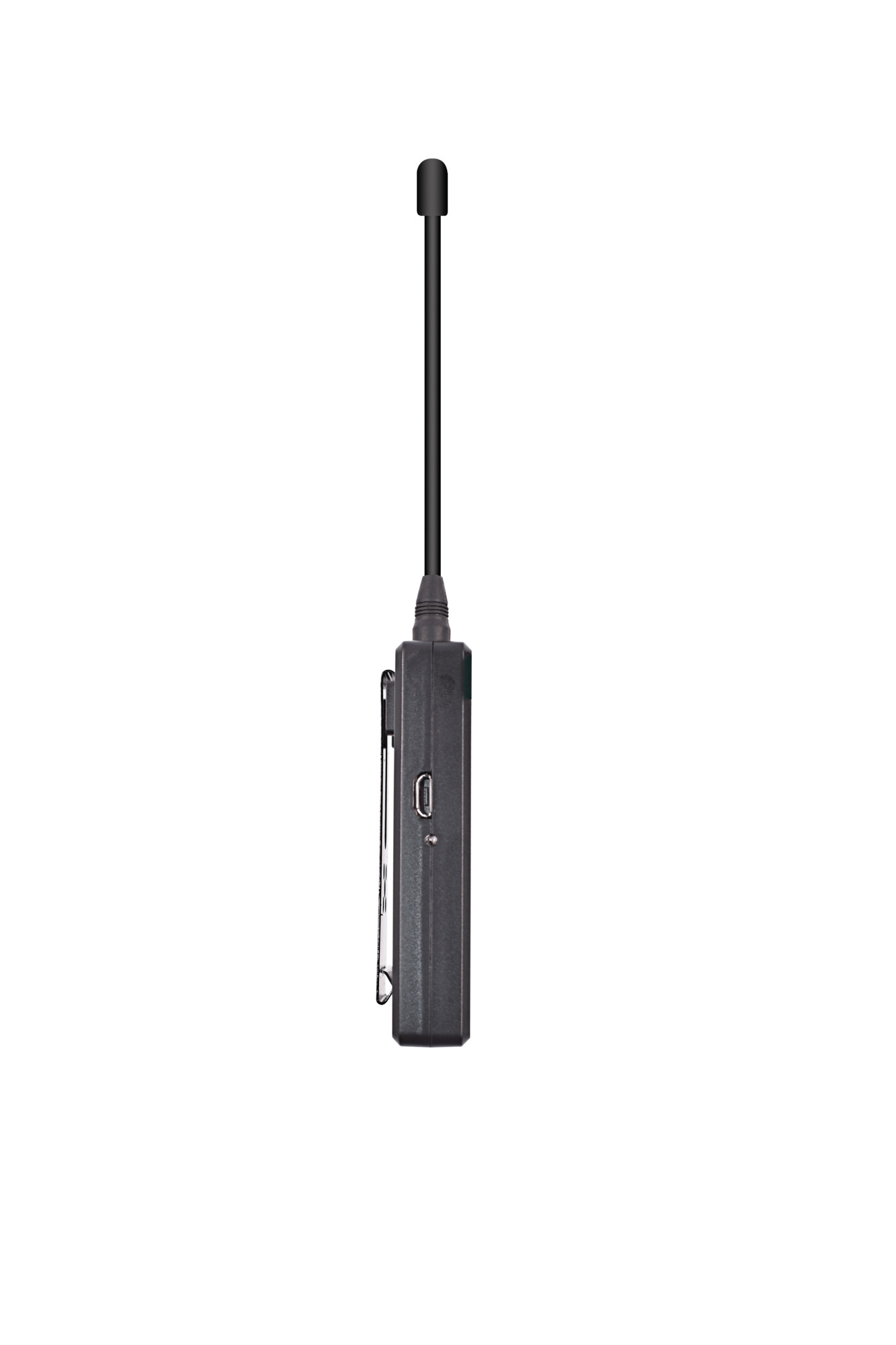

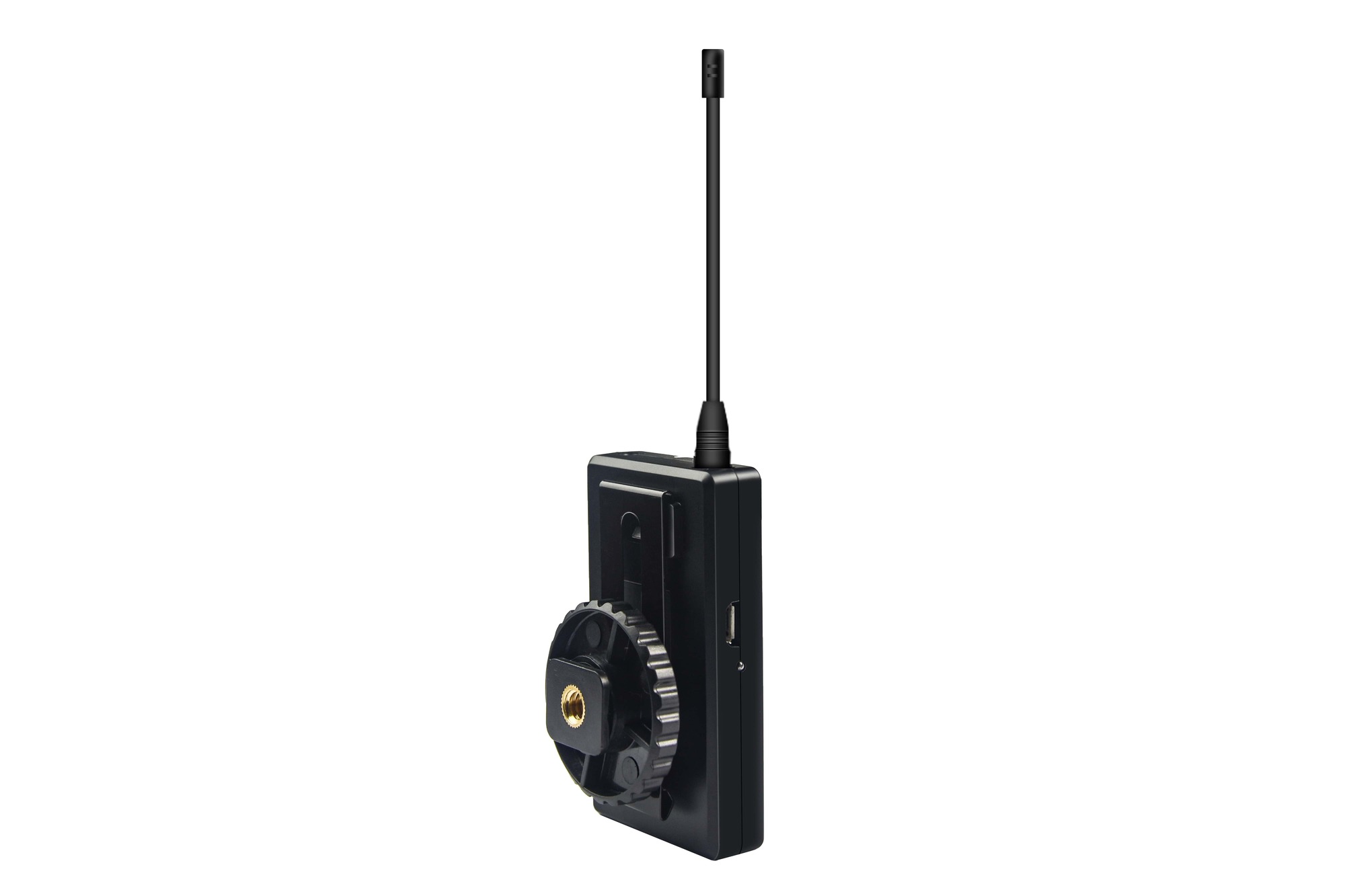

    CKMOVA UM100 Ultracompact UHF Wireless Microphone - Kit1
    The CKMOVA UM100 - Kit 1 - is an ultracompact 3.5mm output, UHF wireless microphone with a dual-channel receiver for cameras and mobile devices, and 1 transmitter with lavalier. Reliable broadcast-quality audio, with 20 selectable channels in 2 groups. 50m operating range.

    Reliable Broadcast Quality

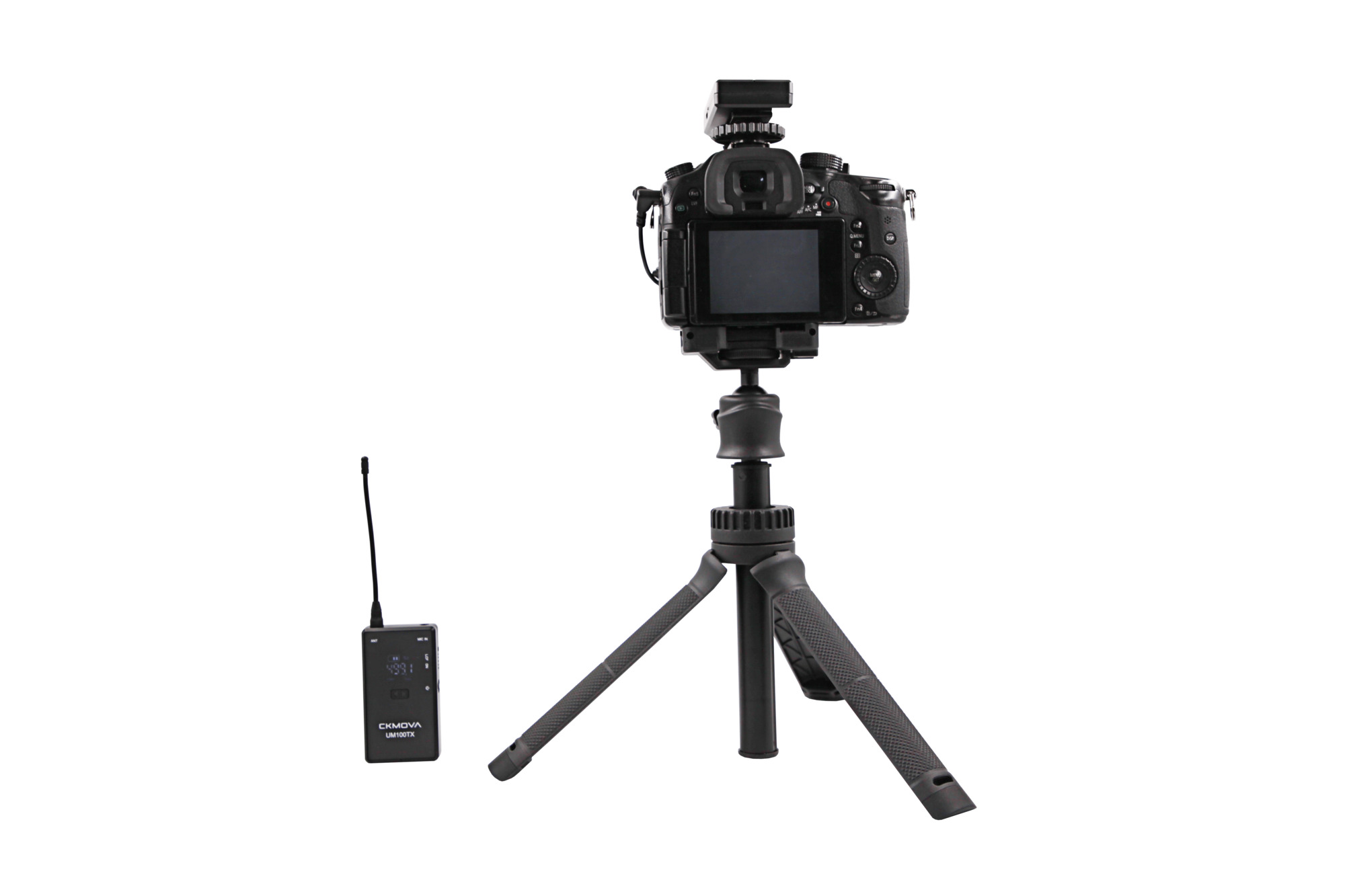

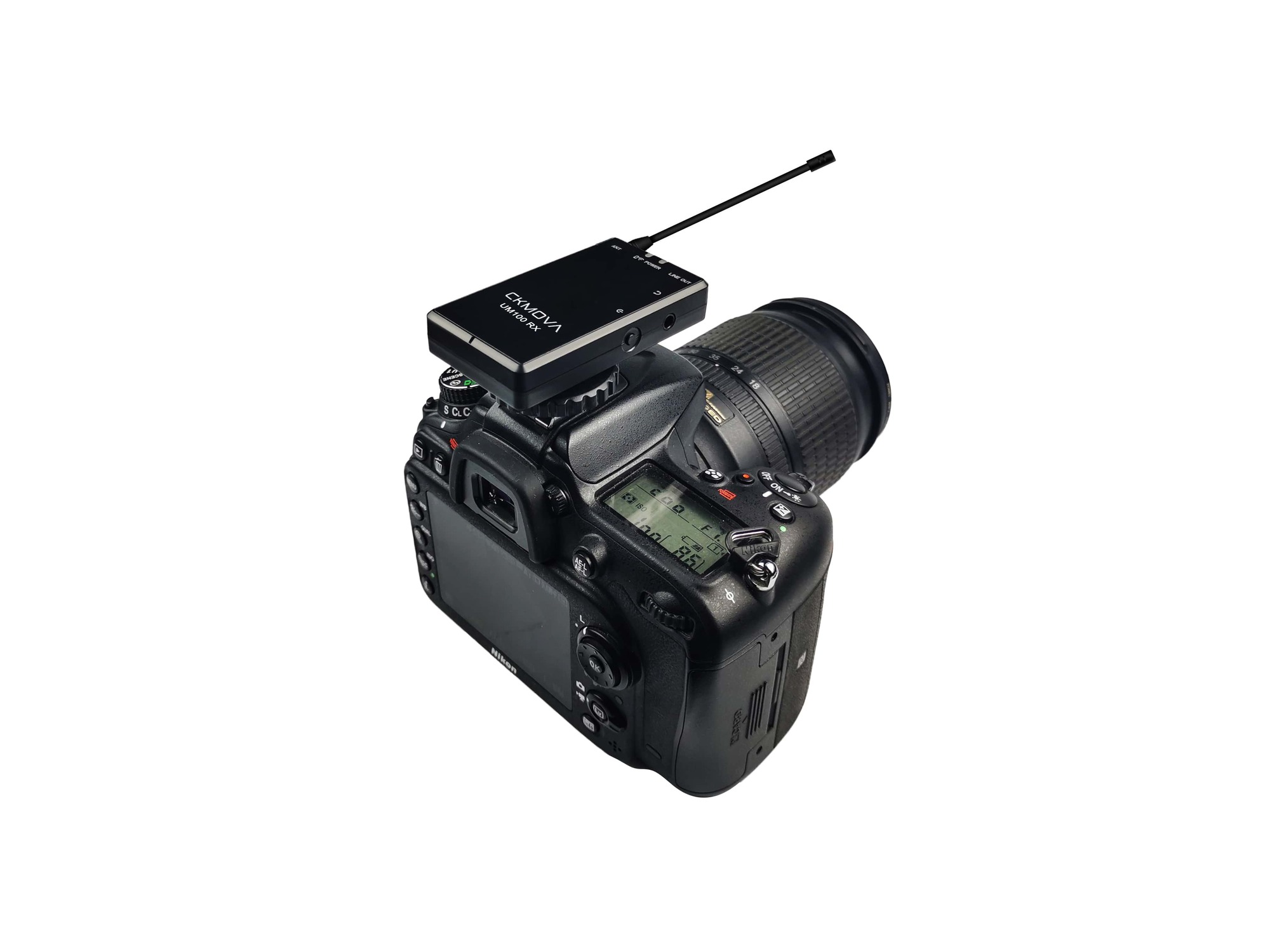

    This kit consists of a well built, solid transmitter and receiver. The receiver allows for direct connection to a hot shoe on a camera or smartphone stand. Both units are paired already, which allows for an extremely easy setup. The included lavalier is of a professional level, providing crisp and clear audio, and you can use other mics such as shotguns. Designed as a really light, compact format, both units have a great battery life of 6-8 hours from their built-in lithium battery. The receiver includes a line output, in order to monitor the incoming signal. The LCD screen on the units are bright and easy to read in direct sunlight. Incredibly functional at an operating distance of 50m.

    Features:

    • Dual-channel receiver for cameras and mobile devices
    • Reliable, broadcast-quality audio
    • 20 selectable channels in 2 groups
    • Frenquency range: 470-510MHz
    • 50m working distance
    • Headphone monitor output
    • Auto-pairs for quick and easy operation
    • Easy-to-read LCD displays

    Includes:

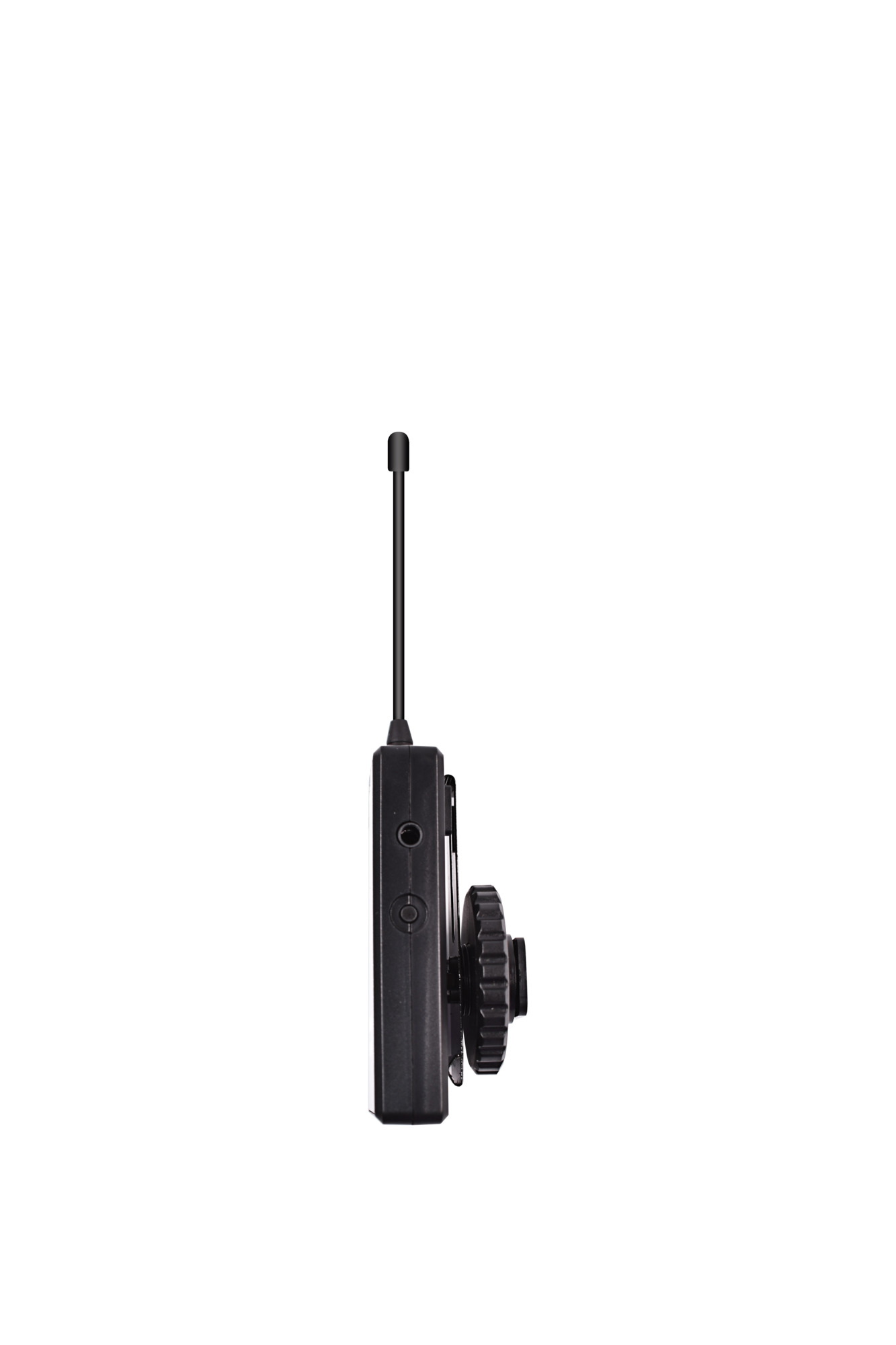

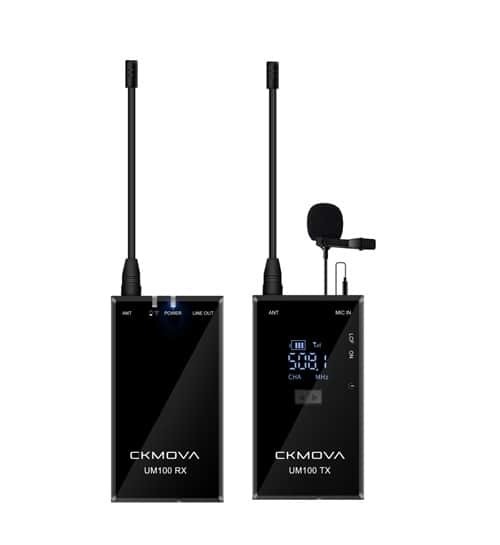

    • 1x UM100 RX Receiver

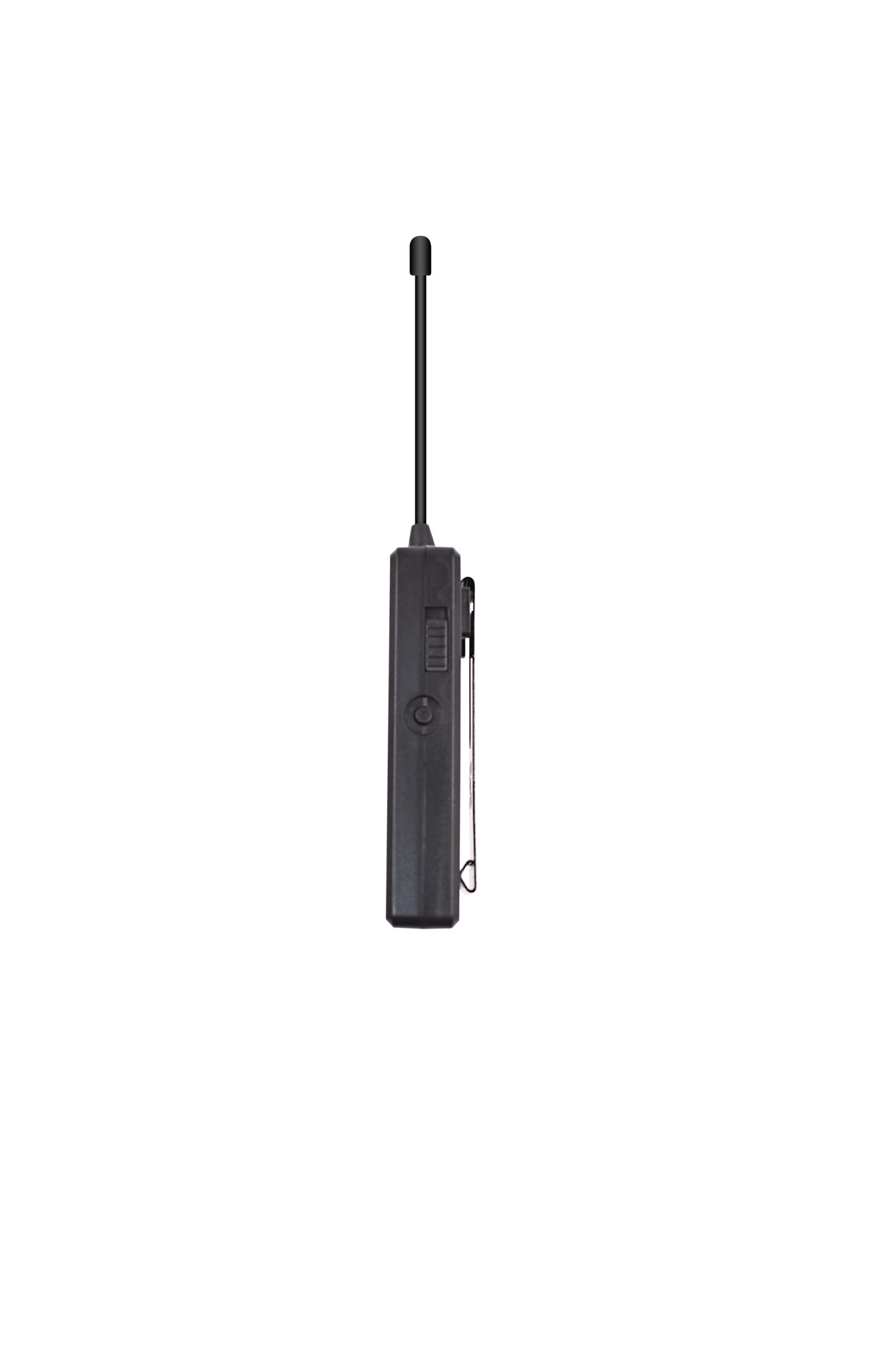

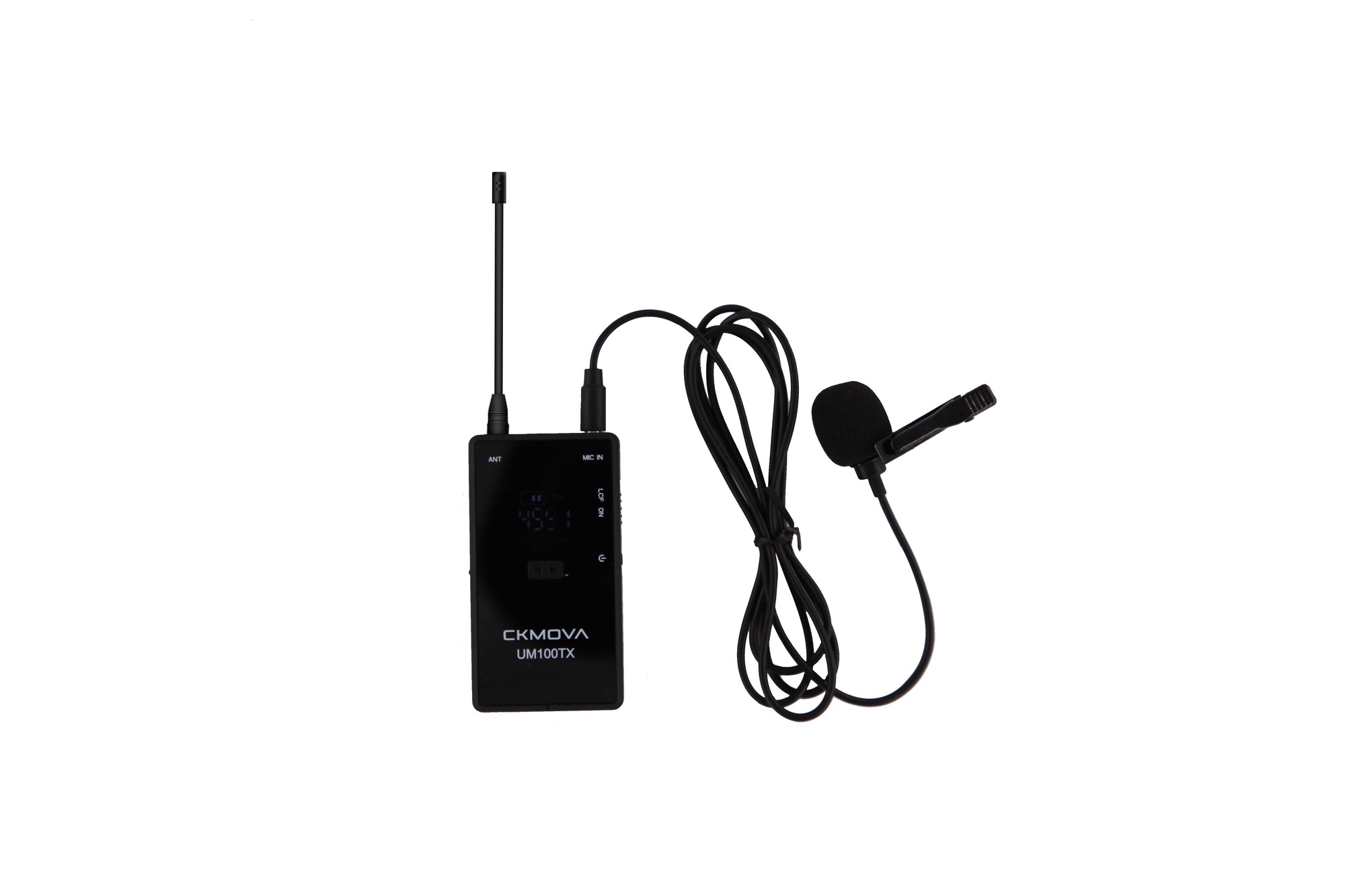

    • 1x UM100 TX Transmitter

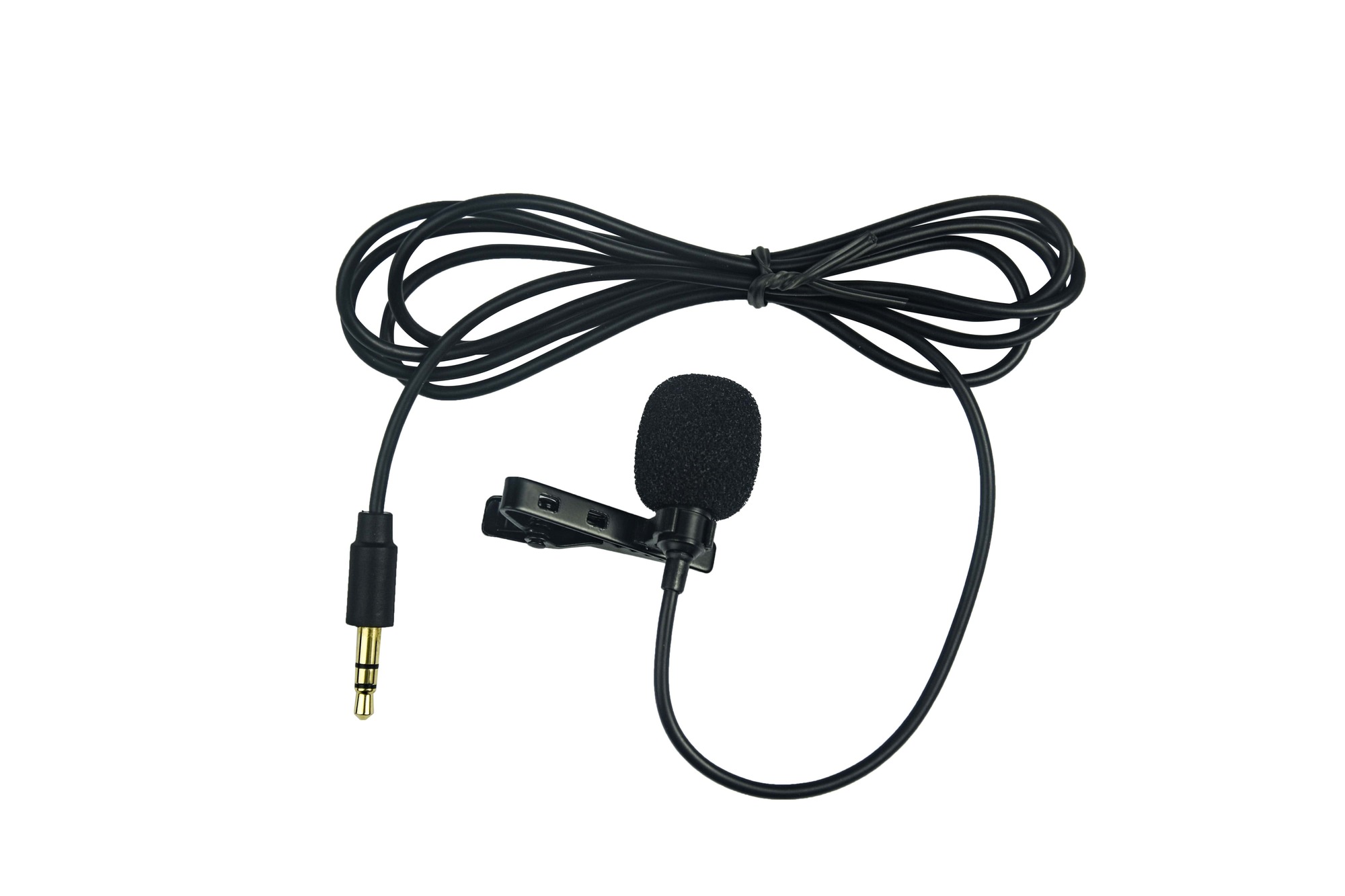

    • 1x Lavalier Microphone
    • 1x 3.5mm TRS to TRS Output Cable
    • 1x 3.5mm TRS to TRRS Output Cable
    • 1x Charging Cable
    • 1x User Manual

    Specifications:

    Frequency range  470-510MHz
    Modulation  DQPSK
    Audio frequency response  30Hz-18kHz
    Polar pattern  Omnidirectional
    Channels 20
    RF output power  ≤10mW
    Signal to noise ratio  ≥90dB
    Transmitter power  DC3.7V (Built-in lithium battery) Or DC-5V/0.5-2A external power input
    Transmitter charging input specifications  DC-5V/ 0.5-2A
    Transmitter battery charging time  2-4 hours
    Transmitter battery life 6-8 hours
    Receiver power DC3.7V, built-in lithium polymer battery (UM100 RX/TX)
    Receiver power
    Powered by USB-C socket device (UM100 RXUC)
    Receiver battery  life 6 hours (UM100 RX/TX)
    Weight

    RX:40g

    TX:40g

    RXUC: 10g

    Dimentions

    RX: 73*40*14(mm)

    TX: 73*40*14 (mm)

    RXUC: 72*15*10 (mm)

    View PDF brochure for CKMOVA UM100 Kit1 Ultra-Compact UHF Wireless Microphone

    Be The First To Review This Product!

    Help other SWAMP Industries users shop smarter by writing reviews for products you have purchased.

    Write a product review

    Product Enquiry Form Complete this form to email us your enquiry.




    MPN: CKM-UM100-Kit1
