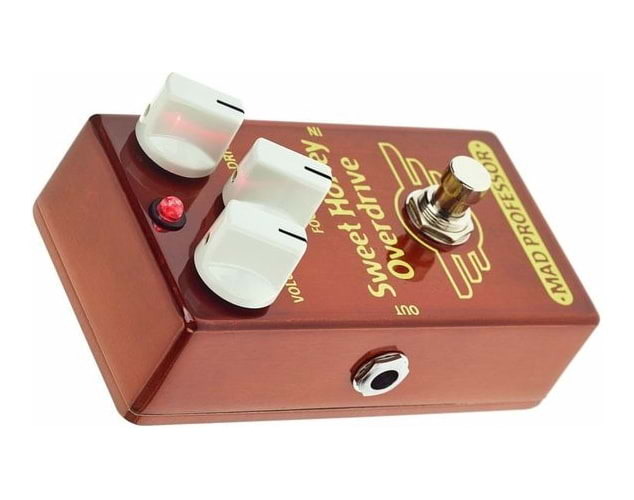

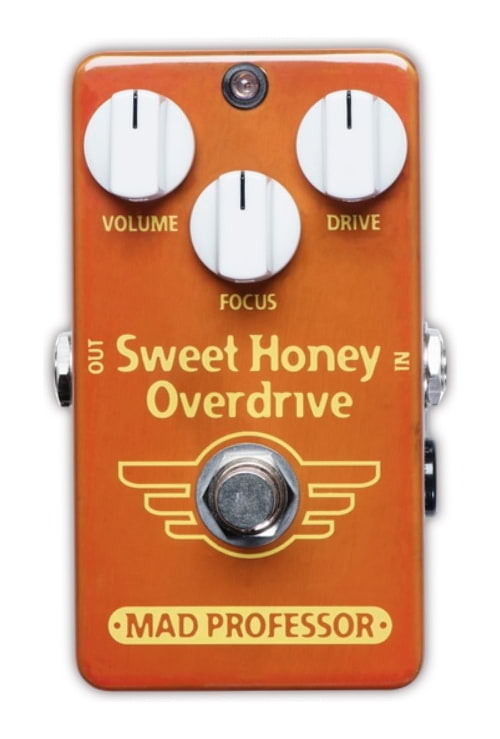

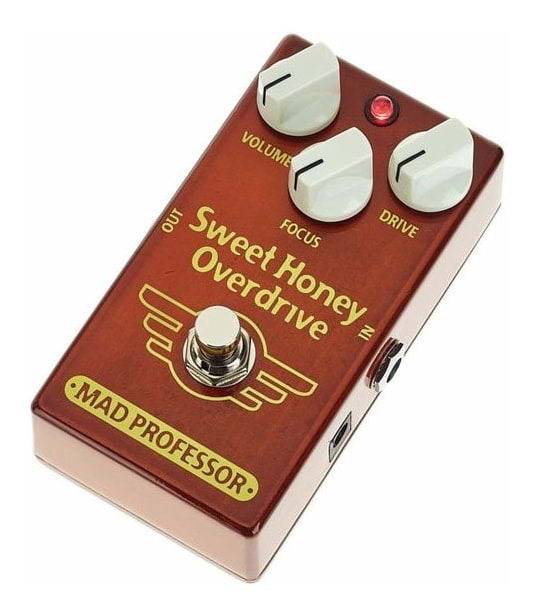

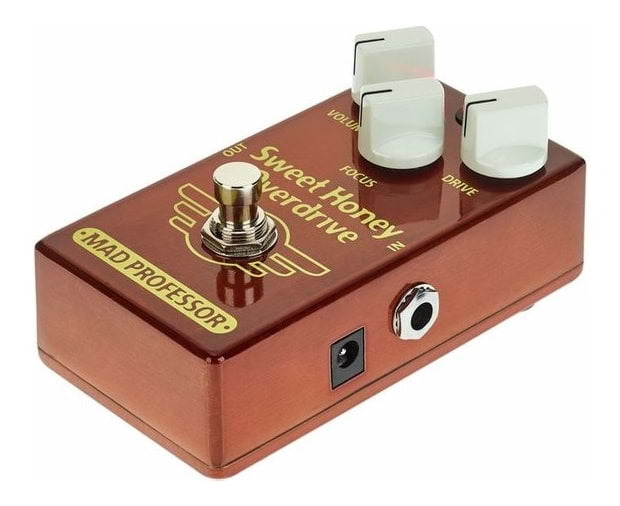

Mad Professor Sweet Honey Overdrive Guitar Effects Pedal

Mad Professor Sweet Honey Overdrive Guitar Effects Pedal
The Mad Professor Sweet Honey Overdrive (SHOD) offers valve amp-style overdrive that reacts to the dynamics of your playing. Easy to dial in your great tone, with volume, drive and focus controls, great for classic blues and rock tones. Becoming a classic pedal.

Touch Sensitive, Low Gain
Mad Professor Sweet Honey Overdrive (SHOD) is a touch sensitive low gain overdrive pedal. It is designed to overdrive distorted amplifiers and give dynamically controlled light overdrive on clean sounds. Distortion level can be controlled by pick attack and pickup strength. Harder picking for overdrive and softer for a cleaner tone. With the unique Focus control, you can adjust the feel and dynamics of the pedal as well as overall EQ. Turning Focus CCW you need to play harder to get distortion and the tone is softer, great for jazz and blues. Focus turned CW gives a slight treble boost and earlier distortion great for classic rock.

Controls:

• Volume: Sets the output volume.
• Drive: Controls the amount of overdrive.
• Focus: Controls how easily the circuit distorts as well as adjusting overall EQ. Turning CCW gives less distortion and a mellow effect, turning CW gives a slight treble boost and earlier distortion. Good starting point is 11 o’clock.

Specifications:

• Supply voltage range: 7,5 to 18VDC
• Current consumption: 5mA at 9VDC
• Input impedance: 260K
• Output impedance: 25K Ohm’s
• True bypass or buffered (switchable inside the pedal)
• 9V DC eliminator 2.1 mm plug centre negative
