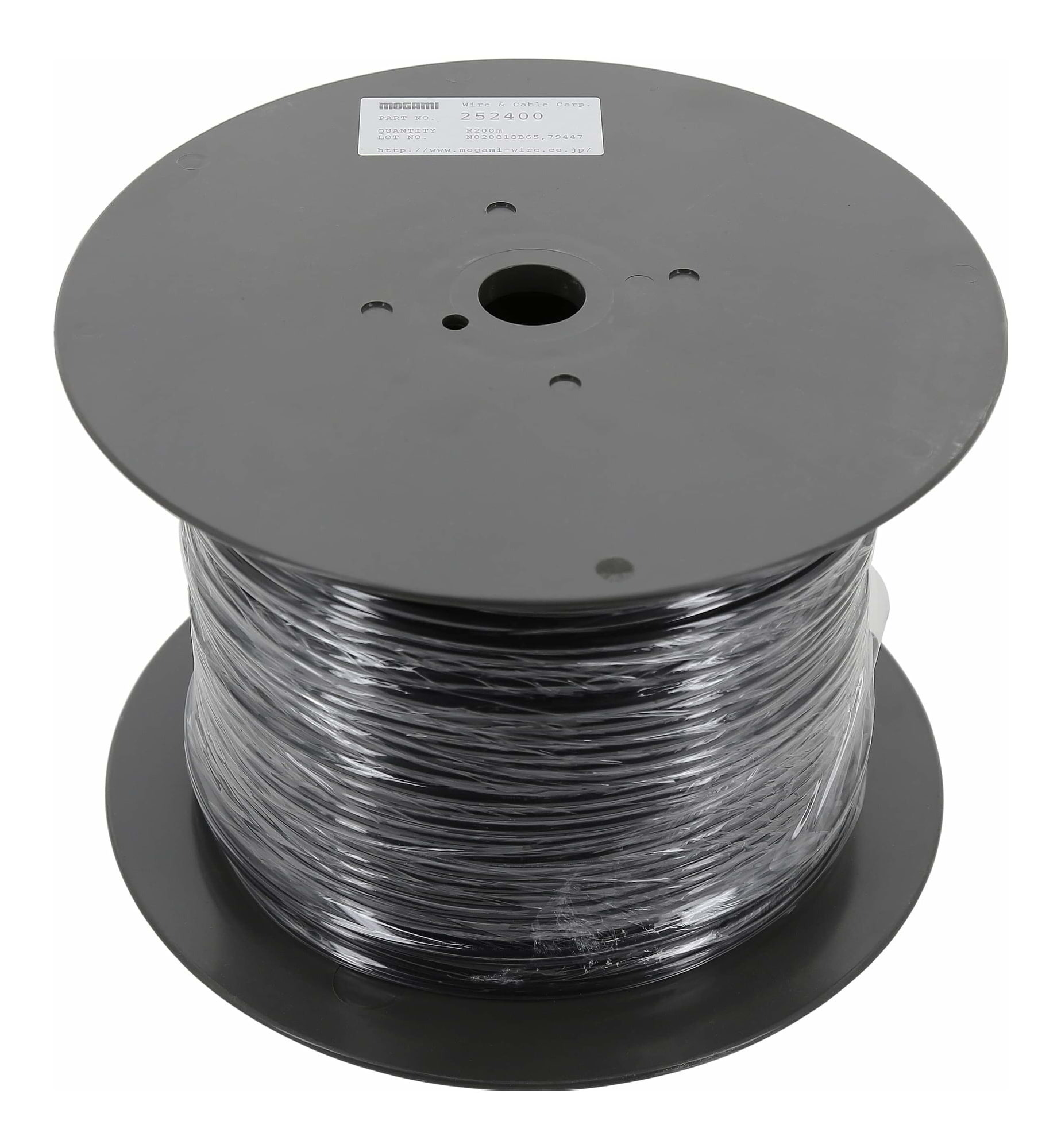

  • Mogami W3161 4 Channel AES/EBU Digital Audio Multicore Cable - 50m Roll

    $469.99
    RRP $549.45
      In Stock
    Found a better Price? Price match now
    or interest free for up to 6 months with
    -
    +

    This Mogami W3161 4 Channel AES/EBU Digital Audio Multicore Cable is excellent in providing high quality audio transmission especially for high frequency ranges, providing flexibility and low capacitance. 50m roll. 4 pairs of conductors, 110Ω.

    Mogami W3161 4 Channel AES/EBU Digital Audio Multicore Cable - 50m Roll
    This Mogami W3161 4 Channel AES/EBU Digital Audio Multicore Cable is excellent in providing high quality audio transmission especially for high frequency ranges, providing flexibility and low capacitance. 50m roll. 4 pairs of conductors, 110Ω.

    Snake Cable
    The Mogami W3161 AES/EBU Digital Audio Multicore Cable (328'/Black) is flexible and its compact design makes this multicore 110 Ω AES/EBU digital audio snake cable easy for wiring, installation, and handling. Because of employed cellular PP (polypropylene) insulation material, regardless of its compact overall diameter, a larger conductor size is used, which results in lower attenuation. Strict tolerance control of impedance within ±5% up to ±10% at the maximum.

    Features:

    • Easy cable core identification system, such as numbered cable core
    • Easy wiring assisted by the same conductor size drain wire
    • Flexible and good low temperature characteristic

    Specifications:

    • No. of Cores: 4
    • Overall Diameter: 10.5 mm
    • Nominal Jacket Thickness: Approximately 1.2 mm
    • Cable Core Specs:
    • Conductor: 7/0.20 A (0.22 mm²) #24 AWG (7× #32 AWG)
    • Insulation: Ø0.053" (Ø1.35 mm) CPP (Cellular polypropylene)
    • Drain Wire: 7/0.20 A
    • Shield: Approximately 79/0.10 A served (spiral) shield
    • Jacket: Ø0.126" (Ø3.2 mm) flexible PVC
    • Electrical and Mechanical Characterics:
    • DC Resistance: At 20°C: Inner Pair Conductor: 0.0247 Ω/ft (0.081 Ω/m)
    • Shield: 0.0073 Ω/ft (0.024 Ω/m)
    • Capacitance: At 1 kHz, 68°F (20°C) (partial capacitance value): 14 pF/ft (46 pF/m)
    • Inductance: 0.24 µH/ft (0.8 µH/m)
    • Impedance: 110 Ω ±10%
    • Attenuation: 0.020 dB/ft (0.065 dB/m)
    • Phase: 0.17 rad/m
    • Noise:
    • Electrostatic: 5.0 mV maximum
    • Electromagnetic: At 10 kHz: 2.0 mV maximum
    • Microphonics: 60 mV
    • Voltage Breakdown: Must withstand at 500 VDC / 15 seconds
    • Insulation Resistance: At 125 VDC, 20°C: 100,000 MΩ / × m Minimum
    • Tensile Strength: 303 N of one pair (26°C, 65% RH)
    • Emigration: Non-emigrant to ABS resin
    • Temperature: -4 to 158°F (-20 to 70°C )
    • Standard: AES3-100X(ANSI S.4.40-199X)
    • EBU Rech. 3250-E
    • CEI/IEC 958/CCIR Rec. 647
    • UL13 CL2X 60°C / UL20002 AWM 30V 60°C VW-1
    View PDF brochure for Mogami W3161 4 Channel AES/EBU Digital Audio Multicore Cable - 50m Roll
