Music Nomad MN821 "Tri-Beam" Dual Notched Straight Edge & Precision Straightedge

Music Nomad MN821 "Tri-Beam" Dual Notched Straight Edge & Precision Straightedge
A highly precise fretting tool, the MN821 Tri-Beam Straightedge is designed for assessing both neck relief (bow) and fret levelness on electric and acoustic guitars. It streamlines fret and neck setup by combining the functions of multiple straightedges.

Patent Pending

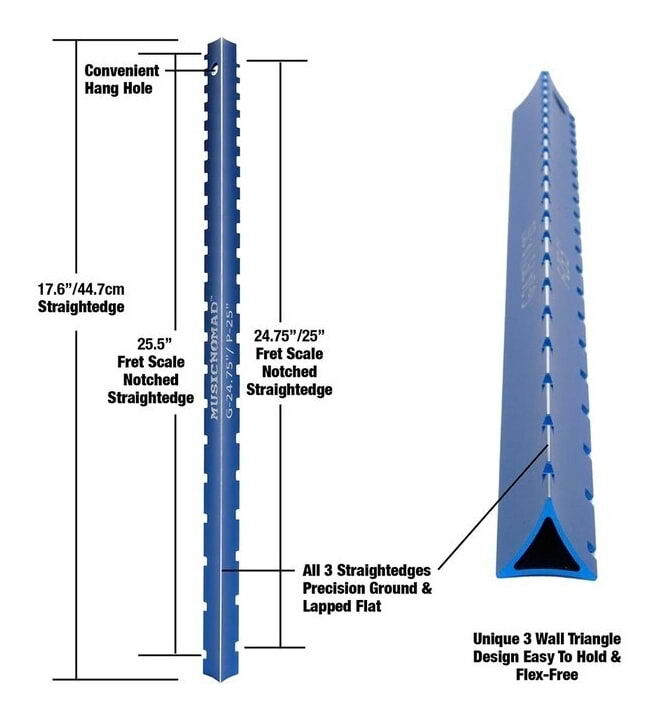

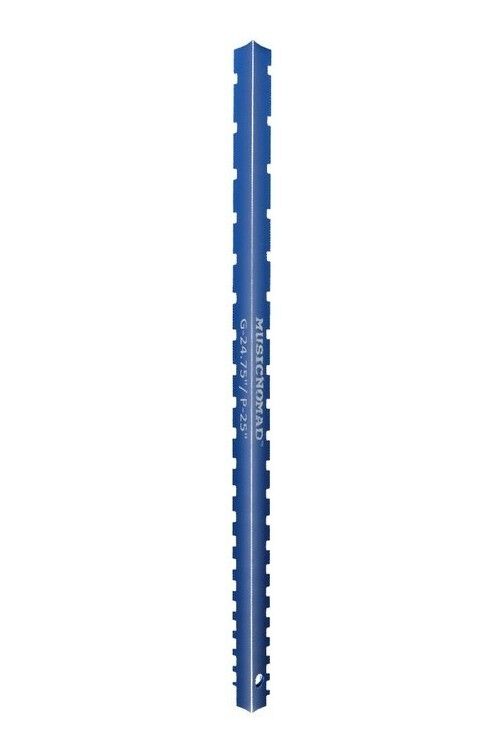

Diagnosing how level your frets and fretboard has never been easier with MusicNomad's patent pending Tri-Beam Dual Notched and Precision Straightedge. Creating a new higher standard, this unique 3 wall triangle design gives you two notched straight edges custom designed to cover more fret scale lengths ranging from 24.625" to 25" and 25.34" to 25.625" to measure the flatness of your fretboard and neck relief. Rotate to the 3rd side to use the 17.6" (44.7cm) "notch-free" straightedge to check the levelness of your frets. Using the highest quality aluminium and manufacturing techniques ensures straightness of the entire length and critically important polished, smooth flat edges. There is even a convenient hang hole.

This tool streamlines fret and neck setup by combining the functions of multiple straightedges into one compact piece. It allows luthiers, guitar techs, and serious hobbyists to:
 - Reliably measure neck relief without being affected by uneven frets.
- Assess fret crown and levelness directly.
 - Switch easily between common scale lengths without juggling tools.

Features:

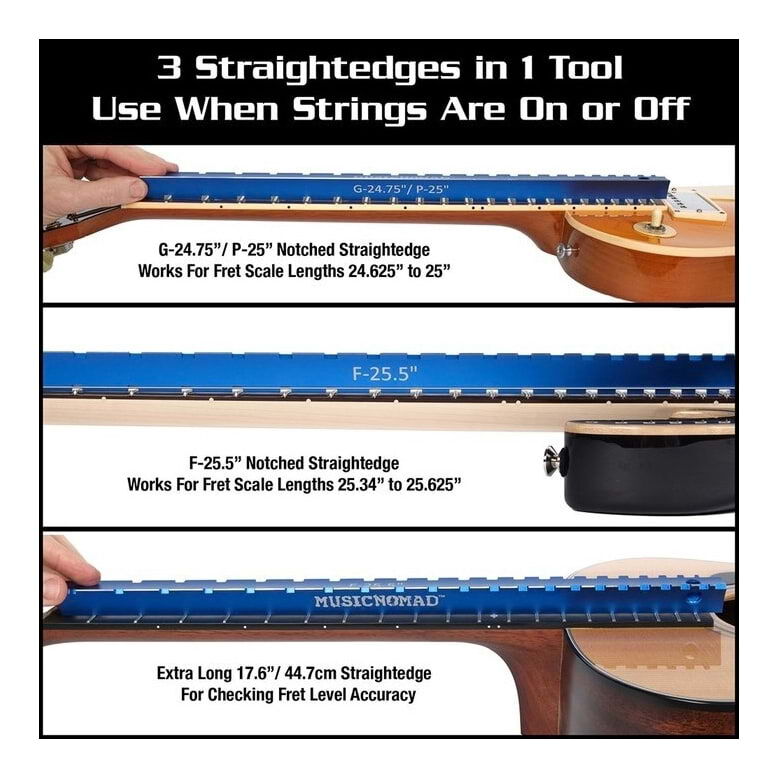

• 3 x Straight edges in 1: Our patent pending 3 'n 1 design sets a new higher standard for what you should expect when buying a notched straightedge. Our 2 Tri-Beam custom notched straightedges cover most all electric and acoustic guitars such as GIBSON, FENDER and PRS. Plus, on the 3rd Tri-Beam, you get a 17.6" (44.7cm) "notch-free" straightedge. No other product has 3 straight edges in 1 plus the breadth of guitars the notched straightedge works on.
• Perfection Built into the design with longer length & notches that cover more guitars: Check the flatness of your fretboard to assist in fretwork with our notches that cover 17.6" of the fretboard and touch the fretboard between 22 fret slots which is more than most other products on the market. You can also use it to measure neck relief to see if you need to adjust the truss rod.

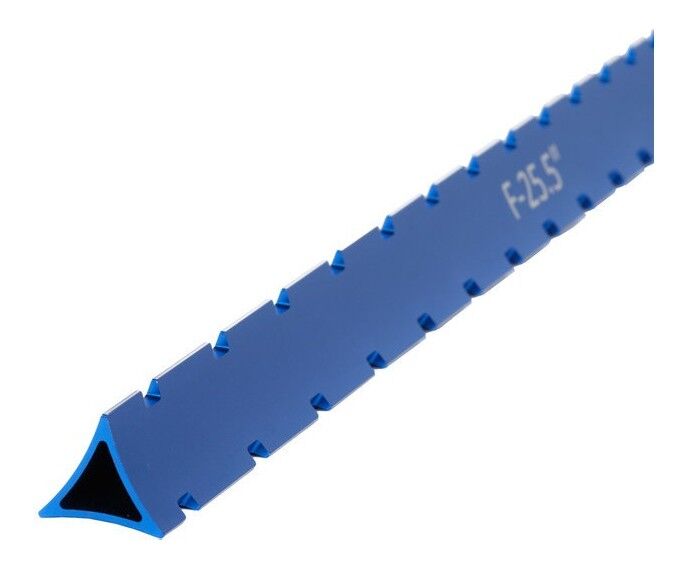

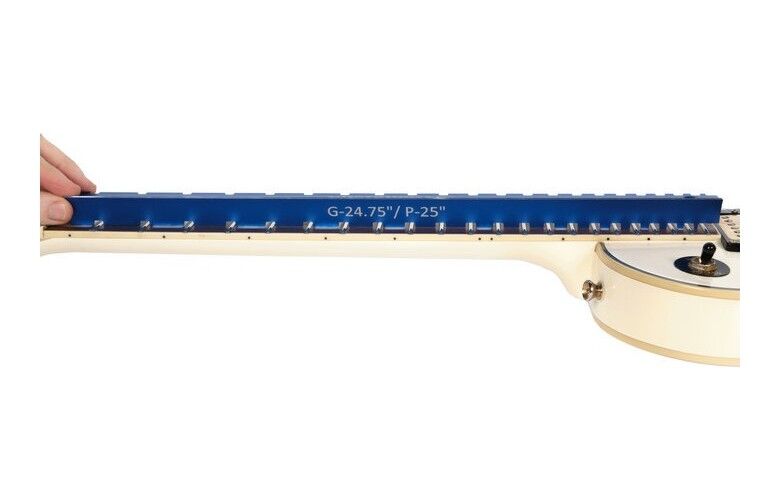

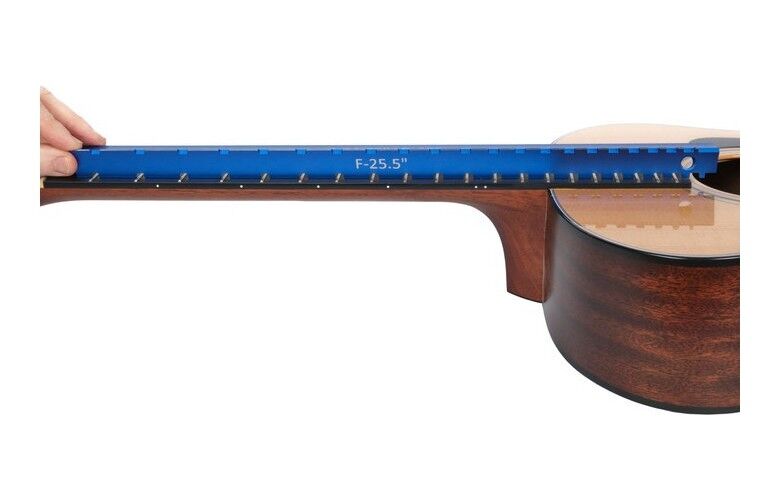

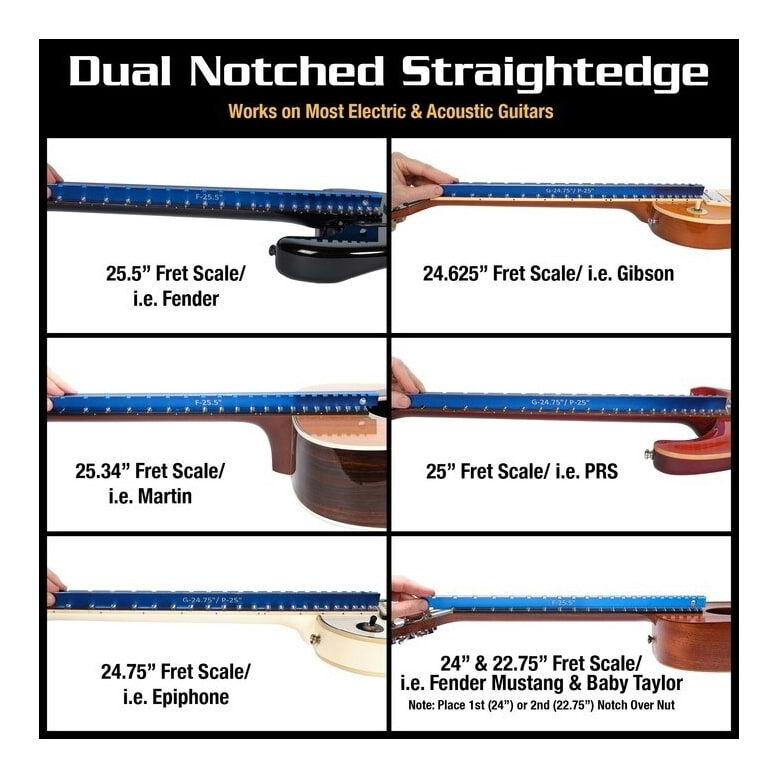

• Custom notch design is like no other specification and works for most electric and acoustic guitars. F-25.5 fits all 25.34" to 25.625" fret scale lengths. G-24.75/P-25 fits all guitars with fret scale lengths ranging from 24.625" to 25".

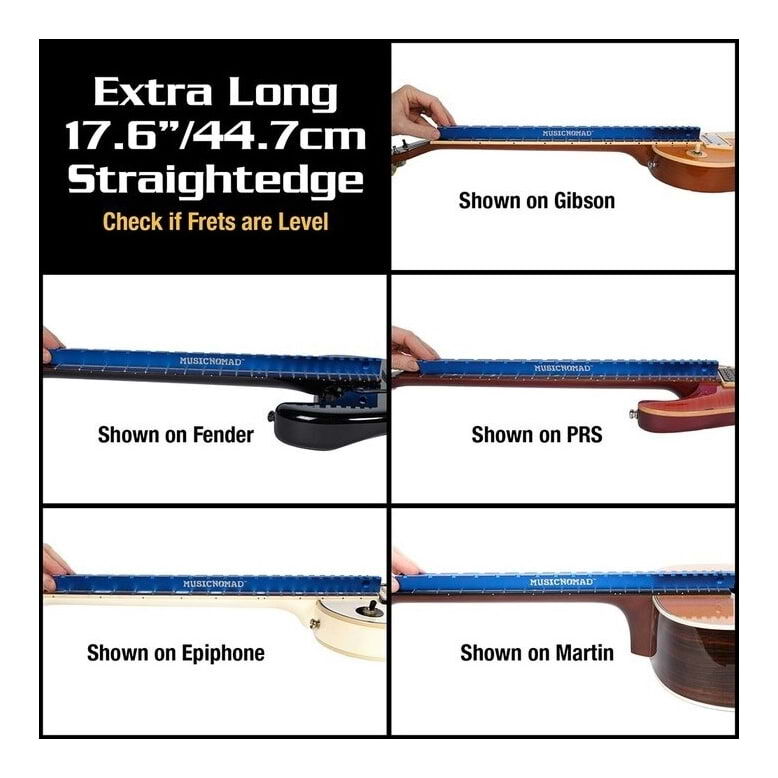

• 17.6" Precision Flat ("notch-free") Straightedge: Lay on top of the frets to check their flatness and assist in fretwork. All 3 straightedges are precision ground to ensure smooth flat edges within an accuracy tolerance of +/-.00125"/ft.

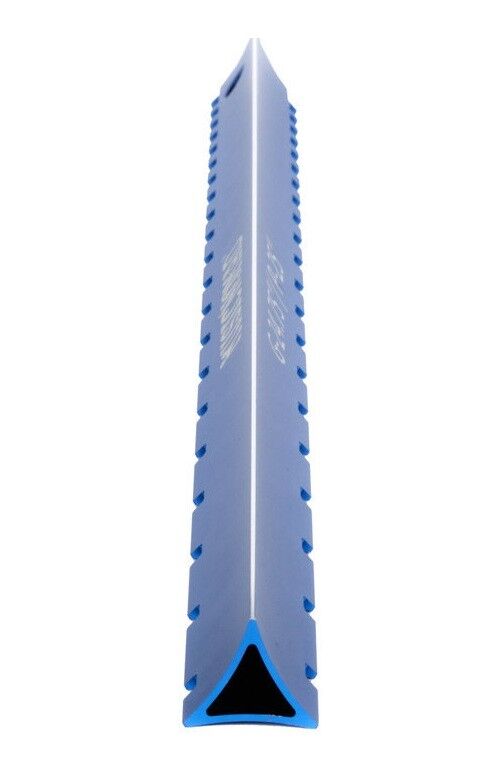

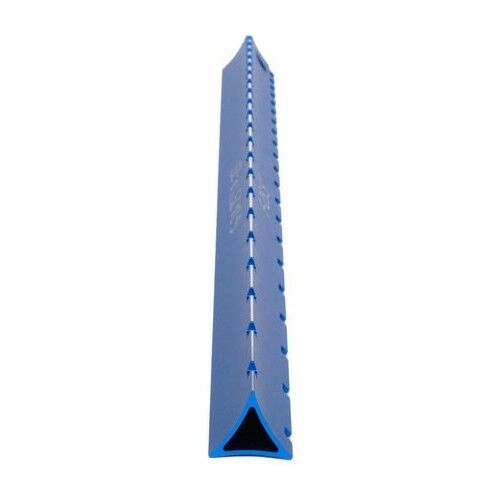

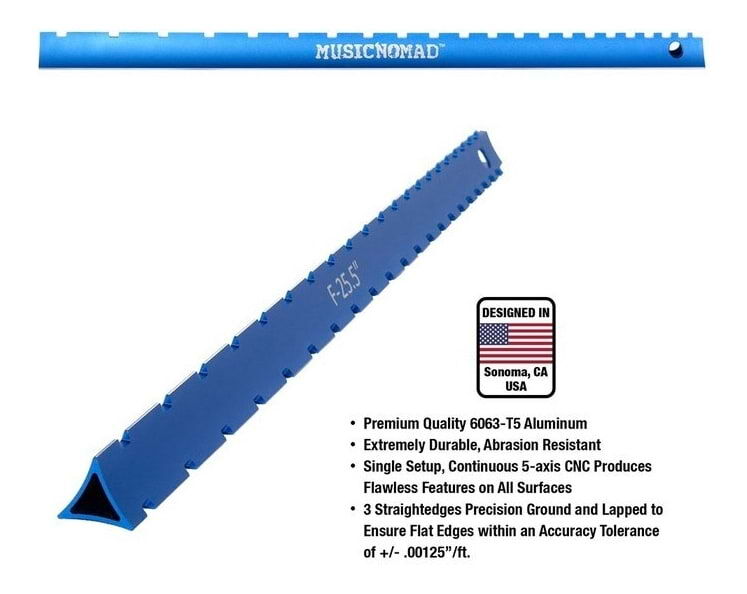

• Designed by our Sonoma, CA (USA) team: The premium quality 6063-T5 Aluminum has a blue anodized finish that is extremely durable, abrasion resistant and does not peel or chip. Imprecision is eliminated through single setup, continuous 5-axis CNC producing flawless features on all surfaces of our innovative triangle 3 wall design that is easy to hold and flex-free. Convenient hang hole included.
• BONUS: The F-25.5 side also works on 24" scale and 22.75" scales by placing the first notch over the nut for the 24" scale and the second notch over the nut for the 22.75" scale.

Please Note: GIBSON, FENDER, PRS and all other third party brand names are trademarks of their respective owners. Music Nomad LLC or Pro Music are not affiliated with those owners, nor claims ownership of those marks.
