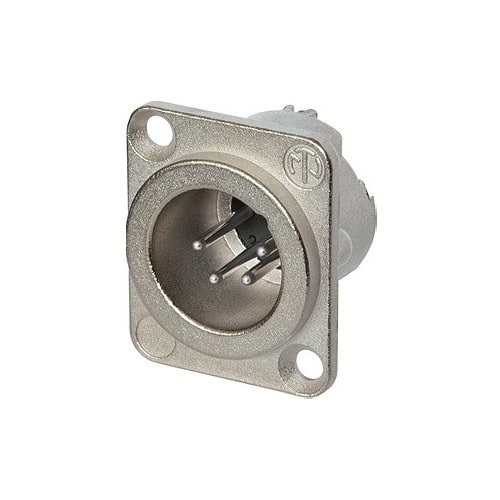

  • Neutrik NC4MD-LX 4-Pin XLR Male Panel Mount Connector

    $10.99
      In Stock
    or interest free for up to 6 months with
    Buy In Bulk & Save!
    Buy 2 to 5: Pay $10.49
    Buy 6 to 14: Pay $10.04
    Buy 15 or more: Pay $9.63
    -
    +

    Neutrik NC4MD-LX 4-Pin XLR Male Panel Mount Connector, with solder cups, nickel housing, silver contacts. The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding.

    Neutrik NC4MD-LX 4-Pin XLR Male DLX Series Panel Mount Connector
    Neutrik NC4MD-LX 4-Pin XLR Male Panel Mount Connector, with solder cups, nickel housing, silver contacts. The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding.

    The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding.

    Fetaures:

    • All metal housing offers best overall RF protection and electromagnetic shielding
    • Duplex ground contact for excellent contact integrity between chassis and cable connector
    • Male connector's retention bar replaces plastic design with all metal version improving pull-out force
    • Larger solder contacts for easier termination
    • Optional connection to easily join pin1 to chassis ground
    • D-style housing provides installation compatibility with industry standard D mounting dimensions

    Specifications:

    Connection Type XLR
    Gender Male
    Capacitance between contacts ≤ 7 pF
    Contact resistance ≤ 5 mΩ
    Dielectric strength 1,5 kVdc
    Insulation resistance > 10 GΩ (initial)
    Rated current per contact 10 A
    Rated voltage < 50 V
    Lifetime > 1000 mating cycles
    Wiring Solder contacts
    Locking device Latch lock
    Chassis shape D
    Shell Zinc diecast (ZnAl4Cu1)
    Shell plating Nickel
    Standard compliance IEC 61076-2-103
    Protection class IP 40
    View PDF brochure for Neutrik NC4MD-LX 4-Pin XLR Male Panel Mount Connector
