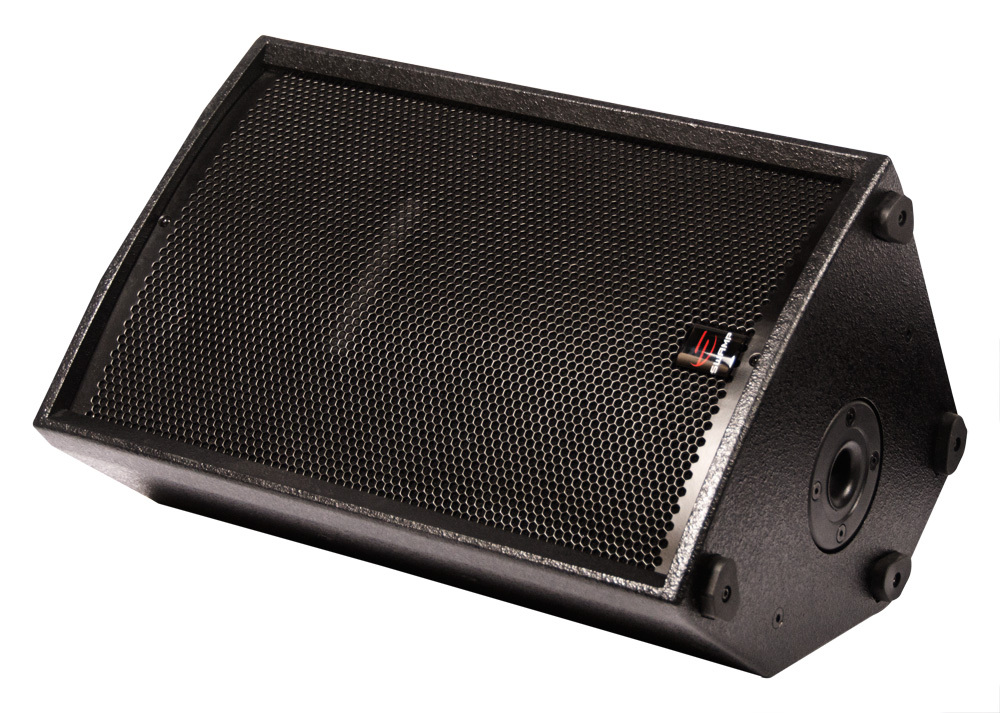

SWAMP BT-12 - 2-way Passive 12" PA Speaker - 300W RMS - Type-A
SWAMP BT-12 - 12" 300W RMS Passive Speaker
SWAMP has worked directly with the speaker manufacturer DE Acoustics to bring you the BT series. The BT-12 is a high performance two-way, full range passive loudspeaker. It utilises a 12" bass woofer, high quality mylar HF driver and intelligent crossover, to deliver clear and powerful sound up to a 125dB max SPL. Comparable in build and sound quality to well known brands with models retailing above $400.
FOH or DJ Speaker
With foldback style flattened corner edges, this speaker can be used as a (passive) monitor / DJ speaker. The speaker stand hole also allows it to be mounted on any standard speaker stand to be used as a front of house PA speaker.
300W RMS / 600W Peak
Rated at an impressive 300W RMS (average power), a single BT-12 has the power to deliver clear, un-distorted sound for up to 120 people. Built to handle signals peaks of up to 600W.

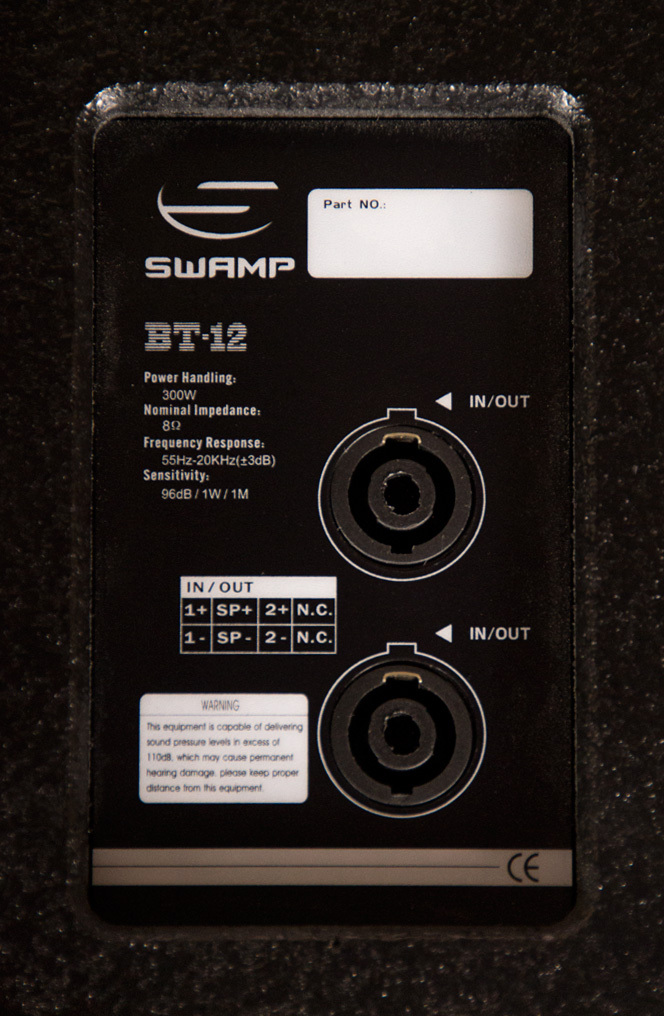

Two In/Out Sockets
Like many passive speakers, the BT-series features dual in/out speaker sockets, meaning it can be used in series with a second passive speaker, allowing you to power multiple speakers from a single amplifier channel. Perfect for stage monitors and spacial coverage in a large room.
Type A or B
SWAMP offers the BT-12 in 2 different configurations. Type A and Type B are a mirror image of each other. When laying flat on the floor in a monitor position, type A has the woofer on the left while type B has the woofer on the right (when facing the speakers). When using as a pair of monitors, this gives a more balanced spatial distribution of high and low frequencies, making for a better on-stage sound and a better audio experience for a centred listener.
- Wedge / Foldback Monitor Style Box
- 12" Bass Woofer, 1.4" HF Driver
- Speaker Stand Mounting Hole (standard 35mm)
- 300W RMS
- Frequency Response: 55Hz-19KHz (-3dB)
- Type: 12" two way, passive, full range
- LF: 1x12" bass driver, 120mm Magnet, 2.5" voice coil overheat-proof
- HF:1x1.4" mylar diaphragm driver
- Sensitivity: 96dB/1W/1M
- Rated Impedance: 8Ω
- SPL: 119 dB continue, 125 dB peak
- Coverage: 90 x 50 Degree
-15mm HDF (High-density fiberboard) cabinet; black paint; water proof
-12 x M8 fitting point, 38mm standing hole
- Monitor / Wedge angel: 30 degrees
- Dimensions: 600mm x 380mm x 320mm
- Weight: 18Kg
- Buying Option: Type-A
Not badBy: Grumss on 26 November 2017Very good for the price but a bit "boxy", i'm finding a 4to6db PEQ cut at around 250hz makes them much nicer. Thinking there may be a bit of box resonance, maybe easy to fix with some light stuffing... havnt tried yet
sound and look goodBy: Anonymous on 19 December 2016bought 2 of these as replacement foldbacks, had some adged EV's that were a bit tattered but still sounding good. very surprised, good speakers very good for the price. they have a bit of a low mid sound but they are a wood shell )), they eq'd nicely, didn't have to over eq to get good results, I would use these as FOH no problem. I haven't pulled one apart yet to see whats in side but they feel, look and sound good. well worth the purchase.
