Stage Series Line Level Cable - XLR(f) to RCA(m) Audio DJ Cable
3m Length - This XLR(f) to RCA patch cable can be used to transfer a mono audio signal between devices with RCA and XLR sockets. Common uses include patching a single XLR output from an audio source such as a mixing console, directly to a RCA input socket

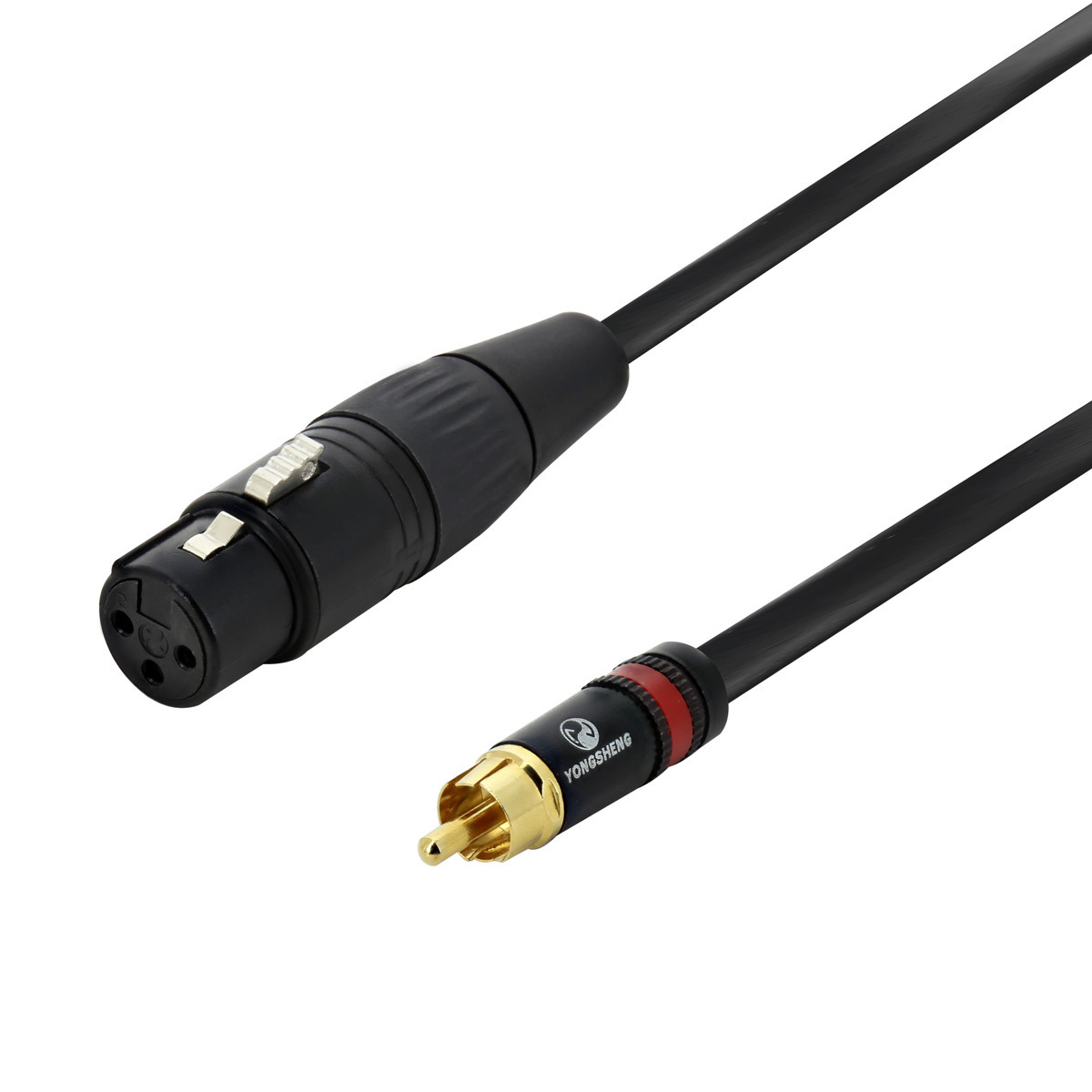

SWAMP XLR(f) to RCA Patch Cable - 1m
Suitable for Audio Patching
This XLR(f) to RCA patch cable can be used to transfer a mono audio signal between devices with RCA and XLR sockets. Common uses include patching a single XLR output from an audio source such as a mixing console, directly to a RCA input socket.
Quality Cable and connectors
Using professional quality Yongsheng connectors, OFC conductors and a braided ground shield, this cable is designed to transfer your signal without interference and can withstand the rigours of constant use.
Note - due to manufacturer error this batch includes the YS164 XLR(f) connector, which is black colour plastic body connector, rather than the typical YS136N metal style connector. The plastic body is still very robust and durable, and comes at a discounted price compared to regular price for the metal connector model.
Specifications:
- Conductor Gauge: 25AWG / 0.18mm2
- Conductor Cores: 16*0.12mm
- Ground Shield: BRAIDED (0.12mm*6*16)
- Connectors: RCA(m) (Yongsheng YS373), XLR(f) (Yongsheng YS164 - Robust Black Plastic Connector)
Wiring:
| 3-Pin XLR (female) | RCA (female) |
| Pin 1 | Sleeve |
| Pin 2 | Tip |
| Pin 3 | Sleeve |
