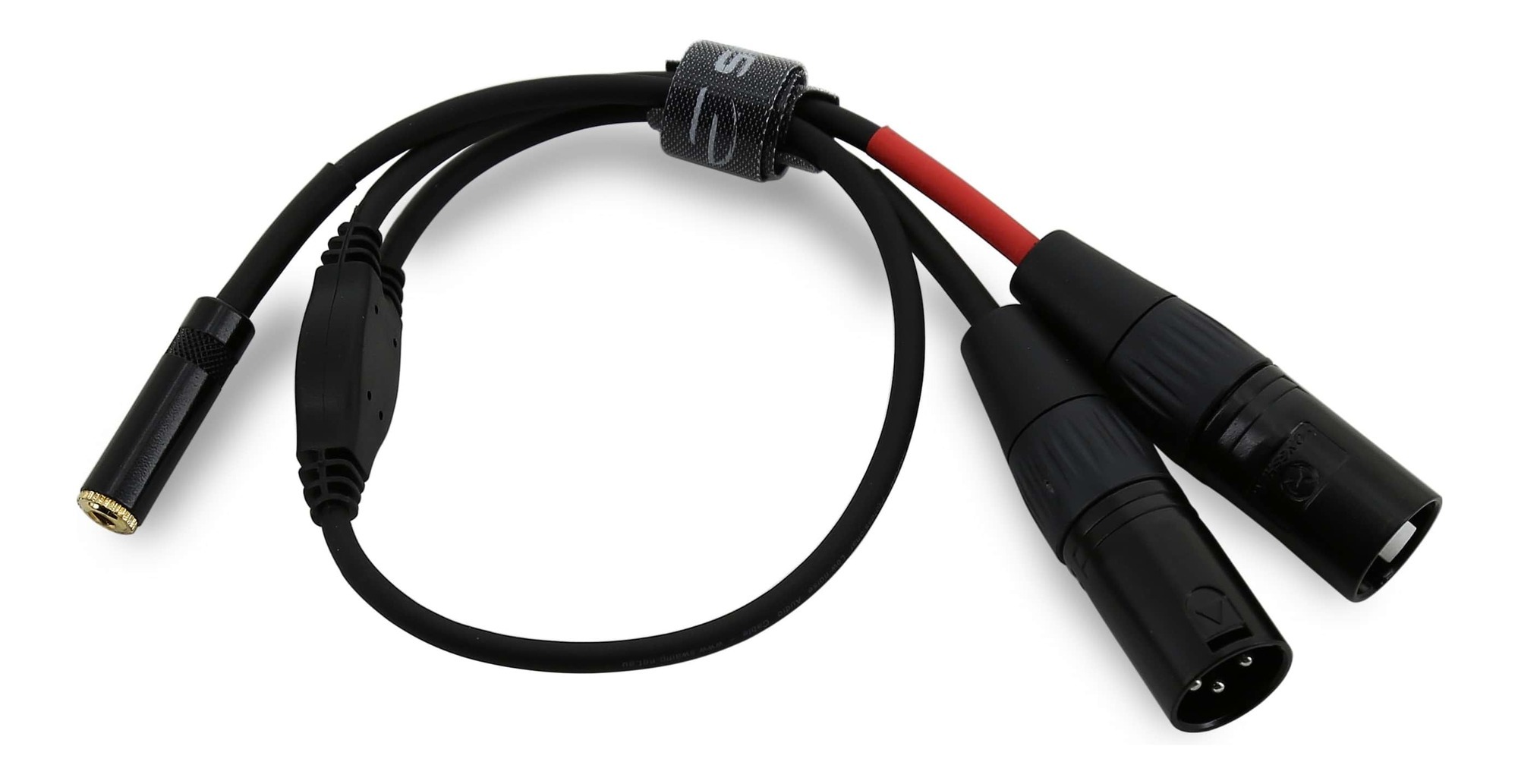

Dual XLR(m) to 3.5mm(f) TRS - Stereo Signal Headphone Splitter - 30cm
In Stock
SC-MiniJ-STF-2xXLR-M-30cm
Free Shipping
Enter Post Code to Calculate ETA or Upgrade to Express
Shop Now. Pay Later.
Always interest-free.
Add your favourites to cart
Select Afterpay at checkout
Log into or create your Afterpay account, with instant approval decision
Your purchase will be split into 4 payments, payable every 2 weeks
All you need to apply is to have a debit or credit card, to be over 18 years of age, and to be a resident of country offering Afterpay
Late fees and additional eligibility criteria apply. The first payment may be due at the time of purchase
For complete terms visit afterpay.com/terms
SHOP NOW • PAY LATER • 100% INTEREST FREE
30cm Length - Splits a 1/8" TRS stereo (left, right) signal into two individual XLR(m) channels. Ideal for connecting a 3.5mm mini-jack headphone cable, into two channels on a mixing desk.
Cable Filter: Alternative Options
Stereo Signal Headphone Splitter - 3.5mm Stereo to Dual XLR(m)
Splits a 1/8" TRS stereo (left, right) signal into two individual XLR(m) channels. Ideal for splitting an existing 3.5mm mini-jack headphone cable, into two channels on a mixing desk. By panning each channel Left or Right on a mixer, you can replicate the "true stereo" sound from the headphone output.
Need Extra Length?
Extend with a TRS 3.5mm 1/8" AUX Cable to give the desired length.
Note. A headphone signal is a "loaded" signal, designed to push the tiny speaker cone inside headphones. If connecting into a low-Z XLR mic input with a preamp (i.e. not a line level input), note that the signal may be "hot" and little or no gain may be required, even using a pad may be necessary. Setting your smartphone or laptop volume below 85% is a good way to minimise any possible input overload and signal distortion.
Quality Cable and Connectors

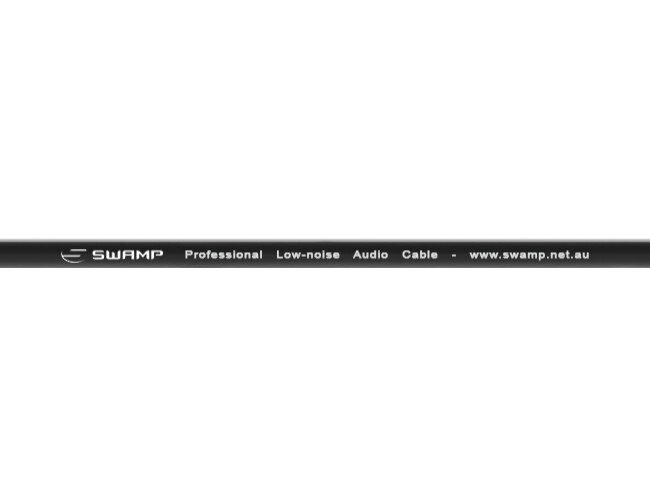

Our slim 4.4mm diameter cable maintains thick 23AWG conductors and a tight spiral shield, but utilises a thinner outer PVC jacket allowing for a smaller overall diameter. Ideal for patching devices in tight spaces and to minimise cable clutter. Using professional quality connectors, OFC conductors and a tight and thorough spiral shield, this cable is designed to transfer your signal without interference while being flexible and able to withstand the rigours of constant use.
Specifications:
- Cable Colour: Black
- Cable Core: 0.12mm*20*2(Conductors) + 0.12mm*48(Spiral Wrapped Shield)
- Conductor Gauge: 23 AWG / 0.23mm2
- Outer Diameter: 4.4mm
- Connectors: 1/8" TRS (female) to 2x XLR (male) - (SWAMP TP180, Yongsheng YS137N-B)
Wiring:
| 1/8” female (Stereo / TRS) | XLR (red) | XLR (black) |
| Tip | Pin 2 | |
| Ring | Pin 2 | |
| Pin 3 | Pin 3 + Pin1 | Pin 3 + Pin1 |
- Length: 30cm
