Dual XLR to TRS 2m Signal Combiner - Stereo

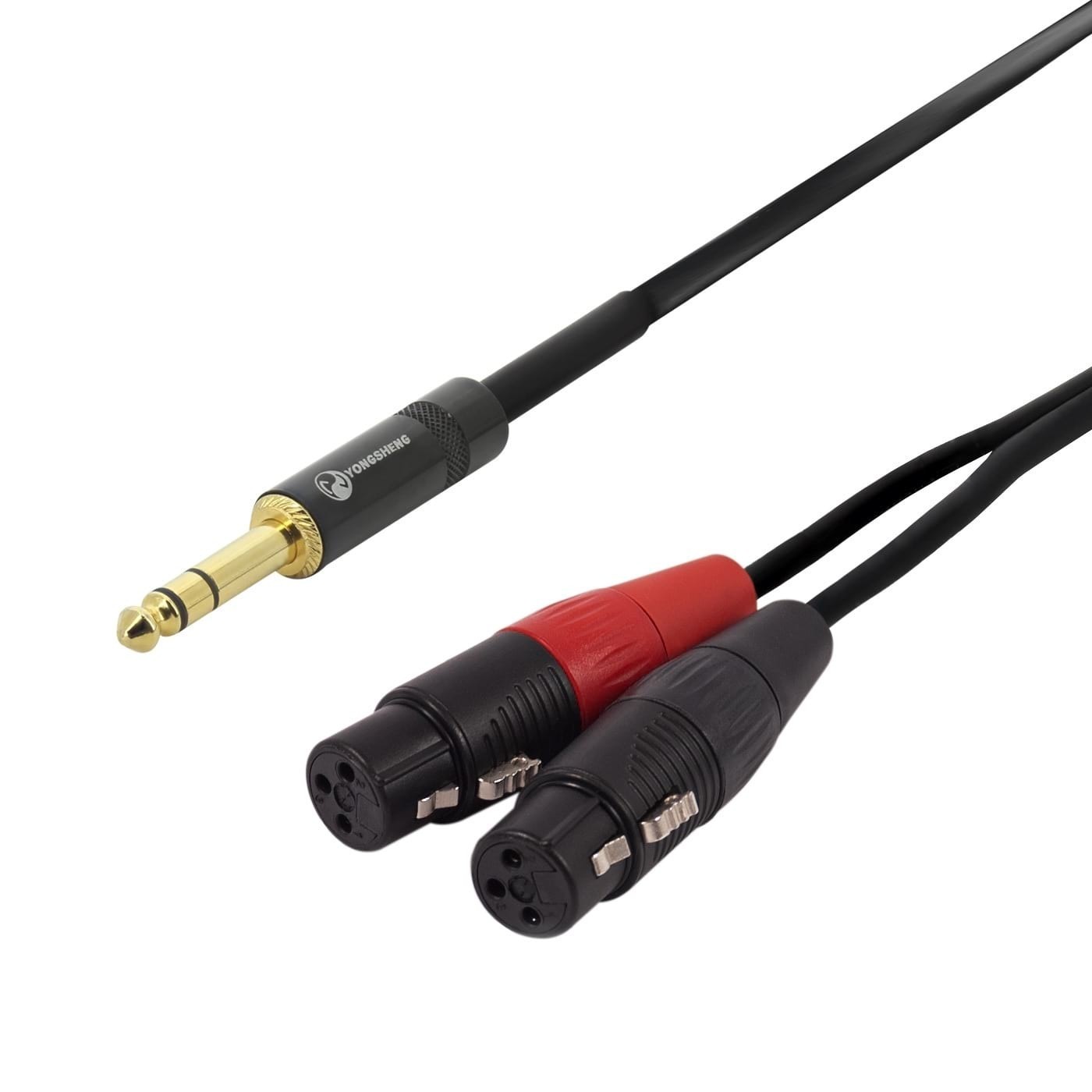

Dual XLR(f) to 6.35mm TRS - Stereo XLR Signal Combiner 2m

$24.99
  In Stock
or interest free for up to 6 months with
-
+

This cable is designed to combine a stereo (dual) XLR signal from a mixing desk, into a single TRS connector, ready to be inserted into a stereo 1/4" input.



Dispatch

Dual XLR(f) to 6.35mm TRS - Stereo XLR Signal Combiner

Stereo Signal Combiner
This cable is designed to combine a stereo (dual) XLR signal from a mixing desk, into a single TRS connector, ready to be inserted into a stereo 1/4" input.

Quality Cable and connectors
Using quality Yongsheng connectors, OFC conductors and a braided ground shield, this cable is designed to transfer your signal without interference and can withstand the rigours of constant use.

Specifications:

  • Length: 2m (2 meter)
  • Conductor Cores: 16*0.12mm
  • Ground Core: BRAIDED (0.12mm*2*16)
  • Connectors: 6.35mm (1/4") - XLR(f) - Yongsheng YS240-BG (1/4" metal), YS164 (XLR hard plastic)
  • Wiring:
    6.35mm TIP = XLR1 (Pin2)
    6.35mm RING = XLR2 (Pin2)
    6.35mm SLEEVE = XLR1 + XLR2 (Pin1 / Pin3)
View PDF brochure for Dual XLR(f) to 6.35mm TRS - Stereo XLR Signal Combiner 2m

Does the job

By: Anonymous on 12 March 2021
Cable quality seems adequate and the connections and soldering seem well done - my only gripe is that the “professional quality” XLR connectors are...plastic! Couldn’t quite believe it when I opened the package. Be assured they are not genuine Neutrik, but their Chinese subsidiary...with the expected drop in quality. Seems ok for now, but not sure how long these plastic connectors will last. 1/4 connector is metal/gold-plated though. All in all 4/5 stars.
(4)

Write a product review


MPN: YS228-B 2xYS164 2m

SKU: RH-YS228-B-2xYS164-2m

ID: 32163
