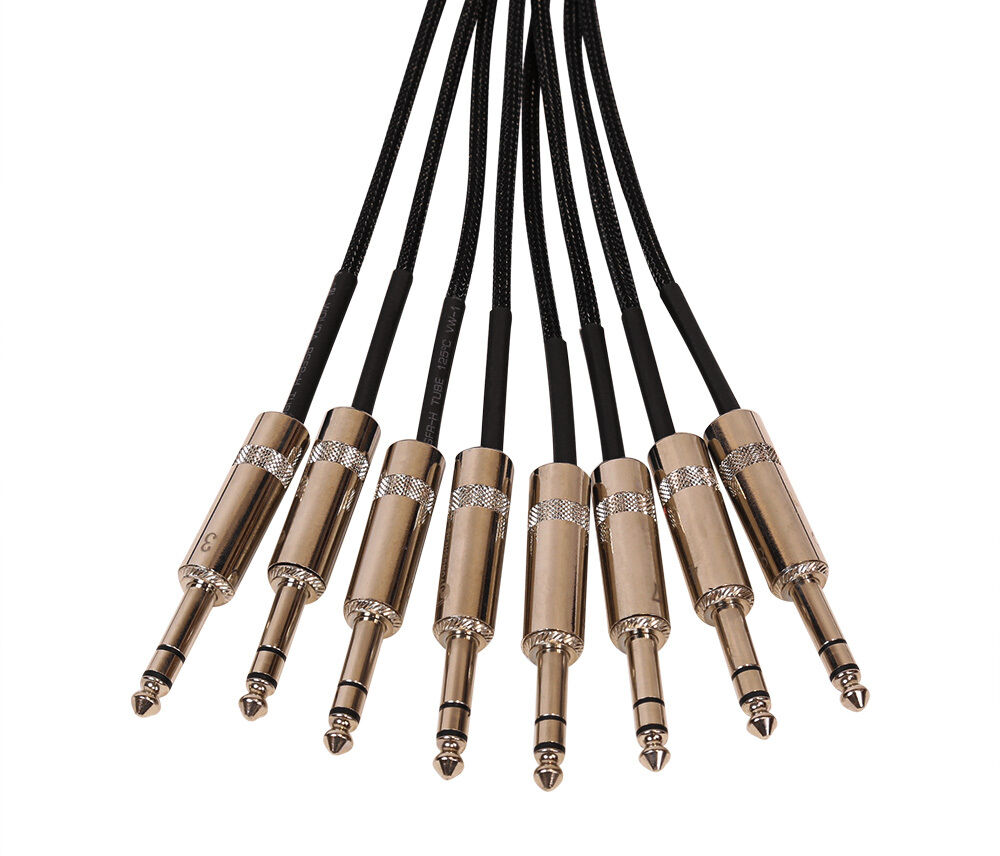

SWAMP 8-way DB-25 to TRS Stereo Snake Cable - TASCAM wiring - 6m

SWAMP 8-way DB-25 to TRS Stereo Snake Cable - TASCAM wiring - 6m

$114.99
  In Stock
or interest free for up to 6 months with
-
+

6m Length - This cable is most commonly used for interconnecting audio I/Os and mixing consoles in a professional recording studio. Each channel has individually spiral shielded (serve) twisted OFC copper conductor pairs, and is wired to the Tascam standa

Dispatch

Analogue 8 Channel DB-25 Cable
This cable is most commonly used for interconnecting audio I/Os and mixing consoles in a professional recording studio.

OFC Copper and Serve Shield
Each channel has individually spiral shielded (serve) twisted OFC copper conductor pairs, enclosed in their own PVC jacket. In addition to carrying up to 8 balanced signals, this makes them ideal for a noiseless transfer of multi-channel analogue audio signals.

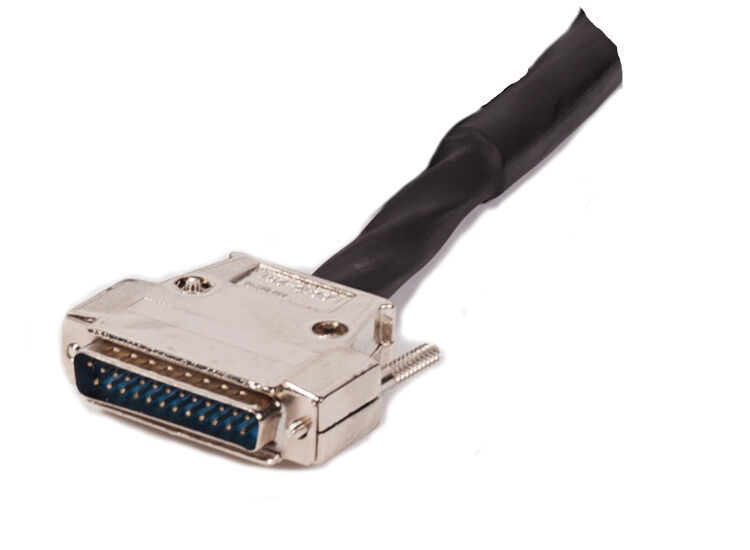

D-SUB / DB-25 Connectors
DB-25 connectors are typically found on the back of mixing desks, and are used for transferring multiple channel streams to another desk or device such as a computer I/O interface in a recording studio. A DB-25 connector can carry 8 balanced / stereo audio signals.

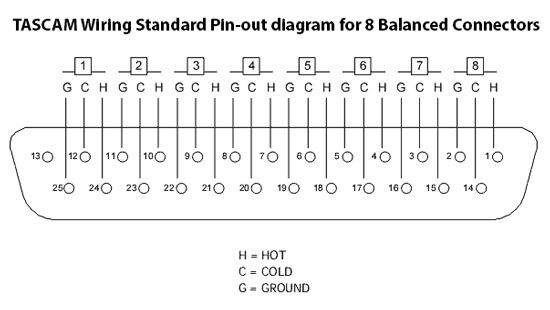

Wired to TASCAM Standard
These cable looms use the TASCAM wiring standard for DB25 pin-out configuration, commonly used by Avid/Digidesign, Universal Audio, RME and Presonus devices.

Features:

  • Balanced Analogue Audio Loom
  • TASCAM Wiring Configuration
  • Connectors: DB-25 to YS228-B
  • Cores: 0.10mm*20*2
  • Ground: 0.10mm*45*8
  • Conductor Gauge: 25AWG
  • Length: 6m
View PDF brochure for SWAMP 8-way DB-25 to TRS Stereo Snake Cable - TASCAM wiring - 6m

Be The First To Review This Product!

Help other SWAMP Industries users shop smarter by writing reviews for products you have purchased.

Write a product review


MPN: D-SUB TRS 6m

SKU: RH-D-SUB-TRS-6m

ID: 32313
