SWAMP AES/EBU Cable 110ohm - Shielded | Digital Audio Cable - 10m
In Stock
AES009-10m
Free Shipping
Enter Post Code to Calculate ETA or Upgrade to Express
Shop Now. Pay Later.
Always interest-free.
Add your favourites to cart
Select Afterpay at checkout
Log into or create your Afterpay account, with instant approval decision
Your purchase will be split into 4 payments, payable every 2 weeks
All you need to apply is to have a debit or credit card, to be over 18 years of age, and to be a resident of country offering Afterpay
Late fees and additional eligibility criteria apply. The first payment may be due at the time of purchase
For complete terms visit afterpay.com/terms
SHOP NOW • PAY LATER • 100% INTEREST FREE
10m Length - SWAMP 3pin XLR AES/EBU "Digital Audio" cable. Designed to carry the AES3 digital data protocol, commonly used for interconnecting professional digital audio interfaces and soundcards. The AES3 standard is able to carry two channels of PCM aud
Cable Filter: Alternative Options

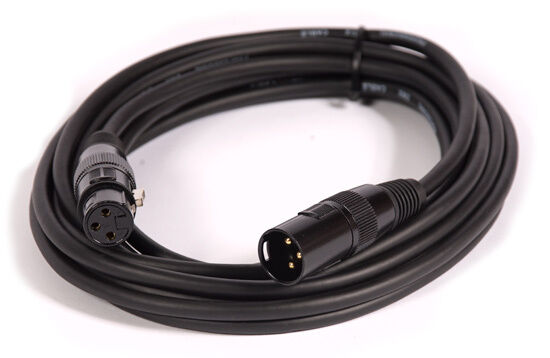

SWAMP 3pin XLR AES/EBU "Digital Audio" cable
Designed to carry a 'balanced' version of the AES3 digital data protocol (AES/EBU), commonly used for interconnecting professional digital audio interfaces and soundcards. The AES3 standard is able to carry two channels of PCM audio (digital audio). A 'balanced' AES3 connection can only be achieved using a 3pin XLR AES cable.
110ohm cable - Dual Shielded

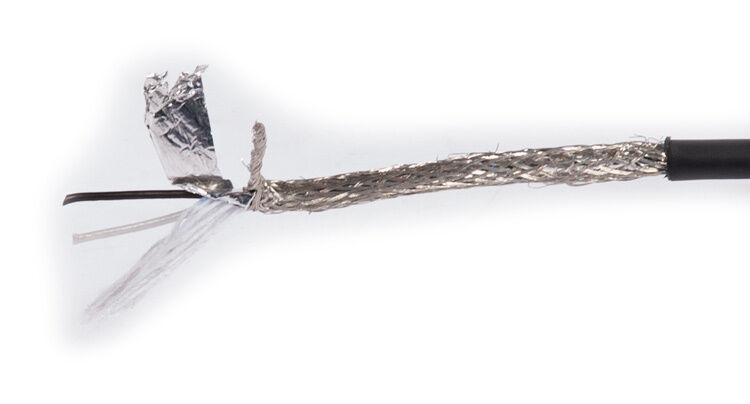

Features 3pin XLR connectors and built from 110-ohm rated, thick 22AWG OFC copper conductors suited to carrying AES (AES3) digital signals. An outer BRAIDED copper shield plus inner aluminum FOIL shielding around the conductors cores ensures signal integrity and eliminates RFI and EMI interference which can result in digital syncing and word clock errors.
Are regular XLR microphone cables OK to use for AES signals?
Digital audio signals are much more vulnerable to interference than analog audio signals. Using a regular mic cable can result in interference reaching the AES signal causing a range of digital syncing issues. A 110-ohm rated cable with either a foil or braided shield should be used (ideally both) for AES signals to reduce the possibility of interference.
Features:
- Copper Conductor Cores: 2x (0.15*19) - 22AWG (thick)
- Ground / Shield Copper Core: Braided (16*6*0.12)
- Extra outer shield: Aluminum Foil
- 110-ohm rated copper conductors

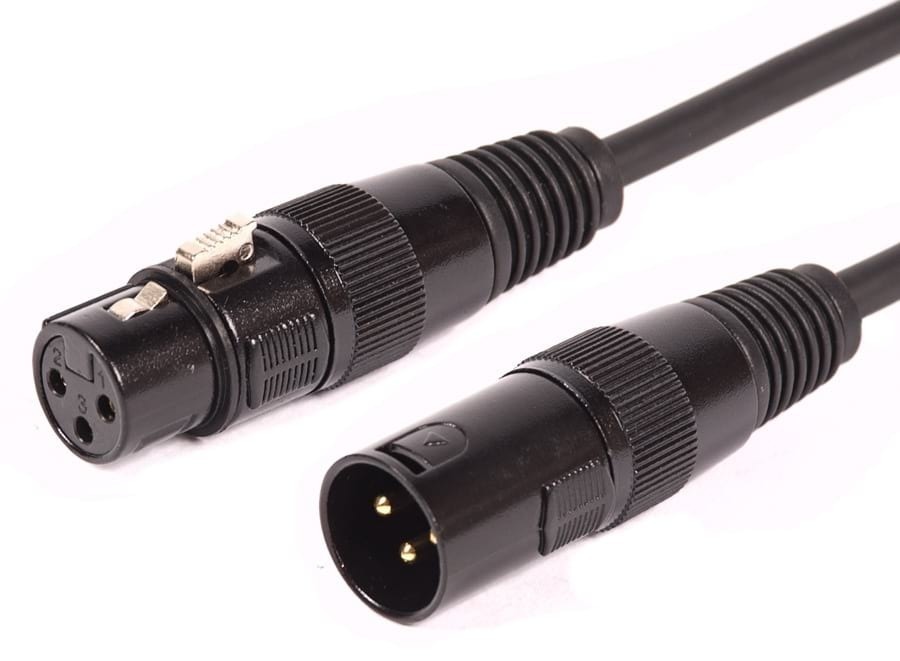

- Connectors: 3pin XLR(m) to XLR(f)
- Cable Colour: Black
- Outer Diameter: 5.8mm
- Outer Jacket: Rugged, flexible, black PVC
- Length: 10m
Aes/ ebu Balanced Digital cable
By: DEAN on 9 May 2017I rarely buy affordable cable's, preferring hi end stuff. This cable is a revelation that I might have been throwing money away. That plus the service Swamp provide just excellent. Amazon could learn a few thing's from you guy's.
5 (5)
