Zoom F1-LP Body-Pack Field Recorder with Lavalier Microphone

$279.99
In Stock

The Zoom F1-LP Field Recorder + Lavalier Mic is the perfect solution for those who need to capture the nuance of every word with professional quality audio. The mic comes with a windscreen, mic clip and belt clip. It is compatible with Zoom mic capsules.

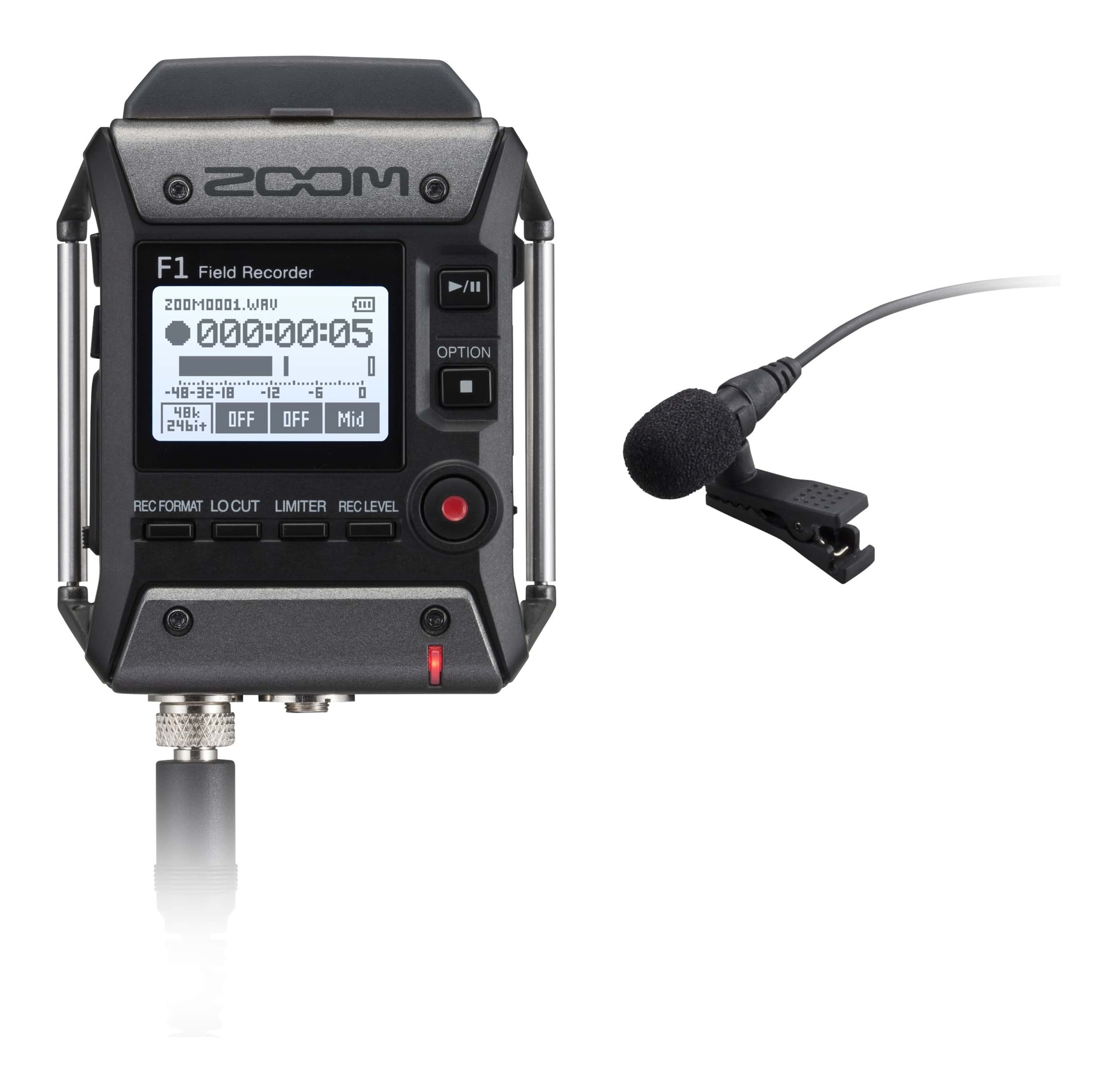

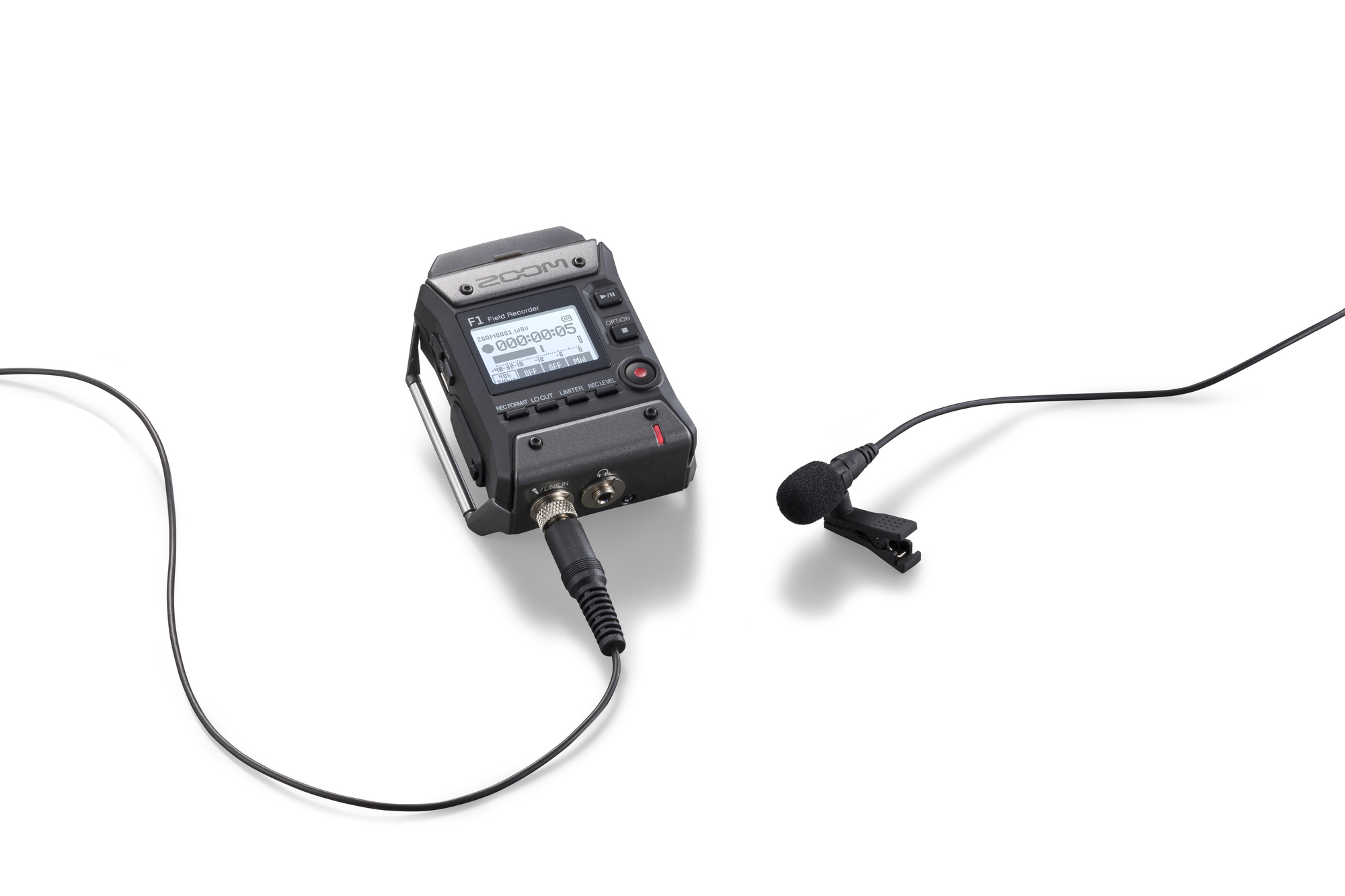

Zoom F1-LP Field Recorder with Lavalier Microphone
The Zoom F1-LP Field Recorder + Lavalier Mic is the perfect solution for those who need to capture the nuance of every word with professional quality audio. The mic comes with a windscreen, mic clip and belt clip. It is compatible with Zoom mic capsules.

High Quality
The F1-LP comes with Zoom’s newly engineered LMF-1 lavalier mic, designed for capturing every nuance. Combined with the F1, you can record high-resolution audio up to 24 bit/96 kHz, perfect for interviews, wedding vows, and more.

Low Profile Design
With its minimal profile, the F1 attaches neatly on belts, waistbands, or slipped into a pocket so the recorder can be easily concealed.

Worry-Free Recording
The LMF-1 Lavalier mic connects directly to the F1 and records it to a micro SD card. By recording directly to the F1, interference or noise commonly experienced when using a wireless belt-pack system is eliminated.

One-Touch Controls, Easy-To-Read Display
The F1’s one-touch buttons give you easy access to record levels, limiter control, lo-cut filter, and volume output. It’s newly designed monochromatic LCD display ensures visibility even in bright sunlight.

Features:

  • Two-channel audio recorder
  • Compatible with Zoom microphone capsules
  • Supports up to 24-bit/96 kHz audio in BWF-compliant WAV or a variety of MP3 formats
  • One-touch button controls
  • 1.25” monochrome LCD display
  • Rec Hold function to avoid accidental operation of buttons
  • Stereo ⅛" Mic/Line In mini phone jack with Plug-in power (2.5V)
  • Stereo ⅛" Phone/Line Output jack with dedicated volume control
  • Built-in limiter and auto level control to avoid clipping
  • Pre-Record function
  • Tone generator for calibrating audio levels between the F1 and a DSLR or video camera without the need for an attenuator cable
  • Sound marker function that outputs quick tone to make syncing audio and video easy
  • Records directly to micro SD and SDHC cards up to 32 GB
  • ​Micro USB port for data exchange to and from computer and use as an audio interface with computer or iOS device
  • ​Runs on only 2 standards AAA alkaline, Lithium, or NiMH rechargeable batteries, or AC adapter (AD-17)
  • Up to 10 hours of operation with alkaline batteries (when using lavalier)

Specifications:

Recording media microSD/microSDHC cards (Class 4 or higher, up to 32 GB)
Recording formats WAV: 44.1 kHz/16-bit, 48 kHz/16-bit, 48 kHz/24-bit, 96 kHz/24-bit

MP3: 48 kbps, 128 kbps, 192 kbps, 256 kbps, 320 kbps
Mono/stereo ID3v1 tags supported
Display 1.25" monochrome LCD
Input
Mic In ZOOM mic capsule input
Mic/Line In 3.5 mm stereo mini (with screw lock)
Supports plug-in power (2.5 V)
Input gain: −12 dB – +36 dB
Input impedance: 2 kΩ or more
Lavalier mic Plug: 3.5 mm stereo mini (with screw lock)
Directionality: Omnidirectional
Sensitivity: -32 dB/1 Pa at 1kHz
Maximum sound pressure input: 115 dB spl
Cable length: 160 cm
Output
Phone Out Connector: 3.5 mm stereo mini (with screw lock)
Maximum output level: 11 mW + 11 mW (into 32 Ω load)
USB Mass storage operation: USB 2.0 High Speed
Audio interface operation: USB class compliant
44.1kHz/16-bit, 48kHz/16-bit, 2-in/2-out
Transfer method: asynchronous
Power 2 AAA batteries (alkaline, NiMH or lithium)
AC adapter (ZOOM AD-17): DC 5V/1A
Recording time using batteries Lavalier mic (48 kHz/24-bit, mono, plug-in power on):
Alkaline batteries: about 10 hours
NiMH batteries 750 mAh): about 9 hours
Lithium batteries: about 16 hours
*The above values are approximate
Dimensions (WxDxH) 64mm x 79.8mm x 33.3mm
Weight 120g (without batteries)

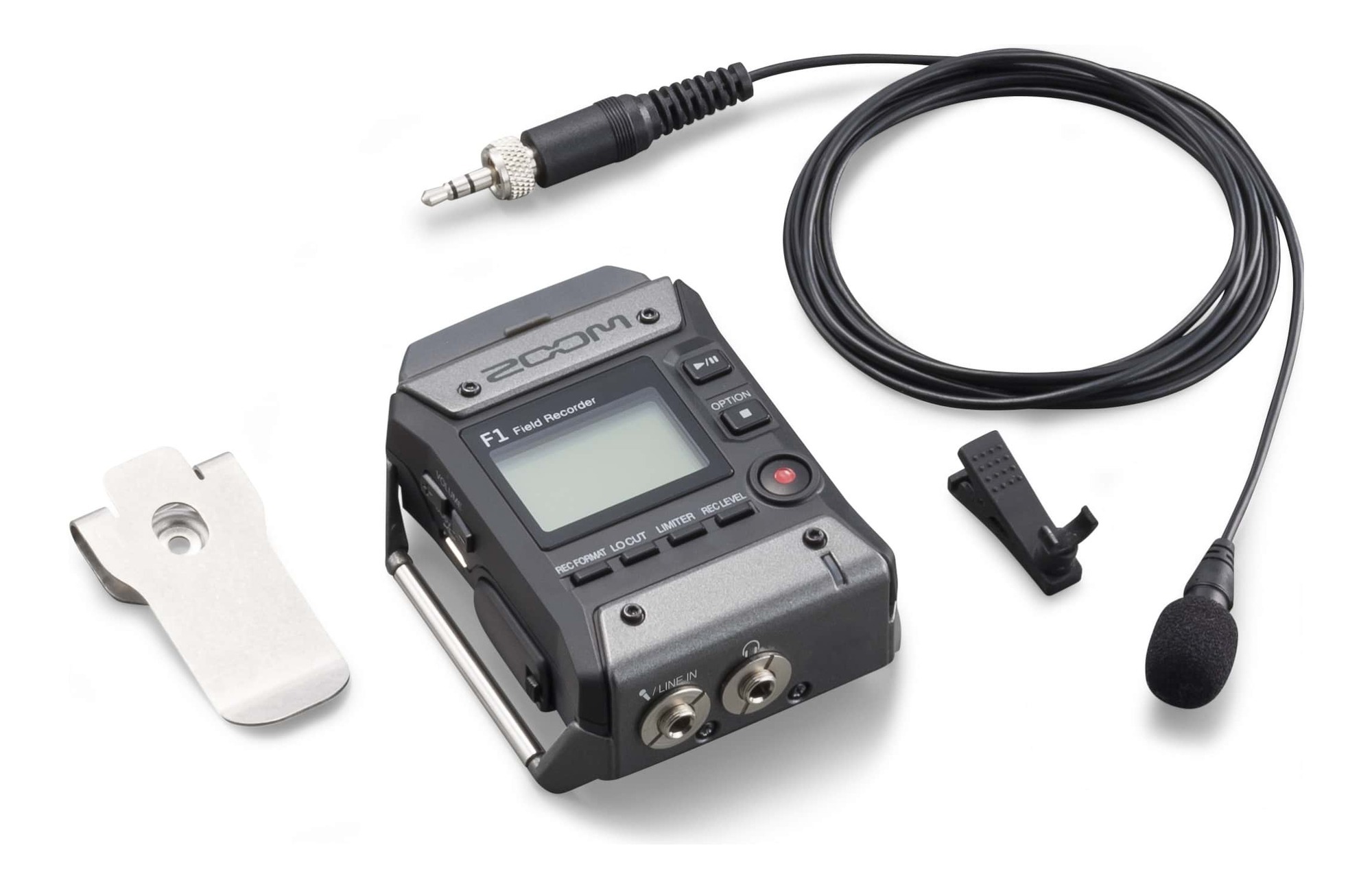

Item Includes:

  • F1 Field Recorder
  • LMF-1 Lavalier microphone
  • WSL-1 Windscreen
  • MCL-1 Mic clip
  • BCF-1 Belt clip
  • 2 AAA batteries
  • Quick guide
View PDF brochure for Zoom F1-LP Body-Pack Field Recorder with Lavalier Microphone
