Zoom F1 FIELD RECORDER + SHOTGUN MIC | F1-SP Field Recorder with Shotgun Microphone

Zoom

Zoom F1-SP Field Recorder with Shotgun Microphone

$409.99
RRP $459.00
  In Stock
Found a better Price? Price match now
or interest free for up to 6 months with
-
+

The Zoom F1-SP Field Recorder + Shotgun Mic is the ultimate solution for those who need to capture professional-quality audio for video. It is a two-channel audio recorder, and includes a foam windscreen and shock mount. Records to micro SD and SDHC cards




Dispatch

Zoom F1-SP Field Recorder with Shotgun Microphone
The Zoom F1-SP Field Recorder + Shotgun Mic is the ultimate solution for those who need to capture professional-quality audio for video. It is a two-channel audio recorder, and includes a foam windscreen and shock mount. Records to micro SD and SDHC cards

Quality Shotgun
The F1-SP comes with the SGH-6 Shotgun Mic known for capturing pro-quality, hyper directional sound, and its aluminum body makes it extremely lightweight. Combined with the F1, you can record high-resolution audio up to 24 bit/96 kHz, providing high-impact audio for any video production.

Ready, Aim, Record

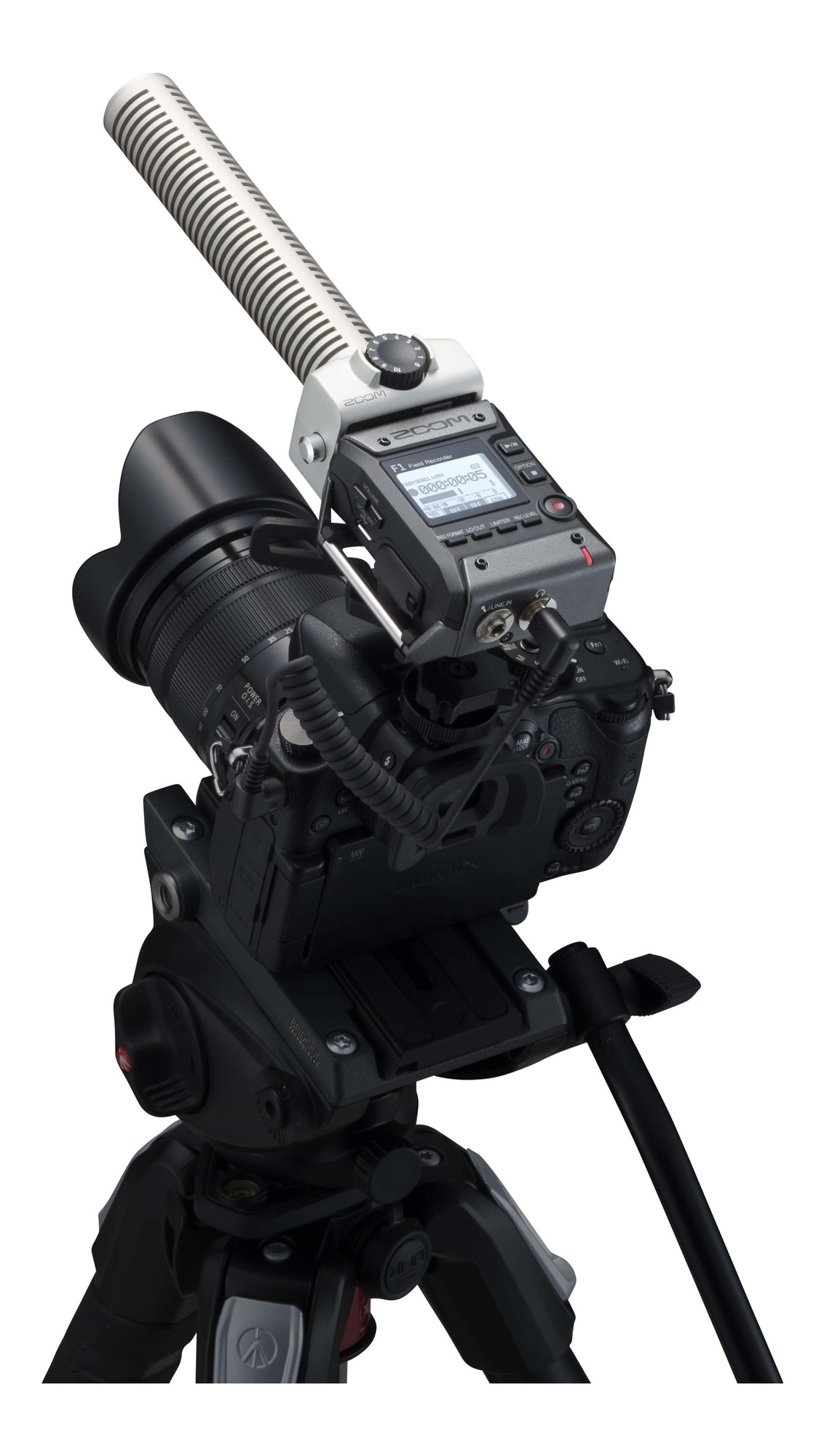

Connect the F1 and Shotgun to the included shock mount and attach it to your camera.
Then connect the F1’s audio output to your camera’s input using the included 3.5mm stereo cable and you’re ready to record.

Audio Redundancy
While recording to your camera, the F1 can also record to a microSD card, providing a stereo audio file which can be edited in post-production.

Bright Light? No Problem

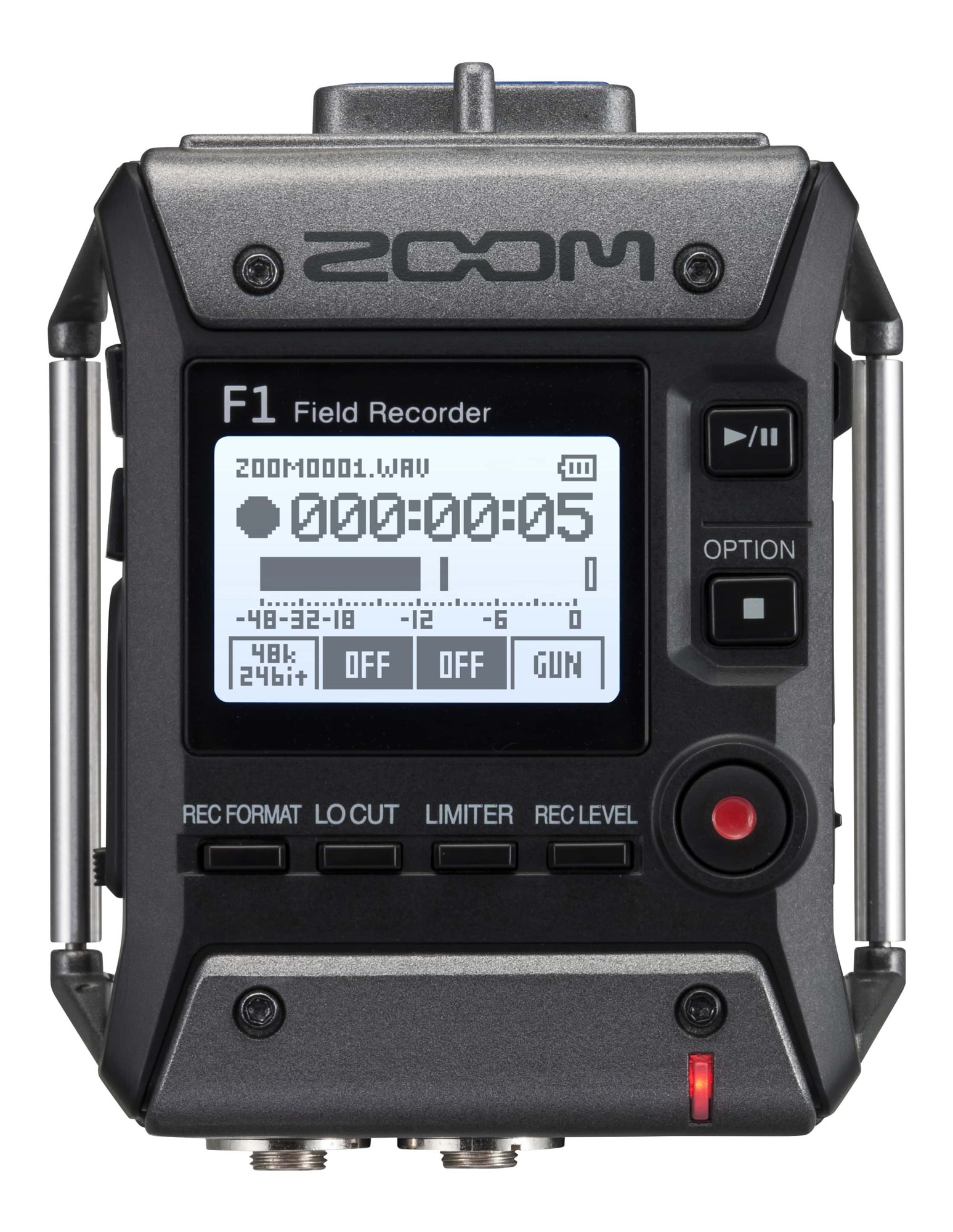

Monitor your levels, battery life, lo-cut settings and more with the F1’s newly designed monochromatic display, ensuring visibility even in bright sunlight.

One-Touch Controls
One-touch buttons make record levels, limiter settings, and volume output easily accessible.

Smooth Ride
The SMF-1 shock mount was engineered to eliminate unwanted thumping sounds caused by vibrations when shooting on the move.

Features:

  • Two-channel audio recorder
  • Compatible with Zoom microphone capsules
  • Supports up to 24-bit/96 kHz audio in BWF-compliant WAV or a variety of MP3 formats
  • One-touch button controls
  • 1.25” monochrome LCD display
  • Rec Hold function to avoid accidental operation of buttons
  • Stereo ⅛" Mic/Line In mini phone jack with Plug-in power (2.5V)
  • Stereo ⅛" Phone/Line Output jack with dedicated volume control
  • Built-in limiter and auto level control to avoid clipping
  • Pre-Record function
  • Tone generator for calibrating audio levels between the F1 and a DSLR or video camera without the need for an attenuator cable
  • Sound marker function that outputs quick tone to make syncing audio and video easy
  • Records directly to micro SD and SDHC cards up to 32 GB
  • ​Micro USB port for data exchange to and from computer and use as an audio interface with computer or iOS device
  • ​Runs on only 2 standards AAA alkaline, Lithium, or NiMH rechargeable batteries, or AC adapter (AD-17)
  • Up to 10 hours of operation with alkaline batteries (when using lavalier)

Specifications:

Recording media microSD/microSDHC cards
(Class 4 or higher, up to 32 GB)
Recording formats WAV
44.1 kHz/16-bit, 48 kHz/16-bit, 48 kHz/24-bit, 96 kHz/24-bit
MP3
48 kbps, 128 kbps, 192 kbps, 256 kbps, 320 kbps
Mono/stereo ID3v1 tags supported
Display 1.25" monochrome LCD
Inputs
Mic In ZOOM mic capsule input
Mono shotgun mic (SGH-6) Directionality: Super cardioid (3 directional mic units)
Sensitivity: −39 dB/1 Pa at 1 kHz
Input gain: −∞ – +50 dB
Maximum sound pressure input: 122 dB SPL
Mic/Line In Connector: 3.5 mm stereo mini (with screw lock)
Supports plug-in power (2.5 V)
Input gain: −12 dB – +36 dB
Input impedance: 2 kΩ or more
Outputs
Phone Out Connector: 3.5 mm stereo mini (with screw lock)
Maximum output level: 11 mW + 11 mW (into 32 Ω load)
USB Micro-USB
Mass storage operation: USB 2.0 High Speed
Audio interface operation: USB class compliant
44.1kHz/16-bit, 48kHz/16-bit, 2-in/2-out
Transfer method: asynchronous
Power 2 AAA batteries (alkaline, NiMH or lithium)
AC adapter (ZOOM AD-17): DC 5V/1A
Recording time using batteries SGH-6 mono shotgun mic capsule (48 kHz/24-bit, mono):
Alkaline batteries: about 6.5 hours
NiMH batteries 750 mAh): about 6 hours
Lithium batteries: about 11 hours
*The above values are approximate

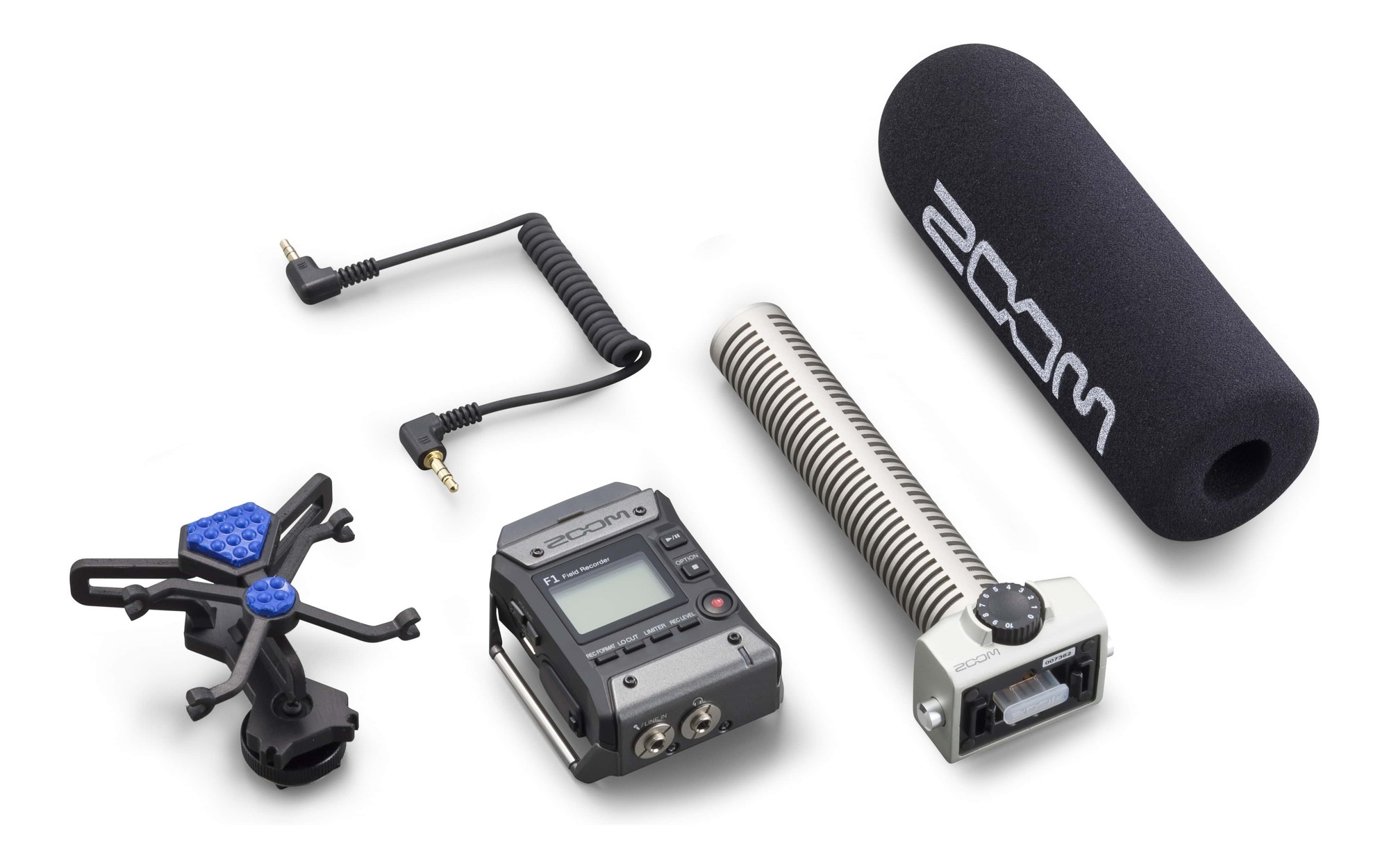

Item Includes:

  • F1 Field Recorder
  • SGH-6 Shotgun microphone
  • WSS-6 Windscreen
  • SMC-1 Stereo mini cable for DSLR
  • SMF-1 Shock mount
  • 2 AAA batteries
  • Quick guide
View PDF brochure for Zoom F1-SP Field Recorder with Shotgun Microphone

Be The First To Review This Product!

Help other SWAMP Industries users shop smarter by writing reviews for products you have purchased.

Write a product review


MPN: F1 FIELD RECORDER + SHOTG

Label: ZM-F1-SP

ID: 253111
