An all in one unit, the G3Xn lets you program amazing sounds with immense flexibility. Program complex signal chains with ease, with boutique style pedals and effects, accurate amp emulations, and an expression pedal.
Loading... | ||||||

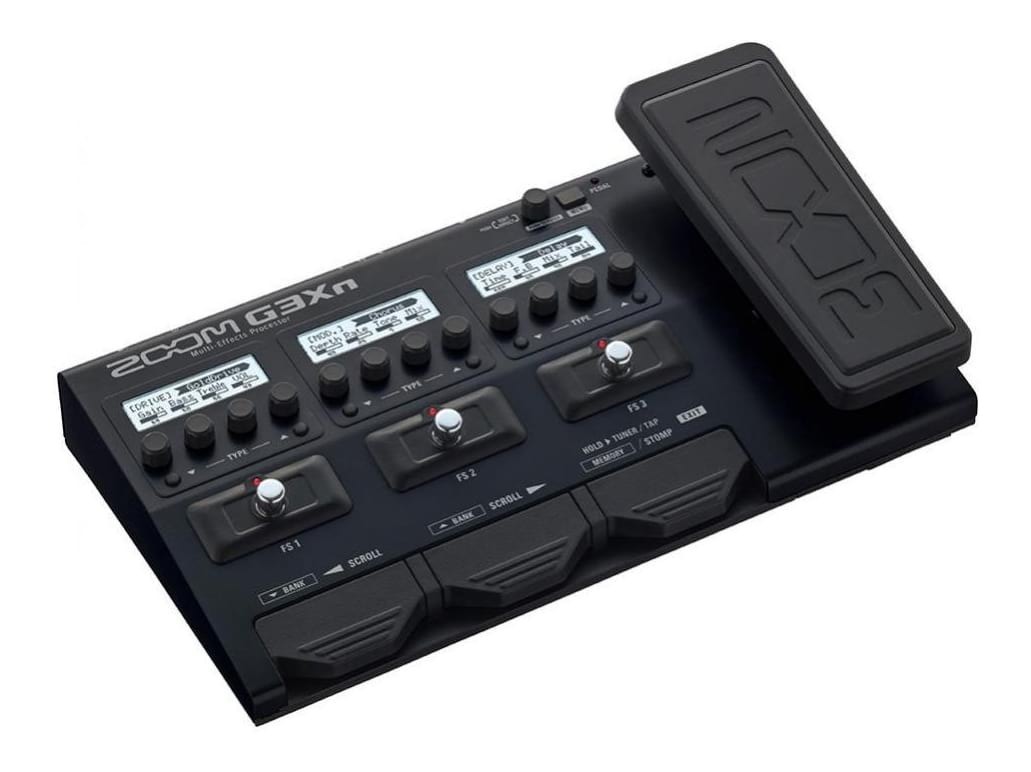

Zoom G3Xn Intuitive Multi-Effects Processor
Guitarists now have a versatile multi-effects processor which can emulate the finest pedalboards, complete with amp simulations and a looper. Pre-loaded with 70 crafted and programmed DSP effects (68 effects, 1 looper pedal, and 1 rhythm pedal), plus 10 of the most realistic amp/cabinet emulators, this could be the only device to own that provides all of the sounds and tools to cover every creative possibility.
Create Complex Signal Chains with Ease
You can use up to seven effects and amp/cabinet models simultaneously, chained together in any order you like. It's like having hundreds of fully loaded pedalboards all in one compact and easy-to-use device. Choose from five classic amp models (JCM800, Mesa Boogie MK3, Fender Twin Reverb, Bogner Ecstasy, British 30w Class A Combo) and adjust the sound exactly as you would with the knobs and switches of the real thing—and then pair your amp with one of the five new cabinet emulators to complete the sound. Plus, you can download even more faithfully recreated amp/cabinet combinations. The G3Xn’s switches and knobs give you enhanced control and have the responsive, hands-on feel of a standard stompbox. The G3Xn combines three LCD displays to show whole effect-chains at a glance, making it easy to add, delete, or change the order of effects quickly. Plus, you can store up to 150 of your custom effects-chains as patches.
75 Custom-Crafted Patches - and Counting!
Recreate essential guitar tones and pioneer new territory with 75 custom-designed patches created exclusively by Zoom guitarists. Use these patches to emulate the iconic sounds of Eddie Van Halen, Jimi Hendrix, Jimmy Page, Carlos Santana, Michael Schenker, and Brian May or explore something completely brand new. With the free ZOOM Guitar Lab software, you can look for new effects and amp/cabinet emulators, and add new, exclusive patches from a diverse and growing list of creators.

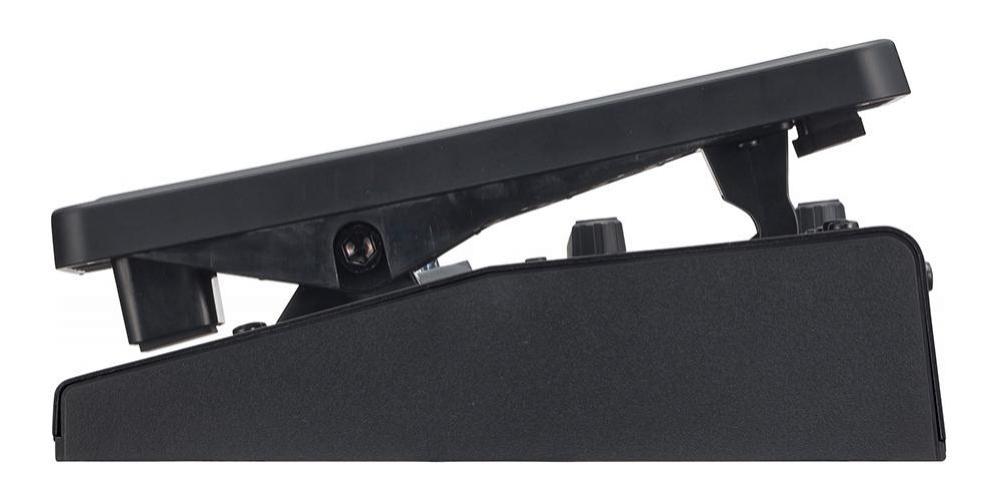

The Expression Pedal
The built-in expression pedal allows you to alter any selected parameter in real time. You can use it for gain drive or volume (affecting either input or output level), to add wah or filtering, to affect delay time or modulation speed, or a variety of other parameters. In addition, the pedal range can be independently adjusted for each patch—you can even set the minimum value higher than the maximum value for reverse pedaling effects.
Features:
- 70 (68 effects, 1 looper pedal, and 1 rhythm pedal) onboard high-quality digital effects, including distortion, overdrive,
- EQ, compression, delay, reverb, flanging, phasing, and chorusing
- Expression pedal
- 5 new amp emulators plus 5 cabinet emulators
- 75 custom-designed factory patches
- Free ZOOM Guitar Lab Mac/Windows software allows downloading of additional effects and patches
- Use up to 7 effects simultaneously, chained together in any order
- 3 stompbox switches allow effects to instantly be brought in and out
- Intuitive user interface
- 3 independent editing displays
- Auto Save function for automatic saving of all patch parameters
- Onboard chromatic tuner with dedicated footswitch supports all standard guitar tunings, including open and drop tunings
- Tuner range of 435 - 445 Hz
- Stereo/mono Looper allows recording of up to 80 seconds of phrase recording
- 68 built-in rhythm patterns that can be used in conjunction with the Looper
- Tap Tempo with dedicated footswitch
- Input jack accepts standard guitar cable
- Auxiliary stereo input jack for connection of smartphones and music players
- Dual output jacks for connection to guitar amps and mono or stereo PA systems
- Stereo headphone output
- Included AC adapter
Specifications:
Effect types: | 80 |
---|---|
Number of simultaneous effects: | 7 |
Number of user banks/patches: | 150 |
Sampling frequency: | 44.1 kHz |
A/D conversion: | 24-bit with 128x oversampling |
D/A conversion: | 24-bit with 128x oversampling |
Signal processing: | 32-bit |
Frequency characteristics: | 20 – 20 kHz +1 dB, -3 dB (10 kΩ load) |
Display: | 128 x 32 dot-matrix LCD (x3) |

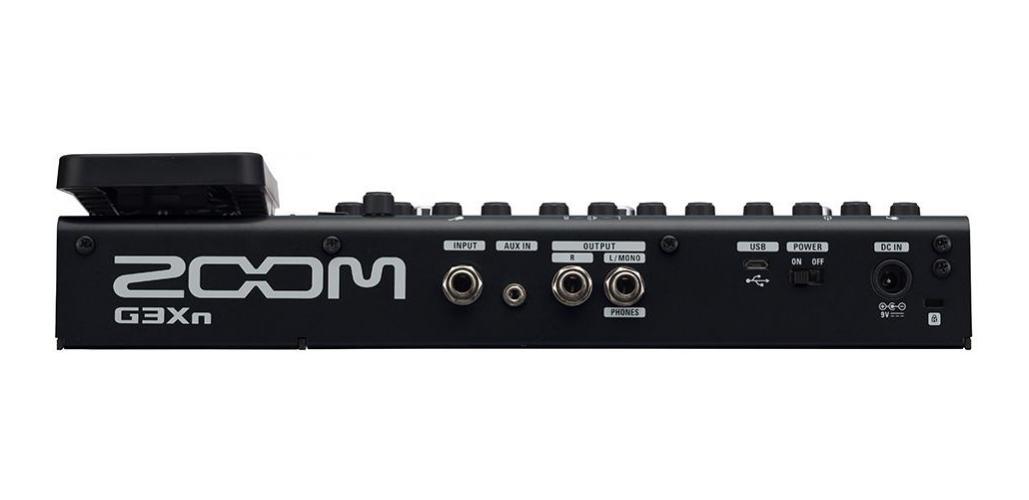

INPUTS | |
INPUT: | Standard monaural phone jack |
AUX IN: | Stereo mini jack (3.5 mm) |
OUTPUTS | |
Output R: | Standard monaural phone jack |
Output R, maximum output level: | Line +5 dBm (with output load impedance of 10 kΩ or more) |
L/Mono/Phone: | Standard stereo phone jack (combined line/headphone) |
L/Mono/Phone, maximum output level: | Line +5 dBm (with output load impedance of 10 kΩ or more) |
Equivalent input noise: | -119 dBu |
Noise floor (residual noise): | -100 dBu |
Power: | AC adapter DC9V (center minus plug), 500mA (ZOOM AD-16) |
USB: | USB MIDI, USB Micro-B |
Dimensions: | 181 mm (D) X 318 mm (W) X 64 mm (H) |
Weight: | 1.84 kg |
* 0 dBm=0.775 Vrms |
