Zoom PodTrak P4 Portable Multitrack Podcast Recorder

$308.99
BACK-ORDER - DISPATCHED AFTER 30 days
Found a better Price? Price match now
ETA confirmed in <24hr - option to cancel
If your prefer to wait until the stock has arrived:
CLICK HERE TO 'GET NOTIFIED' once we have stock on hand
or interest free for up to 6 months with
-
+

Compact, affordable, and loaded with features, the PodTrak P4 makes it easy to capture professional audio wherever you’re recording your podcasts. You can plug in up to 4 XLR mics and record in multitrack, with independent headphone control for each user.

Dispatch

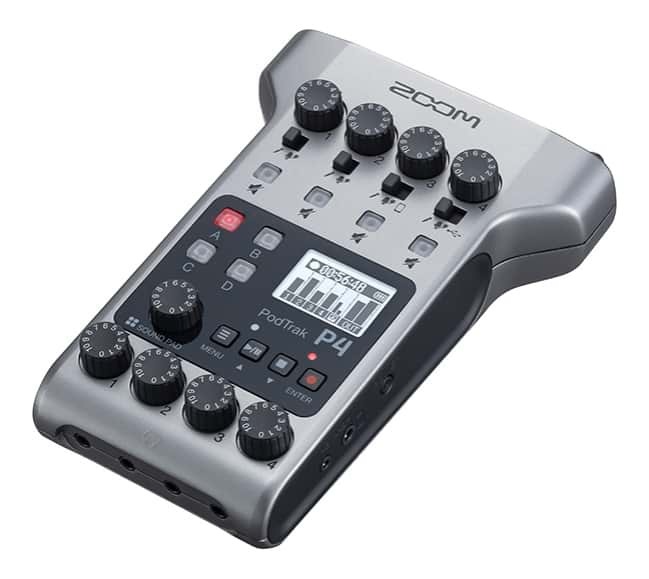

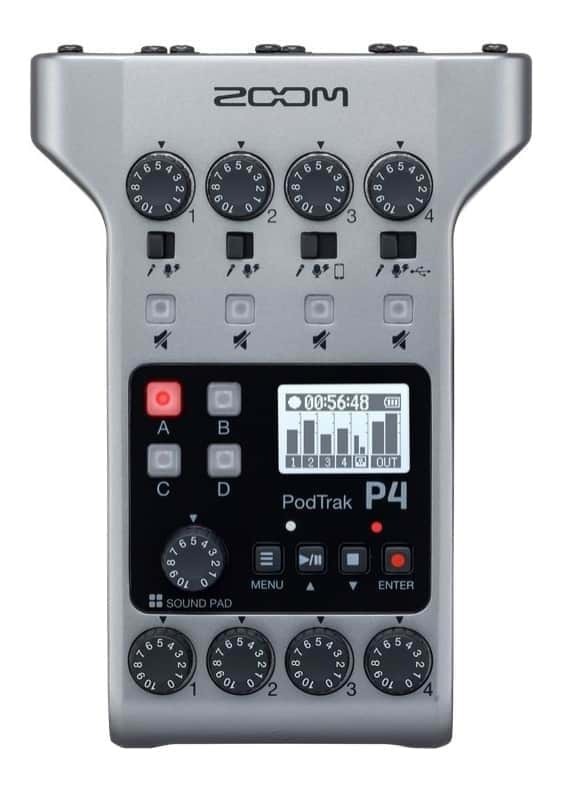

Zoom PodTrak P4 Portable Multitrack Podcast Recorder
Compact, affordable, and loaded with features, the PodTrak P4 makes it easy to capture professional audio wherever you’re recording your podcasts. You can plug in up to 4 XLR mics and record in multitrack, with independent headphone control for each user.

Many Features
The P4’s mic inputs feature Zoom’s professional quality preamps. Providing up to 70dB of gain, the P4 can be used with the most demanding microphones. With 4 independent headphone outputs, each with a dedicated volume control, everyone can hear it all. The P4 makes it easy to incorporate remote interviews. Just connect your phone to the P4 with a TRRS cable. Or connect your computer via USB, using your favorite conferencing software. With the P4’s built-in mix-minus feature, distracting echo and feedback will automatically be eliminated. You can also use the optional Zoom BTA-2* Bluetooth Receiver to wirelessly connect your phone to record remote guest.
*BTA-2 available separately.

Produce Like a Pro
The P4’s customizable Sound Pads can instantly trigger music, ads, jingles, and even pre-recorded interviews. Easily load your own sounds or choose from 11 pre-recorded presets. The P4 operates up to 4 hours on 2 AA batteries, or you can also use a USB battery for extended recording time.

Audio Interface

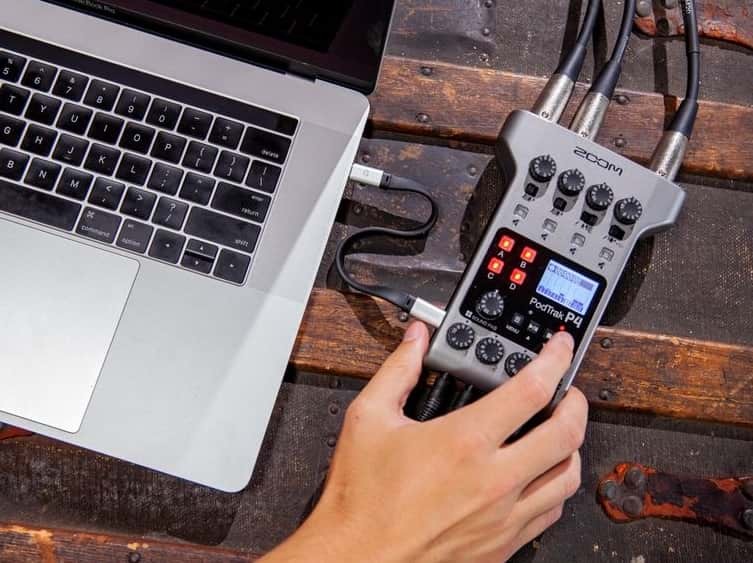

The P4 is also a 2-input, 2-output audio interface, allowing you to record directly to your computer,  Android or iOS* device. Additionally you can stream your podcast.
* Apple Lightning to USB camera adapter required.

Package Includes:
 - PodTrak P4
 - AA Batteries (x2)
 - Quick Start Guide

Features:

  • Four mic inputs with XLR connectors
  • Four headphone outputs with individual volume control
  • Gain control knobs and mute buttons for each input
  • Phantom power for all XLR inputs
  • Automatically prevent feedback from call audio using the Mix-Minus function
  • Easily connect your phone using the TRRS connection
  • Trigger sound effects using four assignable Sound Pads with 11preset sounds
  • All input sources can be recorded on separate tracks
  • 16-bit /44.1kHz audio WAV

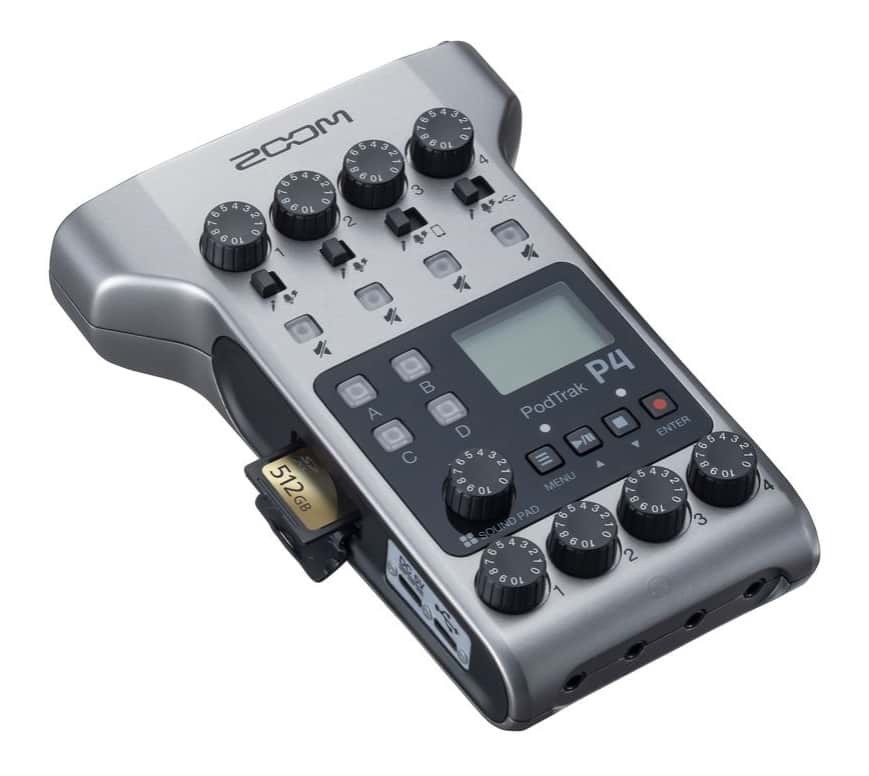

  • Records directly to SD, SDHC and SDXC cards up to 512 GB
  • 2-input, 2-output USB audio interface
  • Class-compliant mode for iOS compatibility
  • Up to four hours of use with just two AA batteries or a USB power supply

Specifications:

INPUTS & OUTPUTS
NUMBER OF INPUT CHANNELS 4 (mono/stereo)
NUMBER OF OUTPUT CHANNELS 1 (headphone x 4)
CONNECTORS

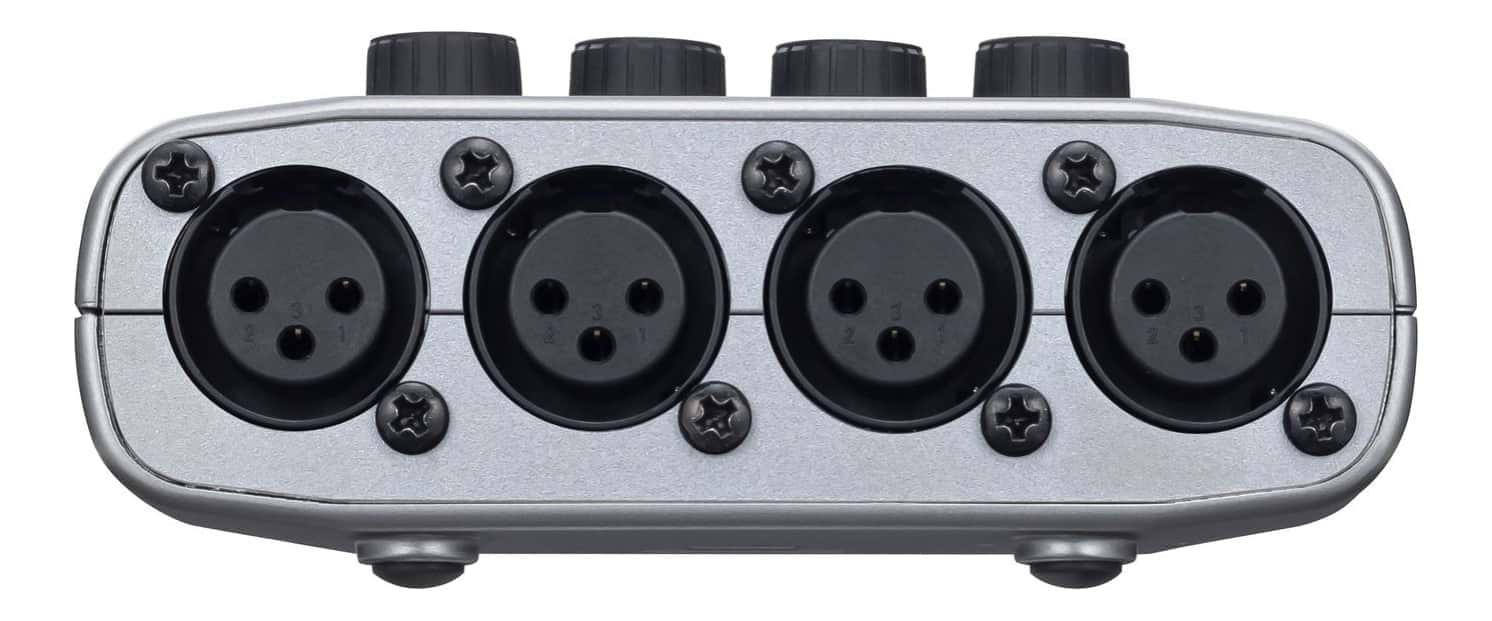

MIC XLR jacks (2: HOT)
SMARTPHONE CONNECTION JACK RRS mini jack (4 contacts, TIP: L, RING1: R,RING2: GND, SLEEVE: MIC)
USB

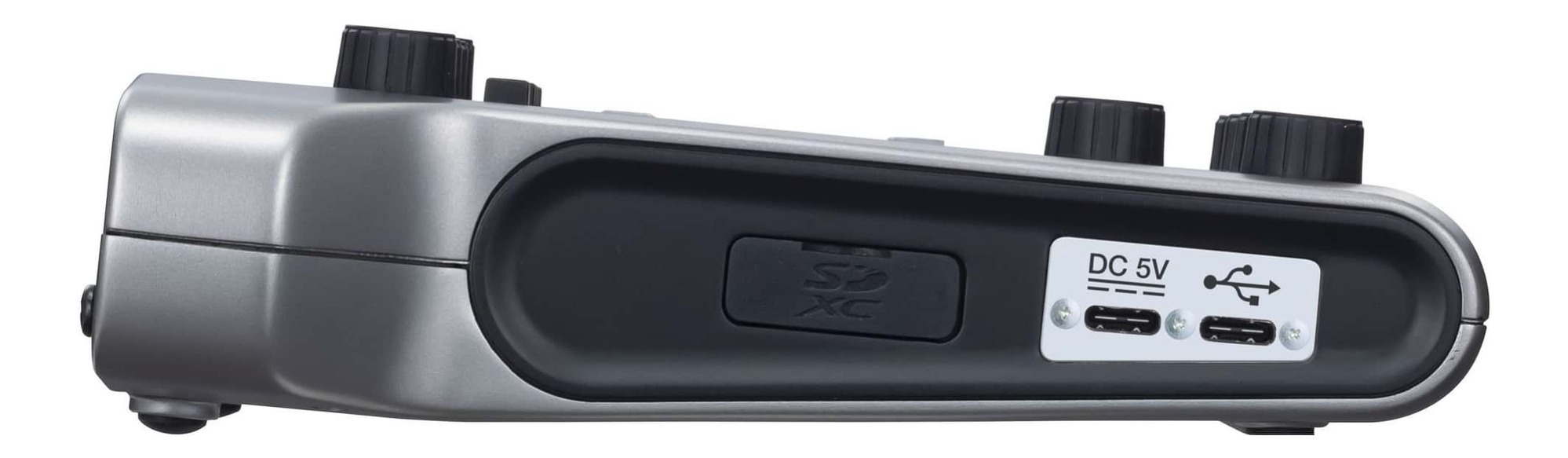

USB Type-C (audio interface and mass storage functions)
Note: Use a USB cable that supports data transfer. USB bus power is supported.

DC 5 V USB Type-C (for power supply)

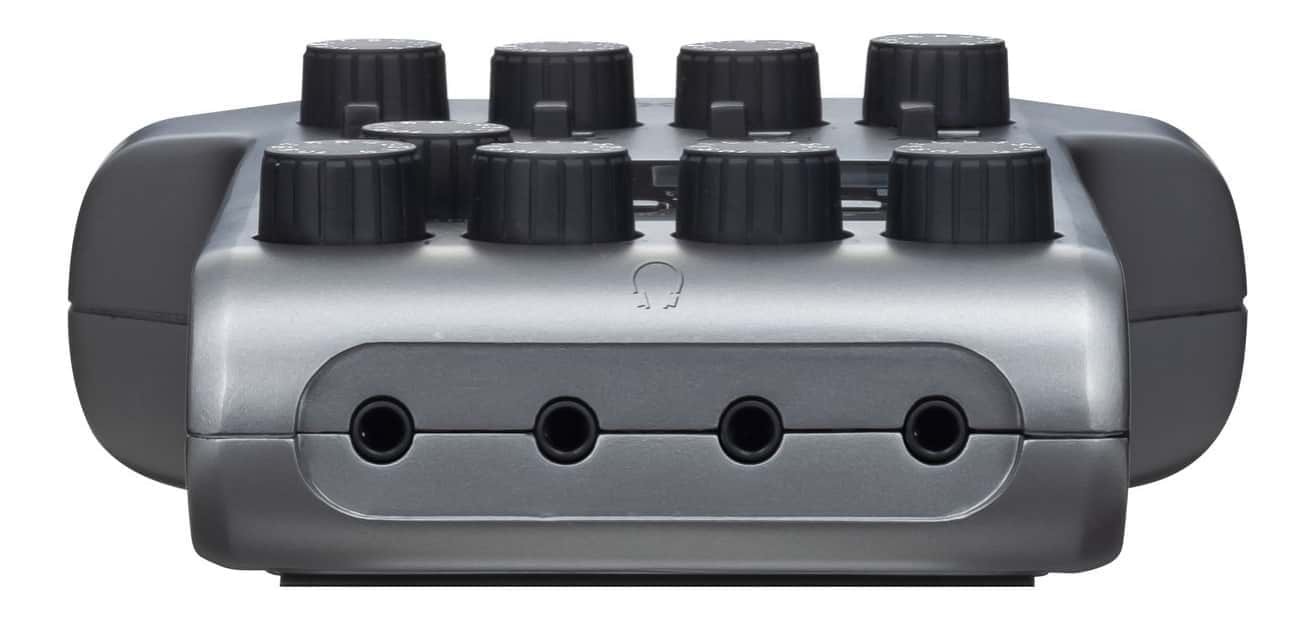

HEADPHONES 3.5 mm stereo mini
PHANTOM POWER
PHANTOM POWER +48 V
RECORDER
RECORDER
  • Formats: WAV 44.1 kHz, 16-bit, mono/stereo
  • Recording media: 4 GB−32 GB SDHC-compliant cards (Class 10 or higher);
  • 64 GB−512 GB SDXC-compliant cards (Class 10 or higher)



AUDIO INTERFACE
AUDIO INTERFACE 44.1 kHz, 16-bit, 2-in/2-out
SYSTEM REQUIREMENTS FOR AUDIO INTERFACE MODE
WINDOWS OS: Windows® 10 Version 1703 or later (32bit, 64bit)
CPU
  • Intel® Core i3 or faster*
  • USB: USB 3.0 / 2.0**

* Operation is not guaranteed with CPUs from Atom, Celeron or Pentium series or CPUs made by AMD.

** Only USB host controllers with Intel Chipsets are supported. Operation is not guaranteed when used with USB hubs or expansion cards.

MAC OS
  • OS: macOS 10.13 / 10.14 / 10.15
  • CPU: Intel® Core i3 or faster
  • USB: USB 3.0/USB 2.0*

* Operation is not guaranteed when used with USB hubs or expansion cards.

IPHONE / IPAD OS  iOS 12 / 13
* Apple Lightning-to-USB Camera Adapter required.
ANDROID OS Android OS 7 / 8 / 9 / 10
* Please refer to the compatible android device list.
POWER
POWER 2 AA batteries (alkaline, NiMH or lithium)
• We recommend using NiMH
AC adapter (ZOOM AD-17): DC 5 V/1 A (USB bus power is supported.)
EST. CONTINUOUS OPERATION TIME USING BATTERIES
  • Recording 44.1 kHz/16-bit/4ch audio to SD card (when 48 V is OFF and headphone impedance is 63 Ω)
  • Alkaline batteries: about 4 hours
  • NiMH batteries (1900 mAh): about 4.5 hours
  • Lithium batteries: about 9 hours
• The above values are approximate.
• Continuous battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions.
MISC.
EXTERNAL DIMENSIONS 112 mm (W) × 155 mm (D) × 47 mm (H)
WEIGHT (UNIT ONLY) 290 g
View PDF brochure for Zoom PodTrak P4 Portable Multitrack Podcast Recorder
