SWAMP 10" Powered PA Speaker - Bi-amped - 120W + 30W RMS | SWAMP

SWAMP

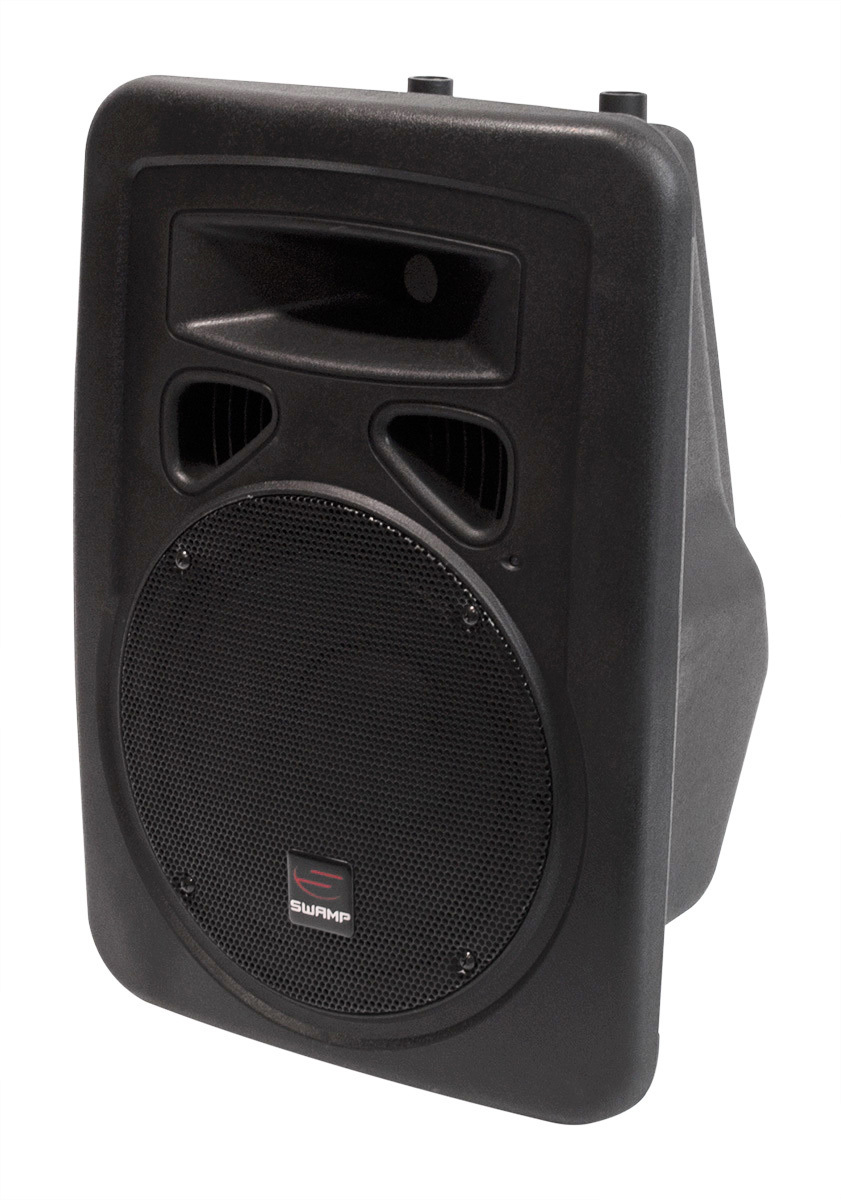

SWAMP 10" Powered PA Speaker - Bi-amped - 120W + 30W RMS

suitable as FOH Speaker or Foldback Monitor

$229.99
  Sold Out
or interest free for up to 6 months with
Stock Due: mid May

The PBO-10BM is SWAMP's small sized, all-round workhorse PA speaker, with a bi-amped design, Bluetooth and TWS connectivity. Small, compact and portable - it weighs under 10kgs. Great sound reproduction with crisp highs and a tight, present bottom end.

Dispatch

PBO-10BM 10" Powered PA Speaker - Bi-amped - 120W + 30W RMS
The PBO-10BM is SWAMP's small sized, all-round workhorse PA speaker, with a bi-amped design, Bluetooth and TWS connectivity.  Small, compact and portable - it weighs under 10kgs and has comfortable handles. Great sound reproduction with crisp highs and a tight, present bottom end.

Bi-Amped Design - 120W + 30W RMS (270W MAX)
This SWAMP speaker delivers a clear, rounded, full range sound. Built with a bi-amped configuration that utilises two individual amplifiers to power the woofer and the tweeter separately, making the amplifiers much more efficient resulting in more volume per watt. Using a carefully designed crossover (splitting of frequencies between the Tweeter and Woofer) ensures a clear mid range and present, but non-piecing top range. All the while layered with a fat bass sound from the 10" woofer, that can be EQ'd to your preference.

FOH or DJ Speaker

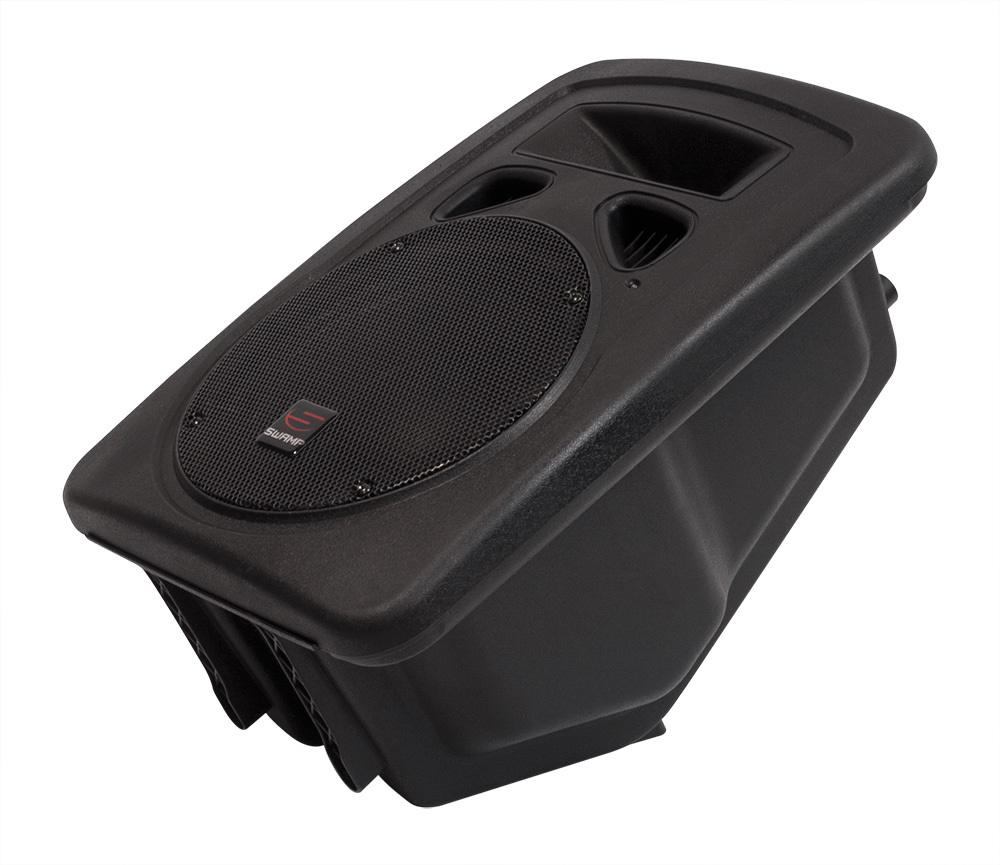

A pair of PBO-10BM offers plenty of thump for small pub and club gigs, up to 120 people. Mounts on all standard speaker stands. A slanted speaker box design allows the PAJ-10BM to be used effectively for stage monitoring applications. A precise mid range and flexible EQ control to ward off unwanted feedback, the PBO-10BM is sure to keep those stage musicians happy.

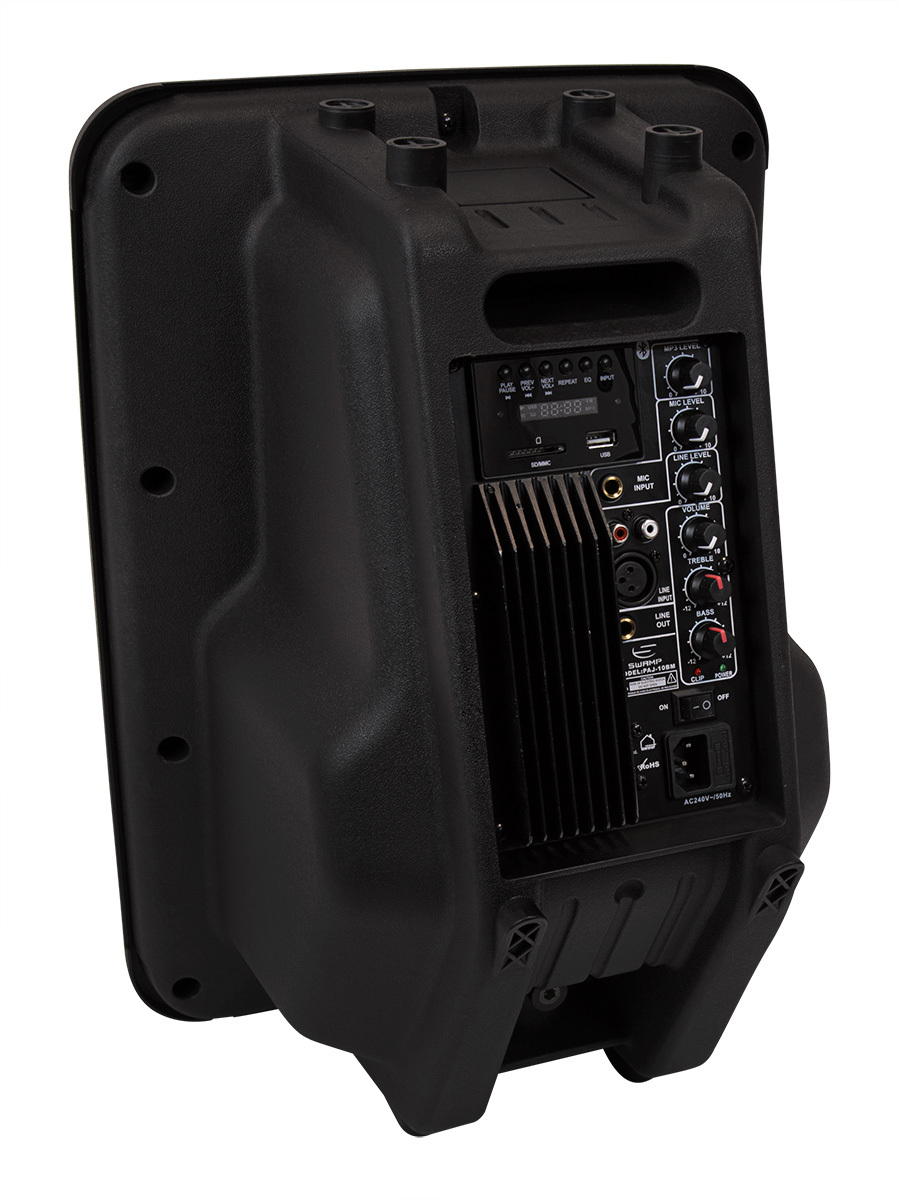

Ins and Outs
The inbuilt mixer module makes it possible to connect a microphone via a dedicated XLR Mic input. A decent preamp and gain control supports the sound of your microphone. As well, there is a line input, with both XLR and RCA connections. Both inputs have individual level controls. Dual RCA inputs are included to connect a DJ mixer or CD player, while the XLR Line Input enables a Balanced Line Level signal from an external mixing desk to be sent to the speaker. There is also an XLR line output, giving the ability to daisy chain the signal onto another speaker.

Bluetooth Connectivity, TWS and MP3 Player
On the PBO-10BM, you will find bluetooth connectivity for wireless control of your audio playback. Simply activate bluetooth on your Smartphone and select the speaker for instant playback of your phones audio. Perfect for lining up music to play before and after a set. The module also allows for a USB flash drive or SD card to be used for MP3 playback. In addition, the speaker comes with a remote control.

When you have two speakers, you can connect them as a wireless stereo pair. Simply turn on the two speakers, switch to Bluetooth mode without any connection, press and hold the TWS button on one of the units which will then become the Left channel, and the other unit becomes the Right channel. This will be shwon on the display. After the TWS connection has been set, use your mobile device to search and connect to Bluetooth, and the Left channel unit will show ' connected' on the display, and the two speakers will playback music in true stereo.
Hold the TWS key again to disconnect TWS.

Features:

  • Bi-Amped
  • Bluetooth Connectivity
  • TWS (True Wireless Stereo) when you have two speakers
  • Versatile Rear Mixing Console
  • Remote Control
  • 4.5" Titanium Driver
  • 10" Woofer
  • Mic In, DJ/CD In, Line In and Out
  • 2-Band EQ - Bass, Treble
  • Side and Top Carry Handles

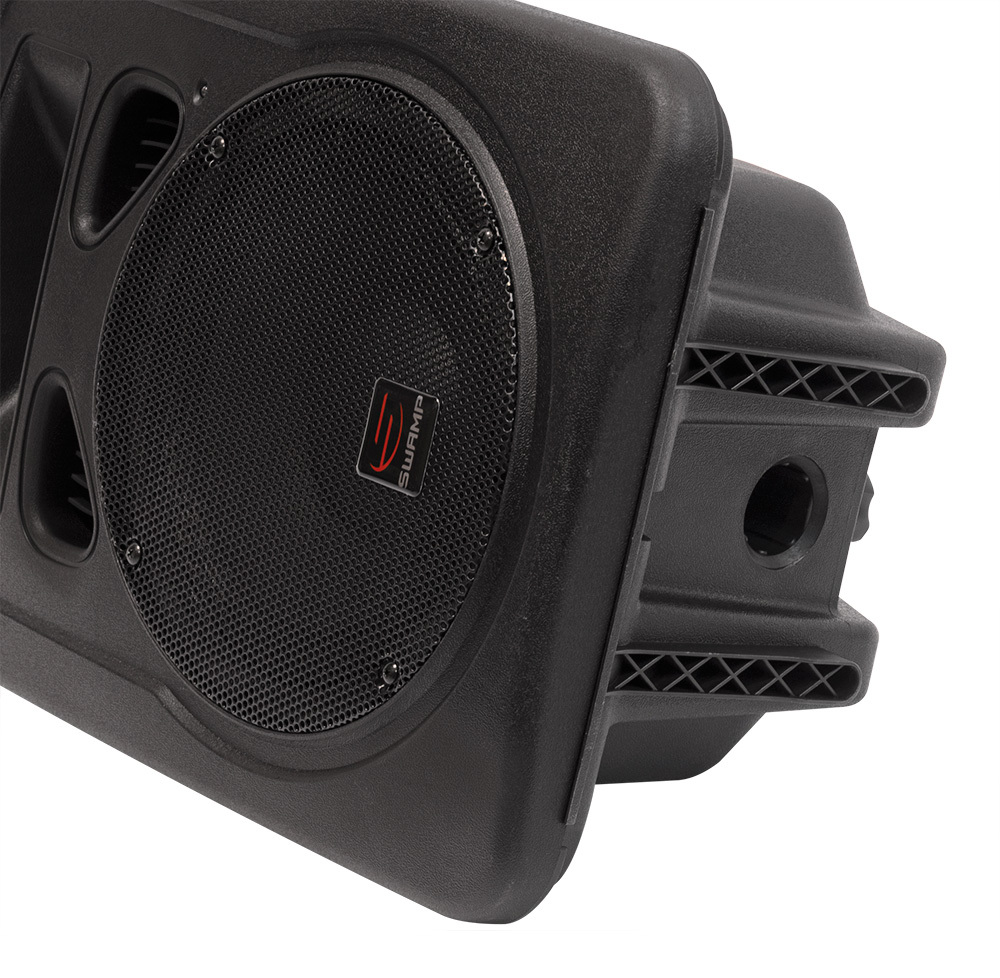

  • Speaker Stand Mounting Hole (standard 35mm, DO NOT over-tighten lock screw, this is not necessary and could lead to damage)

Specifications:

  • Frequency Response: 55Hz-20KHz (+/- 2dB)
  • Woofer Sensitivity(1M/1W): 102 dB
  • Woofer Power Rating: 120W RMS/ 240 MAX @ 4Ω
  • Woofer Frequency Range: 50Hz - 3.5kHz
  • Tweeter Sensitivity(1M/1W): 106dB
  • Tweeter Rating Power: 30W RMS/ 60W MAX @ 8Ω
  • Tweeter Frequency Range: 3kHz a 20kHz
  • Woofer: 1×10", 2.0" Coil, 1.4kg
  • Tweeter: 1×4.5", 1.3" Coil, 0.368kg
  • Tweeter Driver: Titanium Compression Driver
  • Dimensions: 490 x 315 x 280mm
  • Weight: 9.1kg
