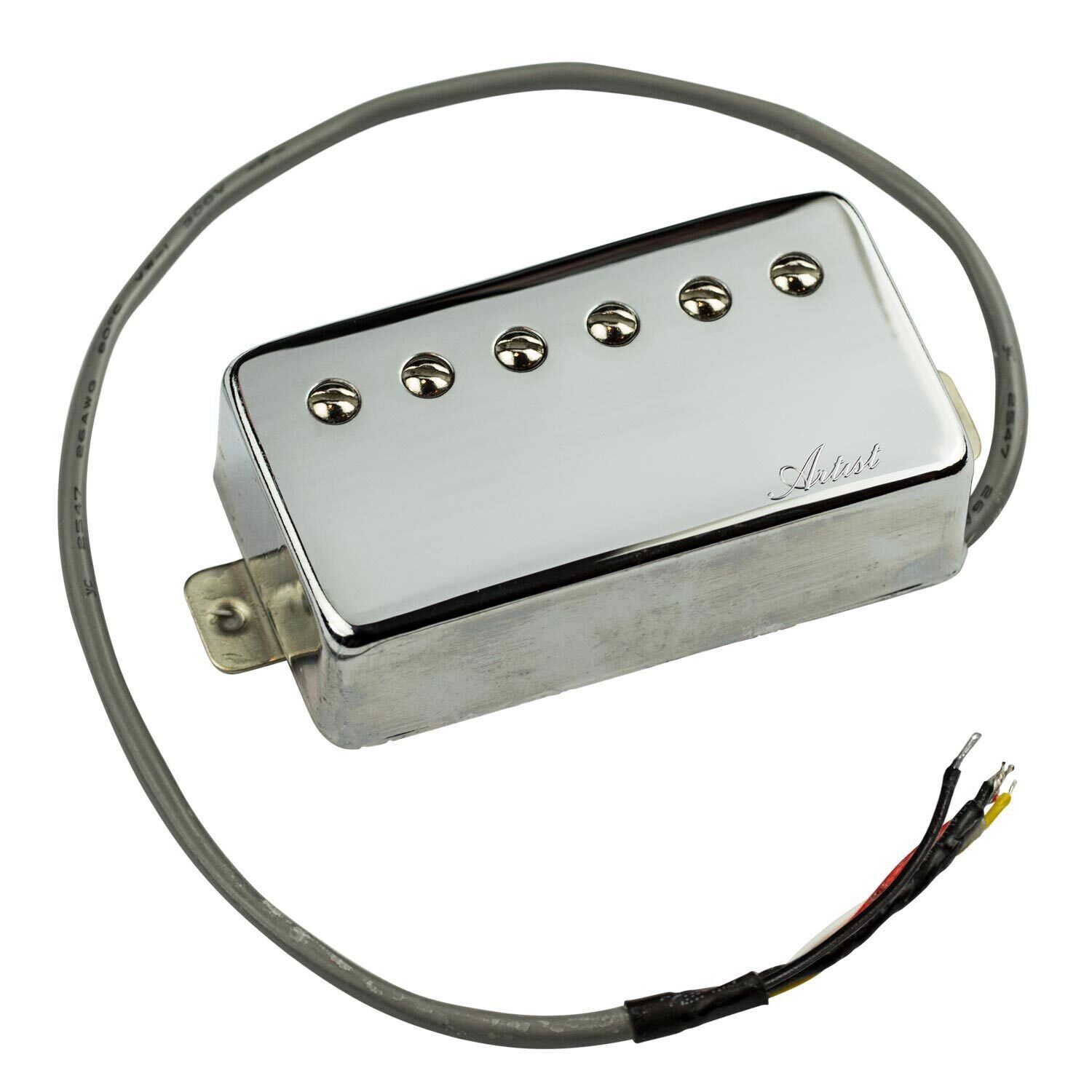

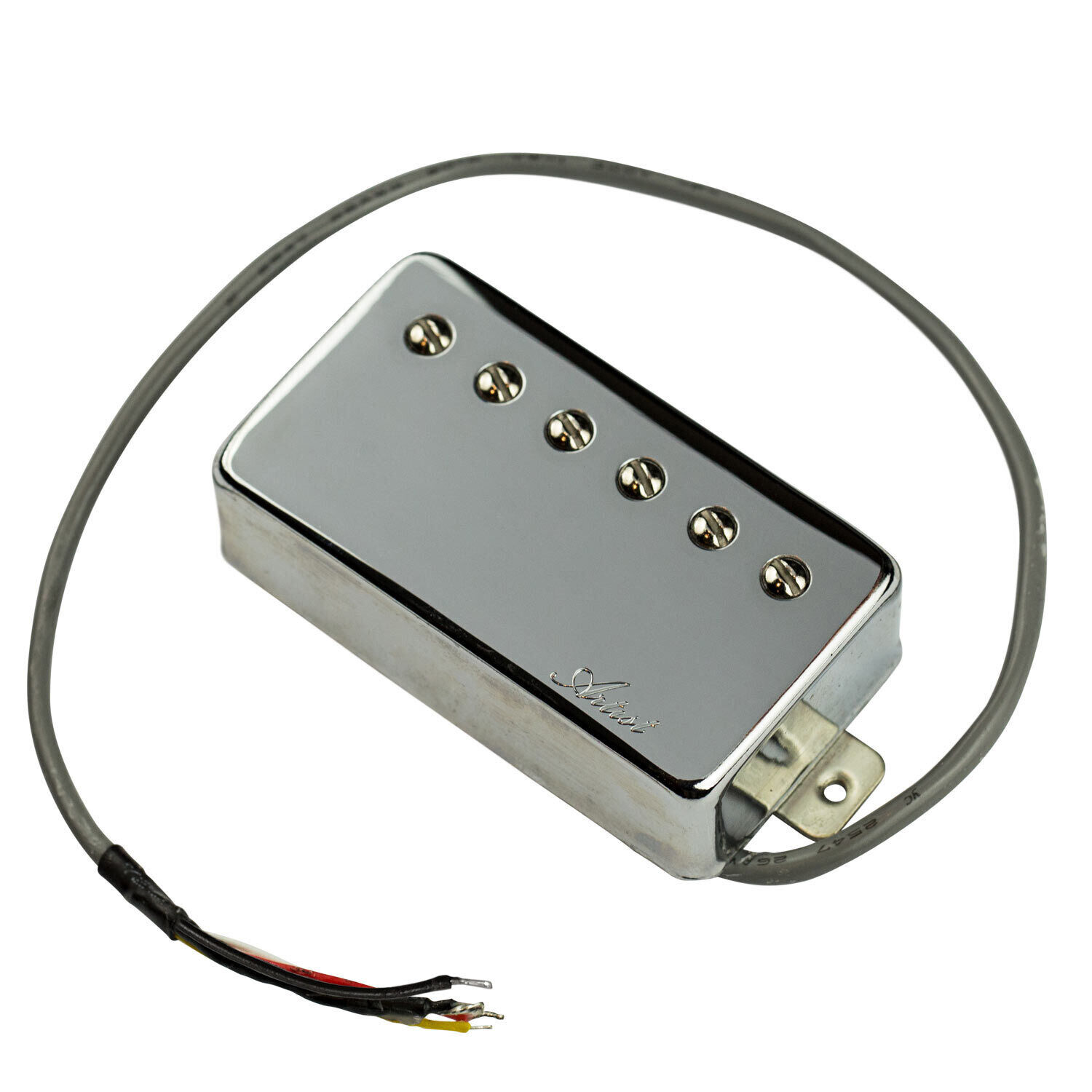

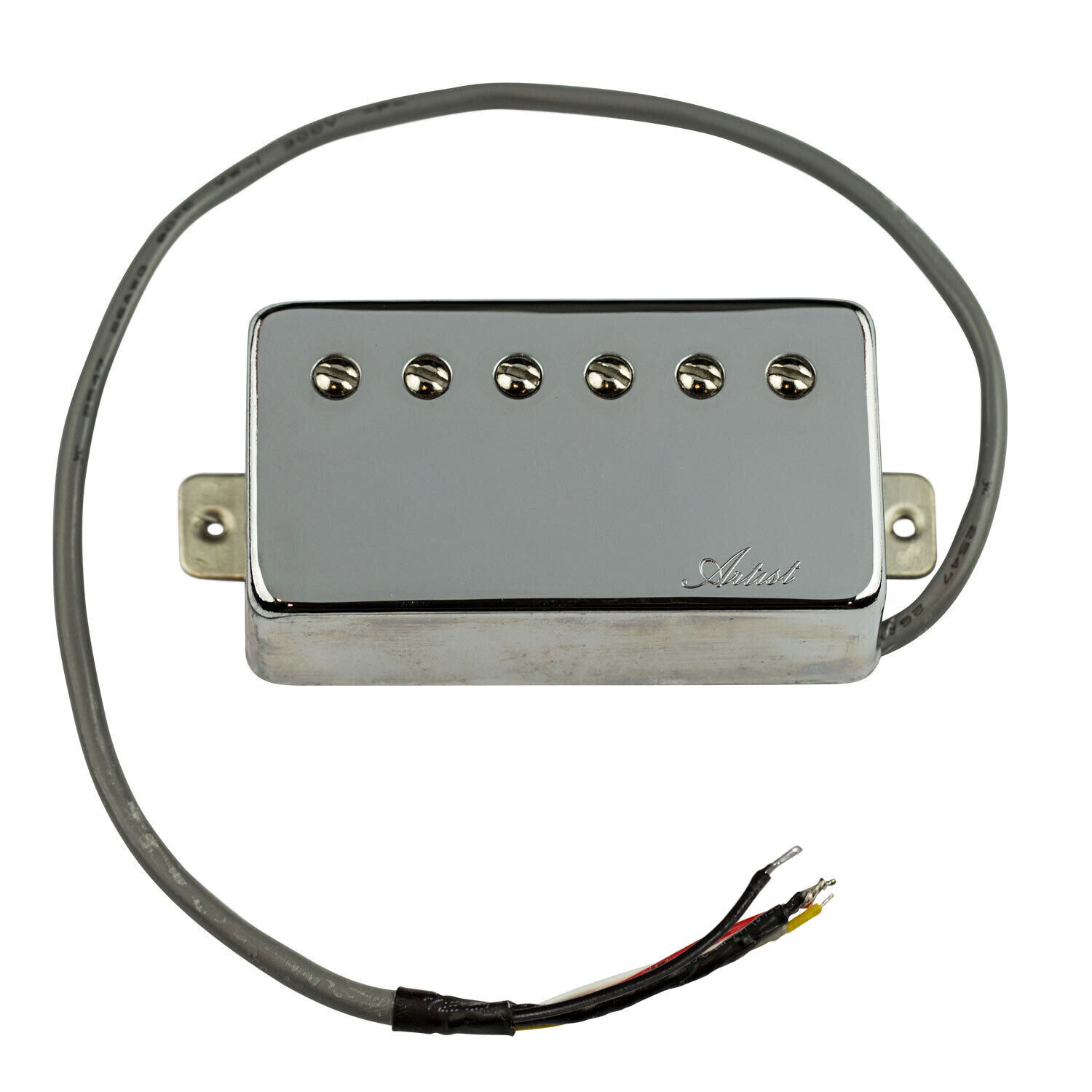

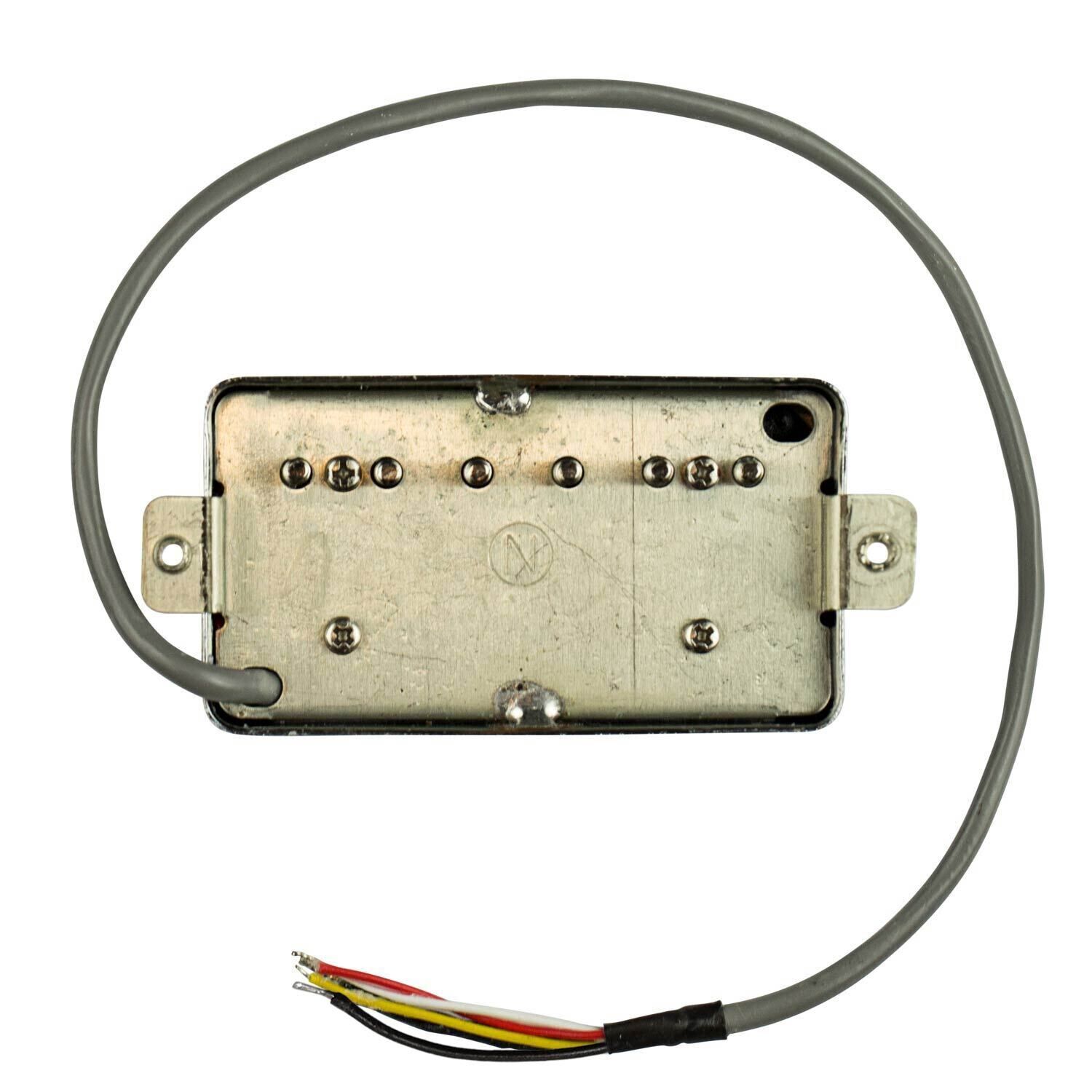

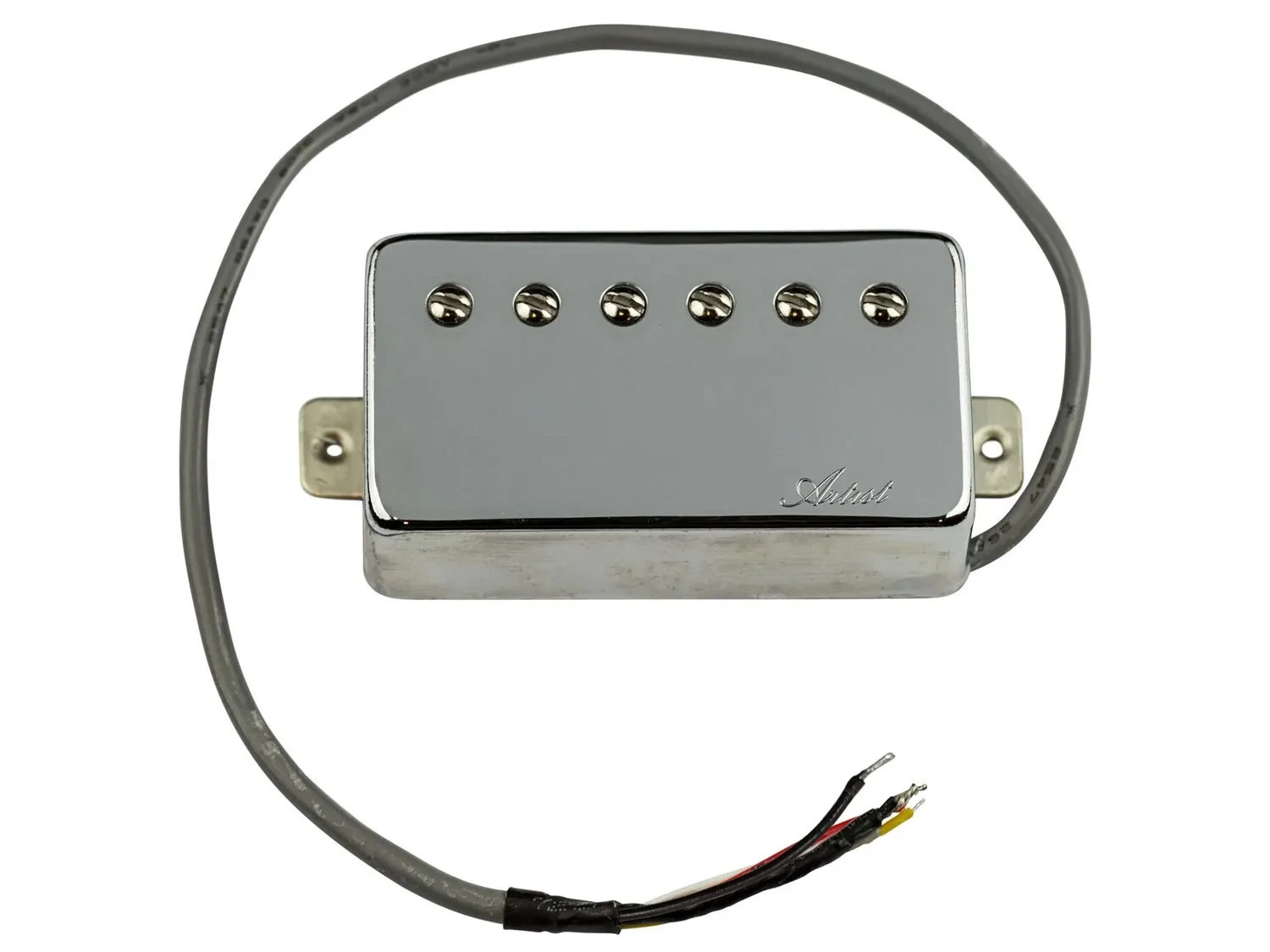

Artist BullBucker Electric Guitar Humbucker Pickup Neck - Chrome

Artist BullBucker Electric Guitar Humbucker Pickup Neck - Chrome
The Artist BullBucker Neck Humbucker in Chrome delivers clear, articulate tones with moderate output, Alnico V warmth, and coil-splitting capability—ideal for jazz, blues, rock, and more, with wax-potted construction for feedback control. Ideal if you're looking to replace or upgrade just the neck pickup.

Articulate and Clear Tone
The Artist BullBucker Electric Guitar Neck Pickup is a classic moderate output humbucker based on the popular Jazz model. Especially popular in the neck position, it is great for jazz, and also country, blues, funk, classic rock and heavy rock. It provides an articulate and clear tone and is great for fast runs. The brighter tone has slightly less output and is a good match with most bridge pickups. When distorted, the tone is full and bright and give smooth sustain. This works especially well mahogany body guitars with rosewood fingerboards. Overall, it balances clarity and warmth, staying punchy yet defined in clean settings, while retaining character and sustain when pushed through gain. They are wax potted and can be used as Split Coil Humbuckers which allows the humbucker to effectively become a single coil. All Artist Bullbucker humbuckers have four-conductor hookup wires and use the same standard wire colour code.

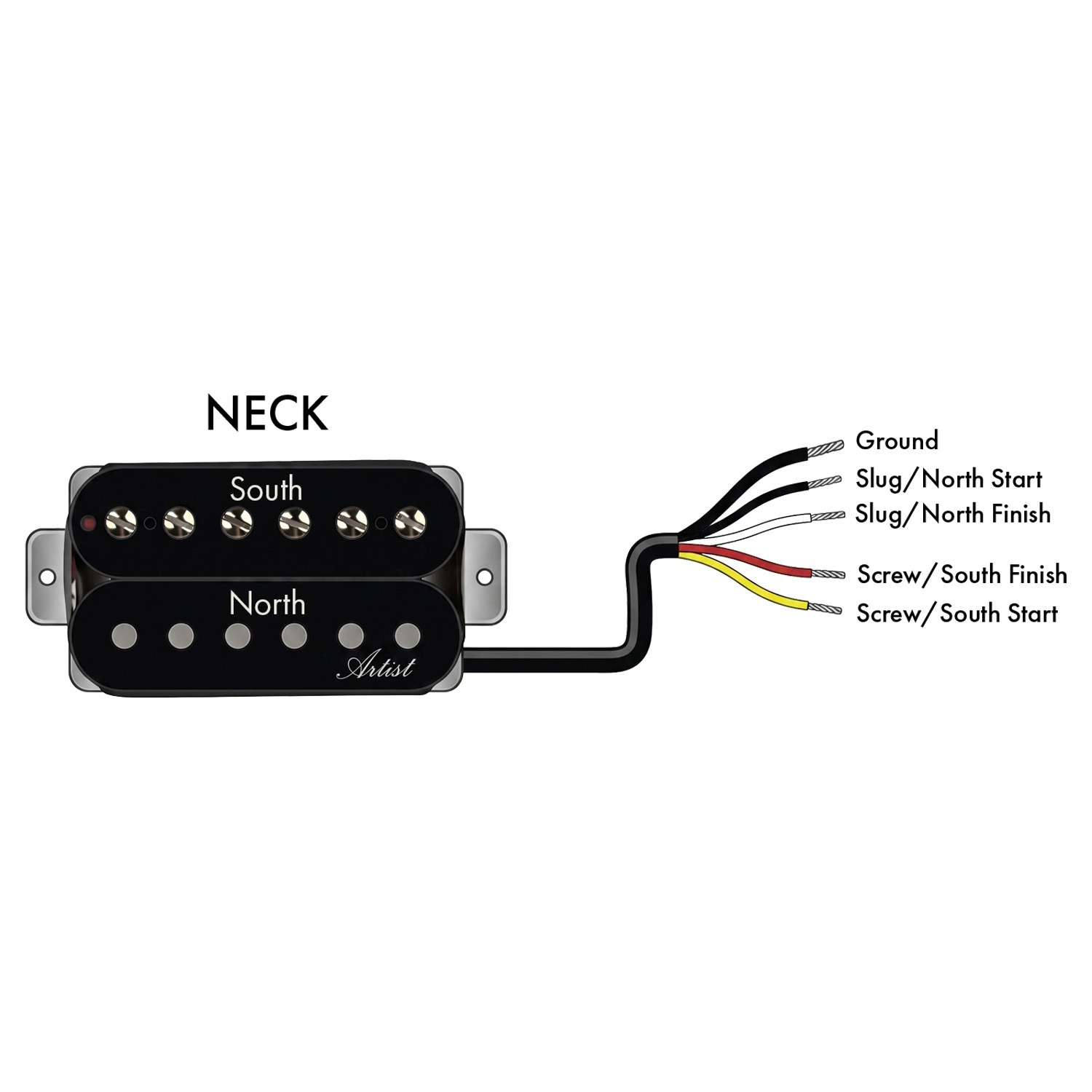

Wiring Description

 - Top Coil Polarity: South
 - Bottom Coil Polarity: North
 - Ground Wire: Thicker Black wire
 - South start: Yellow wire (Also known as Inside Screw wire)
 - South finish: Red wire (Outside screw wire)
 - North finish: White wire (outside slug wire)
 - North start: Thinner Black wire (Also known as Inside Slug wire)

To use this as a standard humbucker in series configuration, the White & Red wires are soldered together and taped; both Black wires are grounded and Yellow is Hot Output. If you want to coil-split, then attach the Red and White wires to the coil switch. This means that when coil splitting, Black and White are not involved because they are both grounded, which deactivates the North coil. To split to the North coil, the process is much the same, but you'll switch the position of the thin black and yellow wires, making the thin black wire the Hot start, and the yellow wire will be grounded. This means when the switch is activated, both Red and Yellow are grounded, deactivating the South coil.

Specifications:

• Type: Bridge Pickup, Alnico V Bar
• Colour: Chrome
• Conductors: 4
• DC resistance: 7.1K
• Inductance Rating: 3.86H
• Spacing: 50mm
