Audio Adapter - 1/8" female TRS to 1/4" male TS - Stereo to Mono | SWAMP

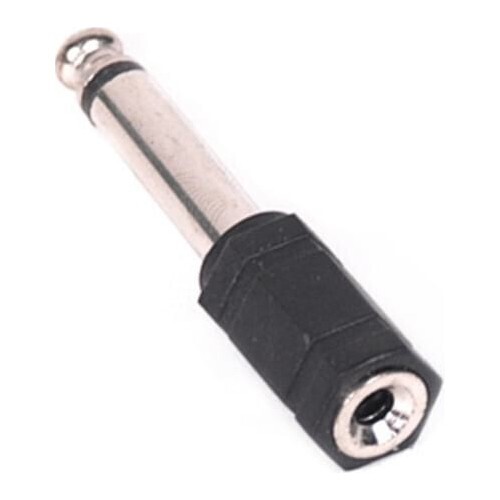

Audio Adapter - 1/8" female TRS to 1/4" male TS - Stereo to Mono

$4.49
  In Stock
or interest free for up to 6 months with
Buy In Bulk & Save!
Buy 2 to 5: Pay $3.51
Buy 6 to 9: Pay $2.88
Buy 10 or more: Pay $2.44
-
+

This is a Stereo to mono summing cable, that will combine the left and right audio from a 3.5mm female mini jack into a single mono signal via the 1/4" male jack, for use with a 3.5mm for plugging a playback device into mono input on a mixer or guitar amp

Dispatch

Audio Adapter - 1/8" female TRS to 1/4" male TS - Stereo to Mono
This is a Stereo to mono summing cable, that will combine the left and right audio from a 3.5mm female mini jack into a single mono signal via the 1/4" male jack, for use with a 3.5mm for plugging a playback device into mono input on a mixer or guitar amp.

True Stereo Signal Combination into Mono
This handy little adapter enables the user to plug a 1/8" (3.5mm) stereo TRS cable, into a 1/4" (6.35mm) input. This adapter will combine both the left and right channels of audio from a headphone mini jack into a single mono signal containing equal parts of both the left and right channels. Great for plugging an ipod or laptop into a mono input on a mixer or guitar amp.

Split a Mono Signal into a 'Stereo' Signal
Can also be used in the opposite fashion, to split a mono signal from a 1/4" jack connector, into 2 identical signals that will pass through the Tip and Ring of the 3.5mm mini jack connector. Ideal for recording a mono signal into stereo line level jacks on PC sound cards.

NOTE: This adapter is not suitable for use as a headphone adapter. If using with a stereo device (Ipod, MP3, Laptop), only one channel of the music will be heard. To hear both channels, use a Stereo TRS adapter.

Features:

  • Connectors: 1/8" or 3.5mm (f) TRS / 1/4" or 6.35mm (m) TS
  • STEREO TO MONO
  • Wiring:
    3.5mm Tip = 6.35mm Tip
    3.5mm Ring = 6.35mm Tip
    3.5mm Sleeve = 6.35mm Sleeve
View PDF brochure for Audio Adapter - 1/8" female TRS to 1/4" male TS - Stereo to Mono

Be The First To Review This Product!

Help other SWAMP Industries users shop smarter by writing reviews for products you have purchased.

Write a product review


MPN: A 1-8(f) 1-4(m) SM

SKU: A-1-8f-1-4m-SM

ID: 275860
