Audio-Technica ATW-1102 System 10 Digital Wireless 2.4GHz Handheld Microphone
ATW-1102 System 10 Digital Wireless 2.4GHz Handheld Microphone System

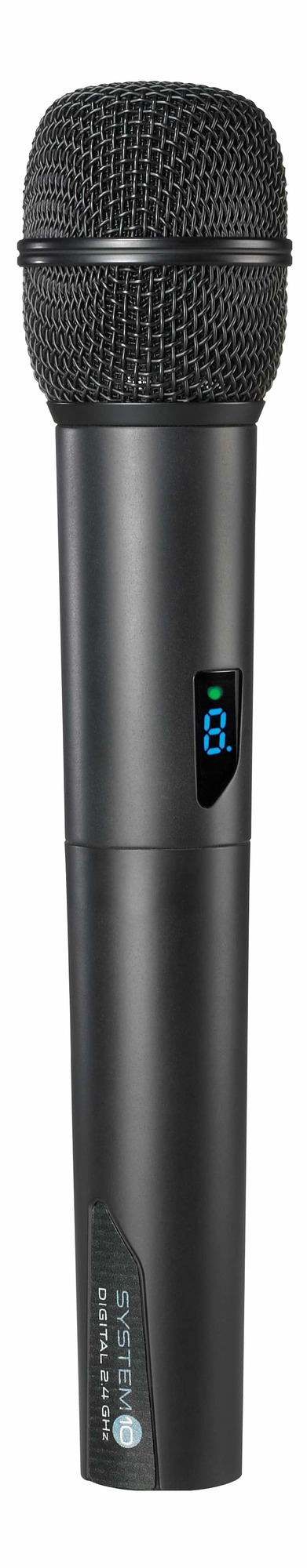

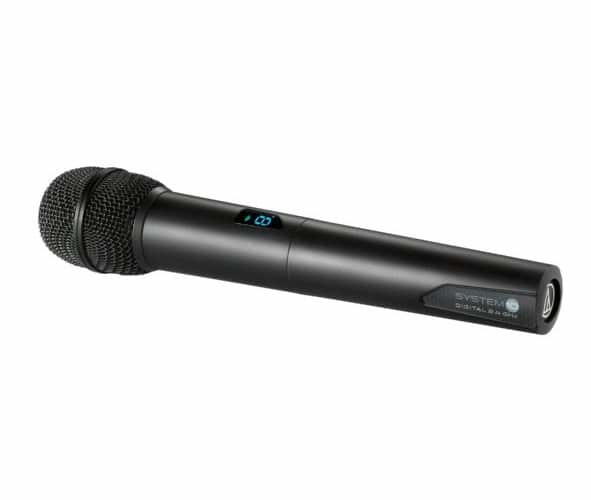

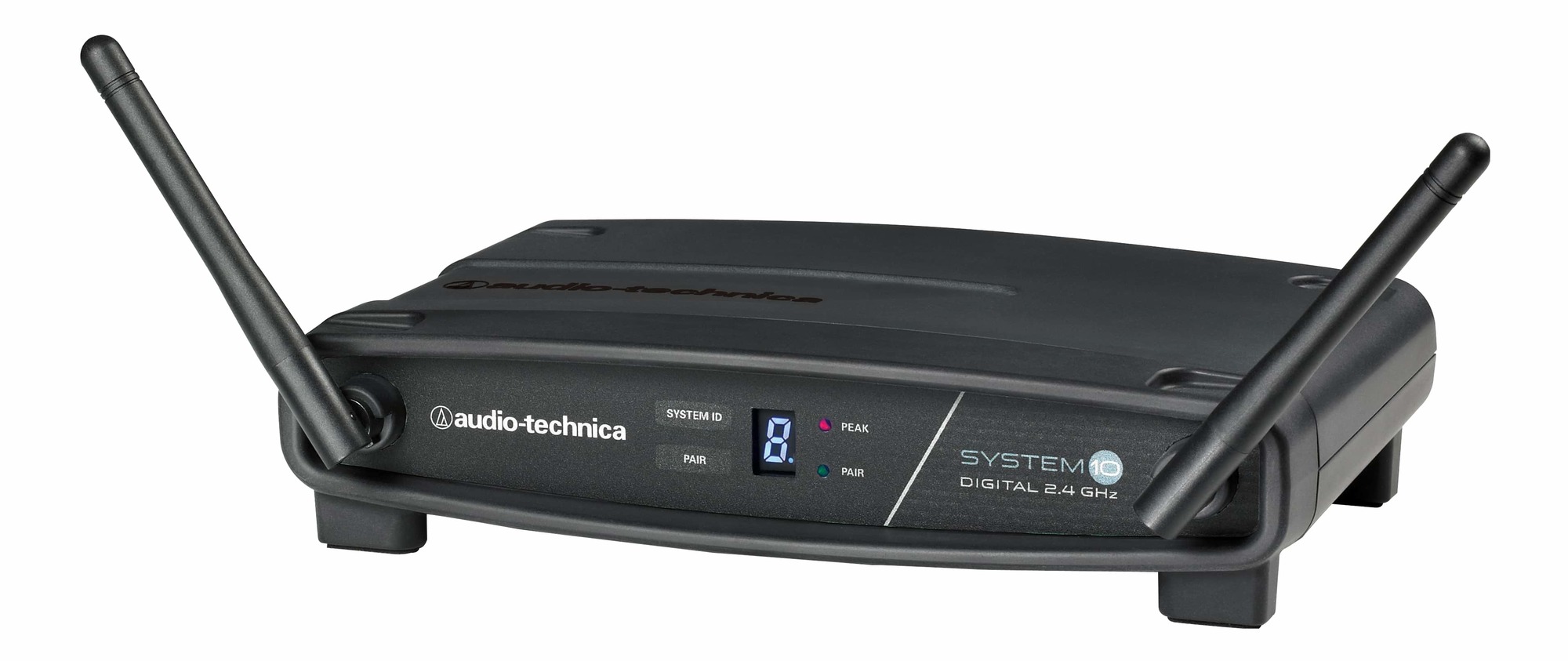

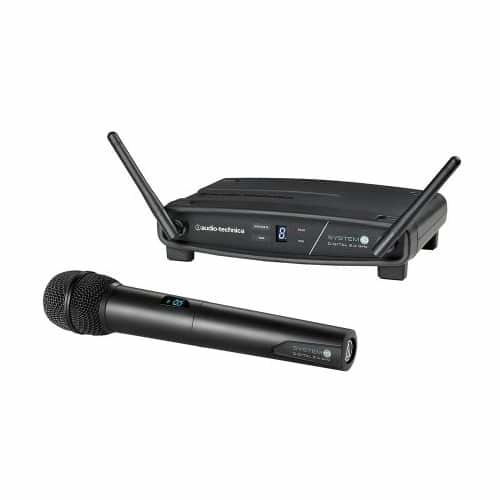

Audio-Technica's System 10 is an excellent choice for a robust, simple yet effective wireless system, operating in the 2.4GHz band, and offering 24bit/48kHz audio. It has a easy setup, pairing the handheld transmitter and the receiver. Up to 8 units can work simultaneously. Included with the receiver is the ATW-T1002 unidirectional dynamic handheld microphone. The microphone offers balanced lows and equal sufficient mids and highs for clear, intelligent vocal frequency response. Also included is the Quiet-Flex mic clip.
Multiple Diversity Methods
System 10 wireless ensures clear communications by providing three levels of diversity assurance: frequency, time, and space. Frequency Diversity sends the signal on two dynamically allocated frequencies for interference-free communication. Time Diversity sends the signal in multiple time slots to maximize immunity to multipath interference. Finally, Space Diversity uses two antennas on each transmitter and receiver to maximize signal integrity.
Audio-Technica usese a process of pairing a transmitter with a receiver, so that they communicate bi-directionally and function as a unit. After selecting a channel ID number 1 through 8, the user presses the pairing button on the receiver and subsequently activates the button in the transmitter’s battery compartment at close range to sync them together. The transmitter’s display now shows the same ID number, and the system is ready to use. The pairing method is quick to learn, and can be used to switch between a handheld and bodypack using the same receiver, or to add a new transmitter to the system.
- Digital 24-bit/48kHz wireless operation for ultimate sound quality and dependable performance
- 2.4GHz range – completely free from TV/ 3G interference
- Three levels of diversity assurance: frequency, time, & space
- Automatic frequency selection for seamless, interference-free operation
- Automatic Frequency Selection. Plug & Play. Ease of use and reliability
- Extremely easy operation with instantaneous channel selection, sync, and set-up
- State-of-the-art digital receiver for reliable performance
- Balanced XLR and unbalanced 1/4" output jacks with level control
|Operating Frequencies||2.4GHz ISM band|
|Frequency Response||20Hz to 20kHz Depending on microphone type|
|Operating Range||30m (100') Open range env. with no interfering signals|
|Dynamic Range||>109dB (A-weighted), typical|
|Total Harmonic Distortion||<0.05% typical|
|Operating Temperature Range||0° C to +40°C (32°F to 104°F) Battery performance may be reduced at very low temperatures|
|Audio Sampling||24bit / 48kHz|
|Receiving System||Diversity (frequency/time/space)|
|Maximum Output Level||XLR, balanced: 0 dBV 1/4" (6.3mm), unbalanced: +6 dBV|
|Power Supply||100-240VAC (50/60Hz) to 12VDC 0.5A power supply switched mode external|
|Dimensions||190mm W x 46.2mm Hx 128.5mm D|
|Accessories Included||Power supply|
|RF Power Output||10mW|
|Spurious Emissions||Following federal and national regulations|
|Battery Type||Two 1.5V AA (not included)|
|Battery Life||>7 hours (alkaline) (Depending on battery type and use pattern)|
|Dimensions||254.8mm (10.03") long, 50.0mm (1.97") diameter|
|Accessories Included||AT8456a Quiet-Flex™ stand clamp|
