Audiocenter EA512 Active DSP-Controlled 12" Speaker

Audiocenter

Audiocenter EA512 Active DSP-Controlled 12" Speaker

$779.99
$1,199.99
  In Stock
or interest free for up to 6 months with
SAVE 35%
-
+

The EA512 is Audiocenter's latest active 12" speaker, with 2000W power peak, two combo inputs as well as RCA, and can be utilised either vertically or horizontally, and built with BrainCore, an innovative core application technology. Solid wood cabinet.

Dispatch

EA512 Active Speaker DSP-Controlled Full Range Loudspeaker
The EA512 is Audiocenter's latest active 12" speaker, with 2000W power peak, two combo inputs as well as RCA, and can be utilised either vertically or horizontally, and built with BrainCore, an innovative core application technology. Solid wood cabinet.

Versatile and Functional Design
There are several ways you can use this speaker, either flung horizontally by steel wire and U bracket or vertically by a single-point hanging frame, solo on a speaker pole or sitting on top of a subwoofer pole. Two combo inputs (2-way XLR and Mono jack 6.35) are available. CH A input can be switched between line input or microphone input. Besides, there is a RCA port for other sound resources like MP3, CD player, etc. The three different audio sources can be parallel output with one-way XRL after mixed internally, and then sent to different speakers for sound distribution. The double mount is 0°/10°adjustable by just pushing the button.

Built to Last
Along with its customised Class D amplifier, Audiocenter EA series of speakers use advanced cooling systems, with a molded large heatshrink. The solid wood construction of the cabinets makes it ideal for touring applications. The latest ferrite custom driver technology ensures a clean and clear dynamic sound.

Braincore Technology
With its advanced technology and scientific methodology, BrainCore analyses and processes the input signal, DSP module, Class D amplifier and loudspeaker optimally, achieving excellent frequency response and audio reproduction even at high levels of SPL. This technology was researched and developed by Audiocenter.

Features:

  • 24bit / 96KHz DSP processor
  • Can be flown, or on a speaker pole.
  • Class D amplifier with switch mode power technology
  • Automatic standby
  • Customised ferrite drivers
  • Advanced cooling system
  • Solid wood cabinet
  • Double pole mount

Specifications:

Type

Active DSP-controlled full range loudspeaker

Frequency Response (-6dB anechoic chamber)

45Hz-20KHz

Maximum Calculated SPL/1M

134dB

LF Driver

Customized AUDIOCENTER ferrite driver, 3” voice coil

HF Driver

Customized BEYMA ferrite driver, 1.0” exit, 1.75” voice coil

Horizontal Coverage Angle(Symmetrical)

60°

Vertical Coverage Angle(Symmetrical)

40°

Amplifier Circuitry

Class D

Power(Peak)

2000W

Frequency Response(1W 8Ω 2ch)

20Hz-20KHz(±0.5dB)

Intermodulation Distortion

<0.05%

Total Harmonic Distortion

<0.05%

Protection

DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection

Cooling System

Cooling with fans, air convection

Processor

96KHz signal sampling frequency, 24bit precision

Presets

MAIN, F/Monitor, W/SUB

Crossover

Controlled by DSP

Signal Input

2×NEUTRIK® female XLR, Mono jack 6.35, 1×RCA

Signal Output

2×NEUTRIK® male XLR

Power Input

3 pin plug

Working Voltage

100V-130V/60Hz or 220V-240V/50Hz

Cabinet Material

CNC made of excellent wood

Cabinet Color

Black and white available, can be customized according to the RAL code

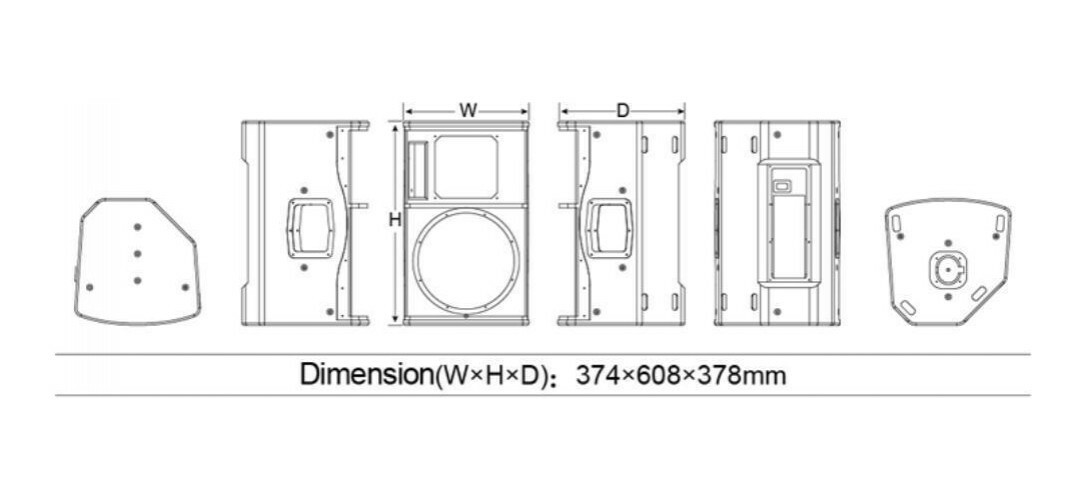

Dimension(W×H×D)

374×608×378mm

Net Weight

25.0Kg

View PDF brochure for Audiocenter EA512 Active DSP-Controlled 12" Speaker

Be The First To Review This Product!

Help other SWAMP Industries users shop smarter by writing reviews for products you have purchased.

Write a product review


MPN: AD-EA512

ID: 154423
