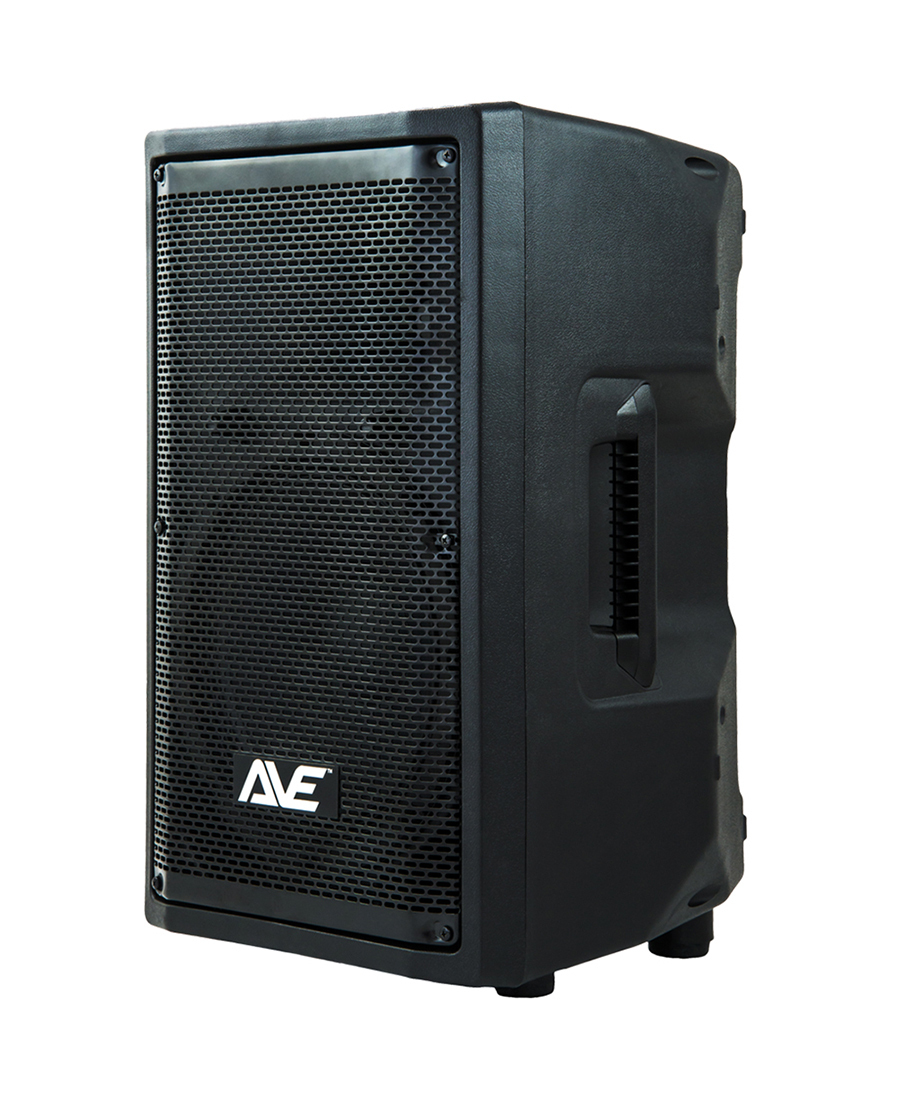

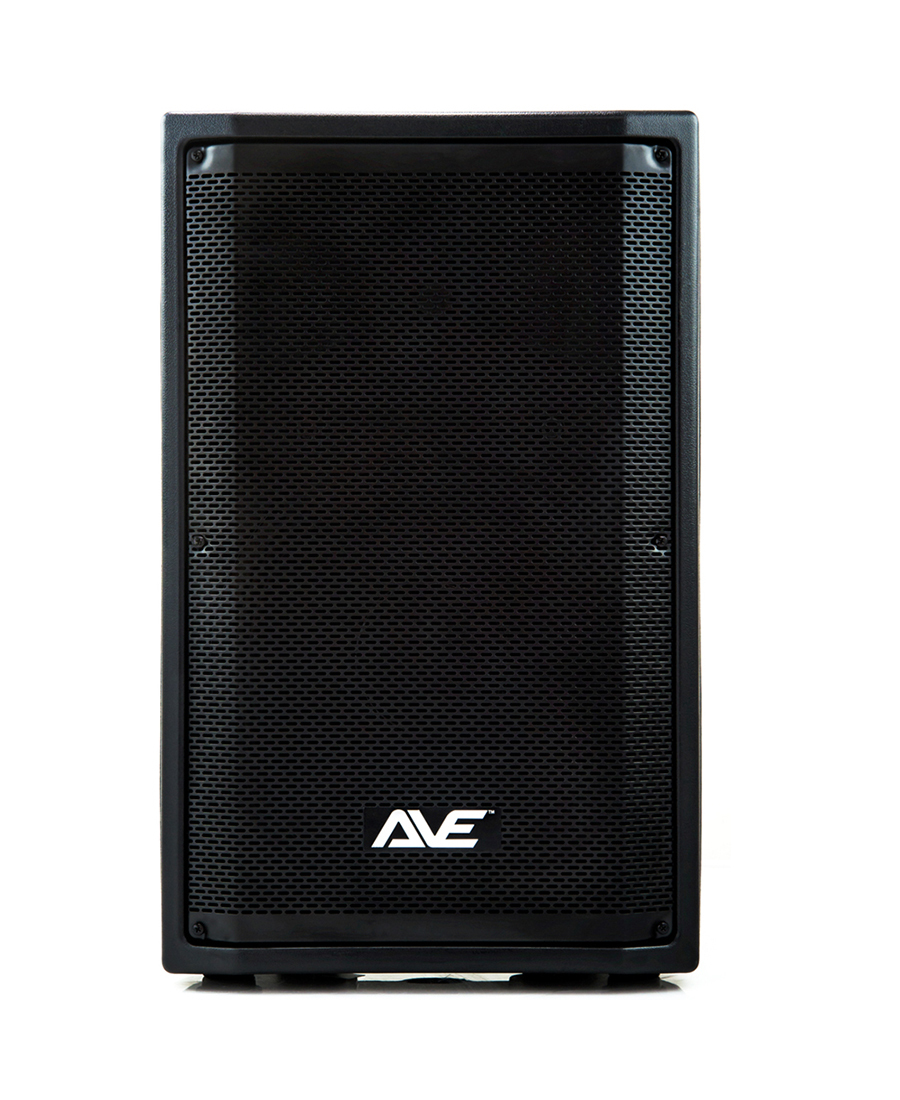

AVE REVO12-DSP 12" Powered Speaker with DSP Control
REVO12-DSP 12" Powered Speaker with DSP Control
REVO 12 DSP is a 12″ powered speaker designed in Australia by AVE. Built with lightweight ABS, it is 1100W peak bi-amped design utilising Class-D & Class A/B technology. Featuring user editable DSP, and Speaker Time Delay, perfect for DJ's, bands, clubs, and installation.
REVO Series
Designed with the emphasis on reliability, flexibility and portability, engineers test each speaker in the house, running each unit for 40 hours continually and then tune each one by hand. For maximum performance and efficiency, the amplifiers use both Class-D and Class-A/B technology, They are fitted with carefully selected high-frequency and low-frequency drivers.
DSP Software
The REVO line of speakers has been fitted with a user editable, DSP processor. This allows you to create, and tweak the speakers internal DSP to achieve the perfect sound for your environment or application. The system features 8 presets in total, with 4 that can be adjusted using AVE's proprietary DSP software. Each preset has been custom tuned by AVE engineers to provide the best response and sound for the most common applications including;
- Music: For DJs and pre-recorded music
- Live: For bands, and live sound events with low risk of feedback
- Speech: Tailored frequency response for presentations with low risk of feedback
- Satellite: Adds a high-pass filter for use with a subwoofer
The user-editable DSP gives you access to the speaker’s tuning and other controls to help you shape and control your sound, including;
- 6-band graphic EQ
- Speaker time delay
- High-Pass/Low-Pass Filters
- Main volume control
Speaker Time Delay
The ‘speaker time delay’ feature is something never seen before in such an affordable system. Allowing you to delay the speaker’s output for use with a larger system, preventing echo and phasing issues, and can be configured in the software by either millisecond (ms) or distance (m). A perfect speaker for venues, function centres, and places of worship.
Download the DSP software here.
Features:
- 1100W Peak / 350W RMS bi-amped design with Class-D & Class A/B technology
- Lightweight, strong ABS chassis
- Speaker Delay Time
- Custom selected woofers and HF drivers
- Punchy bass with clear highs, and warm mids.
- Onboard DSP processor with mode selection
- 6-band graphic EQ
- Speaker time delay
- High-Pass/Low-Pass Filters
- Main volume control
- Designed, engineered, and tuned in Australia
Specifications:
| Product number: | REVO12DSP |
| Product type: | PA loudspeaker |
| Type: | Powered 2-Way |
| Low/mid driver dimensions: | 12″ (304.8 mm) |
| HF driver dimensions: | 1.75” (44.5 mm) |
| Amplifier: | Class A/B & Class D |
| Dispersion (H x V): | 90° x 60° |
| RMS: | 350W |
| Peak power: | 1100W |
| Frequency response: | 47 Hz – 20 kHz |
| Max. SPL (peak): | 121dB |
| DSP Control: | 8 Selectable Programs (4 User editable) |
| Input sensitivity: |
775mV / 22k Ω (Balanced) 775mV / 11K Ω (Unbalanced) |
| Max Input Level | 20 dBu |
| Signal to Noise: | 90 dB (A-Weighted) |
| Total Harmonic Distortion (THD) | <0.5% (1kHz -9dB) |

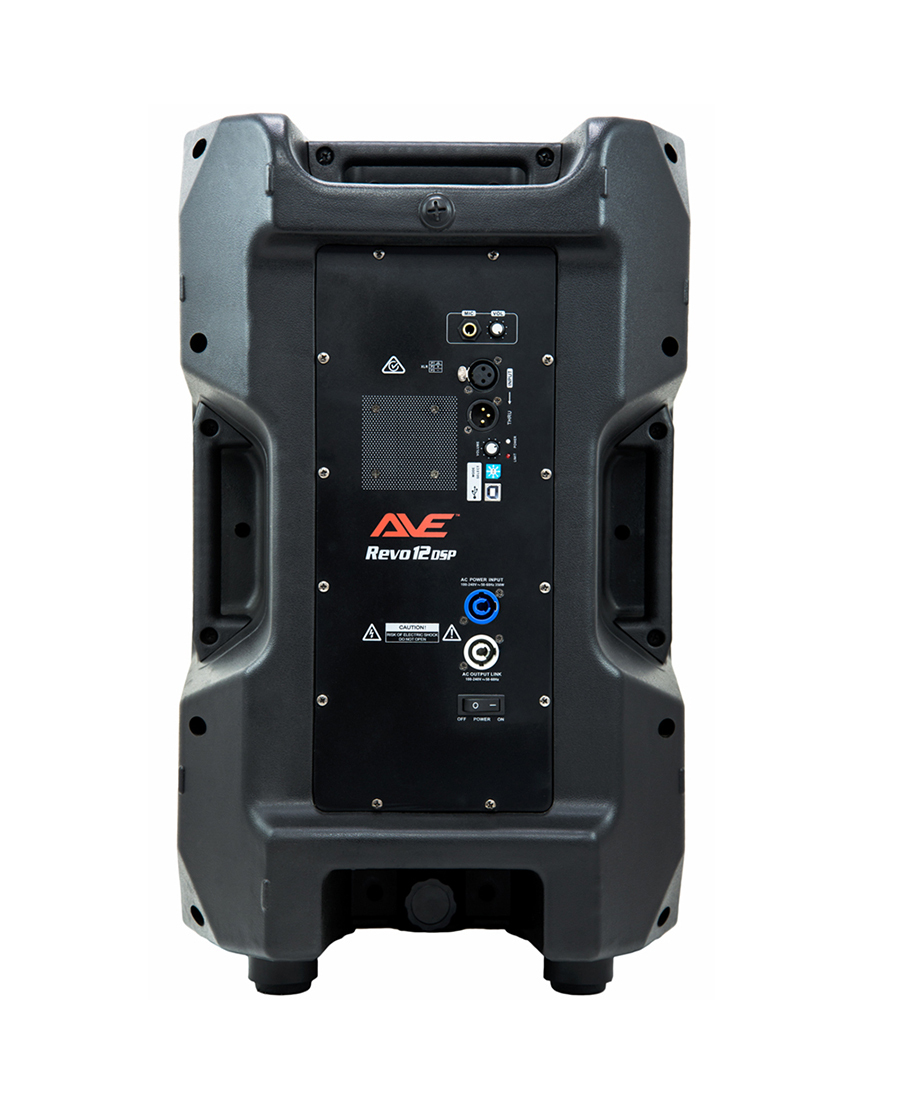

| Controls: | 1 x mic gain, 1x main level, DSP selector mode, power |
| Indicators: | Power, limit |
| Inputs: | 1x XLR (line), 1x ¼” TS Jack (mic) |
| Outputs: | 1x XLR |
| Other Connections: | 1x USB-B port (DSP Connection) |
| Operating voltage: | 110 – 240 V / 50 – 60 Hz, Switching Power Supply |
| Power Connection: | Powercon |
| Operating Temperature: | 0 – 40°C |
| Cabinet material: | ABS Plastic |
| Dimensions: | 620 x 380 x 350 mm |
| Weight: | 15.3 kg |
