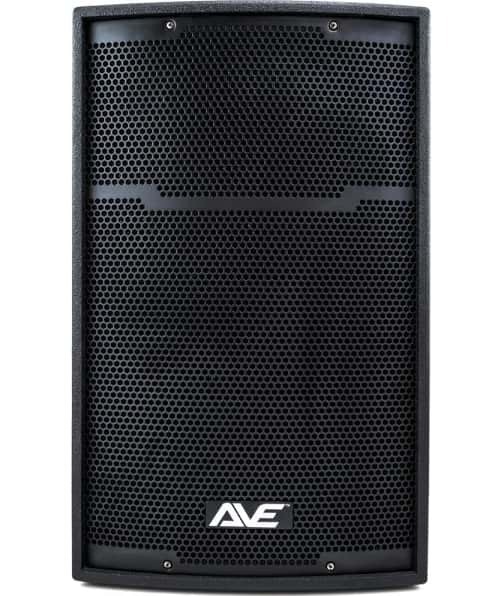

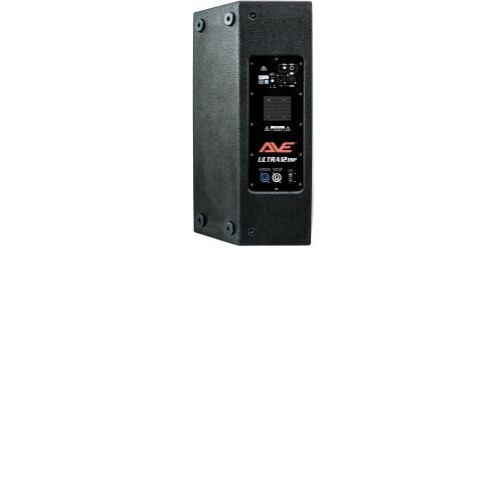

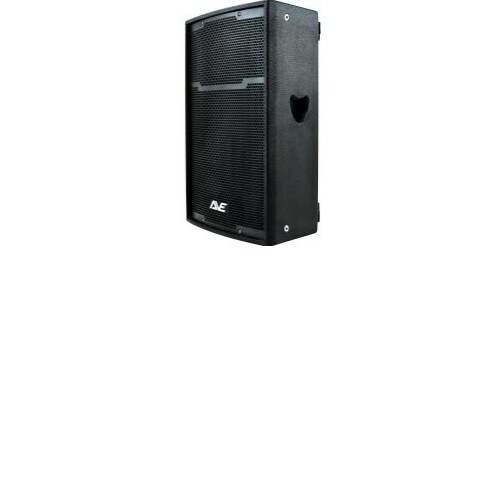

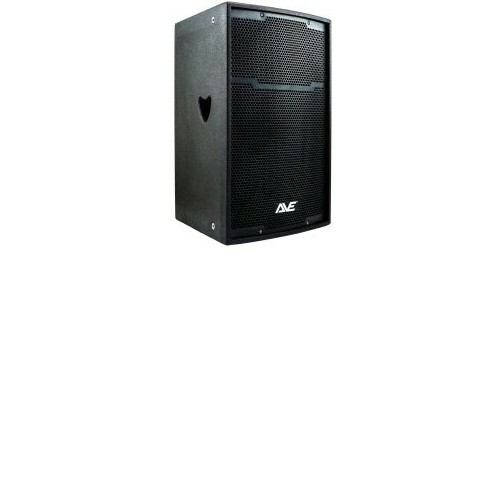

AVE ULTRA12-DSP 12" Powered Speaker with DSP Control
Ultra 12-DSP 12 Inch Powered Speaker with DSP Control
The Ultra 15 DSP is a classy powered loudspeaker in the new Ultra DSP range from AVE. With a solid wood cabinet, it is 1100W peak bi-amped design, utilising Class-D & Class A/B technology. Featuring user editable DSP processor, and Speaker Time Delay.
The solid 16mm Birch-Plywood cabinet provides the perfect foundation for a rich warm sound. The Ultra12DSP features a high-output 12″ woofer with 1.5″ voice coil for extra punch and depth. Coupled with a precision 1.75″ compression driver to deliver a smooth and wide frequency response. With quality and reliability in mind, every unit gets broken in through rigorous testing. In-house, every box is run for 40 hours continually, ensuring that all components are performing to the highest standard. Following this, each unit is then tuned by hand. The result is a detailed and full-bodied sound without any harshness, suiting a wide range of applications from installations to portable setups.
Custom 1100W Peak bi-amped design
The ULTRA DSP series is fitted with a 1100W peak power amplifier that utilizes both Class-D & Class A/B technology, providing the perfect balance of power and efficiency. The Class-D amplifier powers the woofer, providing a punchy output even at low volumes. While the Class A/B amplifier delivers far less crossover distortion and warmer high-frequency response making it ideal for the compression driver. Together the result is a large punchy low end with detailed warm sound and efficient power consumption.
The REVO line of speakers has been fitted with a user editable, DSP processor. This allows you to create, and tweak the speakers internal DSP to achieve the perfect sound for your environment or application. The system features 8 presets in total, with 4 that can be adjusted using AVE's proprietary DSP software. Each preset has been custom tuned by AVE engineers to provide the best response and sound for the most common applications including;
- Music: For DJs and pre-recorded music
- Live: For bands, and live sound events with low risk of feedback
- Speech: Tailored frequency response for presentations with low risk of feedback
- Satellite: Adds a high-pass filter for use with a subwoofer
The user-editable DSP gives you access to the speaker’s tuning and other controls to help you shape and control your sound, including;
- 6-band graphic EQ
- Speaker time delay
- High-Pass/Low-Pass Filters
- Main volume control
Speaker Time Delay
The ‘speaker time delay’ feature is something never seen before in such an affordable system. Allowing you to delay the speaker’s output for use with a larger system, preventing echo and phasing issues, and can be configured in the software by either millisecond (ms) or distance (m). A perfect speaker for venues, function centres, and places of worship.
Download the DSP software here.
- Powered 12″ loudspeaker with 1100W peak / 350W RMS power
- Efficient bi-amplified design using Class D & Class A/B technology
- Specially selected drivers for high output and clarity
- Strong 16mm Birch plywood cabinet
- Integrated DSP with 4 factories presets + 4 user-assignable presets
- Proprietary DSP software lets users customize their own tuning and DSP presets
- Tested in Australia for 40hrs to ensure quality and reliability
- PowerCON input and output for secure power connections
- Designed, Engineered, and Tuned in Australia
|Product type:||PA loudspeaker|
|Low/mid driver dimensions:||12″ (304.8 mm)|
|Voice Coil:||1.5″ (34 mm)|
|HF driver dimensions:||1.75” (44.5 mm)|
|Amplifier:||Class A/B & Class D|
|Dispersion (H x V):||90° x 60°|
|Frequency response:||38 Hz – 20 kHz|
|Max. SPL (peak):||122dB|
|DSP Control:||8 Selectable Programs (4 User editable)|
|Input sensitivity:||775mV / 22k Ω (Balanced)
775mV / 11K Ω (Unbalanced)
|Max Input Level||20 dBu|
|Signal to Noise:||90 dB (A-Weighted)|
|Total Harmonic Distortion (THD)||<0.5% (1kHz -9dB)|
|Controls:||1 x mic gain, 1x main level, DSP selector mode, power|
|Inputs:||1x XLR (line), 1x ¼” TS Jack (mic)|
|Other Connections:||1x USB-B port (DSP Connection)|
|Operating voltage:||110 – 240 V / 50 – 60 Hz, Switching Power Supply|
|Operating Temperature:||0 – 40°C|
|Cabinet material:||16mm Birch Plywood|
|Dimensions:||385 x 399 x 645 mm|
