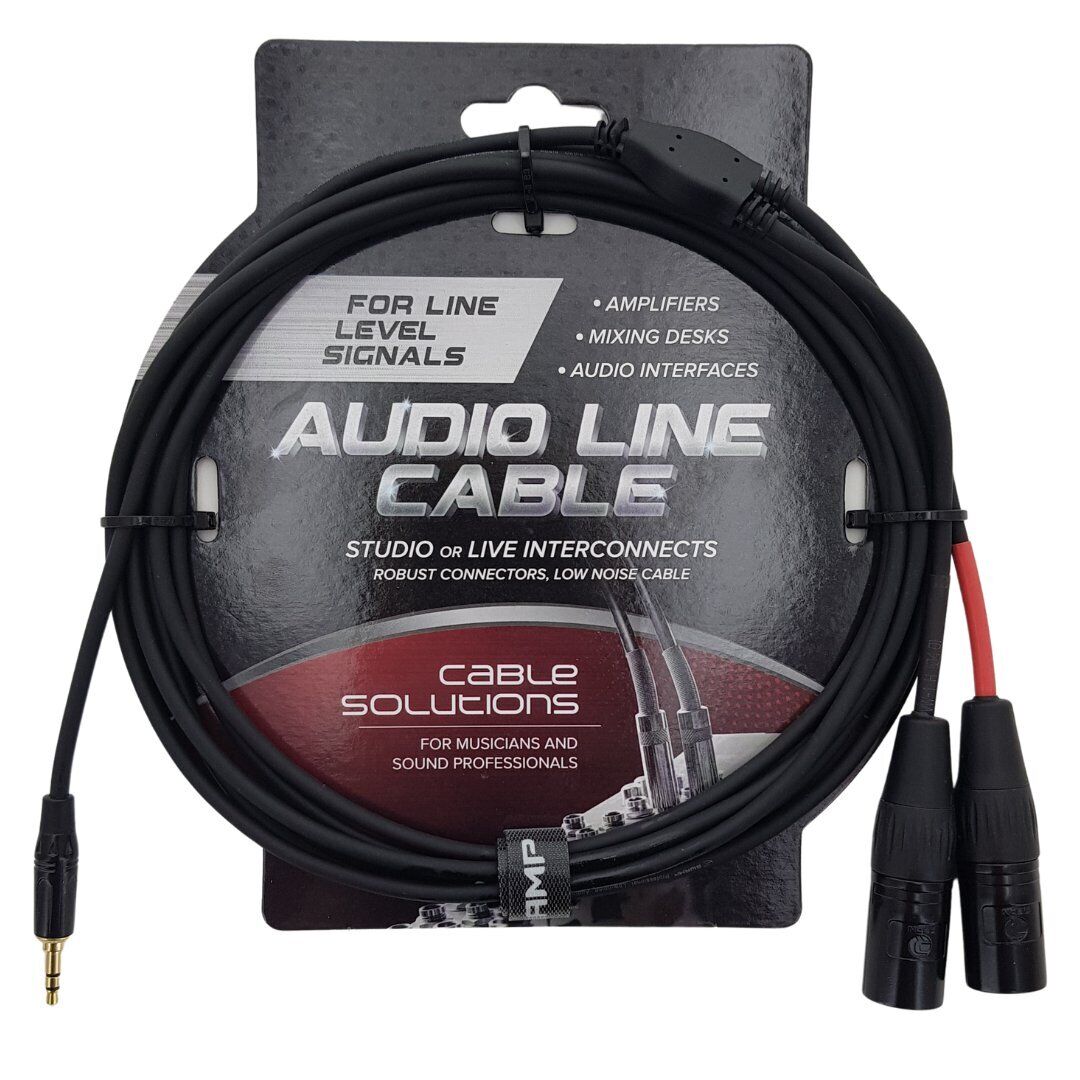

• Dual XLR(m) to 3.5mm TRS - Stereo Signal Headphone Splitter

    $19.99
    Back-order - Dispatched after mid May
    item is on it's way to us via sea shipment, due mid May
    Preorder Now and Save 20%

    2m Length - Splits a 1/8" TRS stereo (left, right) signal into two individual XLR(m) channels. Ideal for connecting a 3.5mm mini-jack headphone cable, into two channels on a mixing desk. By panning each channel Left or Right, you can replicate the "true s

    Stereo Signal Headphone Splitter - 3.5mm Stereo to Dual XLR(m)
    Splits a 1/8" TRS stereo (left, right) signal into two individual XLR(m) channels. Ideal for connecting any smartphone, laptop or device with a 3.5mm stereo output into two channels on a mixing desk or amplifier. By panning each channel Left or Right on a mixer, you can replicate the "true stereo" sound from the headphone output.

    Note. A headphone signal is a "loaded" signal, designed to push the tiny speaker cone inside headphones. If connecting into a low-Z XLR mic input with a preamp (i.e. not a line level input), note that the signal may be "hot" and little or no gain may be required, even using a pad may be necessary. Setting your smartphone or laptop volume below 85% is a good way to minimise any possible input overload and signal distortion.

    Quality Cable and Connectors

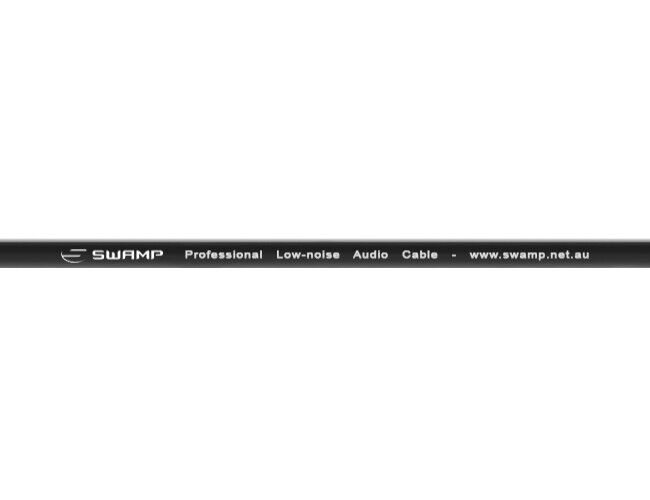

    Our slim 4.4mm diameter cable maintains thick 23AWG conductors and a tight spiral shield, but utilises a thinner outer PVC jacket allowing for a smaller overall diameter. Ideal for patching devices in tight spaces and to minimise cable clutter. Using professional quality connectors, OFC conductors and a tight and thorough spiral shield, this cable is designed to transfer your signal without interference while being flexible and able to withstand the rigours of constant use.

    Specifications:

    • Cable Colour: Black
    • Cable Core: 0.12mm*20*2(Conductors) + 0.12mm*48(Spiral Wrapped Shield)
    • Conductor Gauge: 23 AWG / 0.23mm2
    • Outer Diameter: 4.4mm

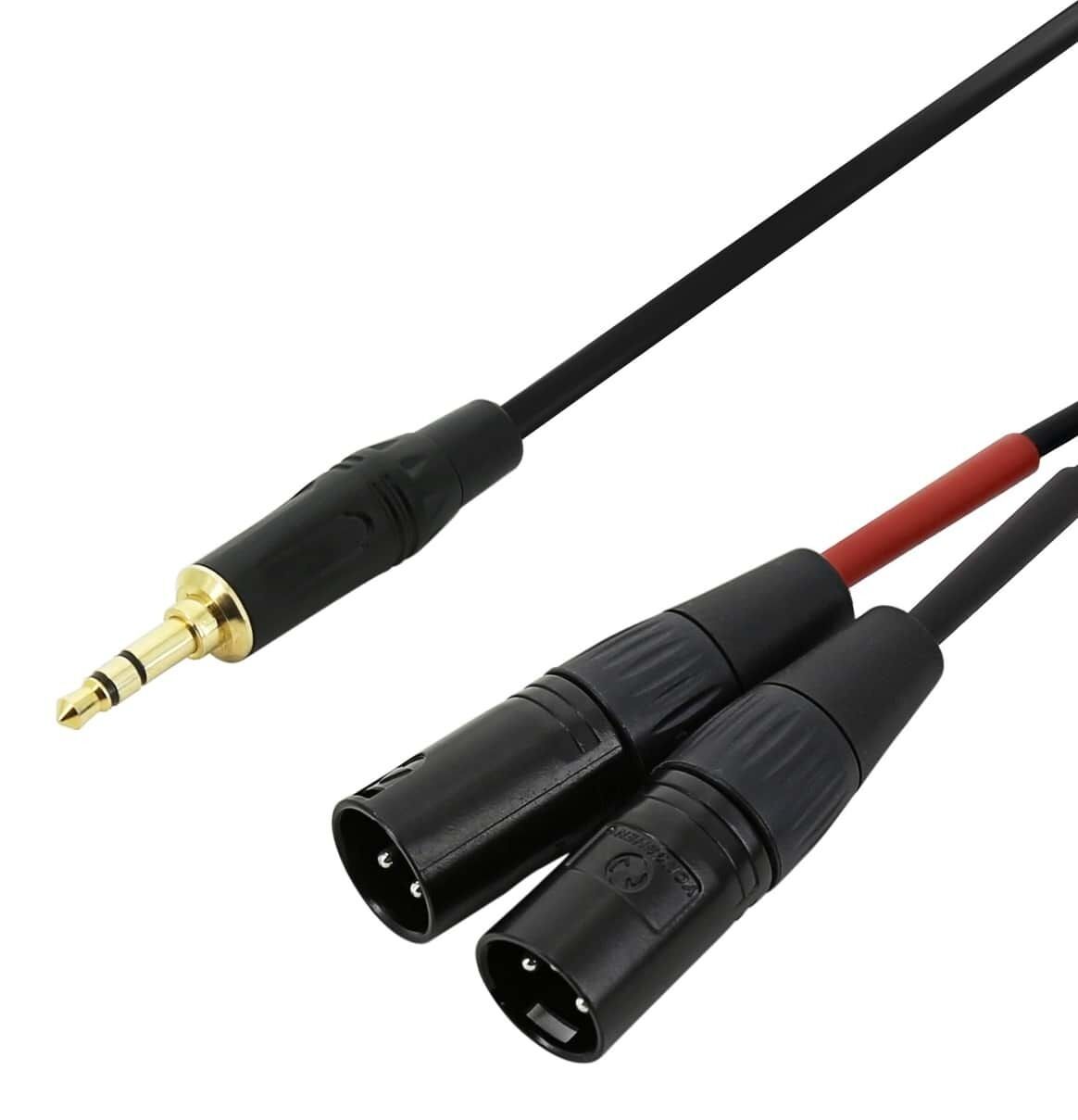

    • Connectors: 1/8" TRS (male) to 2x XLR (male) - (SWAMP TP180, Yongsheng YS137N-B)

    Wiring:

    1/8” (Stereo / TRS) XLR (red) XLR (black)
    Tip Pin 2
    Ring   Pin 2
    Pin 3 Pin 3 + Pin1 Pin 3 + Pin1
    View PDF brochure for Dual XLR(m) to 3.5mm TRS - Stereo Signal Headphone Splitter
