ICM IU-2079 B10 Dual Channel Wireless Microphone System - 2 Bodypack Transmitters
including Headset Microphones

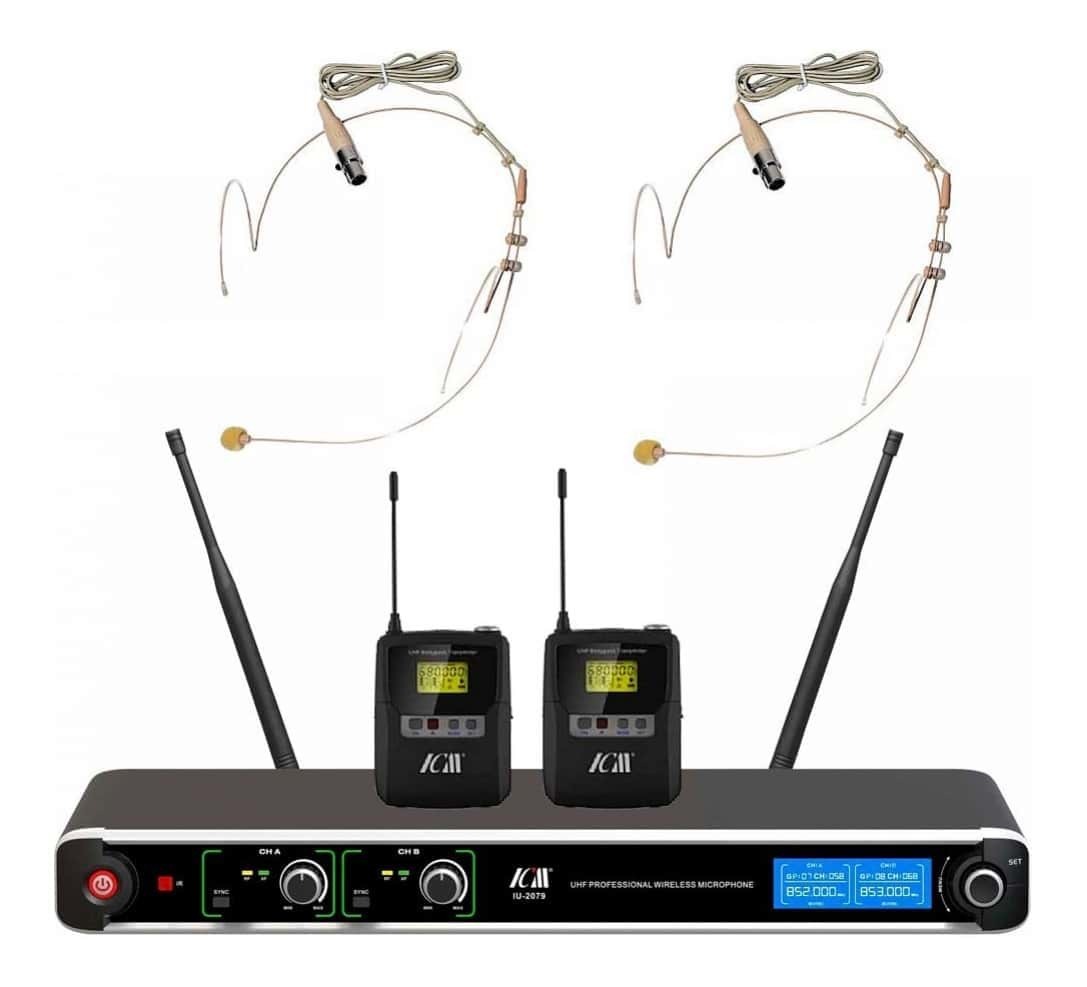

ICM IU-2079 Dual Channel Wireless Microphone System - 2 Bodypack Transmitters including Headset Microphones
ICM offers a professional two channel wireless microphone system with bodypack transmitters including headset microphone. Includes multiple selectable frequency groups. Ideal for churches, multi-function venues, and schools.
Easy to Operate and Sync
The main ICM receiver unit contains central control LCD display per channel, independent channel IR frequency, sync button set up on panel, preset frequency groups distribution, whilst being easy to operate. This series adopts new PLL frequency synthesis double-conversion technology, sound squelch code locked function, and stronger anti-interference ability. The body pack can provide an over visible 60 meters range of the audio carrier signal transmission. The headset connection is via a 3 pin mini XLR connector. The broadcasting range of this mic is 520-541MHz, making it both legally and functionally suitable for most areas of Australia. The body packs are powered each via 2 x AA batteries, included in the pack.
Dual Channel Wireless Receiver
The included dual receiver is a high performance receiver useful for a variety of applications, all kinds of stage, small clubs, but also for large concerts and theatres where only a small channel count is required. Easy setup with infrared data synchronization ensures the system is stable and easy to use. Convenient 1/2 19" rack mountable size. The backlit 4 colour LCD display shows all the information needed for monitoring very clearly; current channel frequency, RF signal strength, and an audio input meter.
Since 1992, ICM have developed to become an innovative designer, developer and manufacturer of microphones, mixers, speakers and audio solutions. Now producing more than 10 million microphones each year, ICM control all manufacturing levels, from raw materials to final products. Their audio solutions are very popular in the domestic Asian markets, and increasingly in Europe and North America.
- UHF band, PLL circuit, stable character, low spurious emission
- Three-way slide frequency switch design, preset three groups of compatible frequency
- Transmitter up to 50MHz tunable bandwidth
- International EIA standard 1U chassis, equipped with rack mounting kit
- Integrated antenna distributor, reduces mutual interference efficiently
- Each channel equipped independent balanced output
- Automatic IR frequency Sync function: transmitter synchronization via IR interface
- Noise and sound code locked mute control circuit
- Flat frequency response at 50Hz-16KHz
- Receiving Channel: Dual channel
- Carrier Wave Frequency Range: 520-541MHz
- Oscillation Mode: PLL phase-locked frequency synthesizer
- Modulation Mode: FM modulation
- RF sensitivity: input 6dBµV, S/N>B0dB
- Working Range: Straight line distance 60 meters. Note: actual range depends on RF signal absorption, reflection and interference
- Mute control mode: Sound code and noise lock
- Frequency response: S0Hz-1 BKHz ( ±3dB)
- Comprehensive T.H.D.: <0.5%@ 1 KHz
- Panel display: LCD+LED
- Dimension (mm): 21O(L)x44(H)x181 (D) / 41 0(L)x44(H)x21 0(D)
- Oscillation mode: PLL phase-locked frequency synthesis
- Pickup gain: adjustable gain
- Transmitting power: 30mW maximum, depending on the region
- Current consumption: <130mA
- Display mode: LCD
- Pickup type: modular moving coil cardioid pointing capsule
- Each body pack powered via 2 x AA batteries (included in package)
Great wireless on a budgetBy: Jack on 4 June 2021I have four of these dual channel units in a wireless rack and they work fantastically. Easy to use, awesome auto pairing through IR to match TX and RX frequency, a huge 10 channel X 10 group frequency band giving you a massive 100 total frequencies to use allowing for movement in case of interference or bad frequencies, while operating many mic packs at once. My one nit pick is the headset that is provided does not match the one shown, being slightly bigger with a large capsule. Although they sound good I did swap them out for proper invisible headsets.
