JOYO Jackman 20W Tube Amp Head banTamP w 8" Cab


JOYO banTamP "Jackman" 20W Hybrid Tube Amp Head Brit Crunch w 8" Cab

  In Stock
or interest free for up to 6 months with

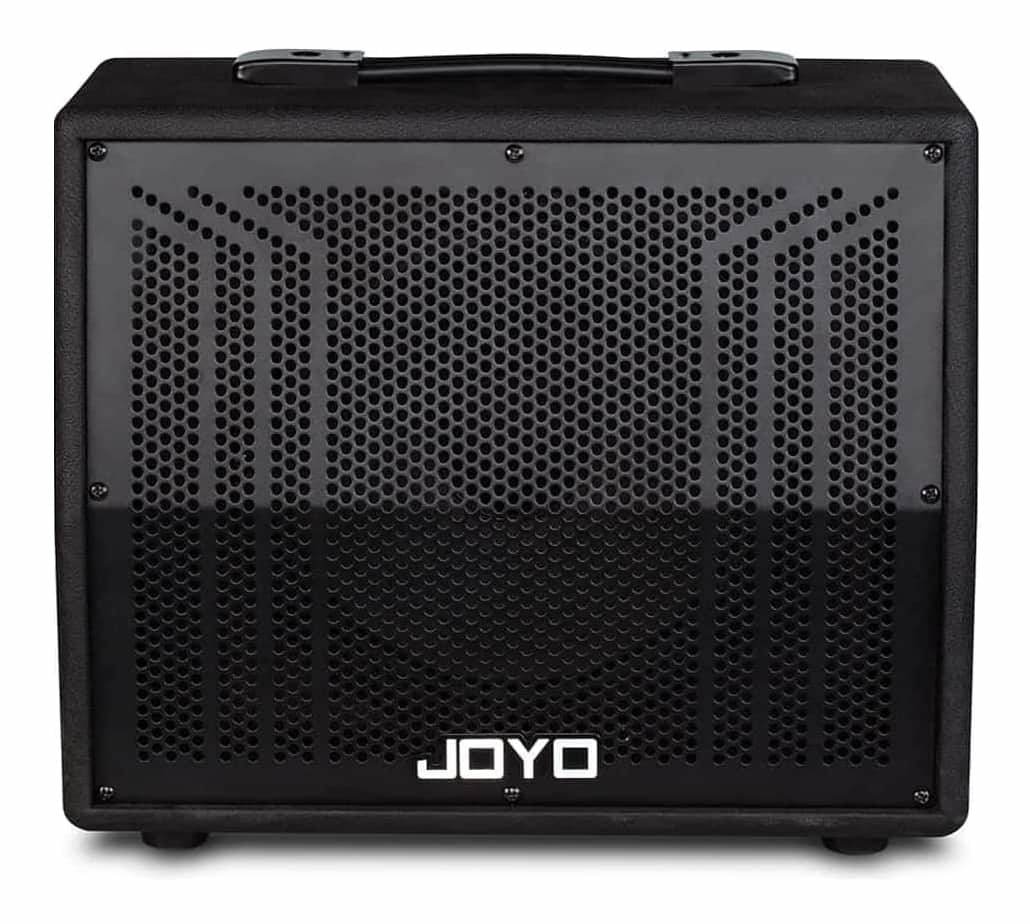

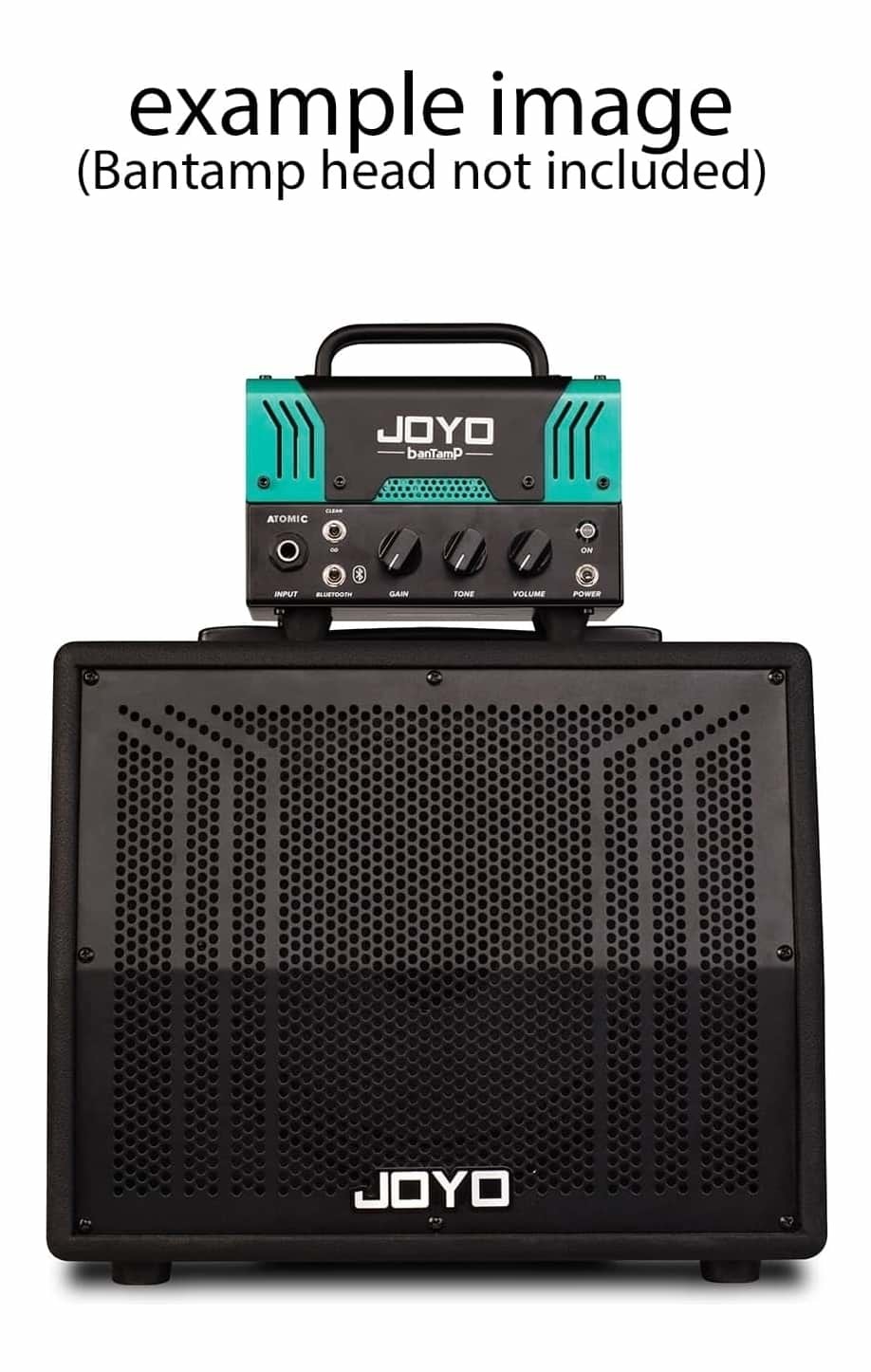

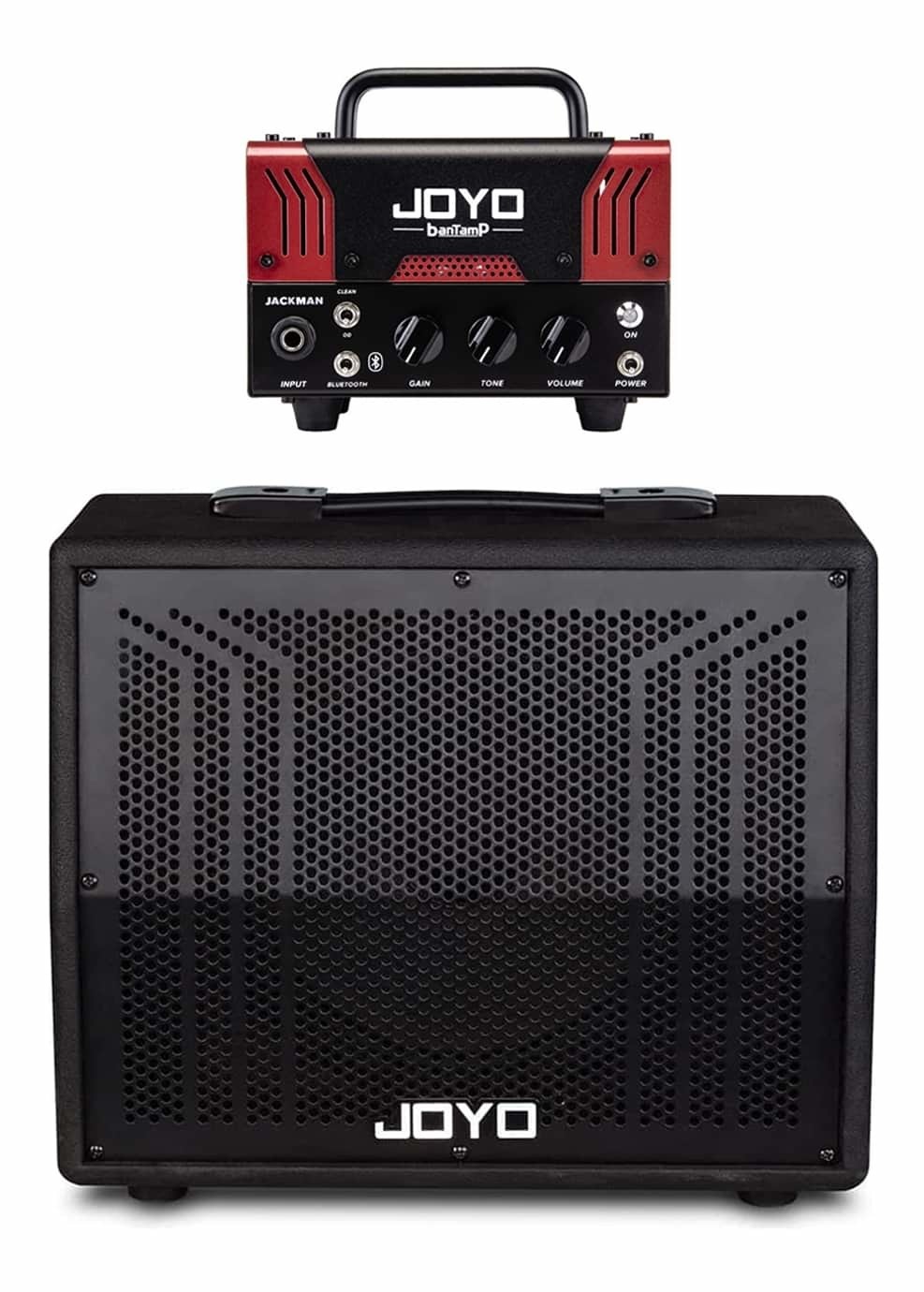

The JaCkMan from JOYO’s BantamP series is a very compact and portable 20 Watt head voiced for players after the classic gold face, checker grill sound. The cabinet features an 8" Celestion speaker, 15w at 8 ohms. Perfect match for a banTamP.


JOYO banTamP JaCkMan - British Crunch

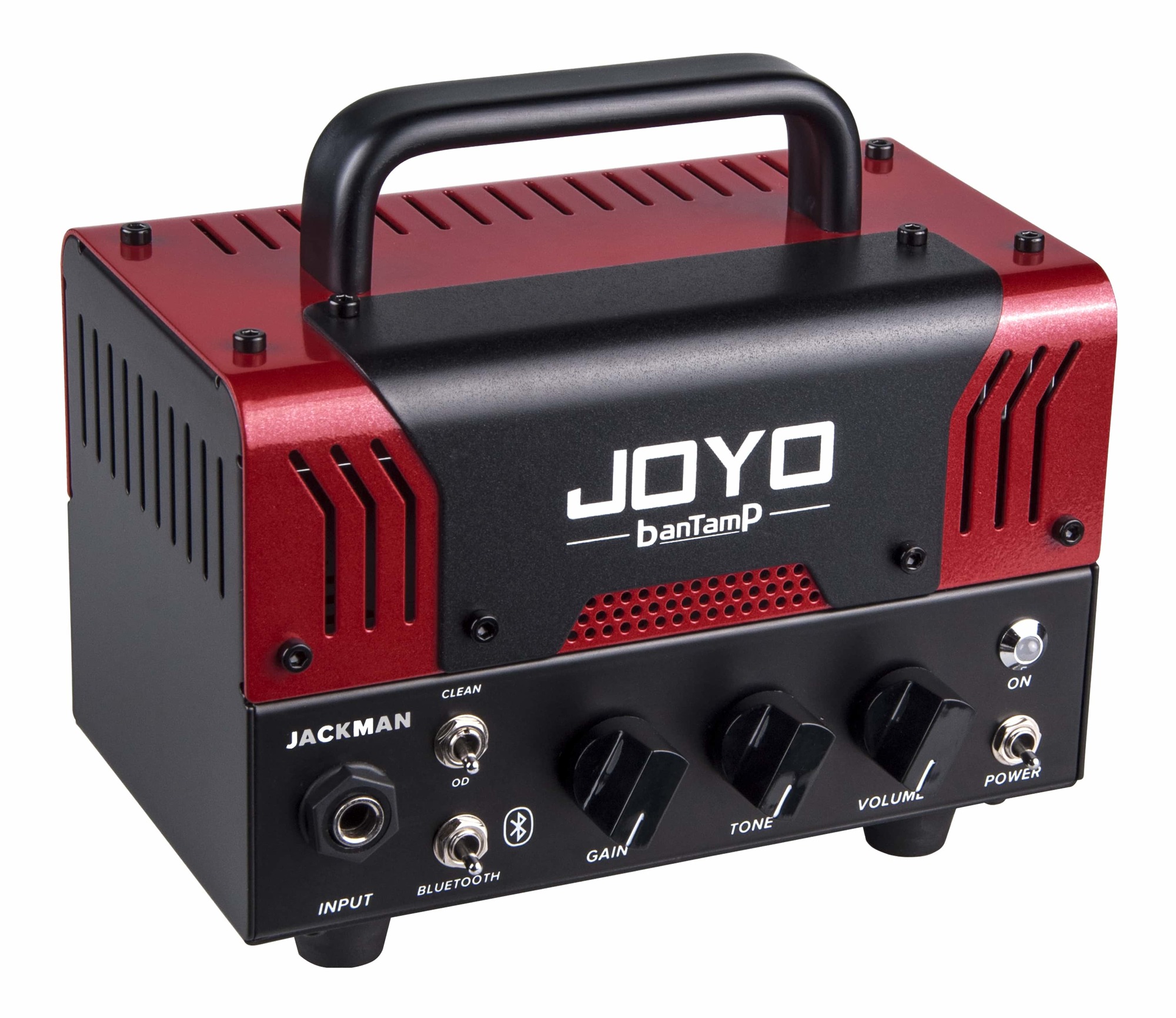

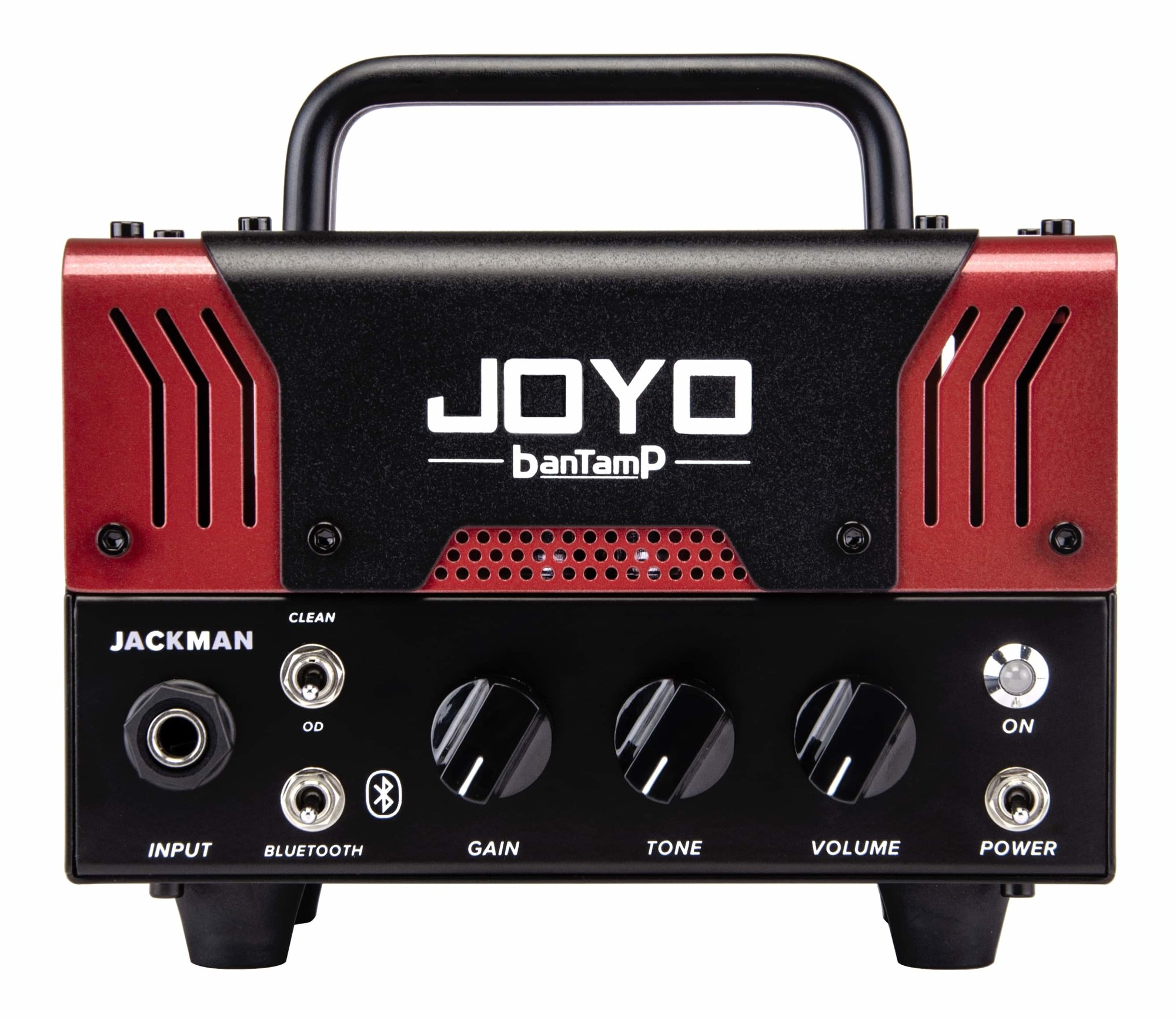

The JaCkMan from JOYO’s banTamP series is a very compact and portable 20 Watt head voiced for players after the classic gold face, checker grill sound. The amp delivers the iconic raw sound of one of Britain's most famous rock amps. This classic was an untamed beast with its 100W and chunky nature. JaCkMan manages to have the same mid-gain drive sound of its predecessor that reacts beautifully to your playing and guitar volume. Just like the classic rock monster, the JaCkMan benefits from a bit of stomp box help to push it further. Use a TS-type pedal (like the JOYO Green Legend) to push it into high gain territory and hear it sing.

Real Tube Design
The amp operates with a single 12AX7 tube in the preamp stage and uses a solid state Class D power amp. The vintage voicing of the valve preamp gives the amp its tone, responsive dynamics and character, while the advanced Class D power amp keeps the weight low and the power high.

Two Channels and FX Loop
JOYO has packed a remarkable amount of tonal flexibility into the tiny banTamP chassis. The amp includes two channels, Clean and Overdrive. The clean takes pedals very well, which makes it a great little companion for many situations where your “big" head is just not sensible, while the 12AX7 circuit breaks up organically to create a variety of pleasing drive tones on the overdrive channel. If this wasn't enough sonic variety, JOYO has also squeezed in an FX loop, which enables time based effects (or Phasers, Flangers and Choruses) to be inserted after the drive section to keep the effects sharp and not prevent them from being too muddy.

Useful Features

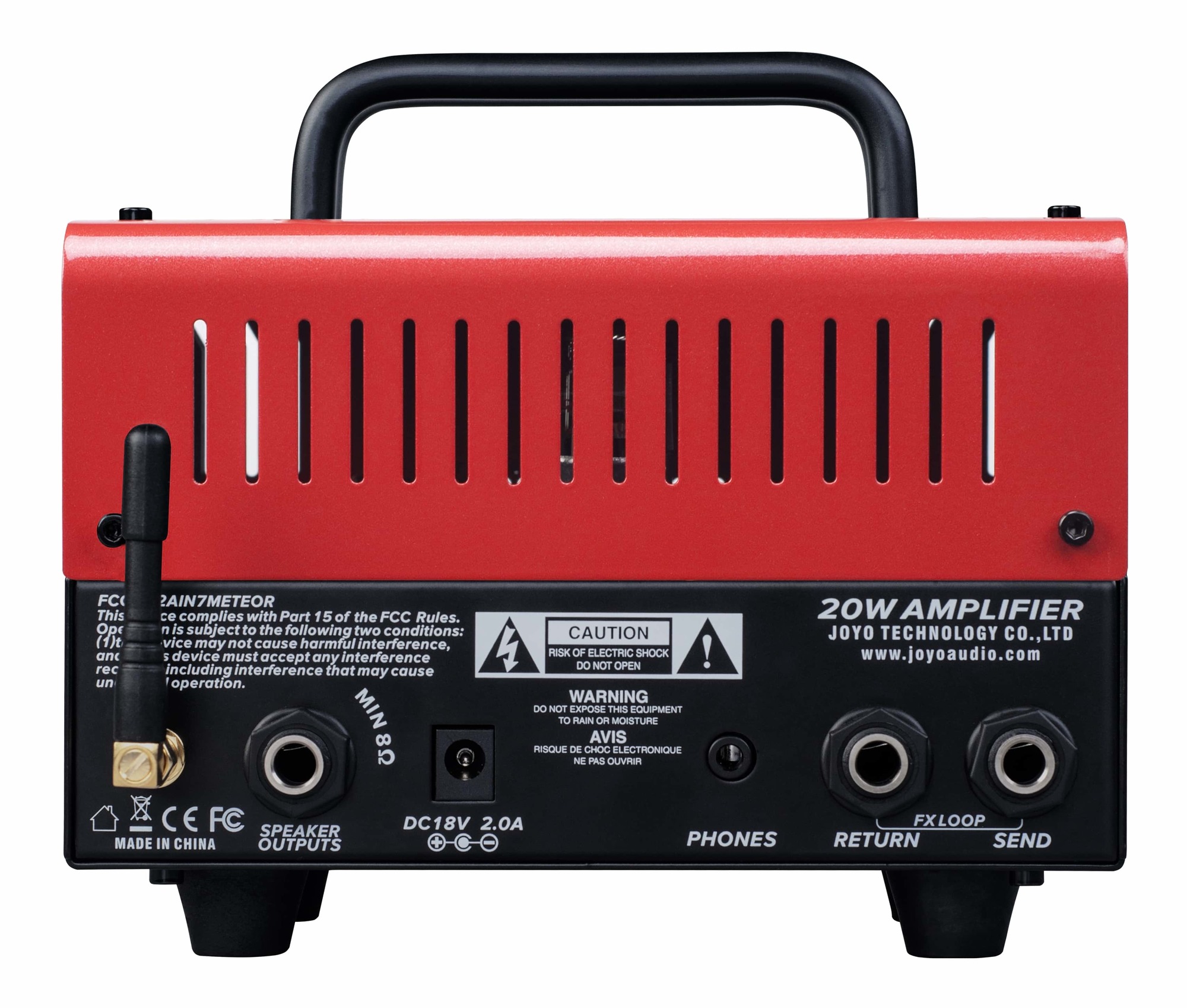

BanTamP includes one speaker out rated at 8Ω but it can also be operated at 16Ω with less power. The amp is small, but loud; its 20 Watts can be quite a handful! For when quiet volumes are required, JOYO have built in a headphone out with speaker emulation. If all of these tricks weren't enough, banTamPs also feature BLUETOOTH connectivity. This means simple connection to BLUETOOTH enabled devices for playing music through the banTamP, great for playing along to backing tracks or learning songs during practice.

bantAmp Features and Specifications:

  • Preamp Circuit: JFET+ 1 x 12AX7
  • Power Amp: CLASS D
  • Channel Mode: CLEAN / OD
  • Amp Power: 20W(RMS)
  • Aux In Function: Bluetooth music playing
  • Bluetooth Version: 4.0
  • Power: Input AC 110-240V 50/60Hz OUTPUT DC18V/2.0A
  • Size 163mm(L) x 110mm(H) x 140mm(W)
  • Weight 1.2kg

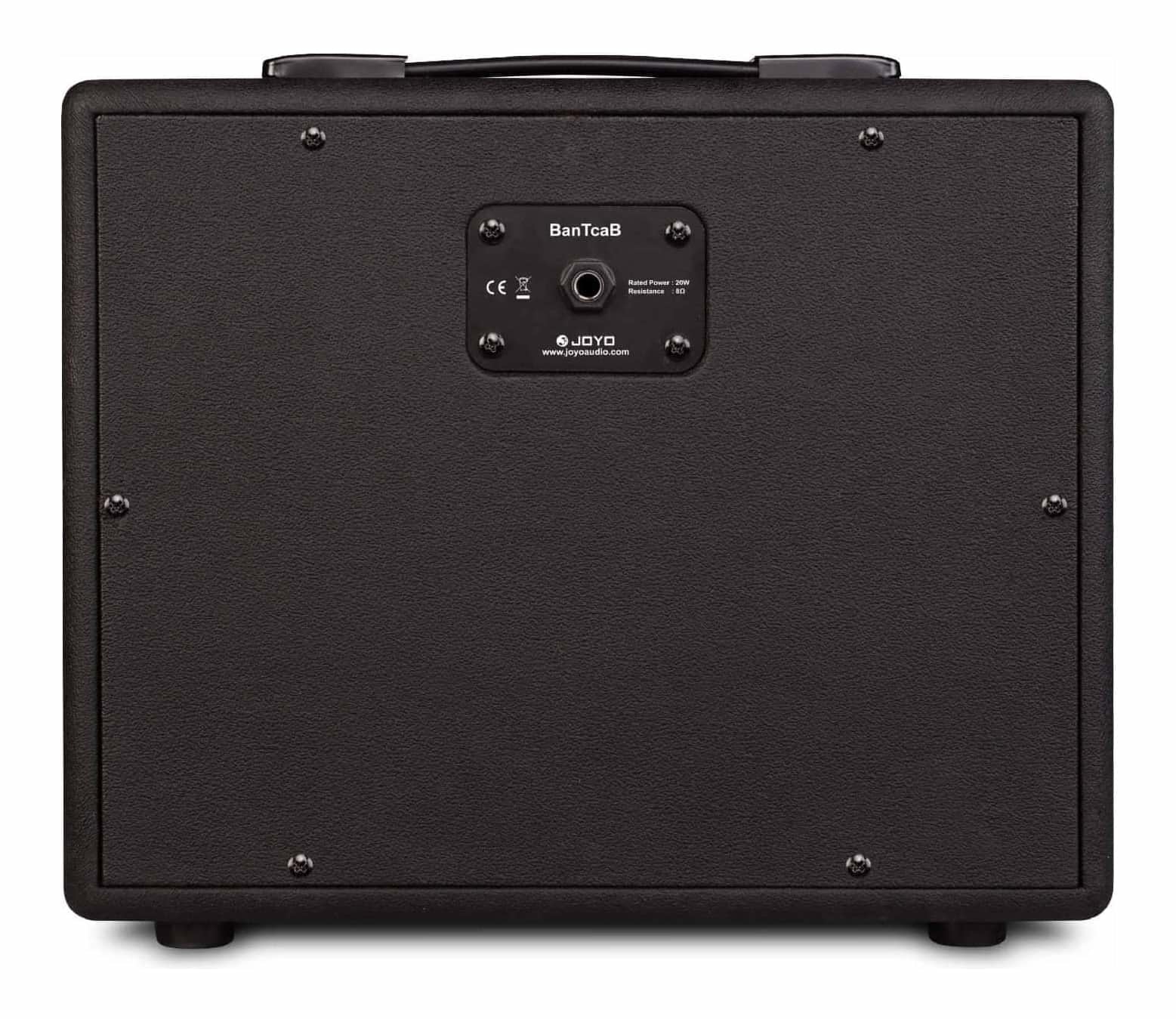

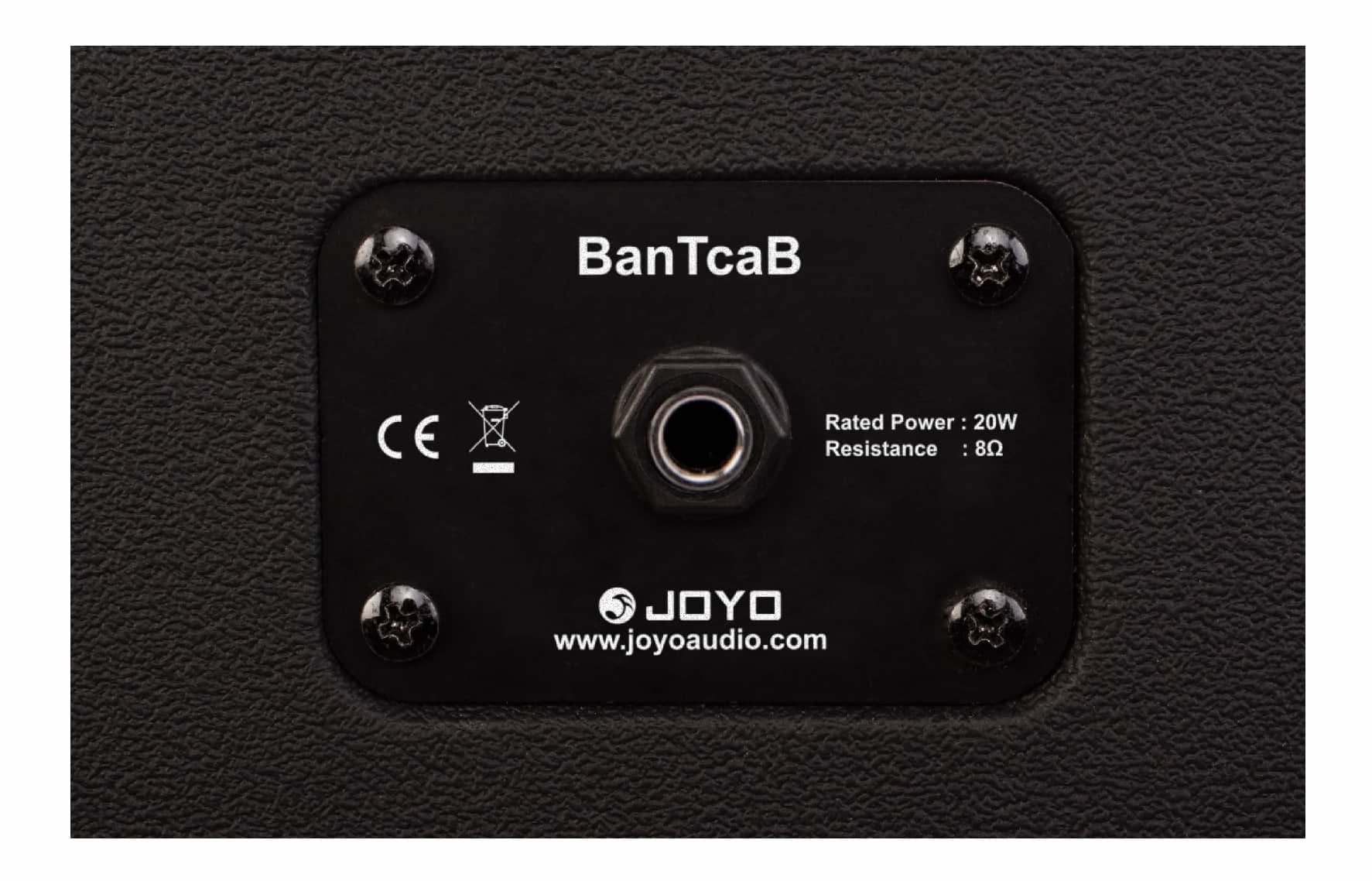

Cab Specifications:​

  • Speaker Model: Celestion EIGHT 15
  • Speaker Size: 8 inch
  • Max. Input Peak Power: 20W
  • Input Sensitivity: 95dB
  • Input Impedance: 1kHz/8Ω
  • Frequency Response: 100Hz - 5kHz / 6dB
  • Resonant Frequency: 170Hz
  • Dimension: L324xW160xH260mm
  • Net Weight: 4.01Kg
