Microphone Channel Saver XLR Y-Cable
In Stock
RH-YS137N-2x-YS136N-30cm
Free Shipping
Enter Post Code to Calculate ETA or Upgrade to Express
Shop Now. Pay Later.
Always interest-free.
Add your favourites to cart
Select Afterpay at checkout
Log into or create your Afterpay account, with instant approval decision
Your purchase will be split into 4 payments, payable every 2 weeks
All you need to apply is to have a debit or credit card, to be over 18 years of age, and to be a resident of country offering Afterpay
Late fees and additional eligibility criteria apply. The first payment may be due at the time of purchase
For complete terms visit afterpay.com/terms
SHOP NOW • PAY LATER • 100% INTEREST FREE

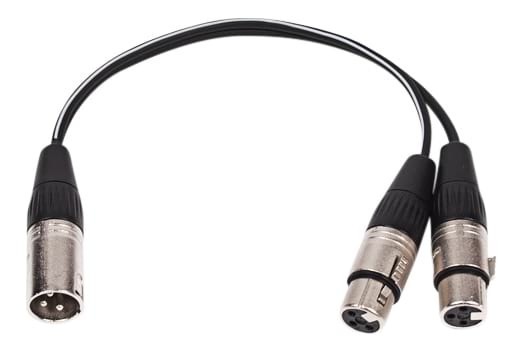

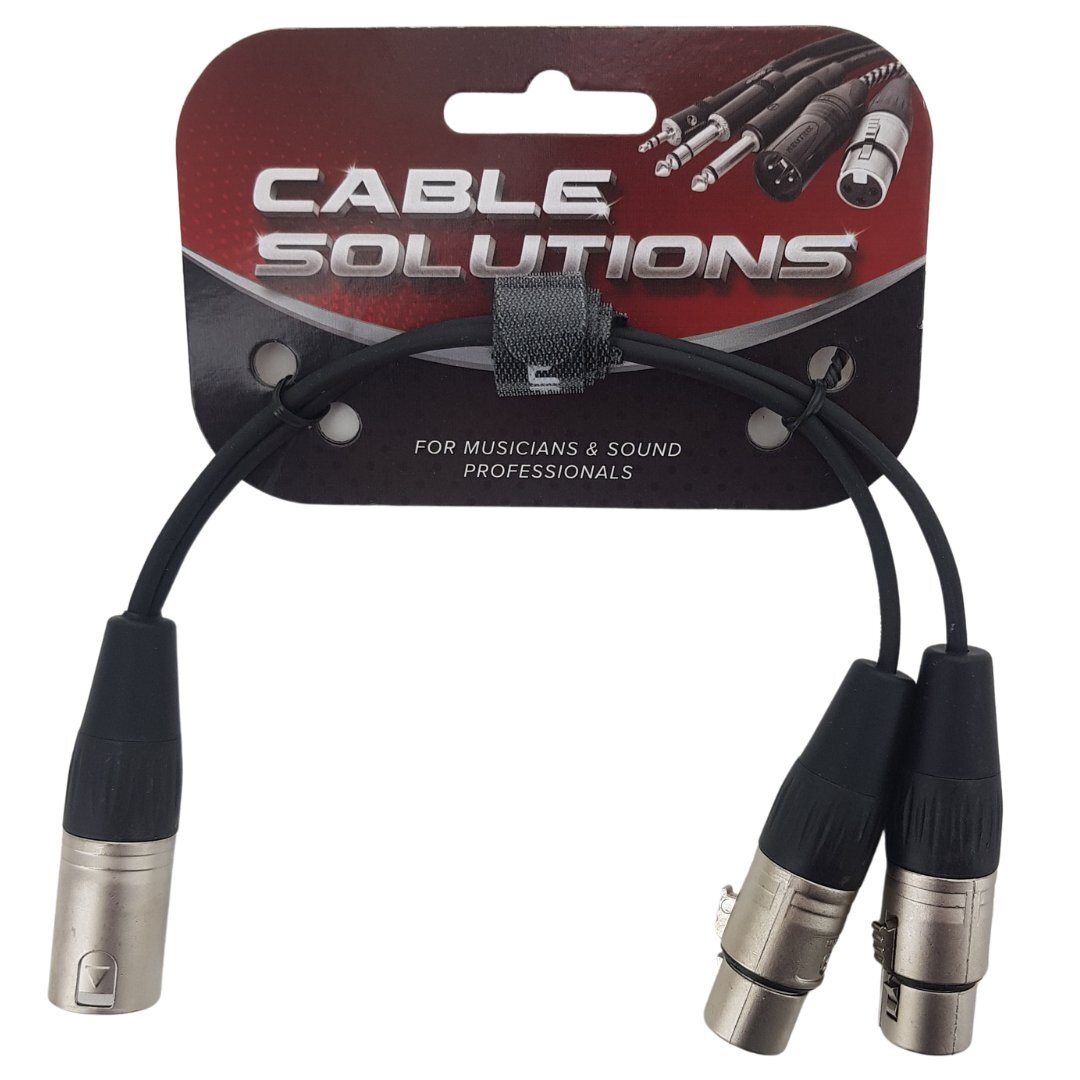

Channel Saver! This cable allows a user to plug 2 microphones into the 1 XLR mic input, saving mixer channels. The cable provides a 'passive' combination of 2 audio sources, resulting in a single combined signal.
Cable Filter: Alternative Options
SWAMP Microphone Channel Saver - XLR Y-Cable
This handy XLR Y-Cable allows two balanced XLR signals to be combined into a single input, or one signal to be split into two. It’s a passive cable, meaning the pins are directly wired together without electronics or transformers, making it a simple and affordable solution for live sound and recording setups.
The SWAMP XLR Y-Cable is a cost-effective channel saver for dynamic mics and line signals. For condenser microphones or any situation requiring phantom power, please choose one of our dedicated microphone combiners for best results.
When to Use:
- ✅ Dynamic microphones – quickly combine two mics into one channel when mixer inputs are limited.
- ✅ Line-level signals – merge outputs from keyboards, DI boxes, or other audio devices for basic summing.
- ✅ Budget-friendly applications – non-critical situations where convenience is more important than pristine audio quality.
When Not to Use:
- ❌ Condenser microphones – not suitable, as these require phantom power and the active output stages will interfere with each other.
- ❌ Critical professional setups – impedance mismatches and phase issues can occur, so an isolating combiner is recommended instead.
Recommended Alternatives for Condenser Mics or Professional Use:
- Alctron SC210N Isolated Microphone and Line Signal Combiner – provides transformer isolation and safe phantom power handling.
- ART SPLITCom Pro Microphone Signal Splitter / Combiner – combined splitter or combiner, designed for both stage and studio use.
- ART SplitMix4 TRS Splitter / Mixer – a versatile passive box for line-level and instrument signals.
Specifications:
- Connectors: 2x XLR female → 1x XLR male (3-pin XLR, REAN brand)
- Wiring: Passive, pins paralleled (no electronics)
- Length: 30cm
By: Fitzy on 18 April 2016Very efficient product! Its a really handy piece of gear to have. It saves you from many things, especially when you want to mic up instruments. Very handy for recording musicians that have limited XLR plugs.
5 (5)
By: Michael Rooney on 27 March 2015A really handy little product. It is cheap enough that you would be crazy not to have a couple in your toolkit
5 (5)
By: Mr. Colin Hailey on 30 May 2014fast delivery of a useful device. Enables two mics to go into the one socket without fuss.
5 (5)
By: robert mitchelson on 11 August 2013These channel savers are a must with limited inputs....can turn a single input into a four channel P.A with a couple of them. Reliable assembly, compact length and inexpensive
5 (5)
By: Stephen Bunn on 12 April 2013This is perfect for plugging two mics into one input channel where mono will do. I want to use this on a concertina where alternate notes come out of opposite sides of the instrument. Unfortunately it is only 18cm long so requires 2 more mic leads. Please make another version of this that's 1.5m long. steve perth
5 (5)
By: Matthew McNeil on 3 April 2013I have been using SWAMP for the past 12months. Very happy with their service and quality.
5 (5)
By: Orion Miller on 29 March 2013Great channel saver! Simple and gets the job done.
5 (5)
By: David Grant on 26 March 2013Now 2 toms only require one mixer channel. Perfect when I'm low on mixer or multicore capacity.
5 (5)
