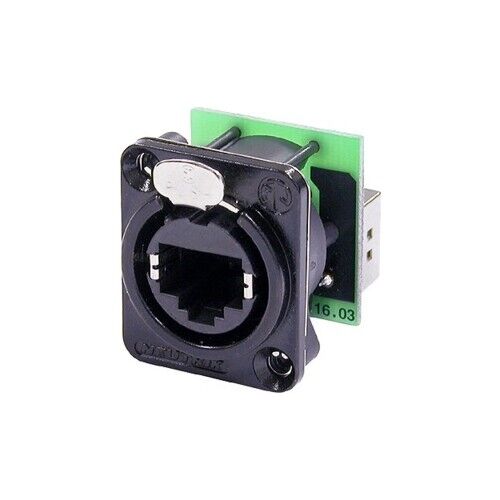

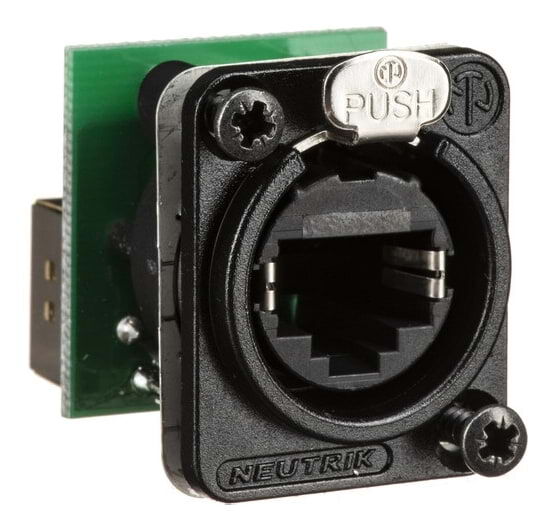

Neutrik NE8FDP etherCON Ethernet Panel Mount | Pass-through RJ45 Cat5e - Black
CLICK HERE TO 'GET NOTIFIED' once we have stock on hand
NU-NE8FDP-B
| Buy In Bulk & Save! | |
|---|---|
| Buy 2 to 5: | Pay $20.48 |
| Buy 6 to 14: | Pay $19.99 |
| Buy 15 or more: | Pay $19.53 |
Enter Post Code to Calculate Shipping Cost & ETA
Shop Now. Pay Later.
Always interest-free.
Add your favourites to cart
Select Afterpay at checkout
Log into or create your Afterpay account, with instant approval decision
Your purchase will be split into 4 payments, payable every 2 weeks
All you need to apply is to have a debit or credit card, to be over 18 years of age, and to be a resident of country offering Afterpay
Late fees and additional eligibility criteria apply. The first payment may be due at the time of purchase
For complete terms visit afterpay.com/terms
SHOP NOW • PAY LATER • 100% INTEREST FREE
The Neutrik NE8FDP-B is a black D-shape etherCON CAT5e RJ45 feedthrough for rack panels, stage boxes and wall plates. Front or rear mounting with screws included, accepts etherCON or standard RJ45 plugs, PoE up to 100W.
Cable Filter: Alternative Options
Neutrik NE8FDP-B etherCON RJ45 Feedthrough Receptacle
The Neutrik NE8FDP-B is a black D-shape etherCON RJ45 feedthrough receptacle that passes a CAT5e network connection straight through a rack panel, stage box or wall plate. It accepts NE8MC-series etherCON cable connectors or any standard RJ45 plug with Neutrik's approved latch lock, mounts from the front or rear of the panel with the mounting screws supplied, and carries Power over Ethernet up to 100W (Type 4, Class 8, IEEE 802.3bt) for pro audio, video and lighting networks.
Plug-and-Play Feedthrough
As a feedthrough, the NE8FDP-B has an RJ45 socket on each side of the panel, so you simply patch a standard network cable into the rear and connect at the front - no punch-down or crimping. The etherCON latch lock holds a mating etherCON cable connector securely, preventing accidental disconnection on stage or in a busy rack, while ordinary RJ45 patch leads still plug straight in.
Rugged D-Series Panel Fit
The D-Series is the most rugged design in the etherCON range and is made for panel mounting and the installer market. The black zinc diecast flange fits standard D-shape panel cut-outs alongside XLR, USB and other D-size connectors, suits panels up to 4 mm thick, and takes D-series accessories such as Neutrik's SCDX hinged cover and DSS coloured lettering plates for labelling.
Please Note
Does not intermate with the Neutrik NE8MC6-MO CAT6 cable connector or NKE6S cables.
Features:
- etherCON RJ45 feedthrough receptacle in a black D-shape metal flange
- CAT5e according to ISO/IEC 11801 and TIA/EIA 568A/B
- Accepts NE8MC-series etherCON connectors or any standard RJ45 plug
- Approved etherCON latch lock system
- Mountable from the front or rear of the panel - mounting screws included
- PoE Type 4, Class 8 (100W) to IEEE 802.3bt
Specifications:
- Model: NE8FDP-B
- Transmission performance: CAT5e (TIA/EIA 568A/B, ISO/IEC 11801)
- Wiring: Feedthrough
- Power over Ethernet: Type 4, Class 8 (100W), IEEE 802.3bt
- Rated voltage: up to 57 V; rated current: 1.5 A per contact
- Frequency range: 1 - 100 MHz
- Panel thickness: max. 4 mm
- Housing: Zinc diecast, black KTL plating, D-shape
- Temperature range: -30 to +80°C
- Lifetime: more than 1000 mating cycles
