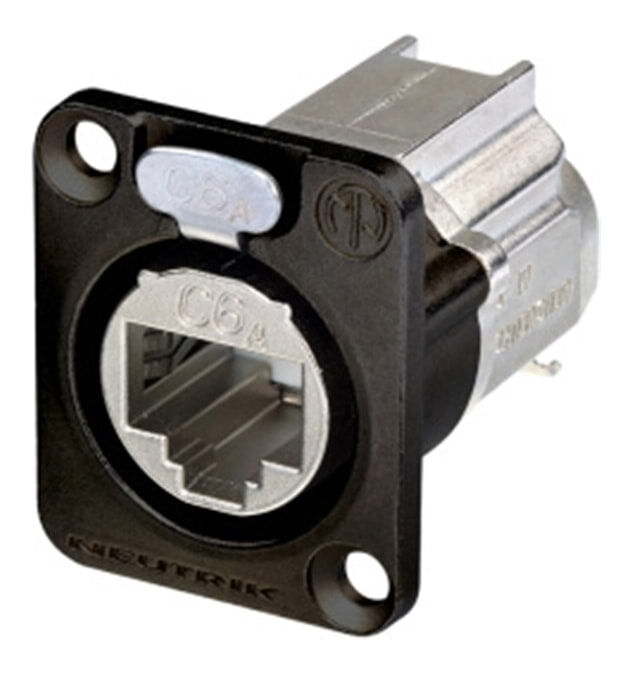

Neutrik NE8FDX-Y6-B etherCON Ethernet CAT6A IDC Panel Connector D-Style
In Stock
NU-NE8FDX-Y6-B
| Buy In Bulk & Save! | |
|---|---|
| Buy 2 to 5: | Pay $57.48 |
| Buy 6 to 14: | Pay $55.16 |
| Buy 15 or more: | Pay $53.03 |
Enter Post Code to Calculate Shipping Cost & ETA
Shop Now. Pay Later.
Always interest-free.
Add your favourites to cart
Select Afterpay at checkout
Log into or create your Afterpay account, with instant approval decision
Your purchase will be split into 4 payments, payable every 2 weeks
All you need to apply is to have a debit or credit card, to be over 18 years of age, and to be a resident of country offering Afterpay
Late fees and additional eligibility criteria apply. The first payment may be due at the time of purchase
For complete terms visit afterpay.com/terms
SHOP NOW • PAY LATER • 100% INTEREST FREE
The Neutrik NE8FDX-Y6-B is a shielded etherCON CAT6A chassis connector with IDC termination in a black D-shape housing. Class EA performance, PoE up to 60W and a rugged latch lock for fixed network installs.
Cable Filter: Alternative Options
Neutrik NE8FDX-Y6-B Shielded CAT6A etherCON Chassis Connector
The Neutrik NE8FDX-Y6-B is a shielded etherCON CAT6A chassis connector in a black D-shape housing, with IDC (insulation displacement) termination at the rear so the network cable terminates directly onto the connector rather than patching through a second socket. It meets CAT6A / Class EA channel specifications, carries Power over Ethernet up to 60W (Type 3, Class 6, IEEE 802.3bt), and its shielded design gives high noise immunity and EMI protection for pro audio, video and lighting networks.
IDC Termination for Fixed Installs
Unlike a feedthrough connector, the NE8FDX-Y6-B terminates the installed cable itself, removing the extra patch lead and connection a feedthrough needs behind the panel - a clean, permanent result for wall plates, floor boxes, stage boxes and equipment panels. It accepts solid wire from AWG 26/1 to AWG 22/1 and stranded wire from AWG 26/7 to AWG 22/7 with insulation diameters of 0.85 to 1.6 mm, and Neutrik's HX-CAT6A parallel press tool is available as an accessory for termination.
Rugged, Shielded etherCON

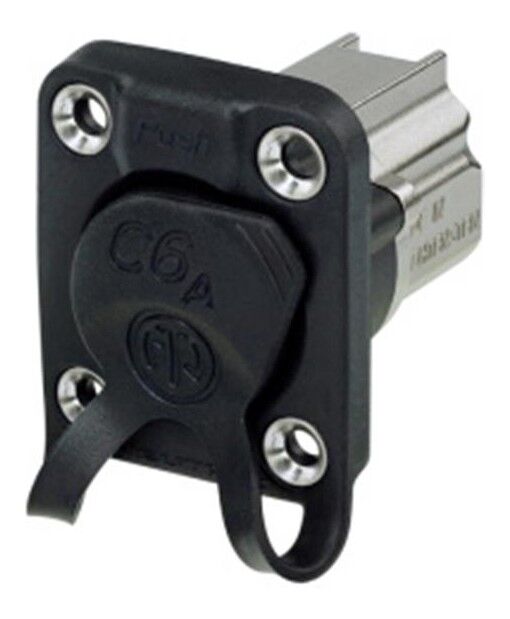

The front-mounted zinc diecast housing has a black finish and fits standard D-series panel cut-outs, and it takes D-series accessories such as Neutrik's SCDX hinged cover and DSS coloured lettering plates. Neutrik's million-fold proven latch lock holds etherCON cable connectors securely, the connector intermates with the existing etherCON CAT5 range, and it is rated from -40 to +70°C.
Please Note
Does not intermate with the Neutrik NE8MC6-MO CAT6 cable connector or NKE6S cables.
Features:
- Shielded etherCON CAT6A chassis connector with IDC termination
- CAT6A / Class EA to TIA/EIA 568C and ISO/IEC 11801 channel specifications
- PoE Type 3, Class 6 (60W) to IEEE 802.3bt
- Shielded system for high noise immunity and EMI protection
- Rugged latch lock, intermateable with the existing etherCON CAT5 range
- Black zinc diecast D-shape housing for front mounting
Specifications:
- Model: NE8FDX-Y6-B
- Transmission performance: CAT6A to TIA/EIA 568C and Class EA to ISO/IEC 11801 (channel)
- Termination: IDC
- Wire size: solid AWG 26/1 to AWG 22/1, stranded AWG 26/7 to AWG 22/7
- Insulation diameter: 0.85 - 1.6 mm
- Power over Ethernet: Type 3, Class 6 (60W), IEEE 802.3bt
- Rated voltage: up to 57 V; rated current: 1.5 A per contact
- Housing: Zinc diecast, black KTL plating, D-shape
- Mounting: Front mounting
- Temperature range: -40 to +70°C
