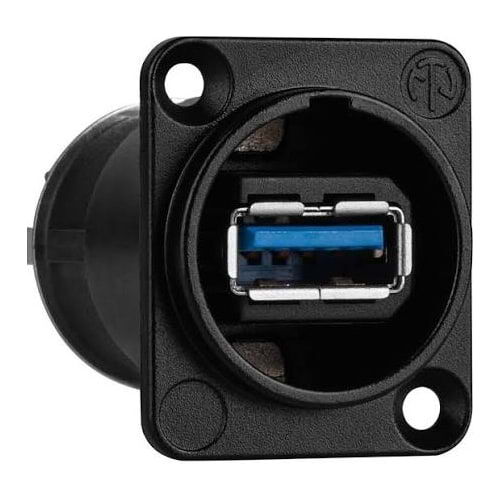

Neutrik NAUSB3-B D-Size USB 3.0 Feed-Through Panel Mount Connector
USB-A to USB-B (Reversible)
In Stock
NU-NAUSB3-B
| Buy In Bulk & Save! | |
|---|---|
| Buy 2 to 5: | Pay $18.51 |
| Buy 6 to 14: | Pay $18.05 |
| Buy 15 or more: | Pay $17.62 |
Enter Post Code to Calculate Shipping Cost & ETA
Shop Now. Pay Later.
Always interest-free.
Add your favourites to cart
Select Afterpay at checkout
Log into or create your Afterpay account, with instant approval decision
Your purchase will be split into 4 payments, payable every 2 weeks
All you need to apply is to have a debit or credit card, to be over 18 years of age, and to be a resident of country offering Afterpay
Late fees and additional eligibility criteria apply. The first payment may be due at the time of purchase
For complete terms visit afterpay.com/terms
SHOP NOW • PAY LATER • 100% INTEREST FREE
Neutrik's NAUSB3-B is a reversible USB 3.0 feed-through in a black D-shape housing - rotate the insert to put USB-A or USB-B on the front. Over 200 MB/s, fits standard D-size panel cut-outs.
Cable Filter: Alternative Options
Neutrik NAUSB3-B Reversible USB 3.0 Gender Changer

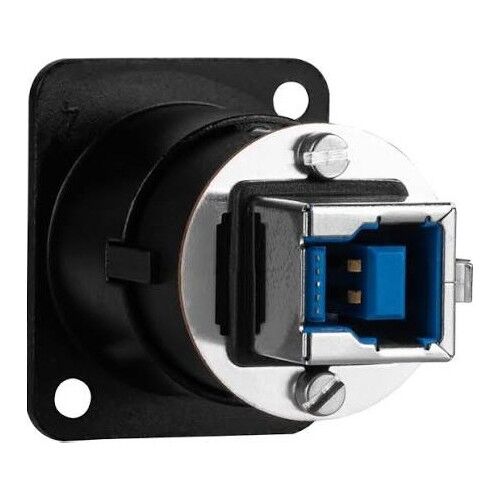

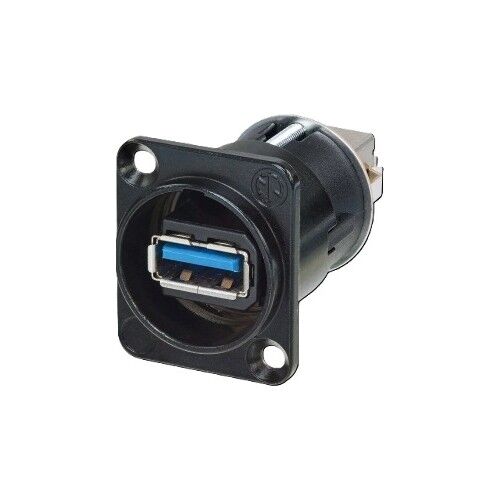

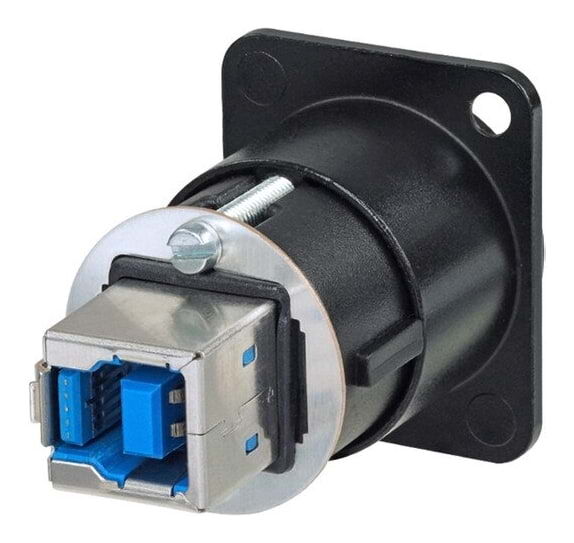

The Neutrik NAUSB3-B is a USB 3.0 feed-through adapter in a black D-shape housing, with a USB type A socket on one side of the panel and a USB type B socket on the other. The insert is reversible, so either type A or type B can face the front, and the standard D-size housing fits conventional patch panels alongside XLR and etherCON connectors while protecting the USB jack. Neutrik rates it for read and write speeds above 200 MB/s, making it a tidy, professional USB pass-through for studio desks, rack panels, wall plates, AV installations and stage boxes.
Swap A and B Without Tools
Some setups need the type A jack on the front to plug in hard drives, cameras or controllers, while others need type B facing out. On the NAUSB3-B you change the configuration simply by rotating the USB insert - no special tools needed - so one part covers both layouts and can be reconfigured later if your system changes.
Built for USB 3.0 Speed
Tight-tolerance pin wiring and an additional copper film between the USB jacks improve the ground connection, so the adapter sustains read and write speeds above 200 MB/s. A metal lip links the USB jack's ground to the D-size flange for a consistent ground level; to isolate it from the chassis, simply pinch the lip off. For error-free data Neutrik recommends USB-IF certified cables, with a maximum length of 2.0 m for a passive USB 3.0 cable. The housing also takes D-series accessories such as Neutrik's SCDX hinged cover and DSS coloured lettering plates.
Please Note
Not compatible with Neutrik NKUSB cables.
Features:
- USB 3.0 feed-through adapter in a black D-shape housing
- Reversible insert offers type A or type B on the front or rear
- Rotate the insert to change configuration - no tools required
- Read and write speeds above 200 MB/s
- Removable screen (metal lip) for chassis grounding
- Standard D-shape housing fits conventional patch panels
- Meets USB 3.0 specifications
Specifications:
- Model: NAUSB3-B
- Connectors: USB 3.0 type A and type B (both female), reversible insert
- Data rate: more than 200 MB/s read and write
- Housing: Zinc diecast, black KTL coating, D-shape
- Mounting: Front mounting
- Contacts: Gold-plated bronze
- Temperature range: -25 to +85°C
- Lifetime: more than 1000 mating cycles
