The REAN RLS4MPZ is a reliable D-size 4‑pole speakON-compatible chassis panel mount connector, designed for high-current professional audio applications. Manufactured by REAN (a Neutrik brand) with quality engineering and compliance certifications.
Cable Filter: Alternative Options

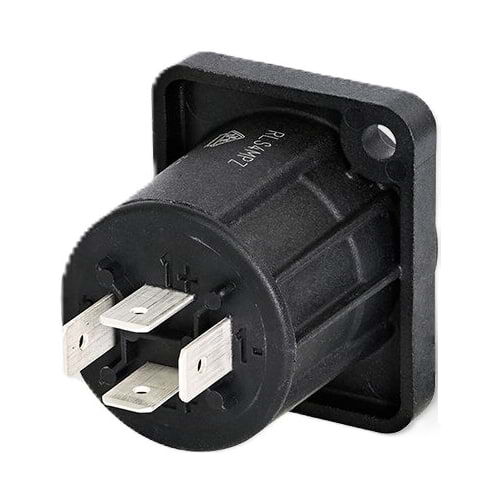

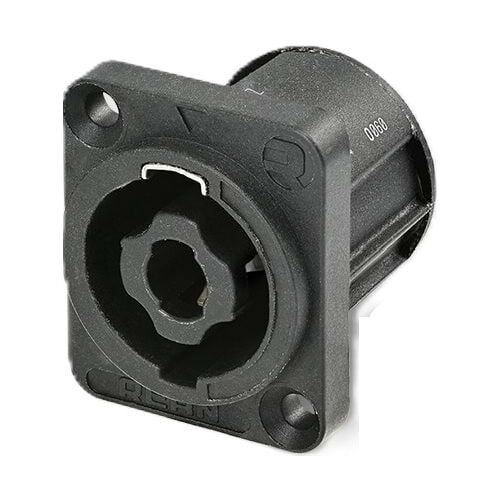

REAN RLS4MPZ 4-Pole D-Size Speakon Chassis Panel Mount Connector
The REAN RLS4MPZ is a reliable D-size 4‑pole speakON-compatible chassis panel mount connector, designed for high-current professional audio applications. Manufactured by REAN (a Neutrik brand) with quality engineering and compliance certifications.
Ideal Usage
The RLS4MPZ from REAN is a rugged, reliable, and professional-grade solution for any audio system requiring a durable 4‑pole speakON chassis connector. It combines high electrical performance, mechanical endurance, and user-friendly mounting and sealing features—ideal for touring, live sound, and installation-ready gear, such as stage amplifiers, speaker cabs, and portable sound systems. It is perfect for applications needing high current capacity up to 30A RMS. Important for environments requiring rugged connectors—firesafe and moisture-resistant, and ideal for equipment that undergoes frequent assembly/disassembly, thanks to its robust mechanical design.
Features:
- Using fibreglass material, rugged insert and shell
- Solid keyway, reliable and suitable
- Robust lock system, safe locking
- Chuck type strain relief, maximum cable capacity, quick and convenient installation
- Sealed design, technology modeltechnology model in the speaker connector application field
Specifications:
- Connection Type: Loudspeaker receptacle with 4 poles (speakON standard)
- Mounting: D‑size panel chassis; supports both front and rear mounting methods
- Contacts: Flat tabs: 4.8 × 0.5 mm (3/16″) / Option for soldering
- Current Rating: 30 A RMS per contact
- Voltage Rating: 250 V (peak insulation)
- Contact Resistance: ≤ 5 mΩ – low conduction losses
- Insulation Resistance: > 1 GΩ – excellent isolation
- Dielectric Strength: 4 kV DC – high safety margin
- Mechanical Durability: Over 1,000 mating cycles – ideal for touring and repeated use
- Housing Material:
- Contacts: Bronze with Ag plating
- Shell: Glass‑filled PA6 (PA6 + 30% GF), UL94 V‑0 rated
- Environmental Specs:
- Operating range: −30 °C to +80 °C
- Solderable per IEC 68‑2‑20
- Flammability rating: UL94 V‑0
