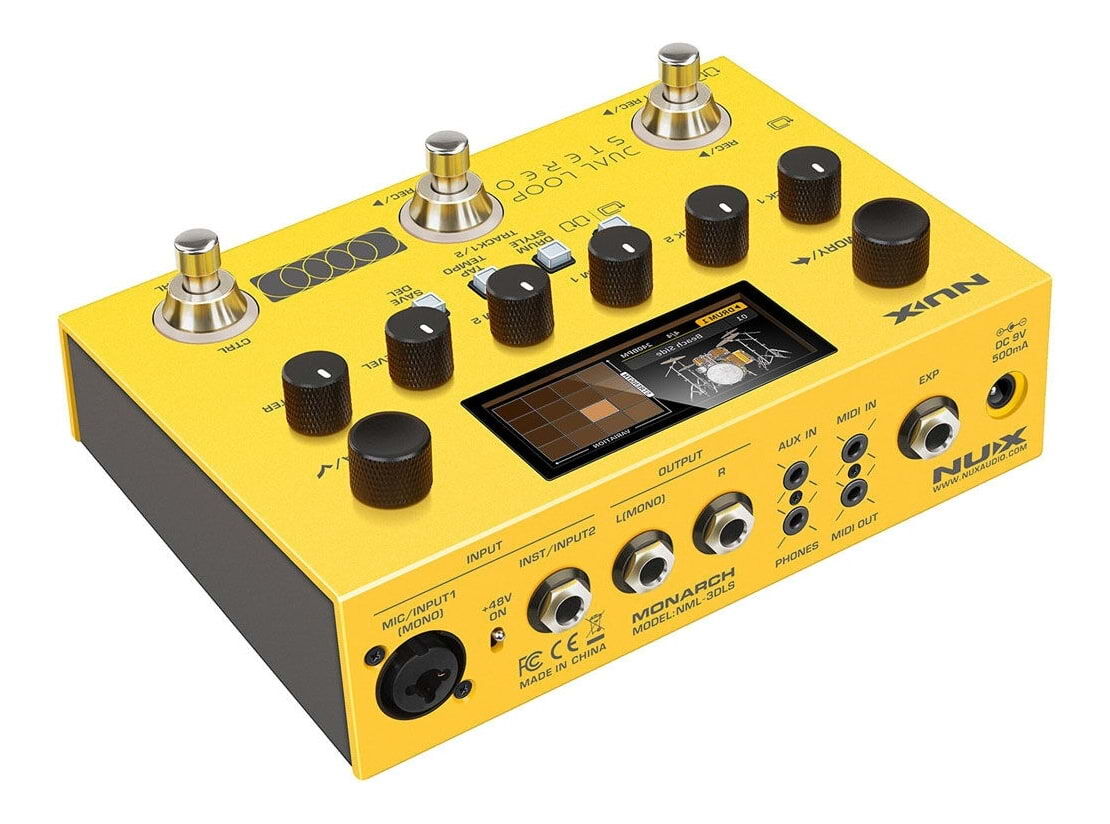

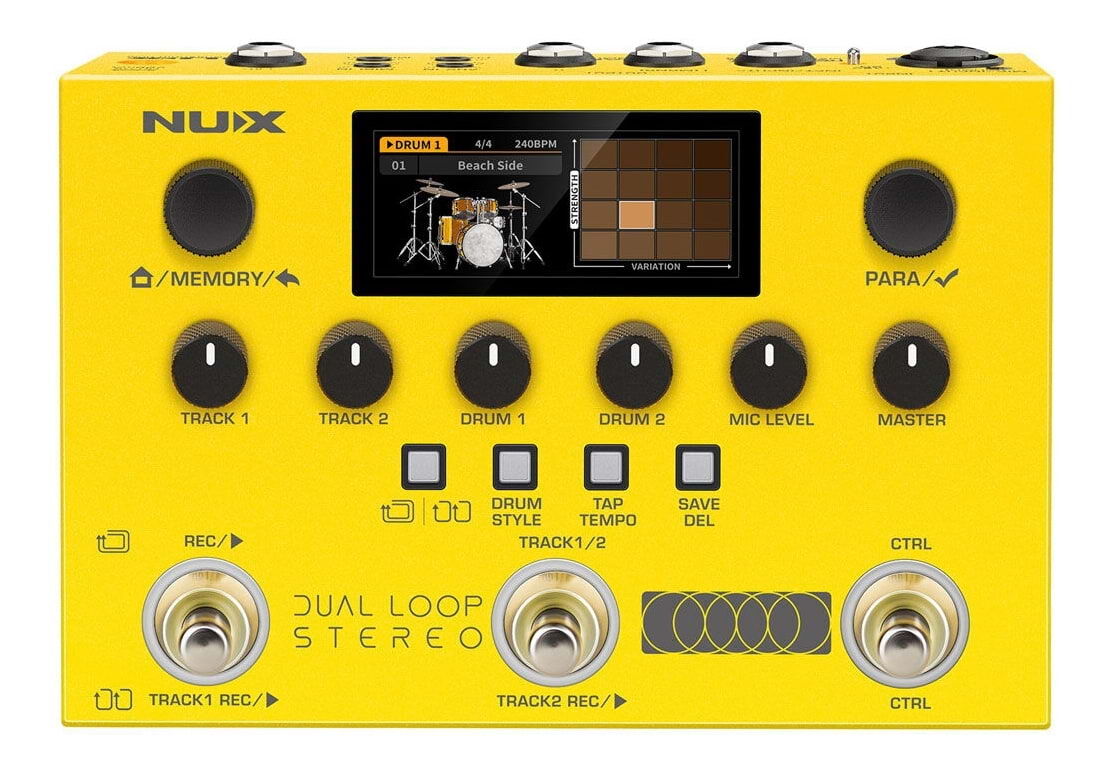

NUX Monarch Series Dual Loop Stereo Looper Pedal

NUX Monarch NML-3DLS Dual Track Looper Pedal
The NUX Dual Loop Stereo from the Monarch series is a dual-track stereo looper with a built-in dual drum machine. It records up to 90 minutes of 32-bit stereo audio on a single track and 26 hours in total across 99 memories, takes microphones and instruments through stereo inputs including an XLR combo jack with 48V phantom power, and puts everything on a 2.86" colour LCD - a complete looping rig for practice, the studio and the stage.

Dual Loop, Dual Rhythm

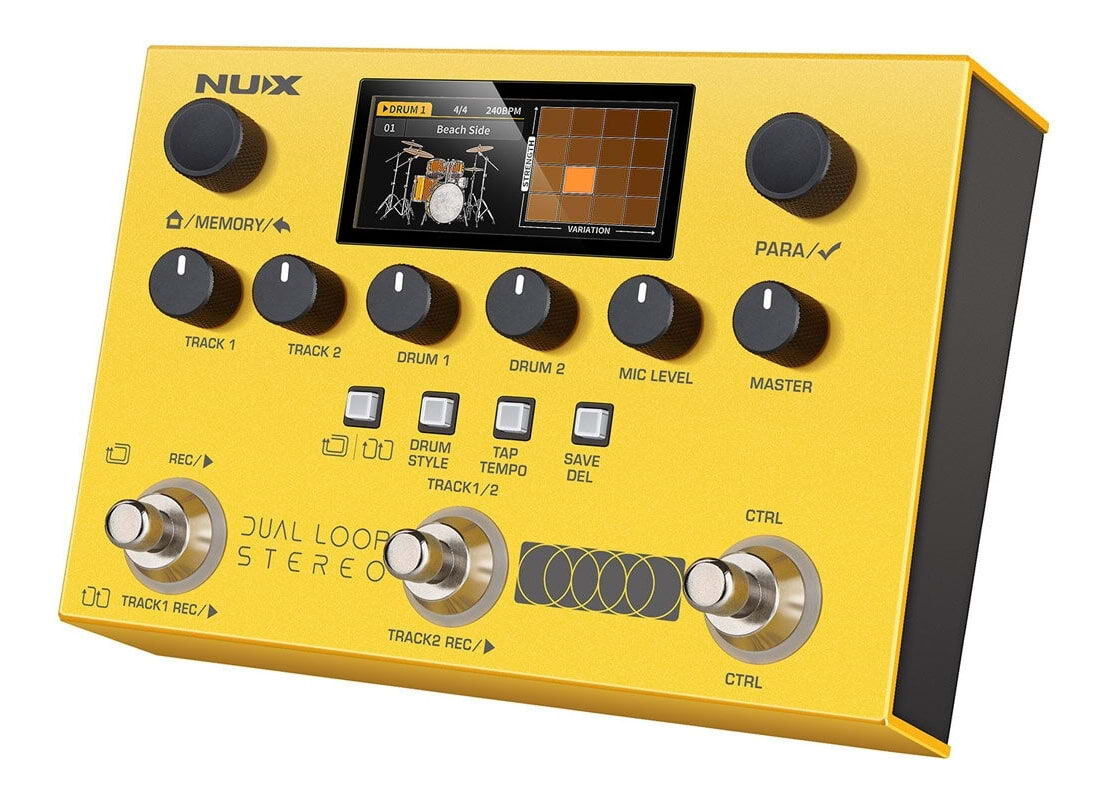

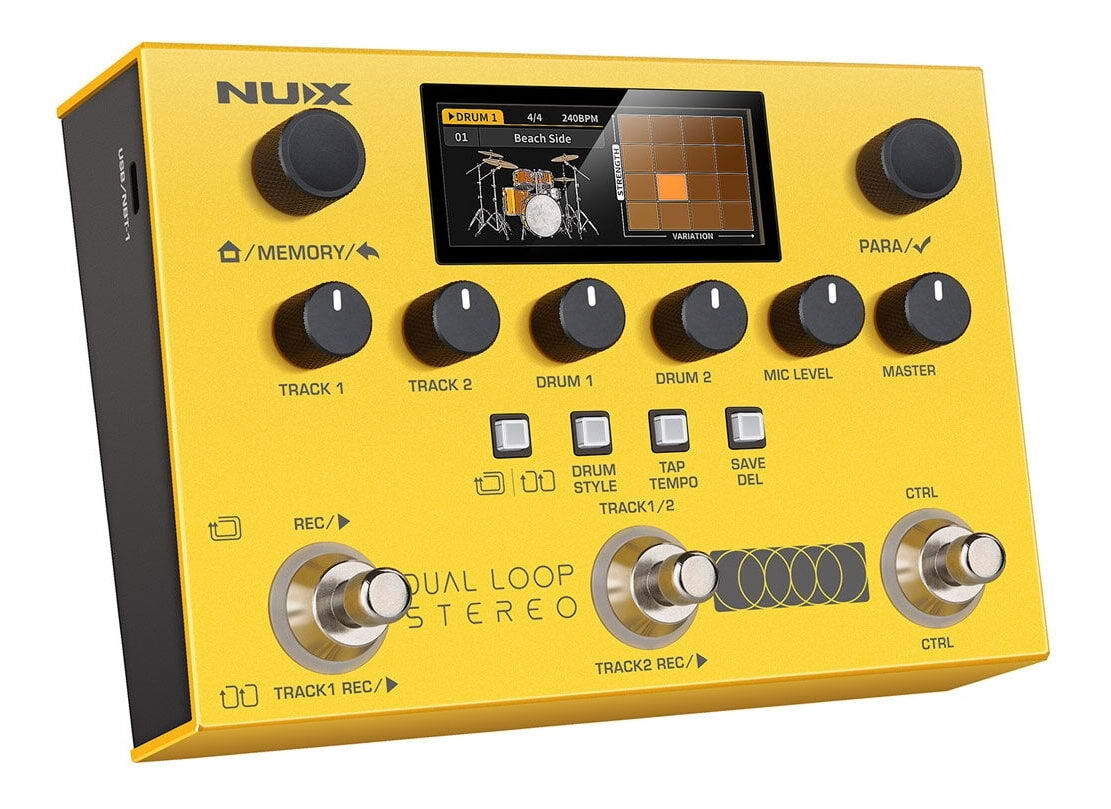

Two independent loop tracks and two drum slots let you layer rich arrangements or switch between the A and B sections of a song, each with its own chords and groove. 42 rhythm presets with 672 variations provide the smart-drummer backing, with tap tempo and dedicated volume knobs for Track 1, Track 2, Drum 1 and Drum 2 right on the top panel.

Three Loop Modes
A/B SPLIT mode plays two loops one after another - ideal for practising or performing a two-part song with different chords and drums in each loop. A+B SYNC mode plays both loops together with independent level mixing, perfect for layering two instruments or guitar and vocals. GIG mode strips things back to two simple, drum-free loops for live sets. (In Split and Sync modes, recording syncs to the drum machine's beat.)

Studio-Grade Capture
Best-in-class 32-bit AD/DA conversion and 32-bit floating-point processing keep your loops crystal clear even after multiple overdubs, recorded as 44.1kHz stereo WAV. Built-in Octave, Booster, Amp Simulation and Reverb effects process the drums or the input 1 mic/instrument signal, and USB audio with loop-back over USB-C makes it easy to record or stream what you build.

Hands-On and Expandable
Turn the value knob to any of the 99 memories, then record, play and overdub from the footswitches - hold to undo, redo or clear. Full MIDI in/out on space-saving TRS mini jacks, an expression pedal input and external footswitch support extend control for bigger rigs, and you can even load a custom GIF boot-up screen.

Features:

• Dual-track looper & dual drum kit
• 99 phrase memories
• 90 minutes of stereo recording time on a single track
• 26 hours of stereo recording time in total
• 42 rhythm presets with 672 rhythm variations
• Octave, Booster, Amp Simulation and Reverb effects (for the drums or input 1)
• 2.86" high-definition colour LCD (960 x 376 pixels) with customisable GIF boot-up display
• Mono/stereo 1/4 inch inputs including XLR mic input with phantom power
• Mono/stereo 1/4 inch outputs plus headphone output
• Support for expanded control via external footswitches, an expression pedal, or MIDI
• Full MIDI I/O provided with space-saving mini TRS jacks
• USB audio with Loop-back (USB-C)

Specifications:

• Sampling frequency: 44.1 kHz
• AD/DA conversion: 32 bits; Processing: 32-bit floating point
• Data format: WAV (44.1 kHz, 32-bit float, stereo)
• Tracks: 2; Memories: 99
• Recording time: approx. 90 minutes (1 track), approx. 26 hours (total of all memories)
• Rhythm: 42 groups, 672 patterns
• Effects: Octave, Booster, Amp Simulation, Reverb (for drum or mic/instrument of input 1)
• Maximum input level: MIC IN +6 dBu (minimum mic gain); INPUT 1/2 +8 dBu; AUX IN L/R +8 dBu
• Mic input gain range: 5.4 dB - 63 dB
• Input impedance: MIC IN 2.4 kΩ; INPUT 1/2 1 MΩ; AUX IN L/R 1 MΩ
• Output impedance: OUTPUT L/R 1 kΩ; PHONES L/R 3.3 Ω
• Bypass: Buffered bypass

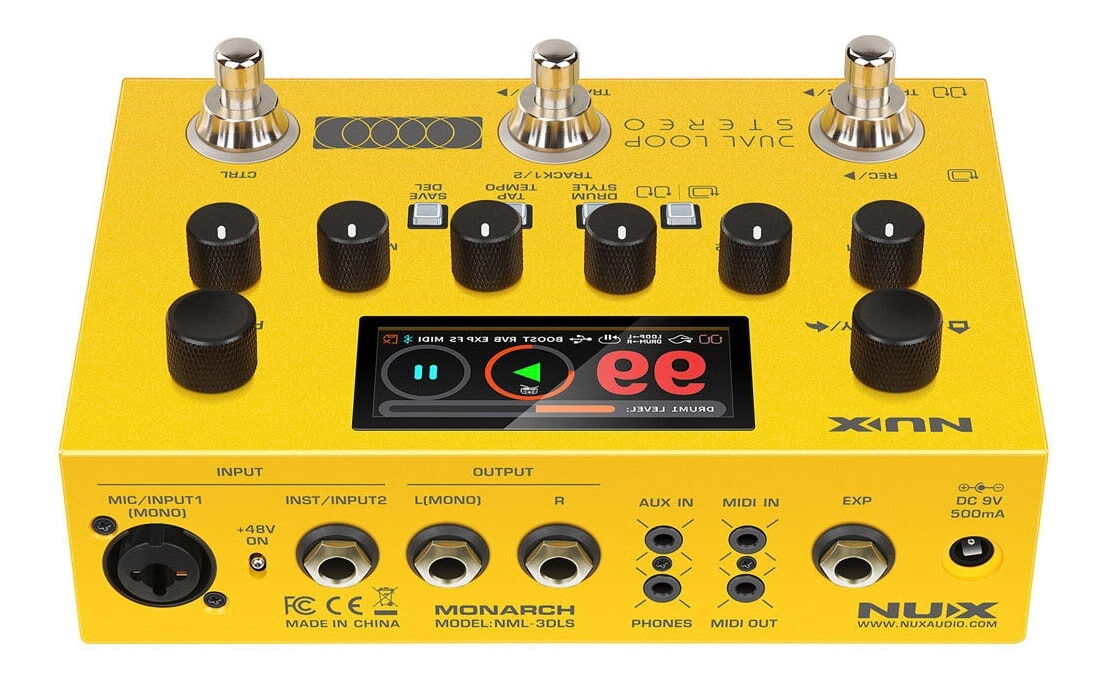

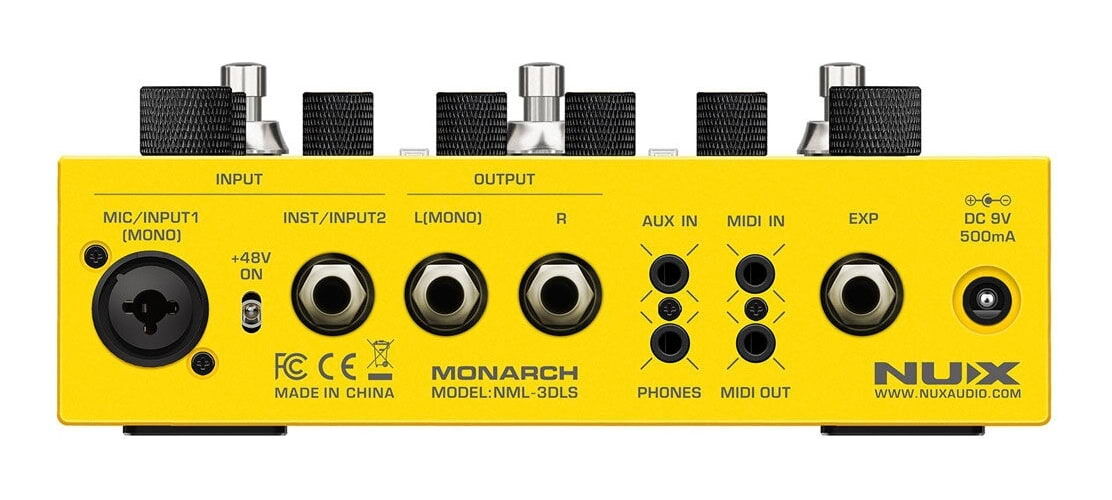

• Connectors: MIC/INPUT 1 combined XLR & 1/4 inch jack (balanced, 48 V phantom power); INST/INPUT 2 1/4 inch jack; OUTPUT L (MONO) and OUTPUT R 1/4 inch jacks; AUX IN 1/8 inch stereo mini jack; PHONES 1/8 inch stereo mini jack; MIDI IN/OUT 1/8 inch stereo mini jacks; EXP 1/4 inch TRS; USB-C port; DC IN
• Power supply: 9 V DC centre negative, 500 mA (ACD-006)
• Current draw: less than 170 mA (phantom power off), less than 270 mA (phantom power on)
• Dimensions (L x W x H): 183mm x 130mm x 65.3mm
• Weight: 765g
