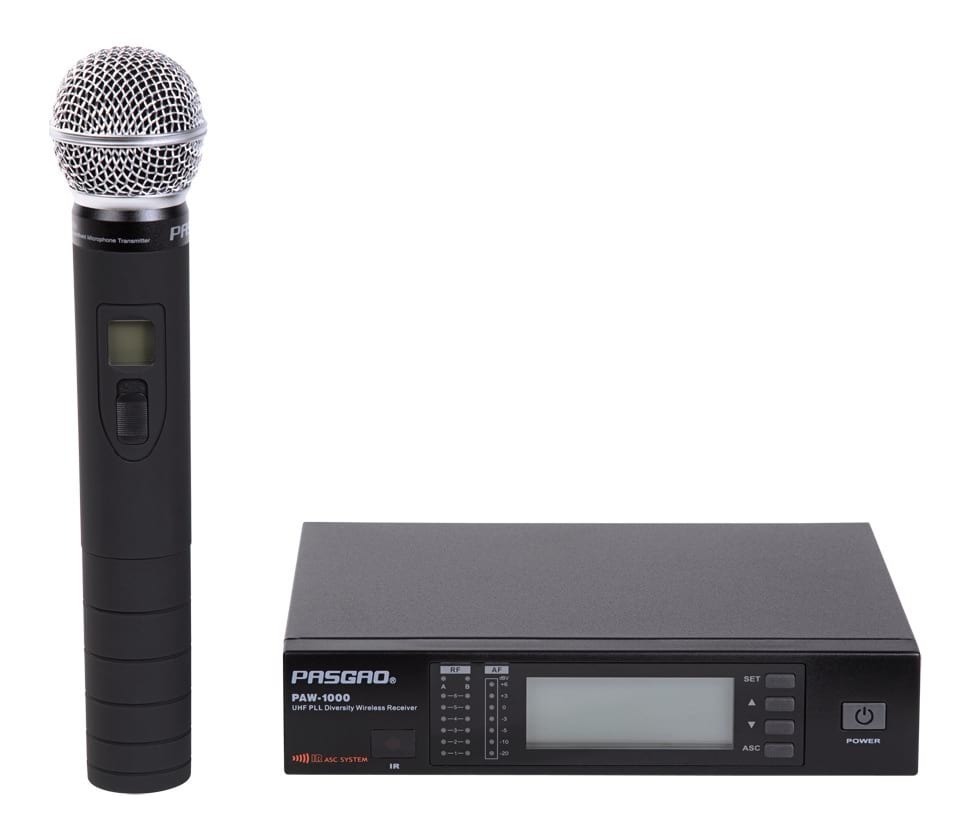

PASGAO PAW-1000 Professional Wireless Microphone System - Dynamic
with 1 Handheld Dynamic Vocal Mic
PASGAO Wireless Microphone System with True Diversity Receivers - Handheld Mic
The PAW-1000 system allows for 10 frequency groups, each with up to 20 channels, adding up to a total of 200 usable channels that won't interfere with each other. Intuitive operation and easy set up makes this unit a perfect choice for venues, event organizers, and audio hire companies.
PAH-720 Handheld Wireless Vocal Microphone - Dynamic Capsule
The PAH-720 is a vocal microphone suitable for both speaking and live vocal performance. The frequency response replicates that of popular dynamic vocal mics giving crisp, clear mid range sound that rejects feedback. The PAH-720's gain control allows for tweaking of mic's sensitivity to suit the vocal performer. A backlit LCD display shows the operational status of the microphone, including current group, channel, battery charge, and lock status. The removable grill allows for easy replacement if damaged. This microphone is perfect for performing bands, weddings and other functions with multiple or animated/mobile speakers or vocalist. The broadcasting range of this mic is 655-679MHz, making it both legally and functionally suitable for most areas of Australia.

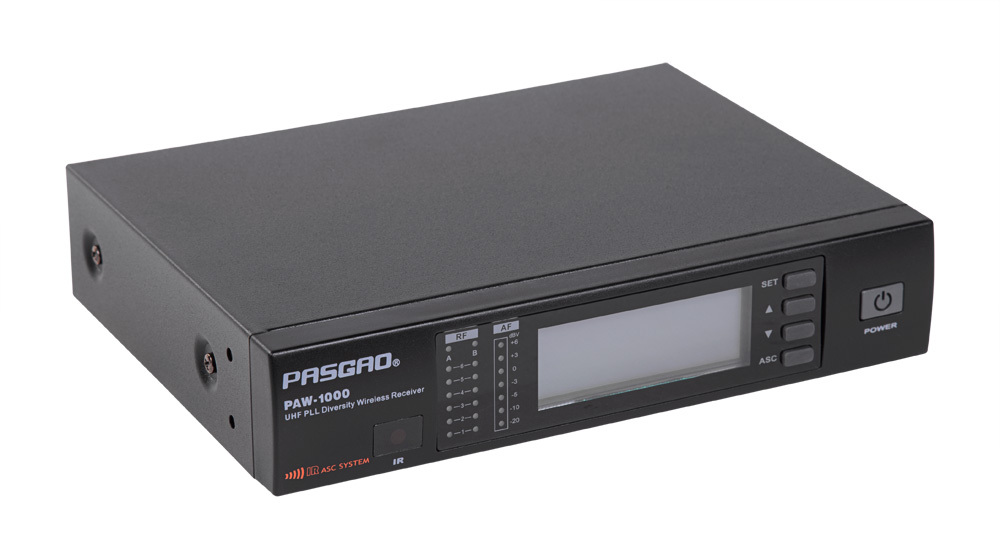

PAW-1000 Wireless Receiver - Automatic IR Connection - Vacant Frequency Detection
The PAW-1000 is a compact, easy to use high quality receiver with an impressive pick up range. The receiver uses automatic frequency testing to detect vacant frequencies in the area. Combine this with infrared synchronization that automaticall pairs the transmitter and receiver to the same frequency, and this system is as simple to set up as 1-2-3! To make life even easier, an onboard digital volume control system automates the volume level outputted ensuring maximum signal strength without distortion / clipping. This results in clear, even sound between different speakers singers.
True Diversity Receiver
The unit incorperates two receiving antennas and monitors the signal strength on each antenna, switcing automatically to the strongest receiving antenna. This prevents dropouts that can occur due to self-desctructive intererence patterns of the radio waves, or when a performer moves around stage with the transmitter. This is known as True Diversity reception technology, as opposed to quasi-diversity reception that uses two antennas but only monitors one at a time, switching when that antenna drops below a certain signal strength, regardless of the strength on the other antenna.
Other Useful Features
The mute level control on the rear of the unit acts like a noise gate and is useful if there are interference noises when the mic is not being used. The backlit LCD shows the status of each receiving channel, including the current group and frequency, and active antenna. The 6 segment LED meter indicates RF signal strength and audio input levels.
PASGAO is an experienced Chinese manufacturer of many types of wireless microphones and audio devices. As an OEM manufacturer, PASGAO has partnered with many famous global microphone brands to produce their wireless microphone product lines. Buying a PASGAO product gives you the quality and reliability you would expect from a well known brand, but at a price that delivers unbeatable value.
- PAH-720 Wireless Handheld Microphone with Dynamic Capsule
- PAW-1000 Wireless Receiver
- Vocal performance microphone
- Cast metal microphones for superior strength
- Microphone sensitivity adjustment knob
- Digital volume control system
- Infrared data synchronization
- 19" rack mountable receiver (rails not included)
- Adjustable mute level
- 655-679MHz broadcasting range
- Frequency Range: 655-679MHz
- Pickup Range: ~100m (varies with environmental conditions)
- Max Channel Number: 200
- Receiving Frequencies: 960
- Switching Bandwidth: 25MHz
- Sensitivity: <-94dBm for dB S/N ratio
- Peak Deviation: ±55kHz
- Frequency Response: 60Hz - 16kHz
- Signal to Noise Ratio: >104dB(A)
- THD: <0.8%
- Dynamic Range: >95dB
- Audio Connection: XLR+Jack
- Antenna Connection: 2 BNC 50Ohm
- Output Level:XLR: +8dBu max
- Power Supply: 12 - 18V DC 500mA
- Dimensions: 410mm x 160mm x 44mm
- Weight: 900g
PAH-720 Microphone with Dynamic Capsule:
- Frequency Range: 655-679MHz
- Max Channel Number: 120
- Theoretical Output Power: 10mW
- Spurious Rejection: >53dBc
- Switching Bandwidth: 24MHz
- Peak Deviation: ±55kHz
- Frequency Response: 50Hz - 16kHz
- Signal to Noise Ratio: 102dB(A)
- THD: <1%
- Input Voltage Range: 1V max
- Power Supply: 2x 1.5A (AA) batteries (included)
- Battery Life: >8hrs
- Dimensions: 54mm(D) x 242mm(L)
- Weight: 240g
Note: No microphone clip is included in this package. For wireless microphones, we recommend the iSK SKSE108 Large Microphone Clip.
As of 1st of January 2015, any broadcasting system operating in Australia, including wireless microphones and other wireless audio systems, must now operate between 520-694MHz. This is not only a legal requirement, but an operational requirement to prevent interference that can be picked up in commercial broadcasting frequency ranges.
The Pasgao range that SWAMP distributes in Australia generally will have a frequency range between 655-679MHz, though please check the specifications listed.
While 520-694MHz is the general frequency range for operation in Australia without needing approval, the available frequencies bands do vary by location. For more information or to find out how to check available frequencies near you, please read our helpful article about wireless devices in Australia at the following link: Using Wireless Equipment in Australia
