CKMOVA Vocal M V2 Professional UHF Dual-Channel Wireless Microphone

2x Transmitter and 1x Receiver Set

The CKMova Vocal M V2 is a broadcast quality dual channel wireless UHF microphone 2x Transmitter + 1x Receiver package, with an independent audio recorder and built-in rechargeable battery. The M-Series provides a professional, lightweight, durable system

CKMOVA Vocal M V2 Professional UHF Dual-Channel Wireless Microphone 2x Transmitter and Receiver Set
The CKMova Vocal M V2 is a broadcast quality dual channel wireless UHF microphone 2x Transmitter + 1x Receiver package, with an independent audio recorder and built-in rechargeable battery. The M-Series provides a professional, lightweight, durable system

Professional Solution
The CKMOVA Vocal M is a reliable broadcast quality dual channel wireless UHF microphone system with independent audio recorder and built-in rechargeable battery.The Professional wireless solution for filmmakers, vloggers, Live Podcast, mobile journalists and content creators. The Vocal M provides a stable UHF signal transmission delivering high-quality audio. It features headphones, monitor on both transmitter and receiver; Mic & Line input switchable, local memory recording and EQ settings on transmitter; mono & stereo switchable on receiver. The build-in OLED screen displays reception quality, battery status, audio level and more.

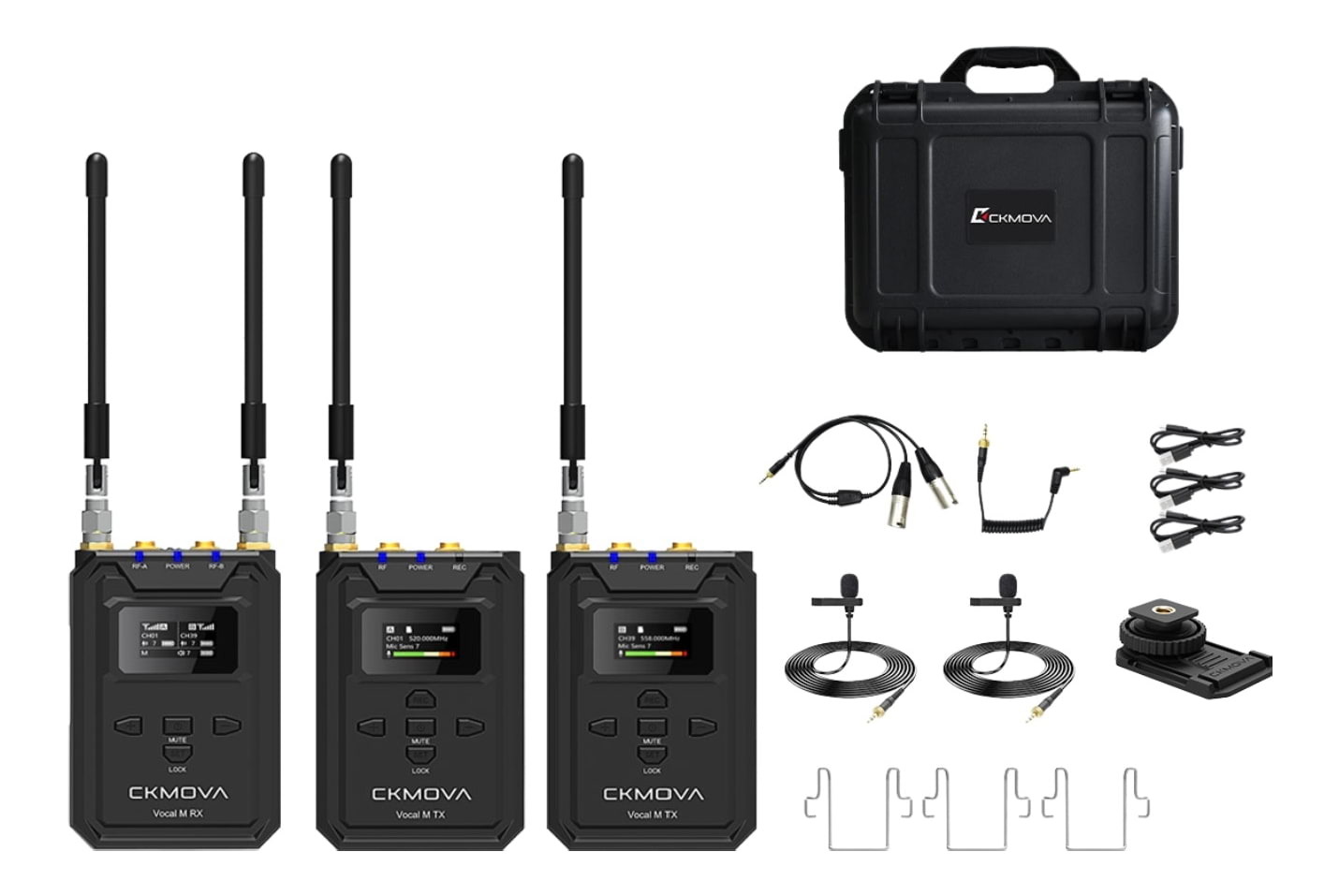

Package Includes:
 - 2x Body-pack transmitter
 - 1x Portable receiver
 - 2x W-LM2 omnidirectional lavalier microphone
 - 1x Locking 3.5mm TRS to 3.5mm TRS audio cable
 - 1x Locking 3.5mm TRS to 3-pin XLR audio cable
 - 3x Type-C charging cables
 - 1x Shoe mount adapter
 - 3x Belt clips
 - 4x Antennas

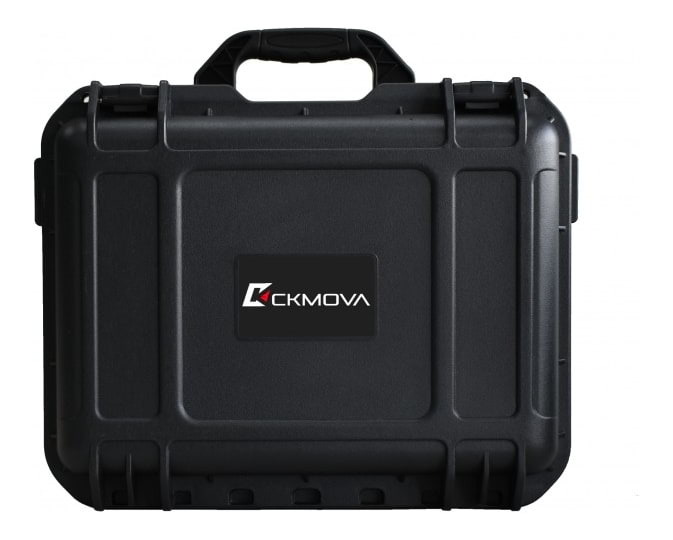

 - 1x Hard suitcase
 - 1x User manual
 - 1x Warranty Card

Features:

  • Professional Dual-Channel Wireless Microphone Set

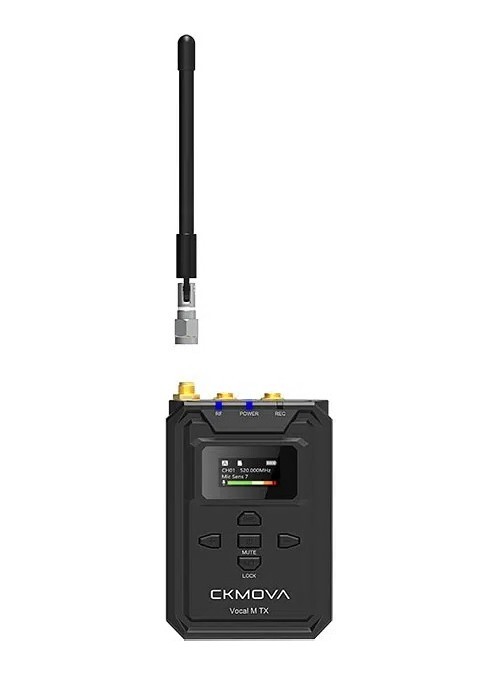

  • 2x Bodypack Transmitter

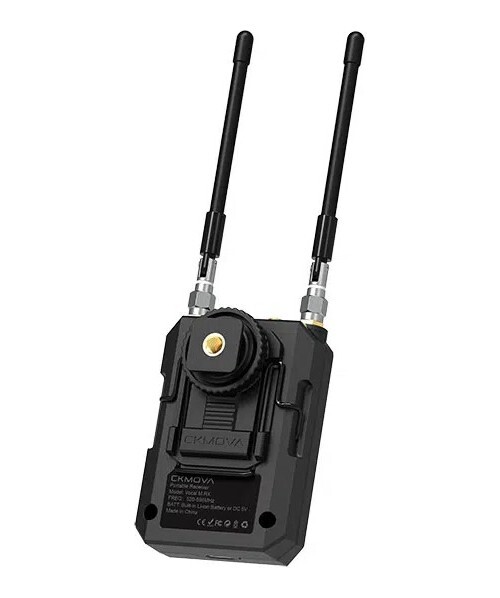

  • Dual-channel receiver
  • OLED display on both transmitter and receiver
  • Detachable and 360°switchable antenna
  • Operating Range 150M (Line of sight)
  • Mono & Stereo output switchable

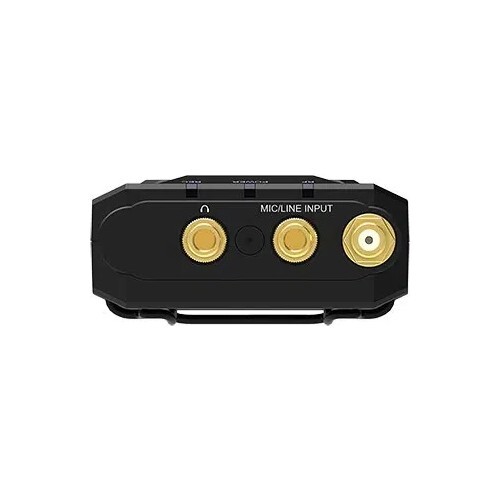

  • Locking 3.5mm TRS Mic & Line input switchable
  • Locking 3.5mm TRS real-time headphone monitor on receiver
  • Locking 3.5mm TRS real-time & play-back headphone monitor on transmitter
  • Local 3.5mm TRS Mic input jack on receiver
  • Support up to 32GB microSD card for memory recording
  • Low cut filter (40Mhz/80Mhz/120Mhz)
  • High frequency boost (1dB/2dB/3dB/4dB)
  • Mute & keypad lock function on both transmitter & receiver
  • Both receiver and transmitter with automatic protection shutdown
  • Built-in rechargeable battery with 12 hours life
  • Durable aluminum alloy construction

Specifications:

Channel Group A and B
Antenna 1/4A Detachable Antenna
RF Output Power 50mW
Gain Range 30dB
Frequency Response 20Hz to 20kHz
Audio I/O Locking 3.5mm TRS Mic & Line Input (Vocal M TX) Locking 3-pin Female XLR Input (Vocal M TLX)
Locking 3.5mm TRS Audio Output
Signal Processing Low Cut Filter-(40/80/120 MHz) High Frequency Boost-(1 to 4 dB)
Sensitivity -41±1dB (OdB=1V/Pa,at 1KHz)
Polar Pattern Omnidirectional
Latency < 6ms
THD <0.5%
Signal-to-Noise Ratio >80dB SPL
Recording Format WAV
Recording Media MicroSD(Up to 32GB)
Power Requirements Built-in Battery or Type-C DC 5V
Built-in Battery Capacity 1500mAh
Battery Life 12 Hours
Battery Charging Time 2 Hours
Housing Metal
Dimensions 56mm x 80mm x 22mm (Vocal M TX)
45.5mm x 112mm x 44mm (Vocal M TLX)
56mm x 80mm x 22mm (Vocal M RX)
Weight 125g (Incl.Battery Vocal M TX)
125g (Incl.Battery Vocal M TLX)
135g (Incl.Battery Vocal M RX)
Operating Temperature 0°C — 50°C
Storage Temperature -20°C — 60°C
View PDF brochure for CKMOVA Vocal M V2 Professional UHF Dual-Channel Wireless Microphone
