CKMOVA UM100 Kit2 Ultra-Compact UHF Wireless Microphone

2 Wireless Transmitters and Receiver

$299.99
Pre-order - Released 6 November 2020
If your prefer to wait until the stock has arrived:
CLICK HERE TO 'GET NOTIFIED' once we have stock on hand

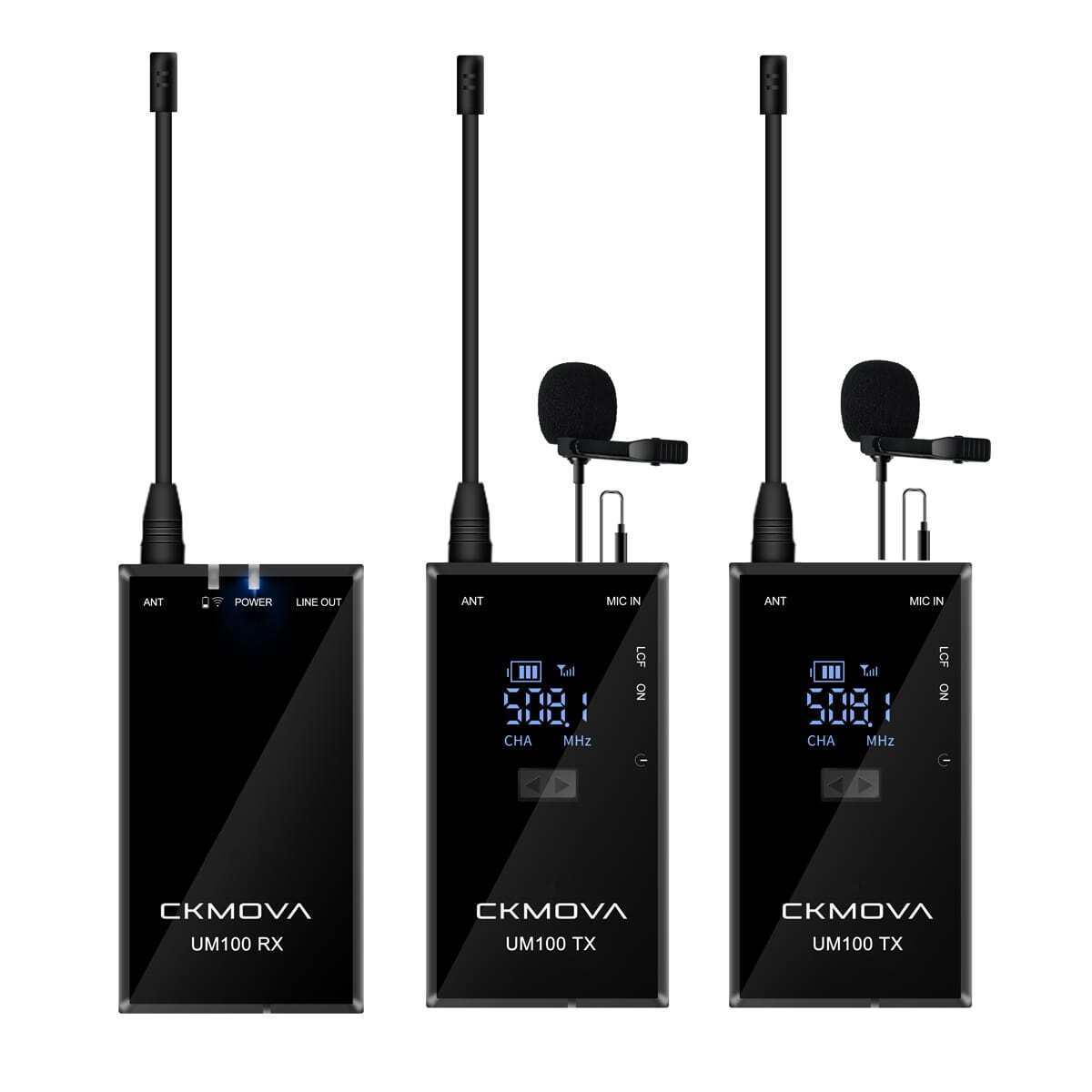

The CKMOVA UM100 - Kit2 - is an ultracompact 3.5mm output, UHF wireless system, with a dual-channel receiver for cameras and mobile devices, and 2 transmitters with lavaliers. Reliable broadcast-quality audio, with 20 selectable channels in 2 groups.

CKMOVA UM100 Ultracompact UHF Wireless Microphone - Kit2
The CKMOVA UM100 - Kit2 - is an ultracompact 3.5mm output, UHF wireless system, with a dual-channel receiver for cameras and mobile devices, and 2 transmitters with lavaliers. Reliable broadcast-quality audio, with 20 selectable channels in 2 groups.

Reliable Broadcast Quality

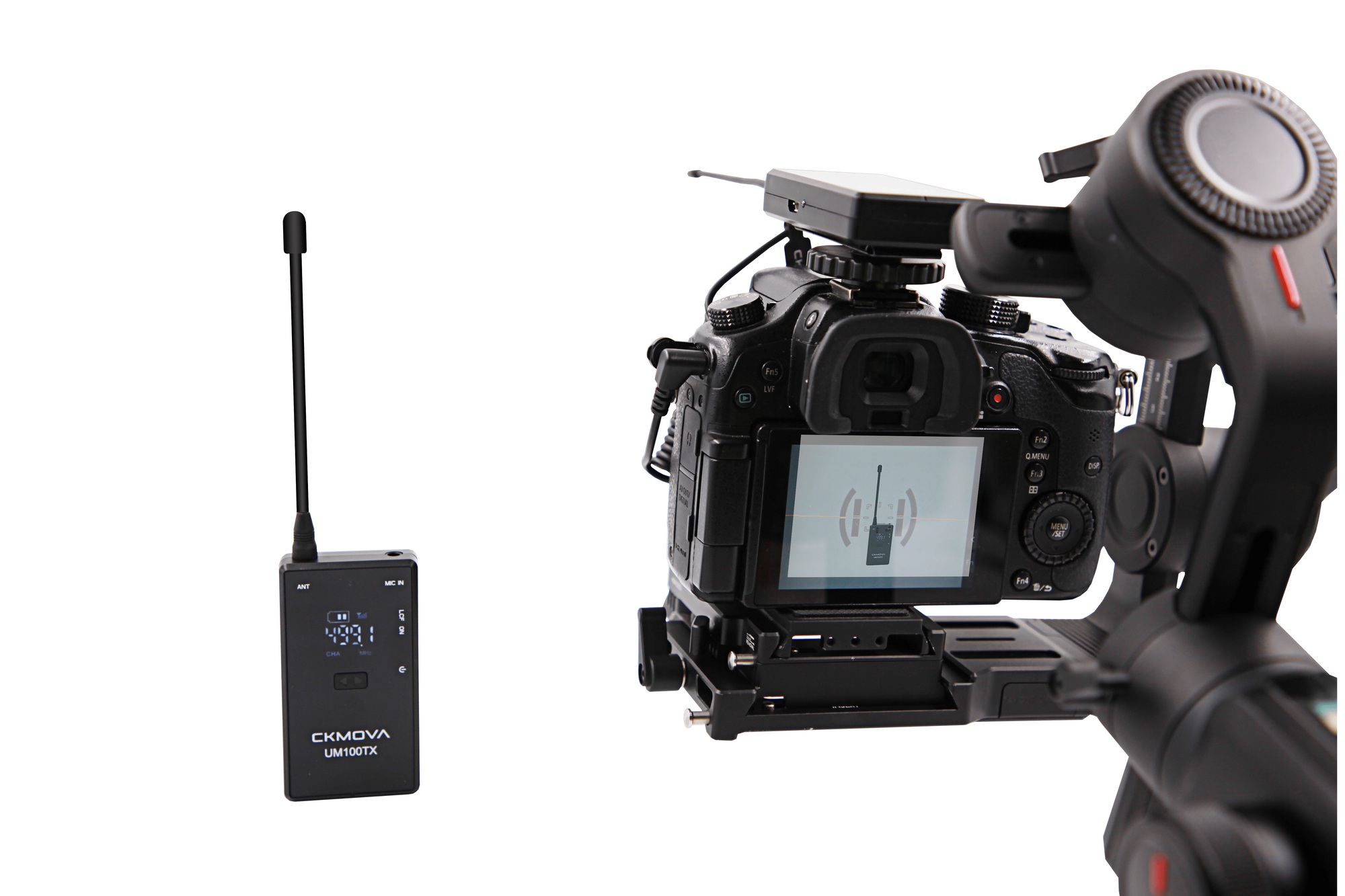

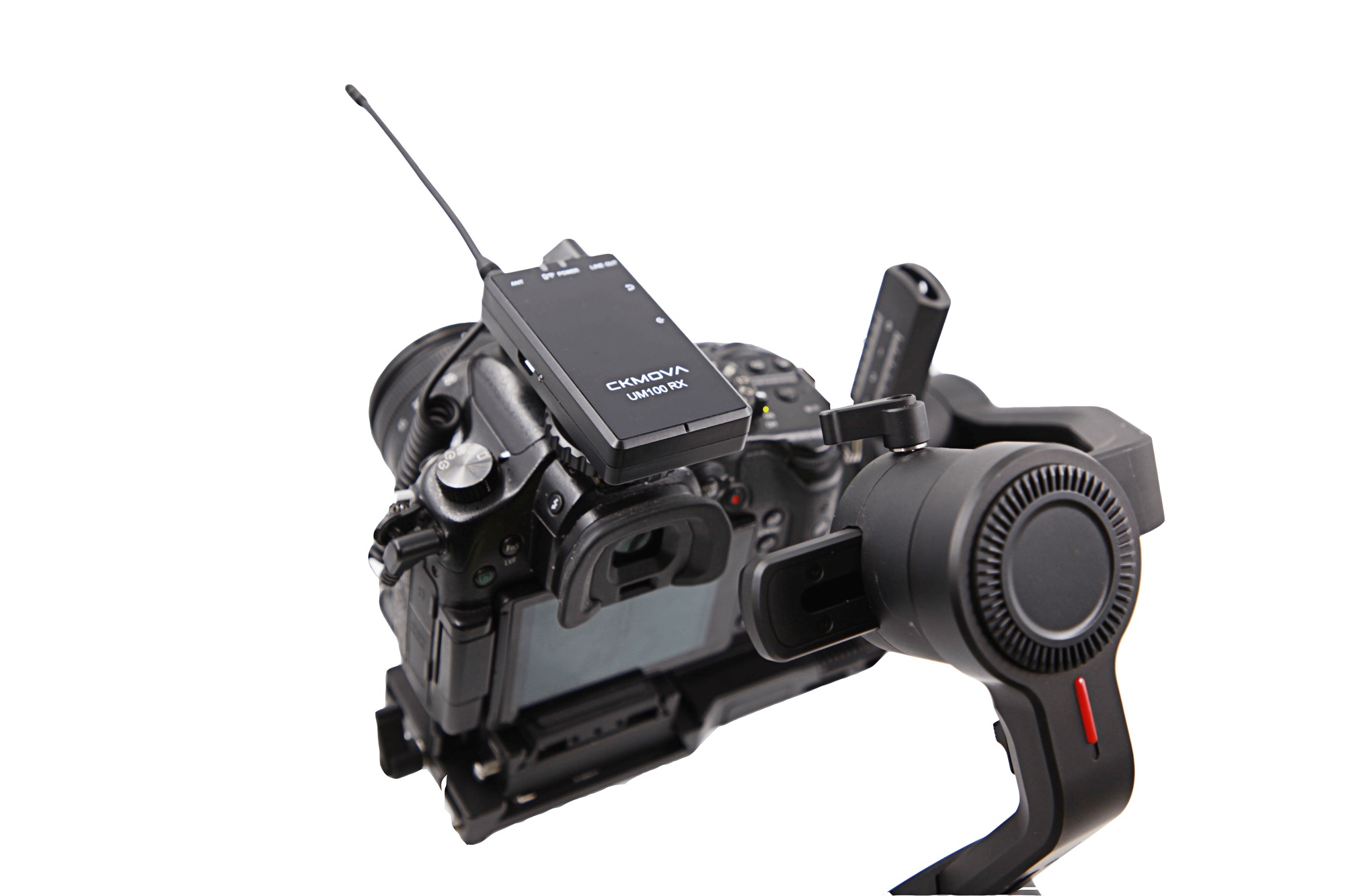

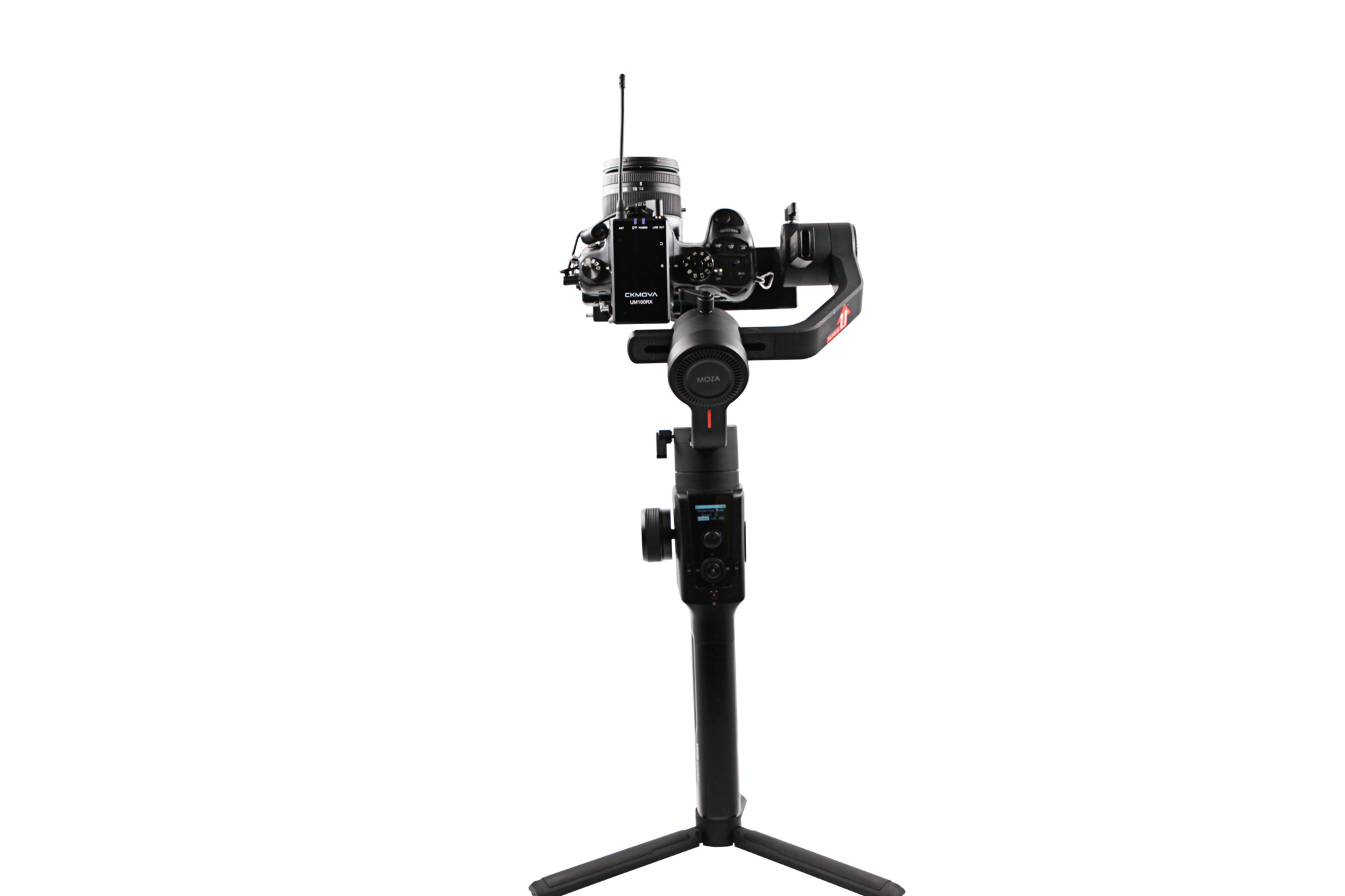

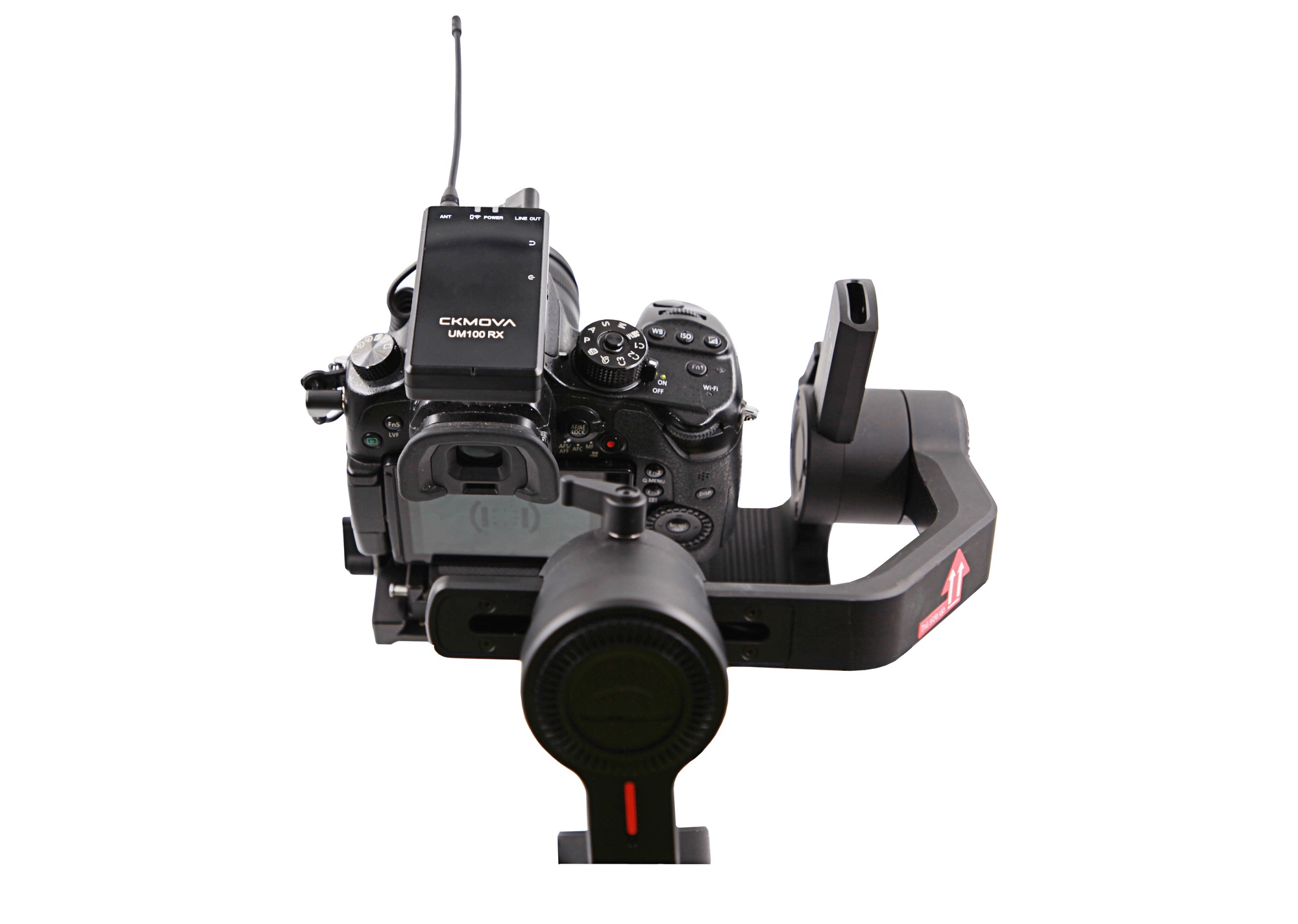

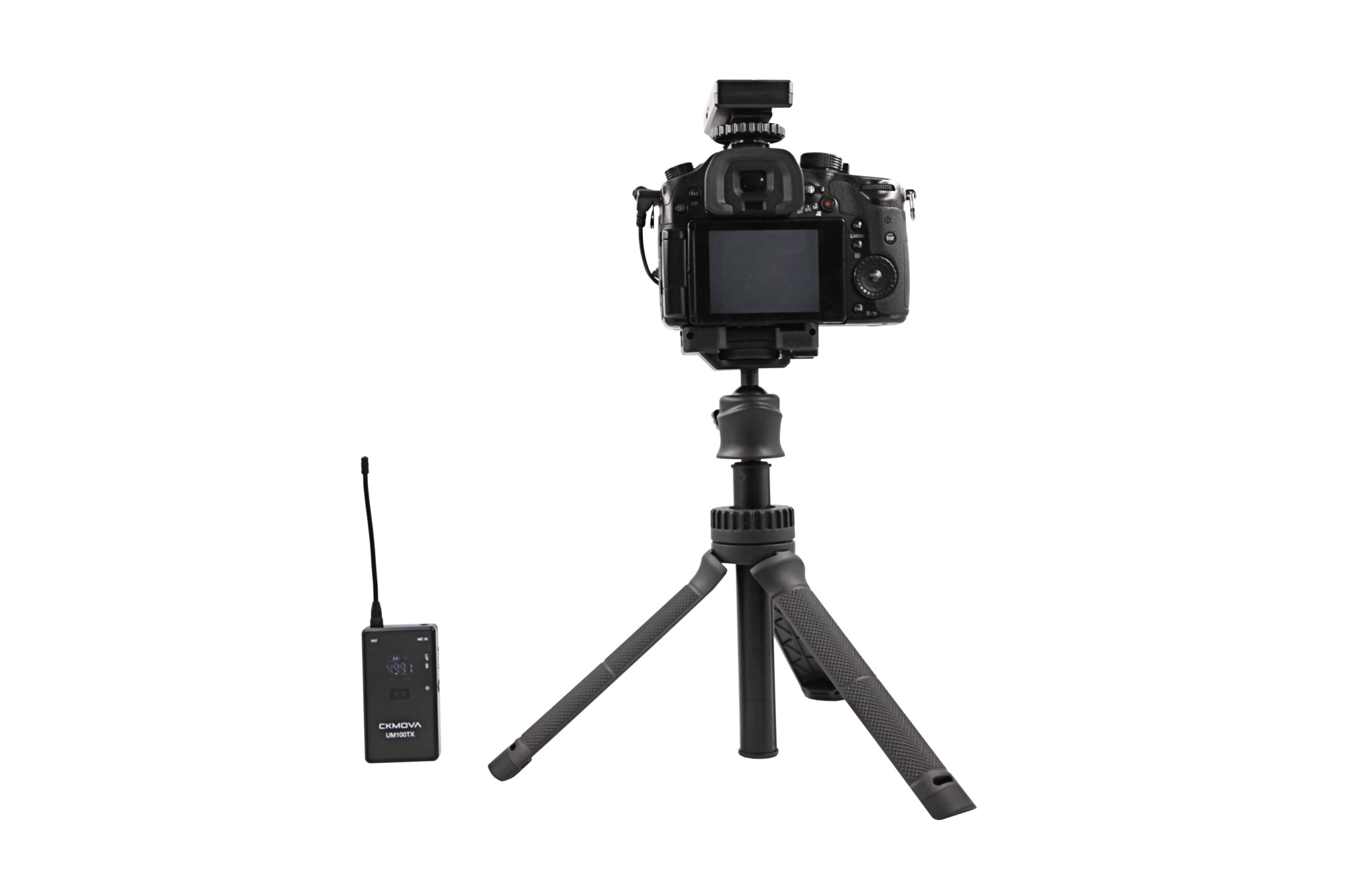

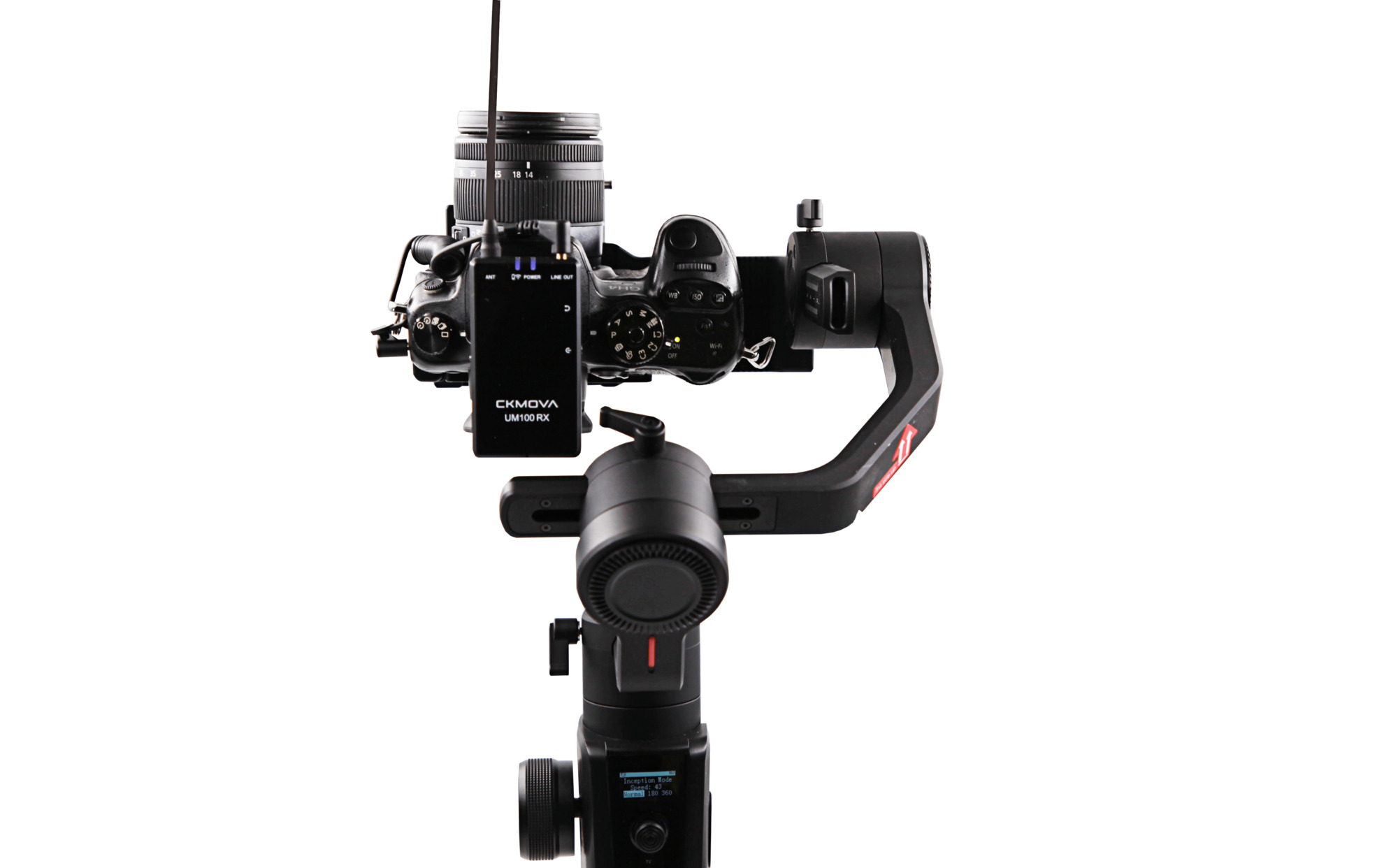

This kit consists of a well built, solid transmitters and receiver. The receiver allows for direct connection to a hot shoe on a camera or smartphone stand. Both units are paired already, which allows for an extremely easy setup. The included lavaliers are of a professional level, providing crisp and clear audio, and you can use other mics such as shotguns. Designed as a really light, compact format, all units have a great battery life of 6-8 hours from their built-in lithium battery. The receiver includes a line output, in order to monitor the incoming signal. The LCD screen on the units are bright and easy to read in direct sunlight.

Features:

  • Dual-channel receiver for cameras and mobile devices
  • Reliable, broadcast-quality audio
  • 20 selectable channels in 2 groups
  • Frenquency range: 470-510MHz
  • 50m working distance
  • Headphone monitor output
  • Auto-pairs for quick and easy operation
  • Easy-to-read LCD displays

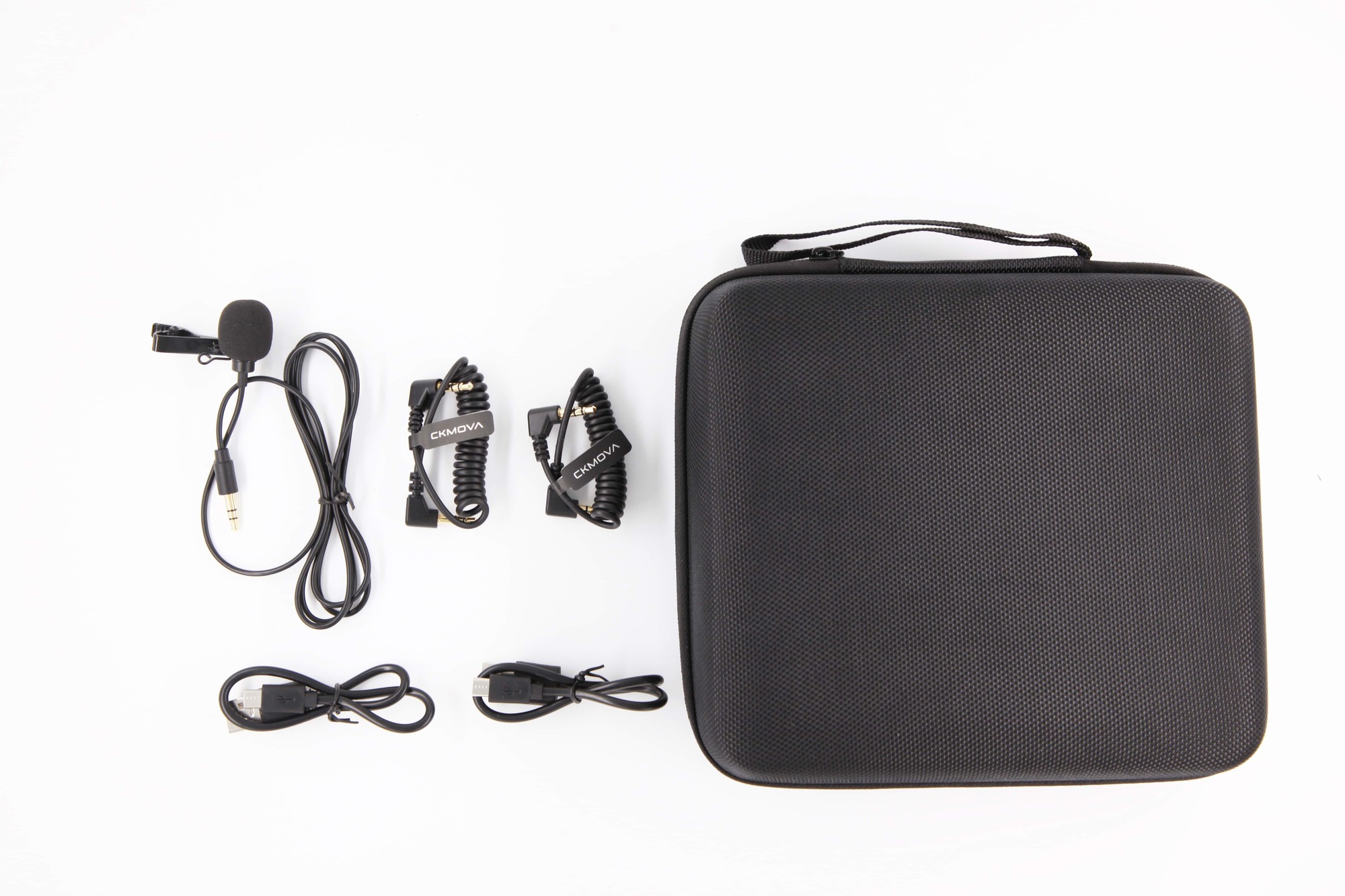

Includes:

  • 1x UM100 RX Receiver

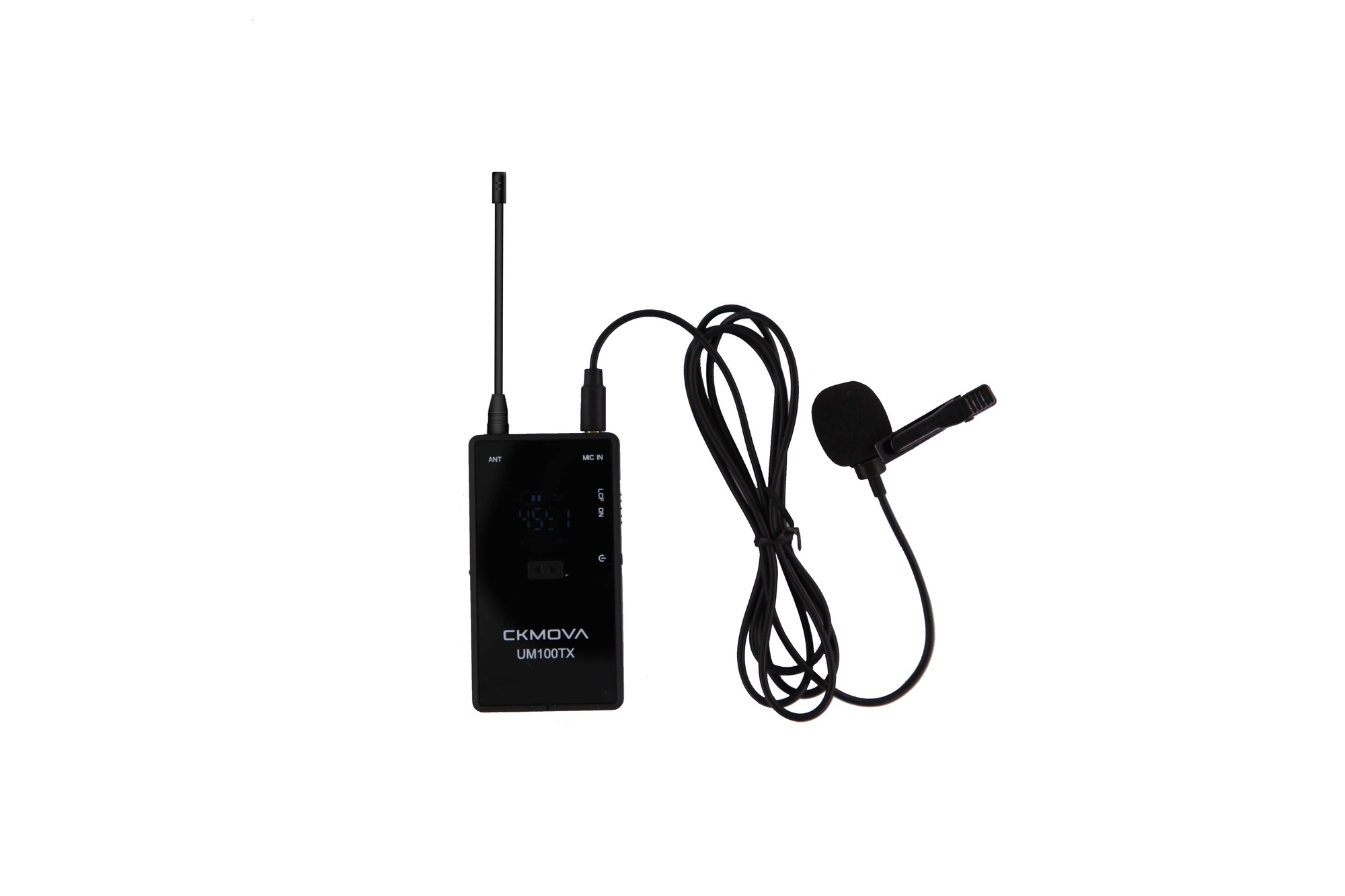

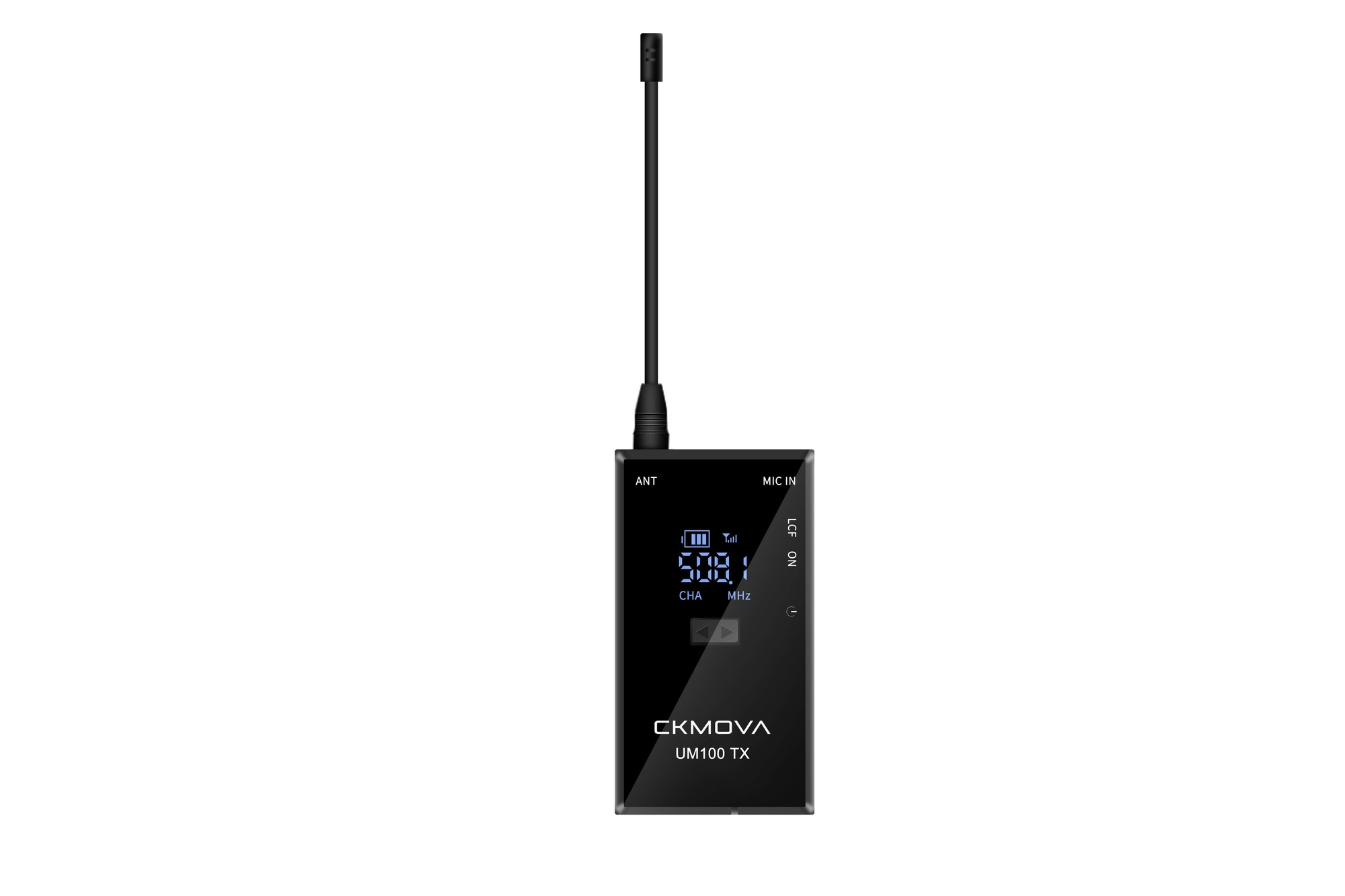

  • 2x UM100 TX Transmitters

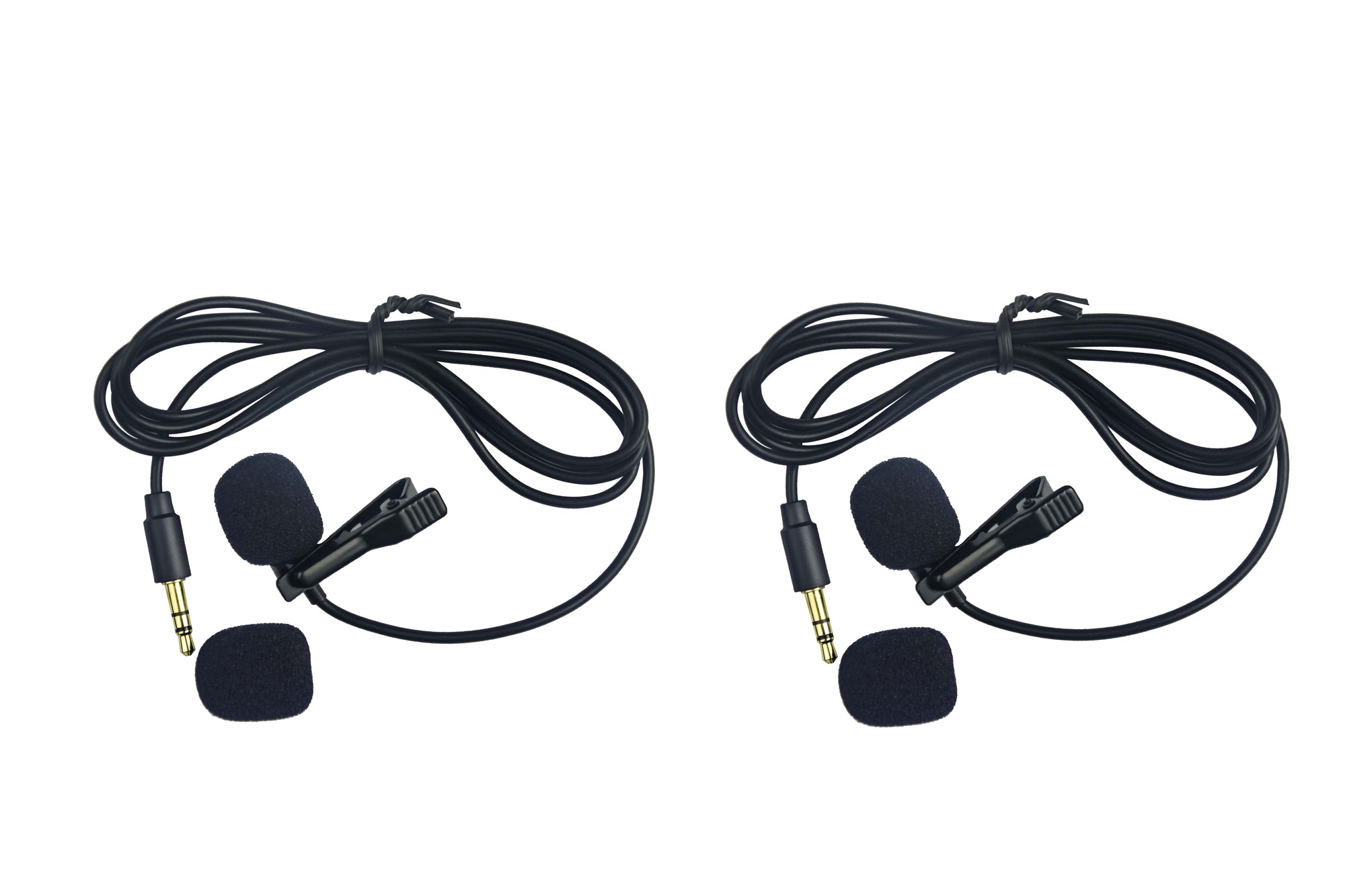

  • 2x Lavalier Microphones

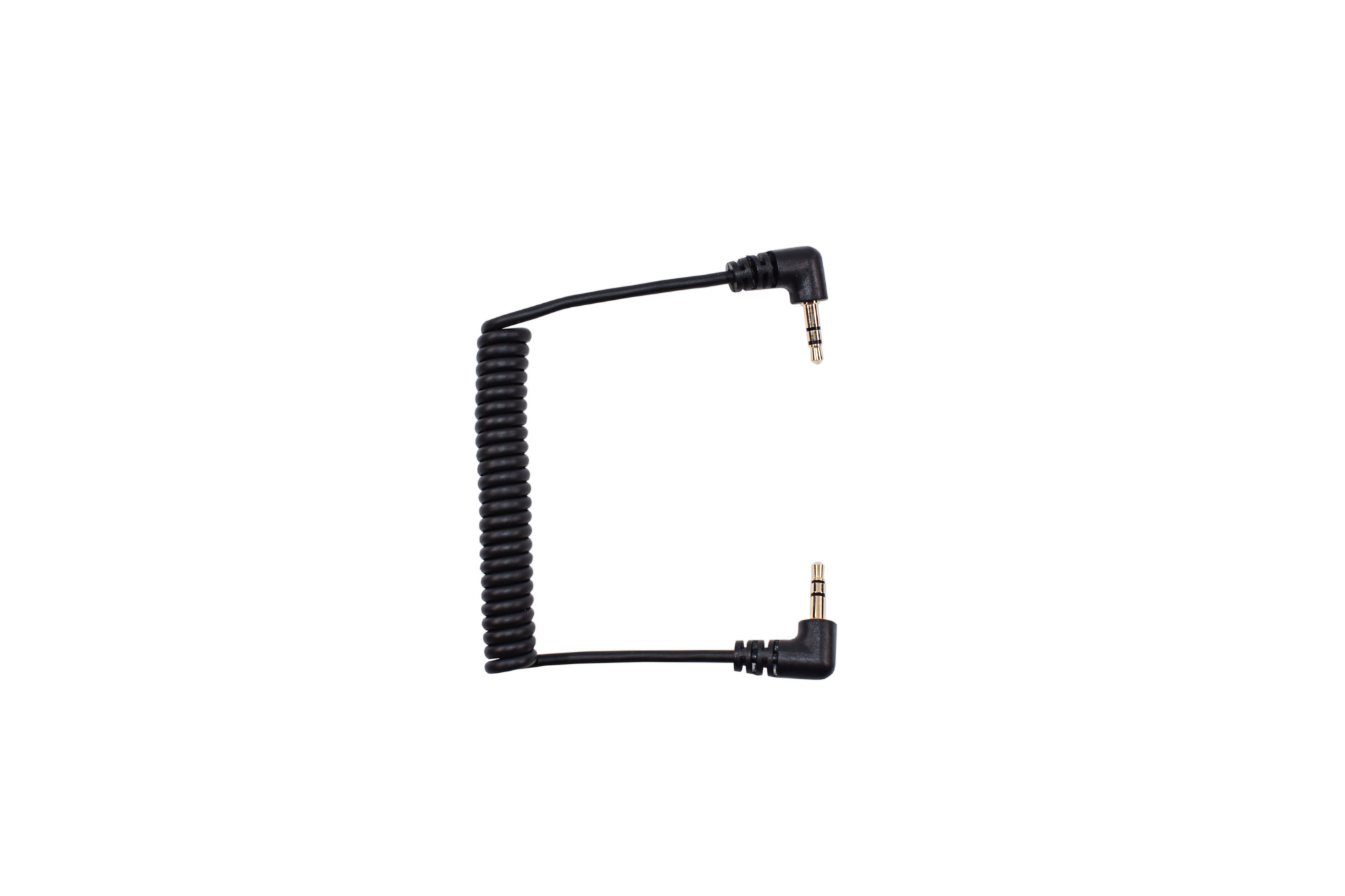

  • 1x 3.5mm TRS to TRS Output Cable

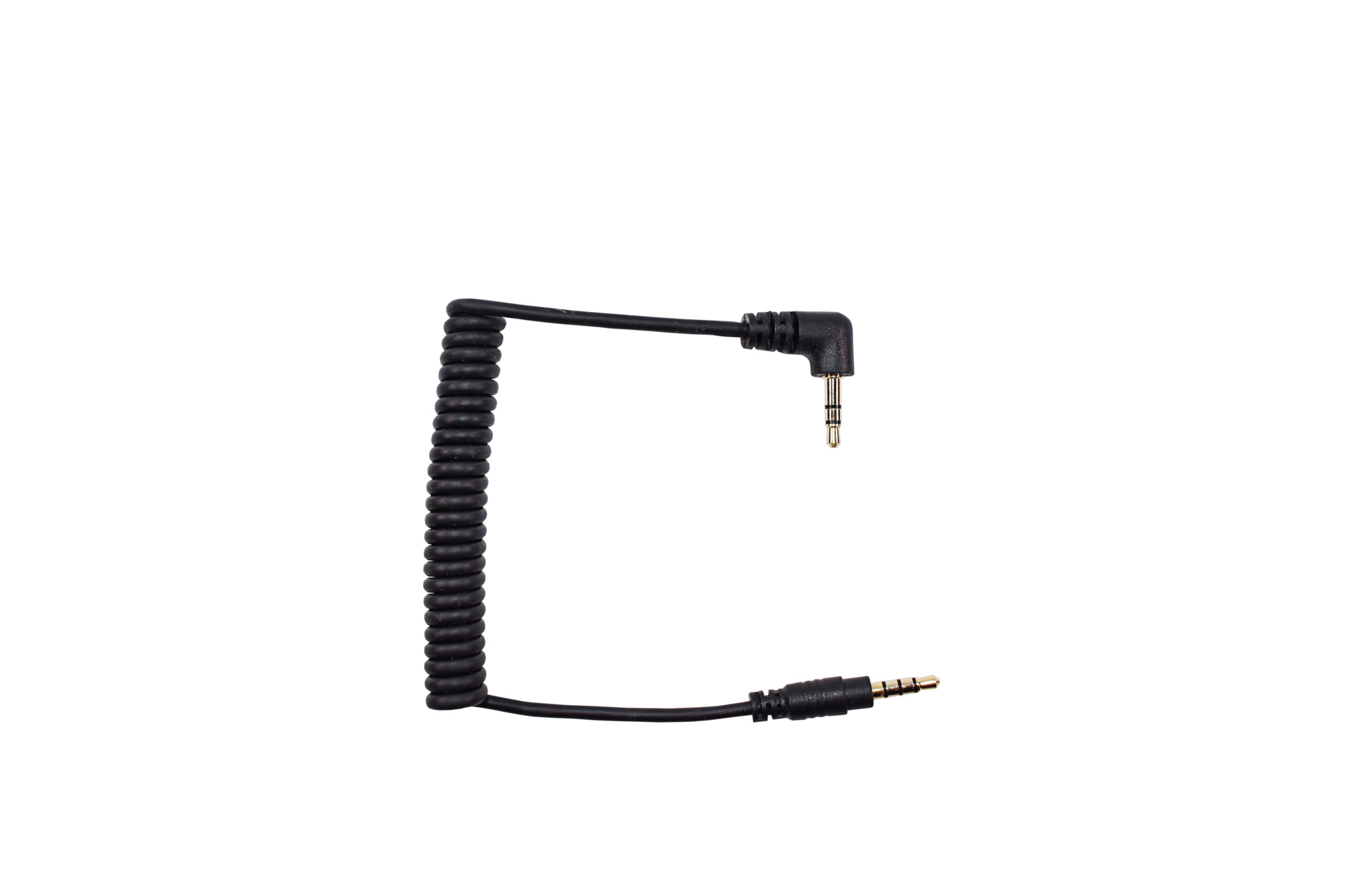

  • 1x 3.5mm TRS to TRRS Output Cable
  • 3x Charging Cable
  • 1x User Manual

Specifications:

Frequency range  470-510MHz
Modulation  DQPSK
Audio frequency response  30Hz-18kHz
Polar pattern  Omnidirectional
Channels 20
RF output power  ≤10mW
Signal to noise ratio  ≥90dB
Transmitter power  DC3.7V (Built-in lithium battery) Or DC-5V/0.5-2A external power input
Transmitter charging input specifications  DC-5V/ 0.5-2A
Transmitter battery charging time  2-4 hours
Transmitter battery life 6-8 hours
Receiver power DC3.7V, built-in lithium polymer battery (UM100 RX/TX)
Receiver power
Powered by USB-C socket device (UM100 RXUC)
Receiver battery  life 6 hours (UM100 RX/TX)
Weight

RX:40g

TX:40g

RXUC: 10g

Dimentions

RX: 73*40*14(mm)

TX: 73*40*14 (mm)

RXUC: 72*15*10 (mm)

View PDF brochure for CKMOVA UM100 Kit2 Ultra-Compact UHF Wireless Microphone
