CKMOVA Vocal M V3 Professional UHF Dual-Channel Wireless Microphone
XLR Transmitter and Receiver Set 520-596 MHz
The Vocal M V3 is a broadcast quality dual channel wireless UHF microphone system with independent audio recorder and built-in rechargeable battery. A reliable and professional wireless solution for ENG, filmmakers, EEP, vloggers, Live Podcast, and more.
CKMOVA Vocal M V3 Professional UHF Dual-Channel Wireless Microphone XLR Transmitter and Receiver Set
The Vocal M V3 is a broadcast quality dual channel wireless UHF microphone system with independent audio recorder and built-in rechargeable battery. A reliable and professional wireless solution for ENG, filmmakers, EEP, vloggers, Live Podcast, mobile journalist and content creators.
Broadcast Quality
The Vocal M V3 is a compact, lightweight and durable microphone system providing mature and stable UHF signal transmission delivering high-quality audio. Powerful features includes plugon XLR transmitter with headphone, monitor on both transmitter and receiver, local memory recording and EQ settings on transmitter; mono & stereo switchable on receiver. The build-in OLED screen displays reception quality, battery status, audio level and more.
Package Includes:

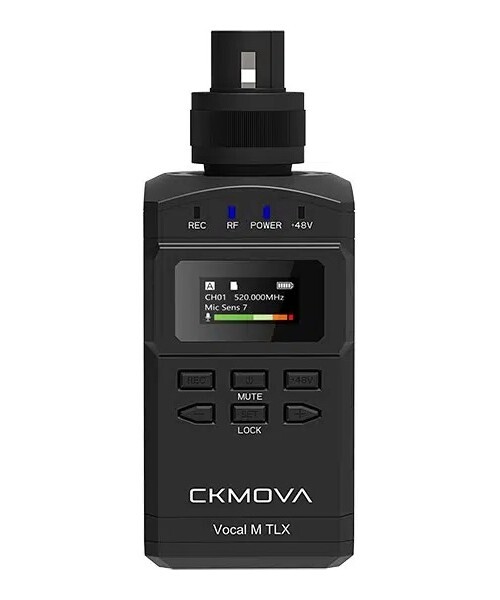

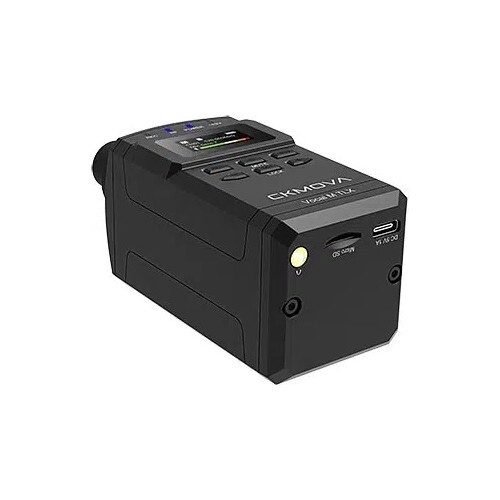

- 1x Plug-on XLR Transmitter

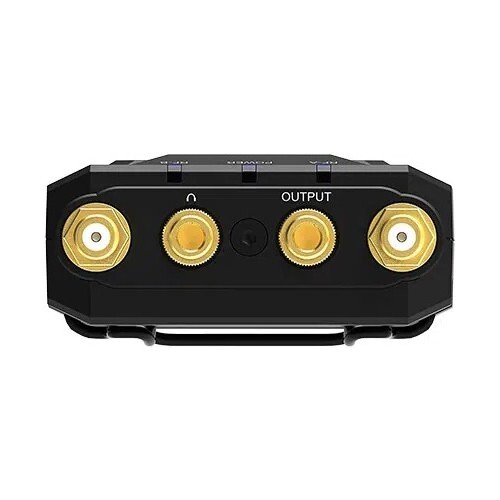

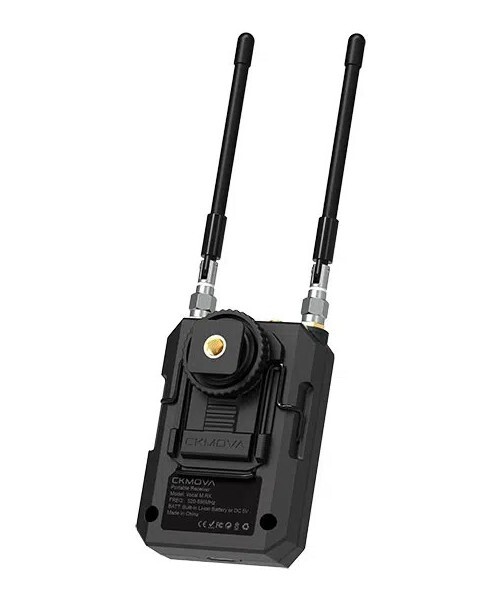

- 1x Vocal M RX Portable receiver
- 1x Locking 3.5mm TRS to 3.5mm TRS audio cable
- 1x Locking 3.5mm TRS to 3-pin XLR audio cable
- 2x Type-C charging cable
- 1x Shoe mount adapter
- 1x Belt clip
- 2x Antennas
- 1x Hard suitcase
- 1x User manual
Features:
- Professional Dual-Channel Wireless Microphone Set
- Dual-channel receiver
- Plug-on XLR Transmitter with Phantom Power
- OLED display on both transmitter and receiver
- Detachable and 360°switchable antenna
- Operating Range 150M (Line of sight)
- Mono & Stereo output switchable
- Locking 3.5mm TRS real-time headphone monitor on receiver
- Locking 3.5mm TRS real-time & play-back headphone monitor on transmitter
- Local 3.5mm TRS Mic input jack on receiver
- Support up to 32GB microSD card for memory recording
- Low cut filter (40Mhz / 80Mhz / 120Mhz)
- High frequency boost (1dB / 2dB / 3dB / 4dB)
- Mute & keypad lock function on both transmitter & receiver
- Both receiver and transmitter with automatic protection shutdown
- Built-in rechargeable battery with 12 hours life
- Durable aluminium alloy construction
Specifications:
| Model | CKMOVA Vocal M V3 |
| Channel Group | A and B |
| Frequency Range | IN: 520 – 596 MHz |
| Antenna | Detachable Antenna |
| RF Output Power | 50mW |
| Gain Range | 30dB |
| Frequency Response | 20Hz to 20kHz |
| Audio I/O | Locking 3.5mm TRS Mic & Line Input (Vocal M TX) Locking 3-pin Female XLR input (Vocal M TLX) Locking 3.5mm TRS Audio Output |
| Signal Processing | Low Cut Filter – (40/80/120 MHz) High Frequency Boost – (1 to 4 dB) |
| Sensitivity | -41±1dB (0dB=1V/Pa,at 1KHz) |
| Polar Pattern | Omnidirectional |
| Latency | ＜6ms |
| THD | ＜0.5% |
| Signal-to-Noise Ratio | ＞80dB |
| Recording Format | WAV |
| Recording Media | MicroSD(Up to 32GB) |
| Power Requirements | Built-in |
| Battery or Type-C | DC 5V |
| Built-in Battery Capacity | 1500mAh |
| Battery Life | 12 Hours |
| Battery Charging Time | 2 Hours |
| Housing Metal Dimensions | 45.5mm x 112mm x 44mm (Vocal M TLX) 56mm x 80mm x 22mm (Vocal M RX) |
| Weight | 125g (TLX Incl.Battery) 135g (RX Incl.Battery) |
| Operating Temperature | 0℃ ~ 50℃ |
| Storage Temperature | –20℃ ~ 60℃ |
