Power Dynamics PD504B Wireless Bodypack Microphone System

PD504B Wireless Bodypack Microphone Set

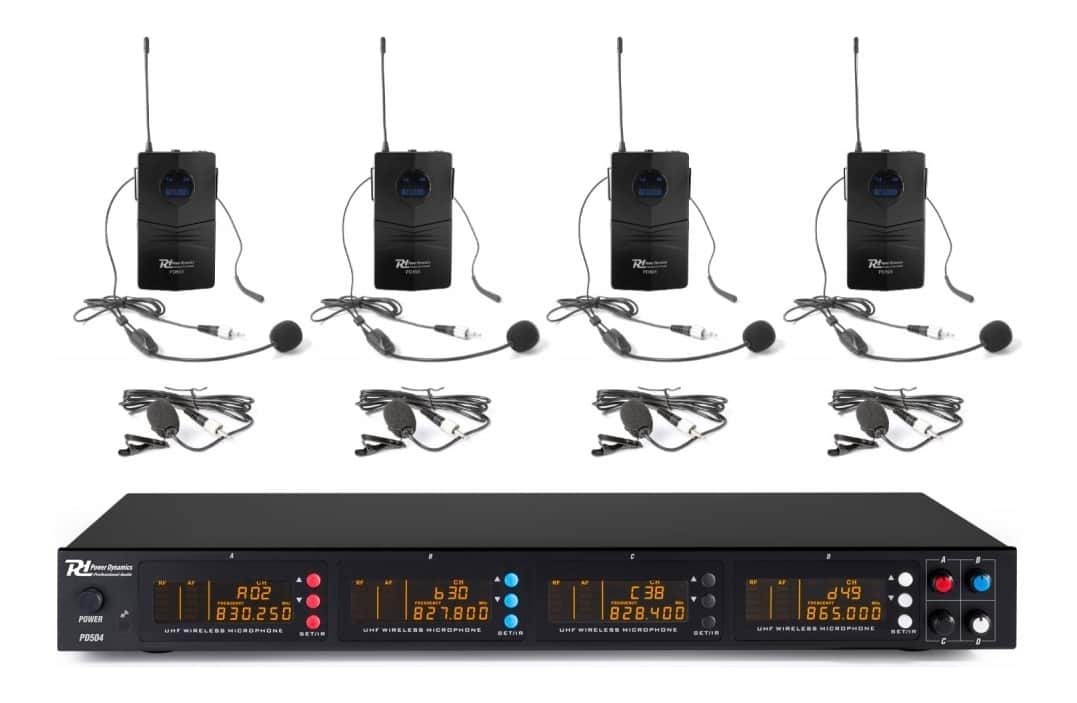

Offering both options of lapels and headset microphones, this impressive-sounding Power Dynamics PD504B  microphone wireless system allows you to operate 4 microphones at the same time. 4 balanced XLR outputs and a mix output. Aluminium case included.



Versatile and Functional
Each microphone is colour coded allowing for quick microphone identification making the job of your soundman to make adjustments while the mics are being used on stage super easy. Excellent sound quality for vocal and PA applications.

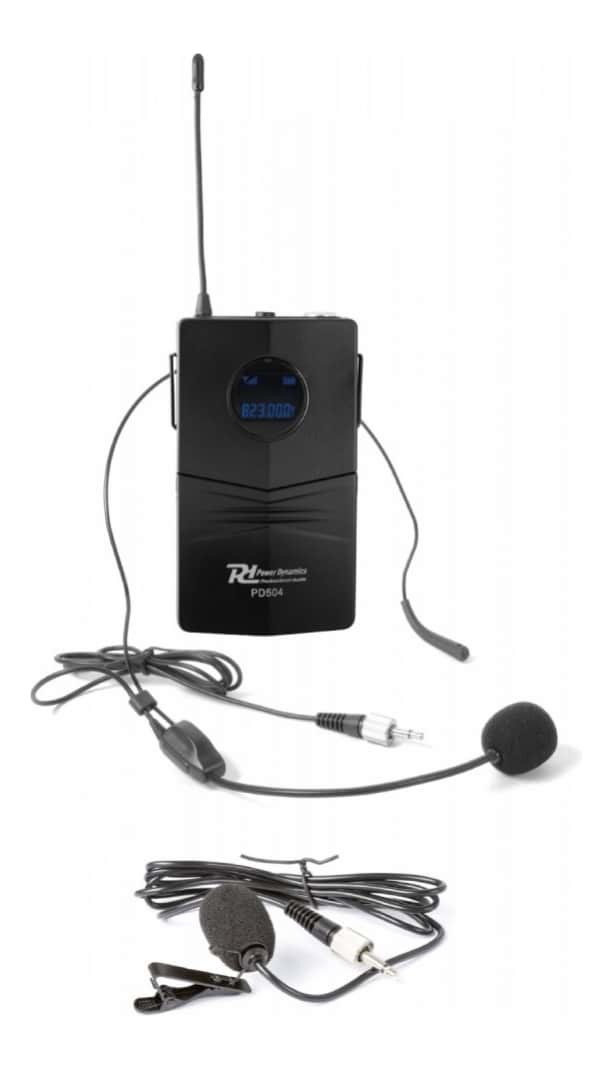

• 4x Bodypack with headset and tie-clip microphone and mute function
• 4x 50 Selectable non-interfered UHF channels
• IR data transmission for channel selection
• Microphone connection using 3,5mm screwable jack

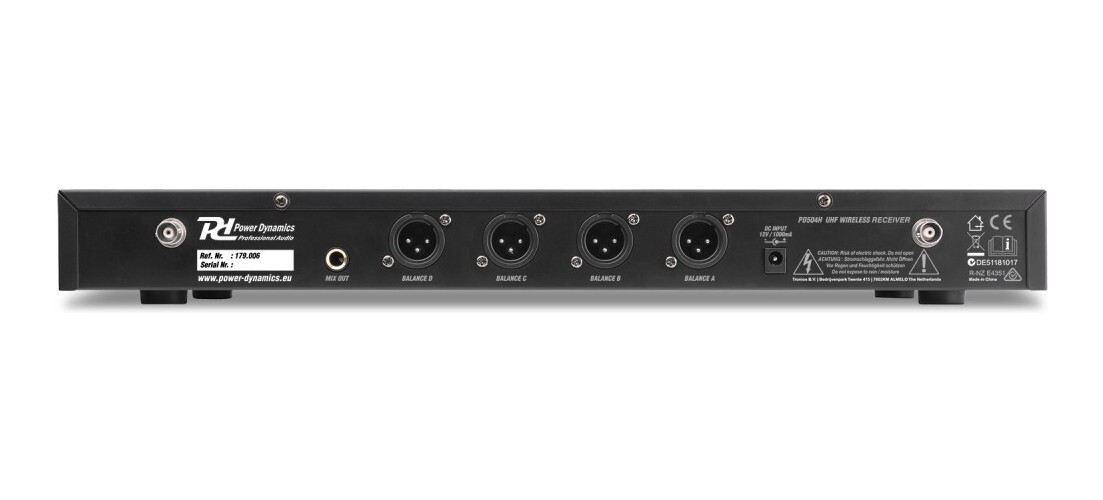

• 4x balanced XLR outputs
• CPU controlled
• PLL oscillator
• Transmitters with a display showing the frequency and battery low indication
• Equipped with Dynamic LCD

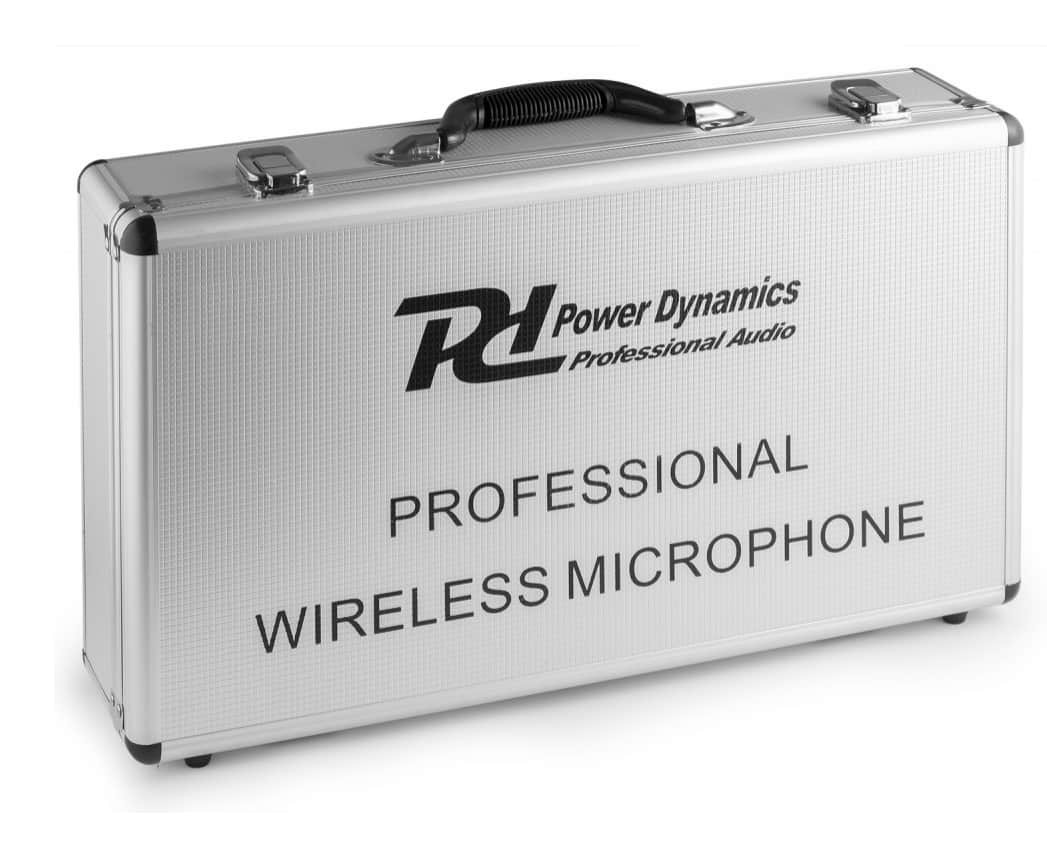

• Supplied in an aluminium carrying case

• Operating frequency: 550 – 585MHz
• RF output: <10mW
• Frequency response: 60Hz – 18kHz
• Frequency stability: <15ppm
• THD: <1%
• Signal to noise ratio: >97dB
• Battery: 2x AA (bodypack)
• Power supply: 100-230VAC / 50Hz
• Receiver Dimensions: 235mm x 420mm x 44mm
• Body pack Dimensions: 75mm x 60mm x 23mm
• Receiver Weight: 1700gr
• Body pack Weight: 200gr
