RockBoard Module 4 - 2.4GHz Guitar Wireless Receiver and TRS Patchbay

RockBoard Module 4 - 2.4GHz Guitar Wireless Receiver and TRS Patchbay
The new RockBoard Module 4 features 2.4GHz Guitar Wireless Receiver, with the Xvive U2 transmitter for a 2.4GHz digital wireless connection, together with a TRS Patchbay. 30m range, 24bit / 48kHz signal transmission, with a 20Hz - 20kHz frequency range.

Module 4

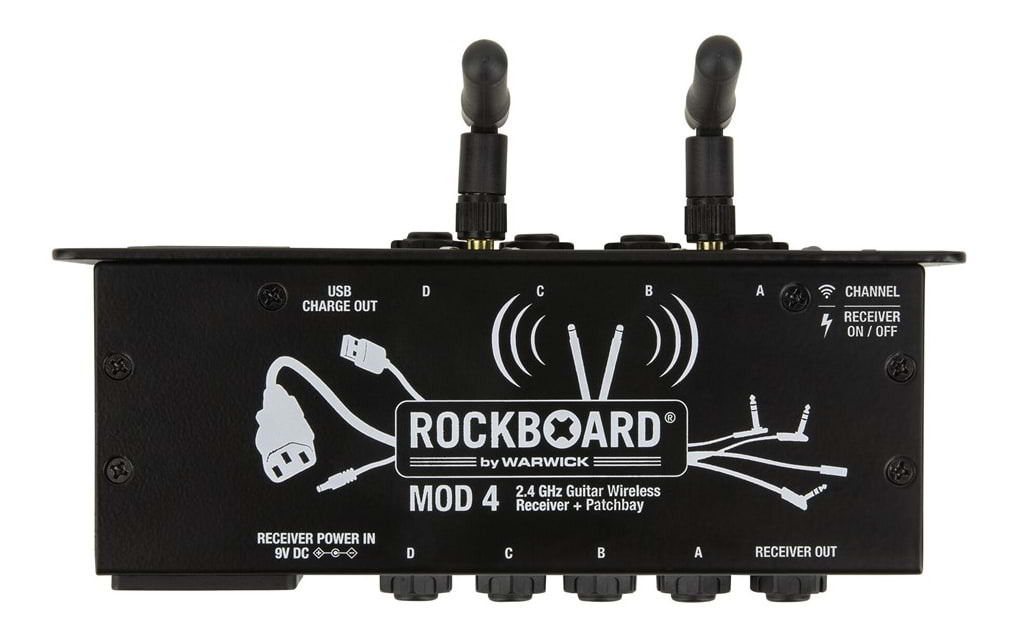

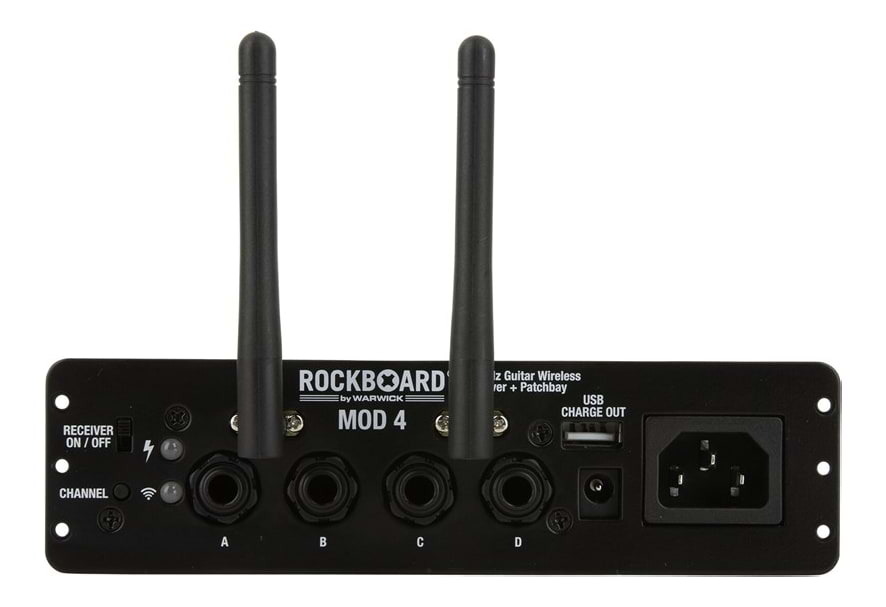

The RockBoard MOD 4 - All-in-One Wireless System Receiver + Patchbay for Pedalboards provides an easy-to-implement, wireless connection between your instrument and your pedalboard. It uses digital wireless technology that guarantees impressive sound quality, easy setup and reliable use for active musicians. The wireless system operates in the 2.4GHz ISM band and can therefore be used worldwide without restrictions. With a usable frequency range of 20Hz - 20kHz and only 5ms latency, nothing is left to be desired. The patchbay section is designed to guide connections and connections of the pedalboard from the bottom to the outside, to provide you with a central access point to your setup and to be able to tidy up and sort your cable runs. The A, B, C and D TRS sockets are wired as direct, continuous connections from the front of the MOD 4 to the corresponding sockets on the back. This allows you to set up your effects chain so that all you have to do when preparing for the gig is plug in cables on the front of the board instead of fiddling under the board. It is also the ideal solution to position some of your pedals in the front end before the amp (distortion, compressor, etc.) and some in the effects loop (such as reverb, delay) (4-cable method).

Warwick RockBoard Solutions
Compatible with almost all of their pedalboards with one or more MOD slots (not available on the compact DUO series), the All-In-One Patchbay allows you to organise all required cable connections in one efficient module. This way, you can keep all pedals permanently and neatly wired underneath the board and organize all connections to and from your effects setup in one convenient spot. The removable front panel makes it possible to use this ingenious module with pedalboards from other manufacturers, e.g. using their 'Mounting Rack'.

Features:

• Wireless System Receiver + Patchbay for Pedalboards, incl. XVive U2 Wireless Transmitter
• Compatible with the XVive U2 Guitar Wireless System
• 2.4 GHz ISM band for worldwide use
• 30m average range (without obstacles)
• 24bit / 48kHz uncompressed digital signal transmission
• 20Hz - 20kHz frequency range
• 5ms latency
• > 103dB dynamic range
• - 85dBm RF sensitivity
• 0.2% distortion (THD)
• 4 selectable channels
• Suitable for MOD slots in RockBoard pedalboards
• Compatible with a wide range of other pedalboards
• Acts as a central access point to your effect setup
• Removable front panel for mounting on or under pedalboards

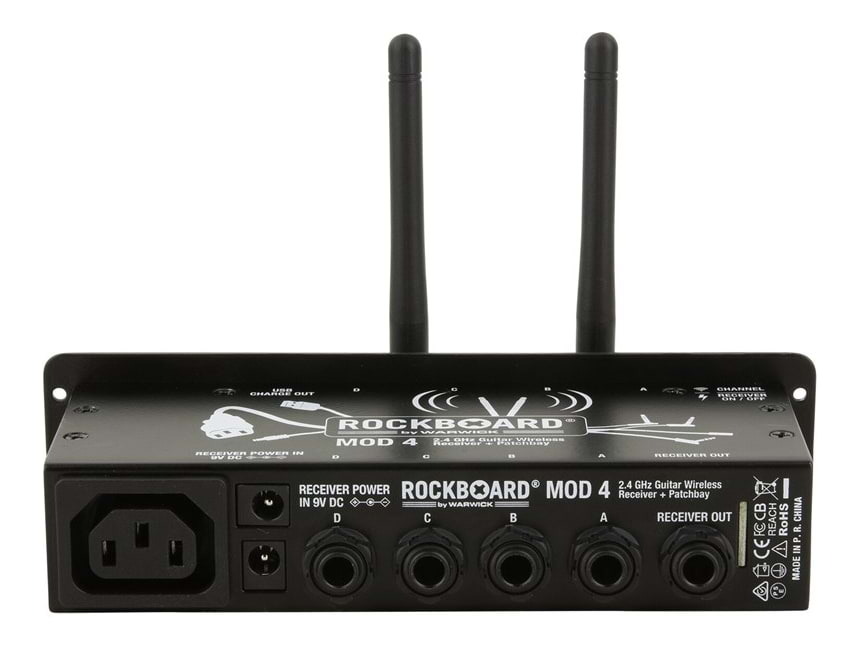

• 4x 6.3 mm stereo jack Thru (TRS)
• 1x 6.3 mm mono jack receiver audio output (TS)
• 1x DC 2.1 x 5.5 mm barrel plug Thru
• 1x AC IEC Thru
• 1x USB Type A Charge output
• Power supply via optional 9V DC power supply, 2.1mm x 5.5mm barrel plug, polarity (-) inside
• Battery operation not supported
• Current consumption 500mA
• passive operation possible (patchbay only, without wireless system)
• Dimensions with front panel (W x D x H): 175mm x 85mm x 47mm
• Dimensions without front panel (W x D x H): 160mm x 85mm x 33 mm
• Weight: 500g

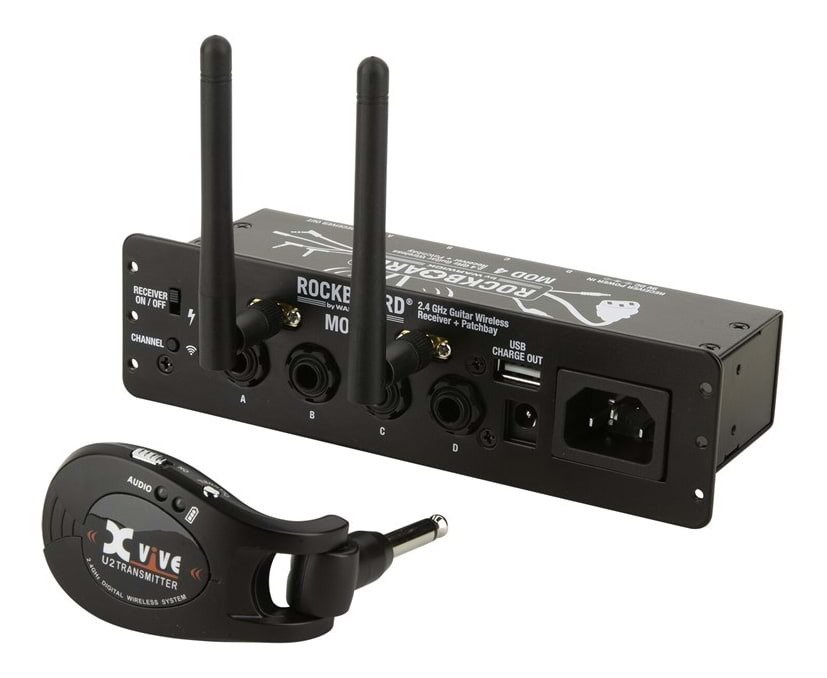

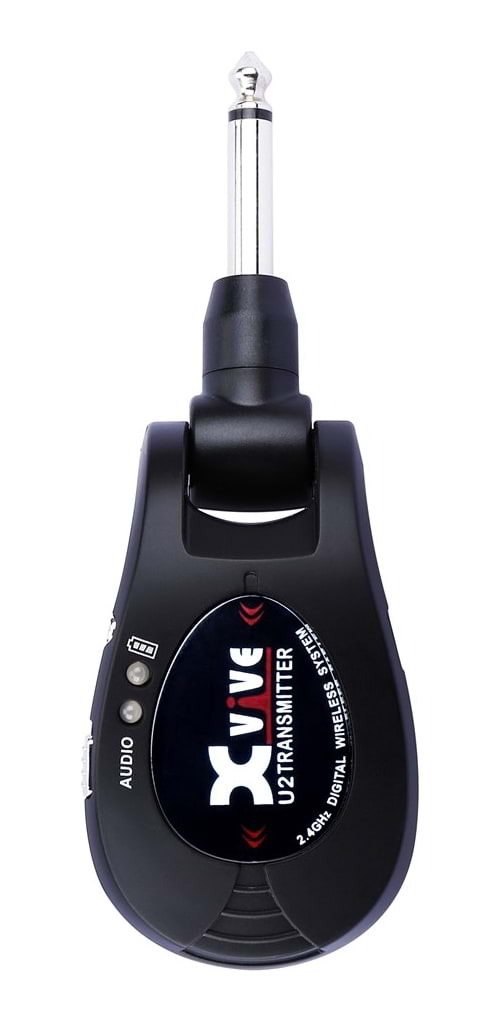

• XVive U2 Wireless Transmitter, two antennas, one USB cable, mounting screws and nuts included
