Rowin LEF-314 - Mini Guitar Analogue Delay Pedal

Rowin

Rowin LEF-314 - Mini Guitar Analogue Delay Pedal

$59.99
  In Stock
or interest free for up to 6 months with
-
+

Organic sounding analog delay pedal combining the sounds of classic tape / echo delay with modern delay design to produce an extremely versatile sounding delay pedal. With adjustable delay time, The LEF-314 is the perfect pedal for a variety of genres.



Dispatch

Rowin LEF-314 Analogue Delay Guitar Effect Pedal
Organic sounding analog delay pedal combining the sounds of classic tape / echo delay with modern delay design to produce an extremely versatile sounding delay pedal. The LEF-314 has an adjustable delay time ranging from 20ms right up to 620ms, useful for a wide range of music styles. The echo control adjusts the amount length of time the delayed sound will ring out for, while the feedback knobs gives control over the intensity of the delayed sound. Being a truly analog delay, with the feedback right up, the LEF-314 is capable of producing a positive feedback loop, great for ending a show!

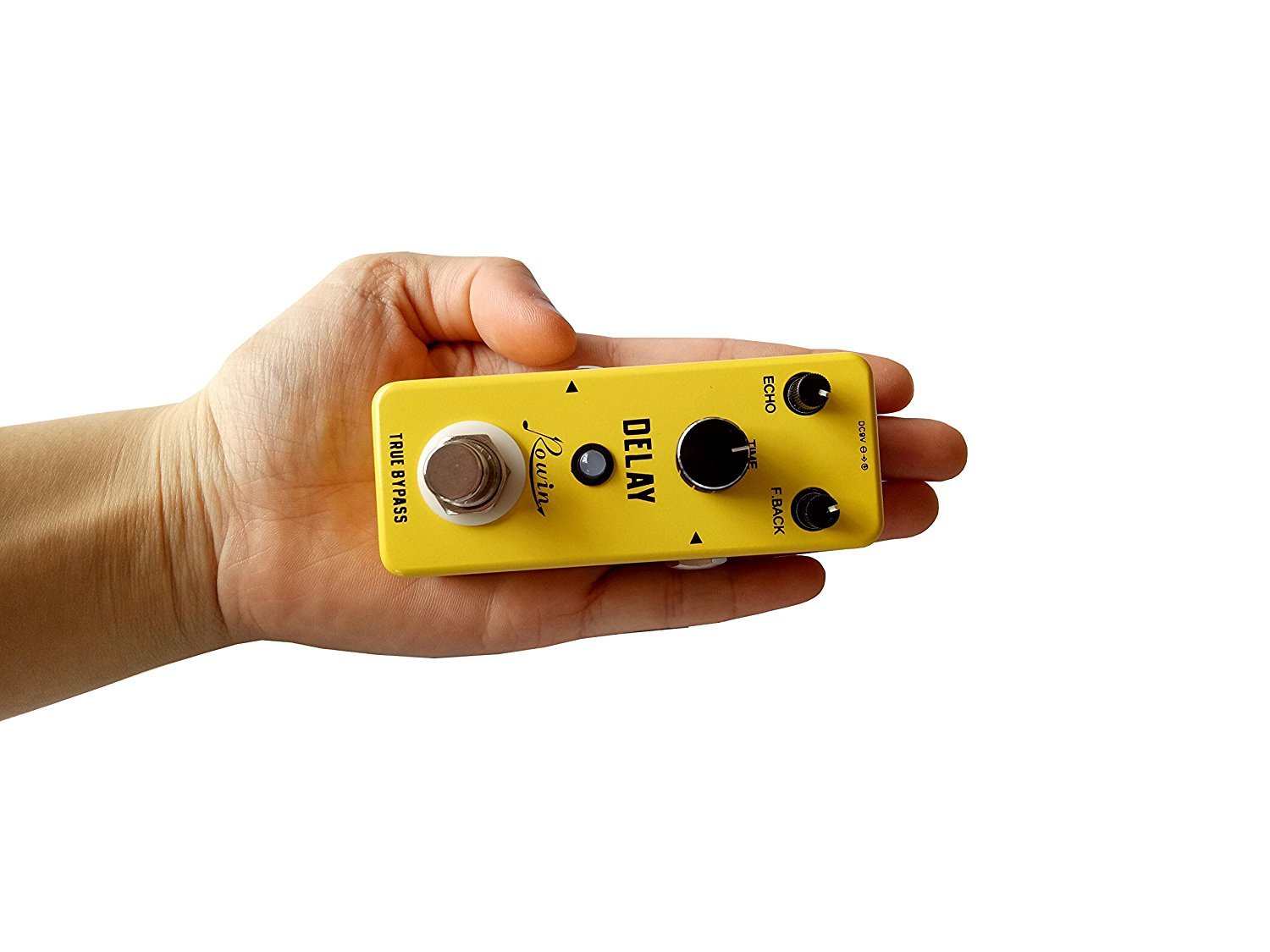

Compact / Miniature Case Size
Advances in circuitry design have made is possible for guitar effect pedals to be built in compact enclosures that literally fit in the palm of the hand. The mini design allows more pedals to fit on a pedalboard and helps reduce the overall weight, making them an ideal solution for the traveling guitarist.

True Bypass Circuitry
The compact inner circuitry is designed with a 3PDT true bypass switch ensuring an unaltered tone when the pedal is not engaged. A true bypass switch has the ability perform a true bypass of the internal hardware circuitry of the pedal, meaning the signal goes straight from the IN to the OUT.

Specifications:

  • Full Metal Shell
  • Analogue Circuitry
  • Echo, Feedback, Time controls
  • LED Indicator Light
  • Delay Time: 20 - 620 ms
  • True Bypass 3DPT Switch
  • Power Supply: 9V DC (Negative Centre) - (Not Included)
  • Working Current: 42mA
  • ​Input Impedance: 1k Ohms
  • Output Impedance: 470k Ohms
  • Dimensions: L95mm x W45mm x H53mm (incl. switch)
  • Weight: .2kg (208 grams)
