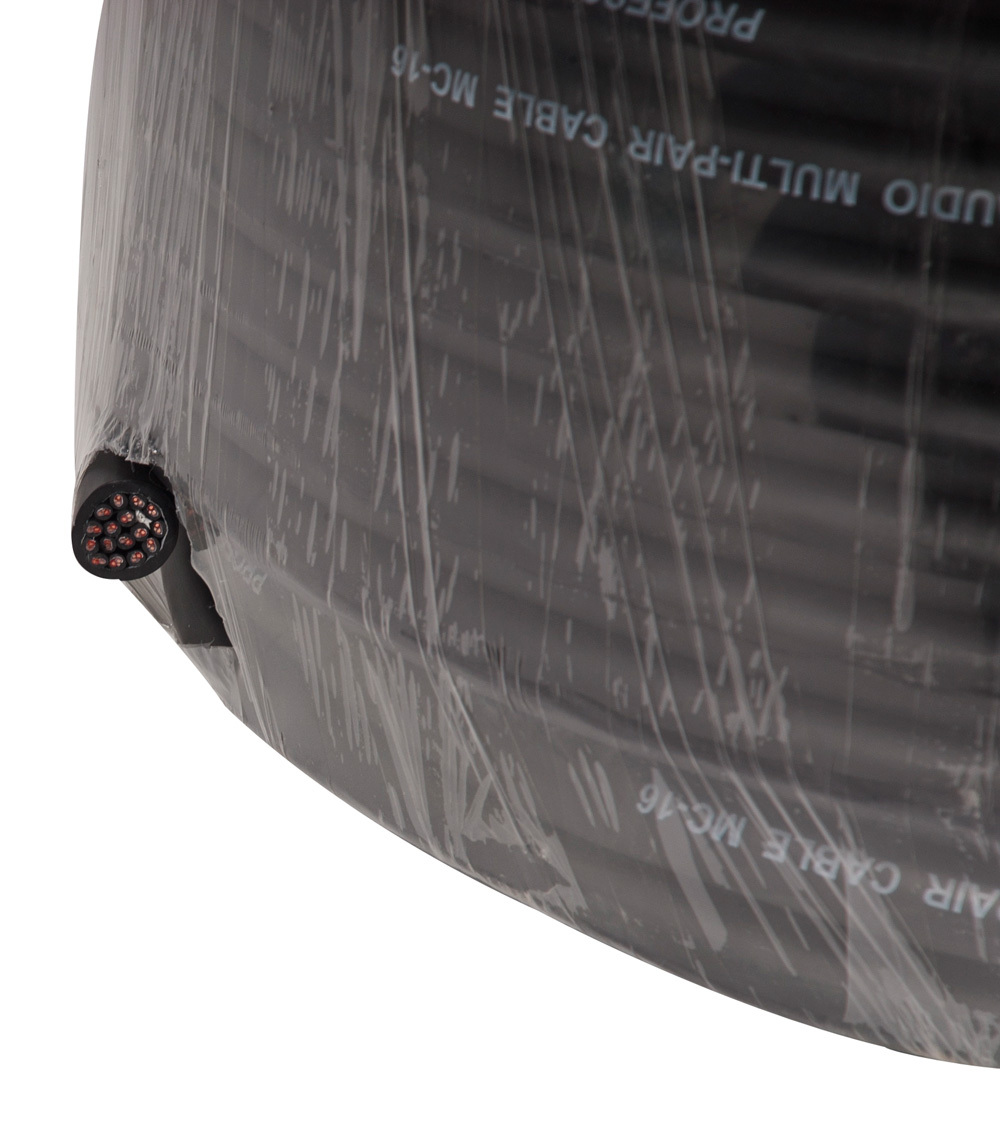

SWAMP Multicore Cable 16-way Twin Conductor 100m Roll

SWAMP 16-way Twin Conductor Multicore Cable - 100m Roll

$729.99
  Sold Out
or interest free for up to 6 months with
Stock Due: early January

100m roll - 16 channel twisted pair OFC conductor microphone multicore cable, wrapped with a spiral wrapped copper ground wire and outer aluminium foil shield, then encased in a PE jacket. All channels are then bound inside a tough black outer PVC jacket.



Dispatch

SWAMP 16-way Twin Conductor Multicore Cable - 100m Roll

Twin Conductor / Balanced Multicore Cable
Each channel consists of a twisted pair of OFC conductors, wrapped with a spiral wrapped copper ground wire and outer aluminium foil shield, then encased in a PE jacket. All channels are then bound inside a tough black outer PVC jacket. Each channel has its number labelled on its PE jacket. Designed to carry balanced mic and line level analog audio signals.

Features:

  • 16 way, Twin Conductor / Balanced Multicore Cable Roll
  • Each channel has isolated conductors and ground
  • Conductors: 2*(20x 0.10mm)
  • Ground: 1*(7x 0.18mm) Tinned Copper spiral-wrapped shield + Aluminium Foil shield
  • Outer Diameter: 18mm
  • Length: 100m Roll
View PDF brochure for SWAMP 16-way Twin Conductor Multicore Cable - 100m Roll

Be The First To Review This Product!

Help other SWAMP Industries users shop smarter by writing reviews for products you have purchased.

Write a product review


MPN: 16CH-100m

SKU: RH-16CH-100m

ID: 32614
