  • SWAMP 32-way Twin Conductor Multicore Cable - 100m Roll

    $1,199.99
      Sold Out
    or interest free for up to 6 months with
    Contact us for an ETA

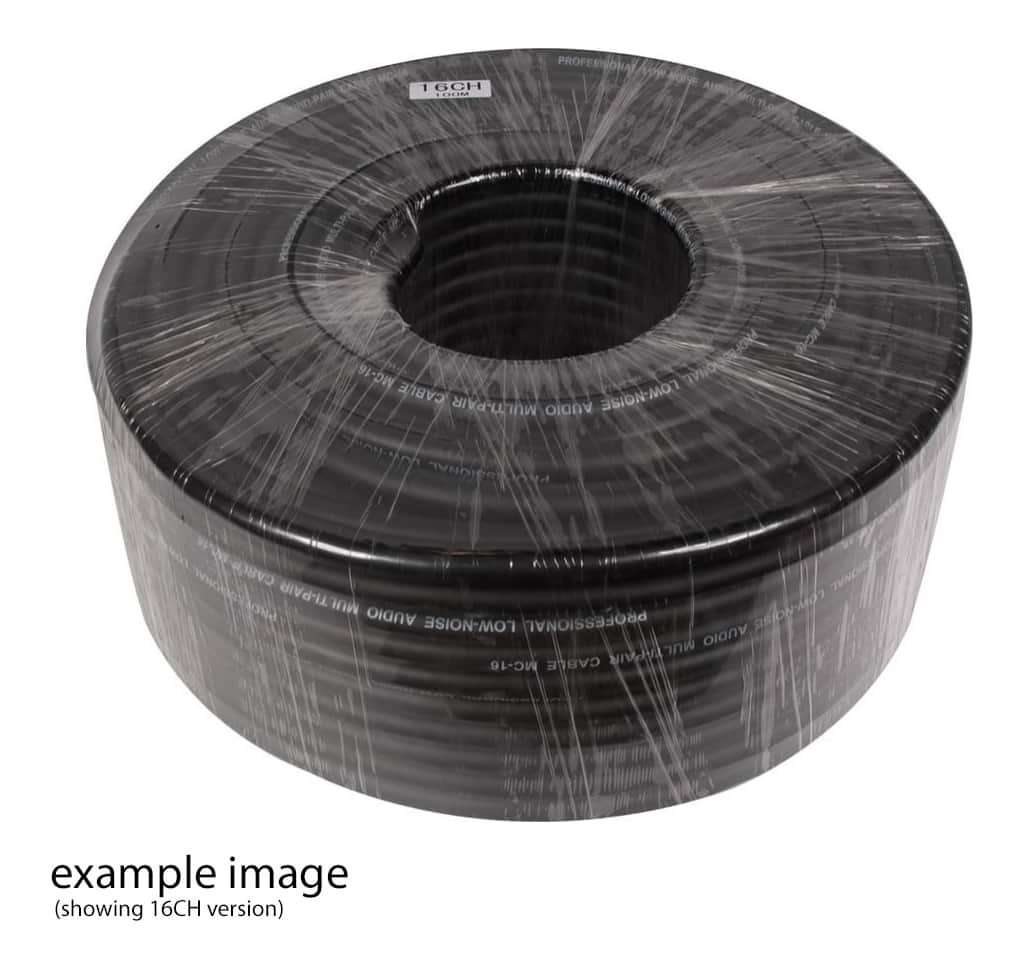

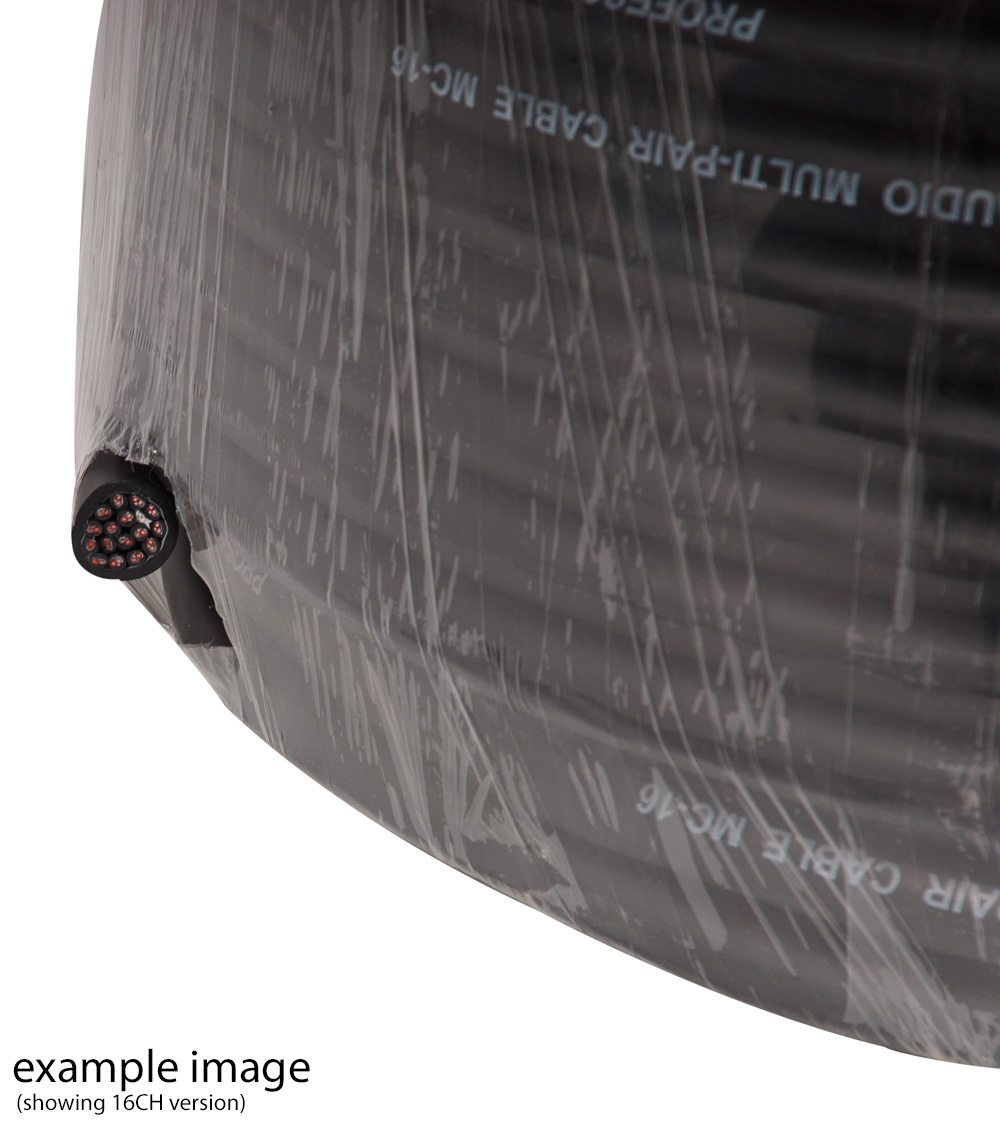

    100m roll - 32 channel twisted pair OFC conductor microphone multicore cable, wrapped with a spiral wrapped copper ground wire and outer aluminium foil shield, then encased in a PE jacket. All channels are then bound inside a tough black outer PVC jacket.

    SWAMP 32-way Twin Conductor Multicore Cable - 100m Roll

    Twin Conductor / Balanced Multicore Cable
    Each channel consists of a twisted pair of OFC conductors, wrapped with a spiral wrapped copper ground wire and outer aluminium foil shield, then encased in a PE jacket. All channels are then bound inside a tough black outer PVC jacket. Each channel has its number labelled on its PE jacket. Designed to carry balanced mic and line level analog audio signals.

    Features:

    • 32 way, Twin Conductor / Balanced Multicore Cable Roll
    • Each channel has isolated conductors and ground
    • Conductors: 2*(20x 0.10mm)
    • Ground: 1*(7x 0.18mm) Tinned Copper spiral-wrapped shield + Aluminium Foil shield
    • Outer Diameter: 24mm
    • Length: 100m Roll
    View PDF brochure for SWAMP 32-way Twin Conductor Multicore Cable - 100m Roll

    Be The First To Review This Product!

    Help other SWAMP Industries users shop smarter by writing reviews for products you have purchased.

    Write a product review

    Product Enquiry Form Complete this form to email us your enquiry.




    MPN: 32CH-100M

    ID: 250892
