SWAMP Heavy Duty STP Cat5e Ethernet Network Patch Cable - Per Metre
In Stock
SR-CAT5E-BL-1m
| Buy In Bulk & Save! | |
|---|---|
| Buy 2 to 5: | Pay $4.13 |
| Buy 6 to 9: | Pay $3.82 |
| Buy 10 or more: | Pay $3.56 |
Free Shipping
Enter Post Code to Calculate ETA or Upgrade to Express
Shop Now. Pay Later.
Always interest-free.
Add your favourites to cart
Select Afterpay at checkout
Log into or create your Afterpay account, with instant approval decision
Your purchase will be split into 4 payments, payable every 2 weeks
All you need to apply is to have a debit or credit card, to be over 18 years of age, and to be a resident of country offering Afterpay
Late fees and additional eligibility criteria apply. The first payment may be due at the time of purchase
For complete terms visit afterpay.com/terms
SHOP NOW • PAY LATER • 100% INTEREST FREE
STP Cat5e cable by the metre - this shielded Cat5e cable from SWAMP is a heavy duty STP Cat5e cable with a rugged outer-jacket that allows the cable to be laid flat. Ideal for digital audio applications at indoor or outdoor events.
Cable Filter: Alternative Options
SWAMP Heavy Duty STP Cat5e Ethernet Cable - Per Metre
This shielded Cat5e cable from SWAMP is a heavy duty STP Cat5e cable with a rugged outer jacket that lays flat. Ideal for digital audio applications at indoor or outdoor events, it is also suitable for ordinary office Ethernet and network connections, carrying Gigabit Ethernet (1 GigE).
Live Sound / Digital PA Systems
With the rise of digital mixing desks and stage boxes comes the need for high quality, durable Cat5e cable to carry digital audio from the stage to the FOH mixing console. It also suits non-audio applications such as digital lighting, video, PC runs and general AV.
Analogue Audio Snakes and Phantom Power
The same cable suits passive (analogue) XLR-to-RJ45 audio snakes and stage boxes. On these boxes the cable's foil shield and drain wire carry the ground (pin 1) that phantom power returns on, so a shielded cable like this one is what lets condenser microphones work down the line - unshielded (UTP) cable will not pass phantom power. Keep the shield connected at both ends with shielded RJ45 plugs. The pure copper conductors are stranded for flexibility, suiting patch runs and long stage snakes that get coiled, moved and walked on.

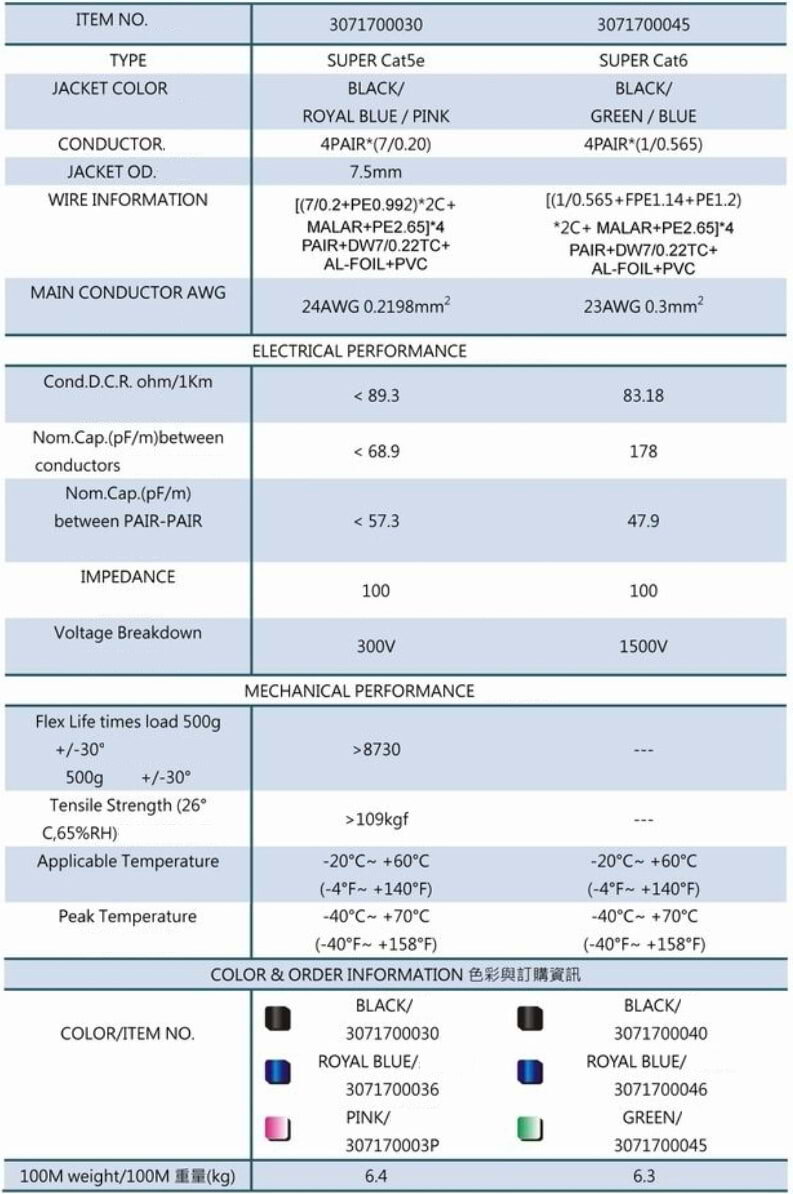

Specifications:
- Length: Per metre (1 x = 1m)
- Supplied as: bare cable, cut to the length you order (no plugs fitted)
- Category: Cat5e
- Colour: Royal Blue
- Conductor material: Copper
- Conductors: 4 twisted pairs, 24AWG (0.21mm2) stranded, 7 x 0.20mm per conductor
- Shielding: STP (S/UTP) - overall aluminium foil shield with tinned copper drain wire
- Wire information: [(7/0.20+PE0.992)*2C+MALAR+PE2.65]*4 PAIR+DW7/0.22TC+AL-FOIL+PVC
- Jacket: PVC, 7.5mm outer diameter
- Nominal capacitance: <68.9 pF/m (between conductors)
- Tested: Fluke DTX-1800, TIA Cat5e Channel limits, PASS over 70m (see the test report below)
- Conductor DC resistance: <89.3 ohm/km
- Capacitance pair to pair: <57.3 pF/m
- Impedance: 100 ohm
- Voltage breakdown: 300V
- Operating temperature: -20 to +60 degrees C
- Weight: 6.4kg per 100m
- Sun Rise item no.: 3071700036 (Royal Blue)
Test Report (Fluke DTX-1800, TIA Cat5e Channel, 70m - PASS)
