SWAMP 15" Powered PA Speaker - Bi-amped - 200W + 50W RMS | SWAMP

SWAMP

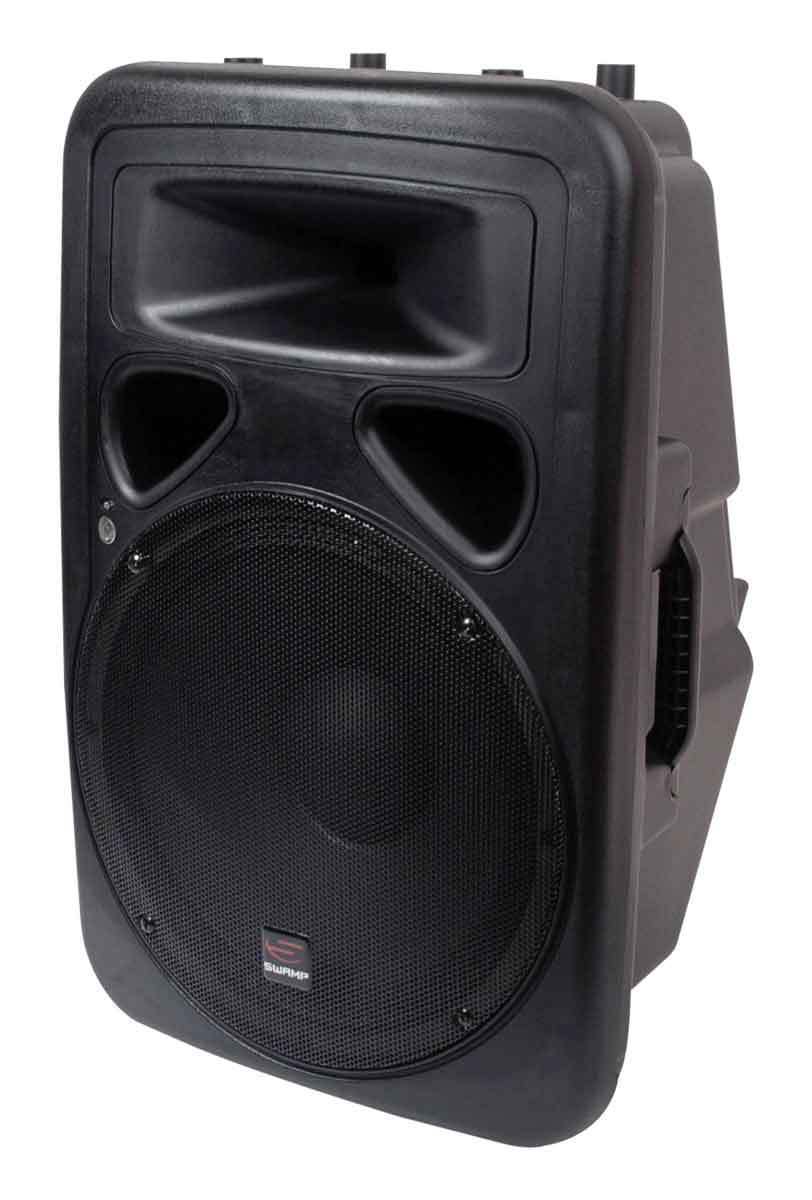

SWAMP 15" Powered PA Speaker - Bi-amped - 200W + 50W RMS

suitable as FOH Speaker or Foldback Monitor

$289.99
  In Stock
or interest free for up to 6 months with
-
+

The PBO-15BM is SWAMP's all-round workhorse PA speaker, with a bi-amped design, Bluetooth connectivity TWS. Featuring direct inputs for microphones and line level audio signals, 2 band EQ control, 250W of power in a monitor / foldback option speaker box.

Dispatch

15" Powered PA Speaker - Bi-amped - 200W + 50W RMS
The PBO-15BM is SWAMP's all-round workhorse PA speaker, with a bi-amped design, Bluetooth and TWS connectivity. Featuring 2 channel inputs for microphones (XLR and jack for both)  and line level audio signals, 2 band EQ control, 250W of power in a monitor / foldback option speaker box. This speaker is ideal for anyone that requries a more detailed and punchy bottom end. Also featured in the form factor of this speaker is a set of wheels which makes it easy to transport.

FOH or DJ Speaker
The PBO-15BM delivers power of 250W RMS (bi-amp configuration), 480W at peak levels. A pair of PBO-15BM offers plenty of thump for small pub and bar gigs, up to 200 people. Mounts on all standard speaker stands. A slanted speaker box design allows the PBO-15BM to be used effectively for stage monitoring applications.

Bi-Amped - 200W + 50W RMS
Built with a bi-amped configuration that utilises two individual amplifiers to power the woofer and the tweeter separately, making the amplifiers much more efficient resulting in more volume per watt. Using a carefully designed crossover (splitting of frequencies between the Tweeter and Woofer) ensures a clear mid range and present, but non-piecing top range. All the while layered with a fat bass sound from the 15" woofer, that can be EQ'd to your preference.

Ins and Outs
The inbuilt mixer module makes it possible to connect 2 microphones via a dedicated XLR Mic input or a jack input. A decent preamp and gain control supports the sound of your microphone. As well, there is a line input, with both XLR and RCA connections. All inputs have individual level controls. Dual RCA inputs are included to connect a DJ mixer or CD player, while the XLR Line Input enables a Balanced Line Level signal from an external mixing desk to be sent to the speaker. There is also an XLR/Jack line output, giving the ability to daisy chain the signal onto another speaker.

Bluetooth Connectivity, TWS and MP3 Player
On the PBO-15BM, you will find bluetooth connectivity for wireless control of your audio playback. Simply activate bluetooth on your Smartphone and select the speaker for instant playback of your phones audio. Perfect for lining up music to play before and after a set. The module also allows for a USB flash drive or SD card to be used for MP3 playback. In addition, the speaker comes with a remote control.

When you have two speakers, you can connect them as a wireless stereo pair. Simply turn on the two speakers, switch to Bluetooth mode without any connection, press and hold the TWS button on one of the units which will then become the Left channel, and the other unit becomes the Right channel. This will be shwon on the display. After the TWS connection has been set, use your mobile device to search and connect to Bluetooth, and the Left channel unit will show ' connected' on the display, and the two speakers will playback music in true stereo.
Hold the TWS key again to disconnect TWS.

Features:

  • Bi-Amped
  • Bluetooth Connectivity
  • TWS (True Wireless Stereo) when you have two speakers
  • Versatile Rear Mixing Console
  • Remote Control
  • 5" Titanium Driver
  • 15" Woofer
  • Mic In, DJ/CD In, Line In and Out
  • 2-Band EQ - Bass, Treble
  • Speaker Stand Mounting Hole (standard 35mm, DO NOT over-tighten lock screw, this is not necessary and could lead to damage)
  • Side and Top Carry Handles  (Top handle helps to "pull" the speaker when using the bottom wheels)

Specifications:

  • Frequency Response: 55Hz-20KHz (+/- 3dB)
  • Woofer Sensitivity(1M/1W): 102 dB
  • Woofer Power Rating: 200W RMS/ 400 MAX @ 4Ω
  • Woofer Frequency Range: 50Hz - 3.5kHz
  • Tweeter Sensitivity(1M/1W): 106dB
  • Tweeter Rating Power: 50W RMS/ 100W MAX @ 8Ω
  • Tweeter Frequency Range: 3kHz a 20kHz
  • Woofer: 1×12", 2.3" Coil, 1.4kg
  • Tweeter: 1×5", 1.5" Coil, Magnet Weight 0.65kg
  • Tweeter Driver: Titanium Compression Driver
  • Dimensions: 680×450×390mm
  • Weight: 16.80kg
View PDF brochure for SWAMP 15" Powered PA Speaker - Bi-amped - 200W + 50W RMS

Be The First To Review This Product!

Help other SWAMP Industries users shop smarter by writing reviews for products you have purchased.

Write a product review


MPN: PBO-15BM

ID: 178266
