Tascam US-2x2HR 2-in/2-out USB Audio Interface with 2 Mic Preamps

24bit/192kHz Resolution

$298.99
In Stock
RRP $349.00

The new series of Tascam USB interfaces employ an Ultra-High Definition discrete architecture mic preamp design with a new enhanced audio circuit. Simple and intuitive, the 2x2HR model has 2 Mic Preamps with combo jack inputs. 24bit/192kHz Resolution.

Tascam US-2x2HR 2-in/2-out USB Audio Interface with 2 Mic Preamps
The new series of Tascam USB interfaces employ an Ultra-High Definition discrete architecture mic preamp design with a new enhanced audio circuit. Simple and intuitive, the 2x2HR model has 2 Mic Preamps with combo jack inputs. 24bit/192kHz Resolution.

New Enhanced Audio Circuit
The Tascam US-2x2HR new Ultra-High Definition Discrete Architecture mic preamp design delivers audio with extremely low self-noise to capture every detail of your musical performances. Because of the wide dynamic range, this interface can also be used with dynamic microphones in addition to condenser mics. This makes it ideal for a variety of applications from recording vocals, pianos and acoustic guitars. With two combo jack mic/line inputs with guitar input support audio interface with implemented MIDI IN/OUT ports. Equipped loopback function and OBS support makes this interface applicable for podcasts and live streaming. The new US-2x2HR offers simple and intuitive operation plus sophisticated looks, a rich assortment of software bundles, and improved audio performance with 192 kHz support, thanks to the newly improved audio circuit.

Optimal Interface for Music/Multimedia Creators
The US-2x2HR is equipped with 2 mic/line inputs with guitar input support that can be used in various music/multi-media production environments such as vocal/guitar simultaneous recordings, as wells as high-quality sound recordings for video production. The unit is also equipped with a USB-C port easily powered by USB bus power.

Ultra-HDDA Mic Preamp with 192kHz support
High resolution reproduction in the US-HR series has been pursued based on TASCAM's policy to recreate sound as close to the original as possible. Therefore, the in-house developed Ultra-HDDA mic preamp combined with a newly improved audio circuit delivers enhanced audio performance with the most transparent and low-noise sound. Natural, crisp & clear sound quality.

Zero-Latency Direct Monitoring Function
Direct monitoring will diverge signals before sending them to the computer, resulting in smooth, in-time monitoring without any sound delay during both recording and performance.

Quality Bundled Software
The US-HR models come bundled with world-renowned software that will enhance the user's production workflow. At the core of music production, Steinberg's Cubase LE/Cubasis LE DAW is included, along IK Multimedia's Sample Tank SE, which comes free of charge with a massive 30GB sound library encompassing more than 2,000 different musical instruments. US-HR models also come with a free 3-month subscription to Auto-Tune Unlimited, a comprehensive suite of industry standard pitch correction and vocal effects.

Interface for Podcasts and Live Streaming

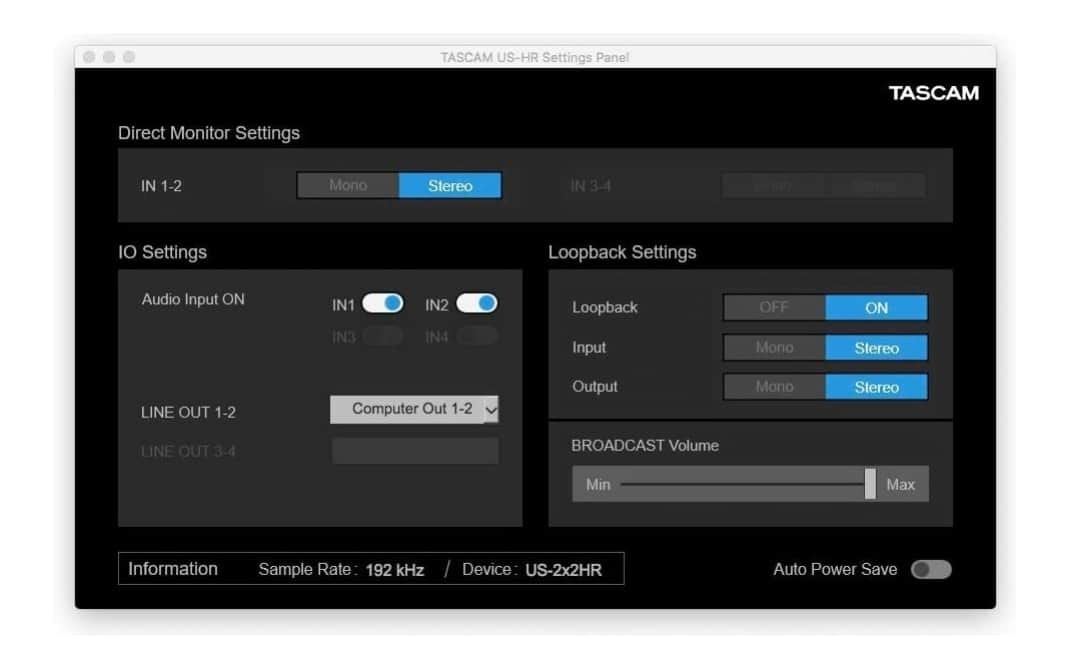

The US-2x2HR can be used with computers or smartphones to easily create podcasts or live streams. The audio can be switched between stereo/mono, and the loopback function allows the audio from the computer to be returned to the streaming software for playback during live streams. US-2x2HR also supports OBS, which is popular and used worldwide.

Equipped with MIDI IN/OUT
The MIDI IN/OUT terminals enable other MIDI external devices such as keyboards, drum machines, controllers, etc. to be synchronised and controlled.

Compatible with iPad and other iOS devices
The US-2x2HR can be used as an interface for iPad and other iOS devices.

New Audio Interface Engine
Capitalizing on our experience being one of the pioneers in manufacturing USB audio interfaces, we achieved further stability in our native driver. The audio buffer size can be set starting from 4 samples (Windows only) to give the best performance to every different environment; maximizing the capability of the computer in use while creating a low-latency environment.

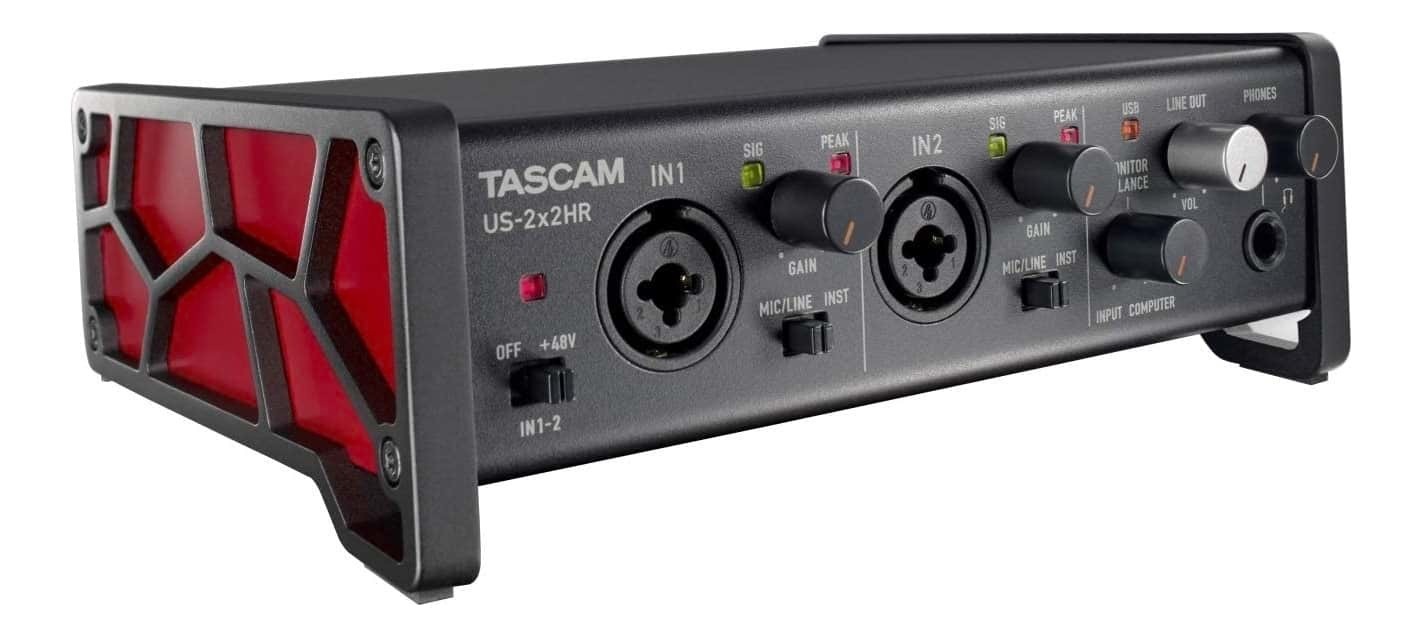

Robust Metal Casing
The US-HR models share a solid and practical design intended to withstand long hours of hard use. Its robust metal jacket not only improves its durability but, combined with dye-cast aluminum side panels, provides a sleek and eye-catching design. In addition, all models have just the right weight, so they won't move when cables are connected or disconnected.

Features:

  • 2-in/2-out USB audio interface
  • Improved TASCAM driver with selectable buffer size from 4 samples provides low-latency and stability (Windows: TASCAM native driver)
  • Supports up to 24-bit/192 kHz audio formats
  • 2 Combo (XLR) combo inputs equipped with Ultra-HDDA mic preamps and +48V phantom power
  • 2 Combo (TRS) line inputs with guitar input support
  • TRS line output 1-2
  • Headphone output
  • Equipped with MIDI IN/OUT terminals
  • USB Type-C connection (USB Type-A to Type-C cable included)
  • Powered by USB bus power
  • Zero-latency direct monitoring
  • Compatible with iPad and other iOS devices
  • Extensive line-up of bundled software
  • Steinberg Cubase LE, Cubasis LE 3
  • IK Multimedia Sample Tank 4 SE
  • Antares AUTO-TUNE UNLIMITED (available free of charge up to 3 months)
  • Stereo/mono selectable loopback function (Windows, Mac, iOS, iPad OS)
  • OBS support

Specifications:

Sampling frequency 44.1k/48k/88.2k/96k/176.4k/192k Hz
Bit Rate 24bit
Analog Audio Inputs
MIC IN
Connector XLR-3-31(1:GND, 2:HOT, 3:COLD), BALANCED
Input impedance 2.2k ohms
Maximum input level
(GAIN:MIN)
+9dBu (2.183Vrms)
Gain 56dB
LINE IN * When set to "LINE" at LINE/INST switch
Connector 6.3mm(1/4")TRS-jack(T:HOT, R:COLD, S:GND), BALANCED
Input impedance 10k ohms
Maximum input level
(GAIN:MIN)
+20dBu(7.746Vrms)
Gain 56dB
INSTRUMENT IN * When set to "INST" at LINE/INST switch
Connector 6.3mm(1/4")TS-jack(T:HOT, S:GND), UNBALANCED
Input impedance  1M ohms or more
Maximum input level
(GAIN:MIN)
+10dBV(3.162Vrms)
Gain 56dB

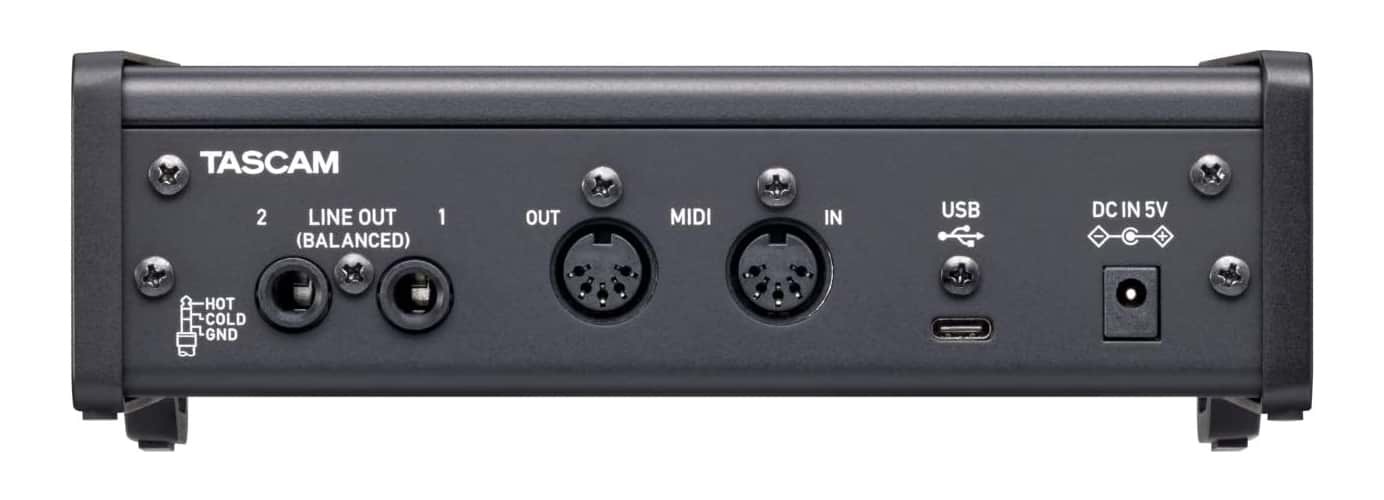

Analog Audio Outputs
LINE OUT 1-2
Connector 6.3mm(1/4")TRS-jack(T:HOT, R:COLD, S:GND), BALANCED
Output impedance 210 ohms
Nominal output level +4dBu (1.228Vrms)
Maximum output level +20dBu (7.746Vrms)
PHONES
Connector 6.3mm(1/4") stereo phone jack
Maximum output level 18mW+18mW or more
(THD+N 0.1% or less, 32ohms loaded)
MIDI IN /OUT
Connector Din 5-pin
Format Standard MIDI format
USB
Connector USB Type-C
Format USB2.0 HIGH SPEED (480Mbps)
Power
When connected PC USB bus powered
AC Adapter (TASCAM PS-P520E, sold separately)
When connected iOS

AC Adapter (TASCAM PS-P520E, sold separately)

Power consumption 1.75W
Dimensions 186(W) × 65(H) × 160(D)mm (including protrusions)
Weight 2.43lb (1.1kg)
Operating temperature 5 to 35°C
Accessories USB cables (Type-A to Type-C), Set of DAW software installation guides, Set of DAW plug-in software installation guides, Owner's Manual (including warranty)
View PDF brochure for Tascam US-2x2HR 2-in/2-out USB Audio Interface with 2 Mic Preamps
