Alctron H6n 6-Channel Headphone Amplifier
Filter

Alctron

Alctron H6n 6-Channel Headphone Amplifier

with 4 Stereo Inputs

$209.99
  In Stock
-
+
Finance Available
PayPal Checkout
Afterpay

The Alctron H6n is a professional 6-channel headphone amplifier and line distribution system that’s perfect for the most demanding stage and studio applications. 4 separate stereo inputs can accommodate individual monitor mixes. Line outputs as well.




Dispatch

Alctron H6n 6-Channel Headphone Amplifier
The Alctron H6n is a professional 6-channel headphone amplifier and line distribution system that’s perfect for the most demanding stage and studio applications. 4 separate stereo inputs can accommodate individual monitor mixes. Line outputs as well.

Professional Applications

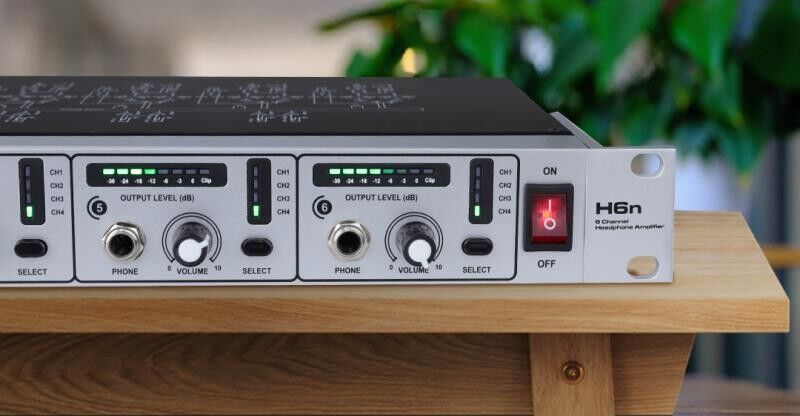

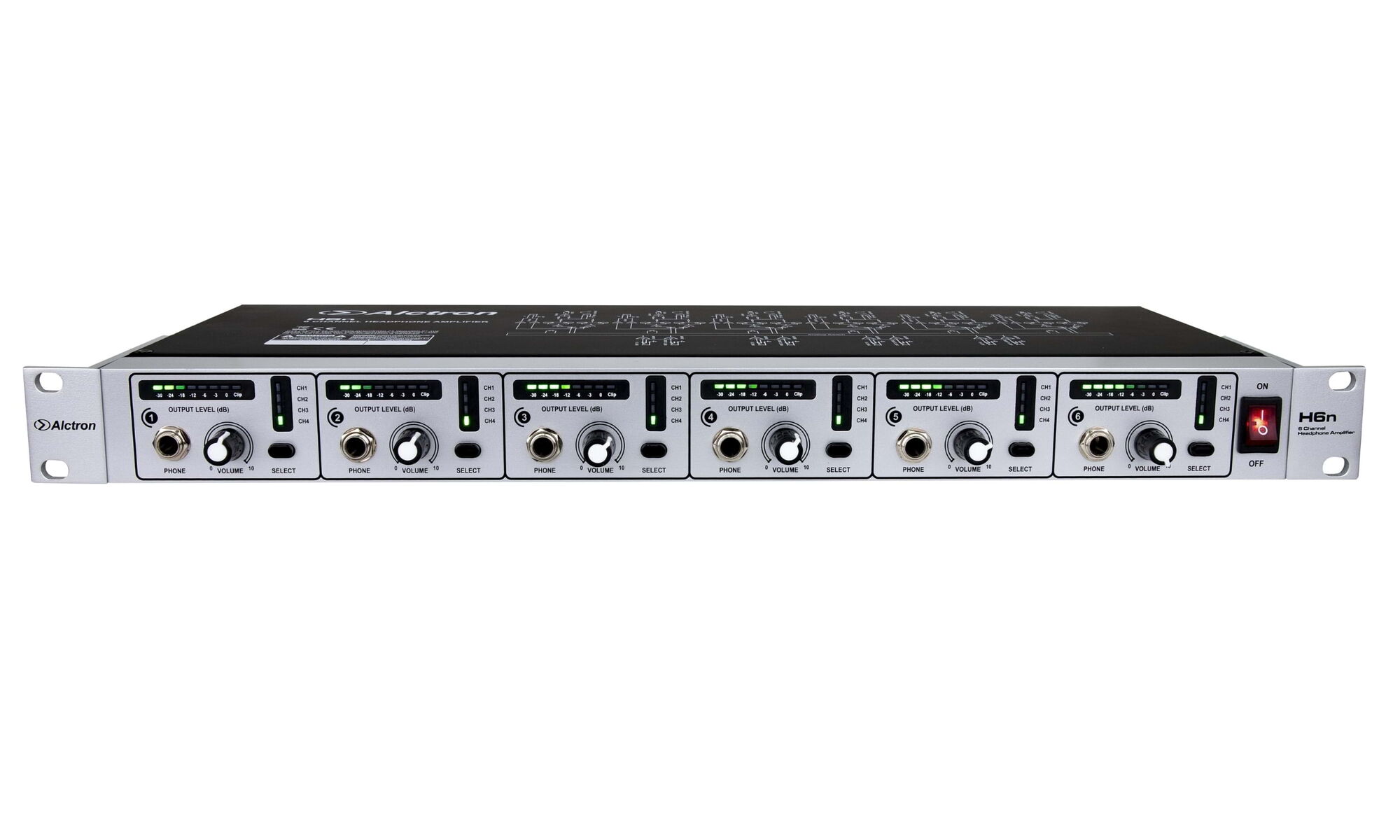

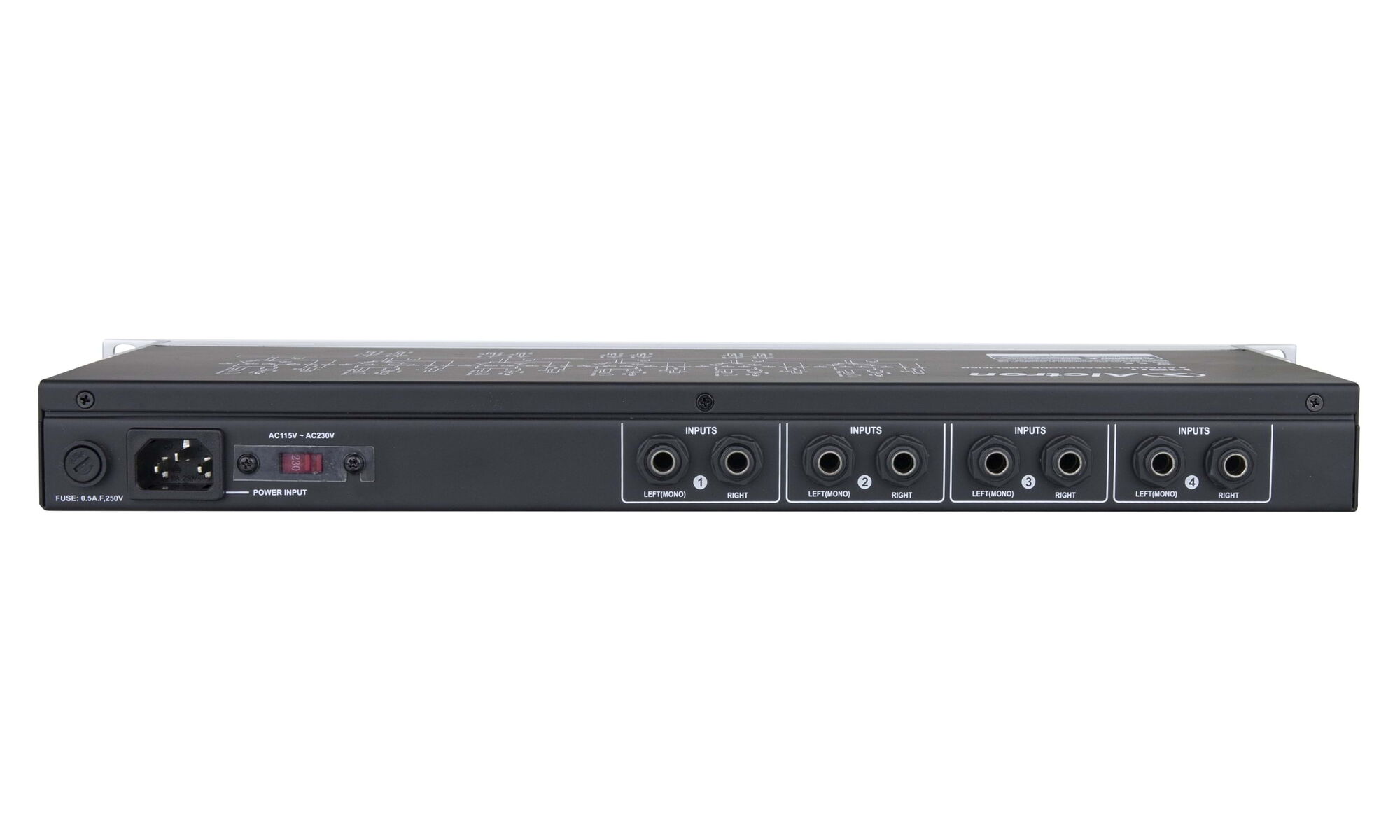

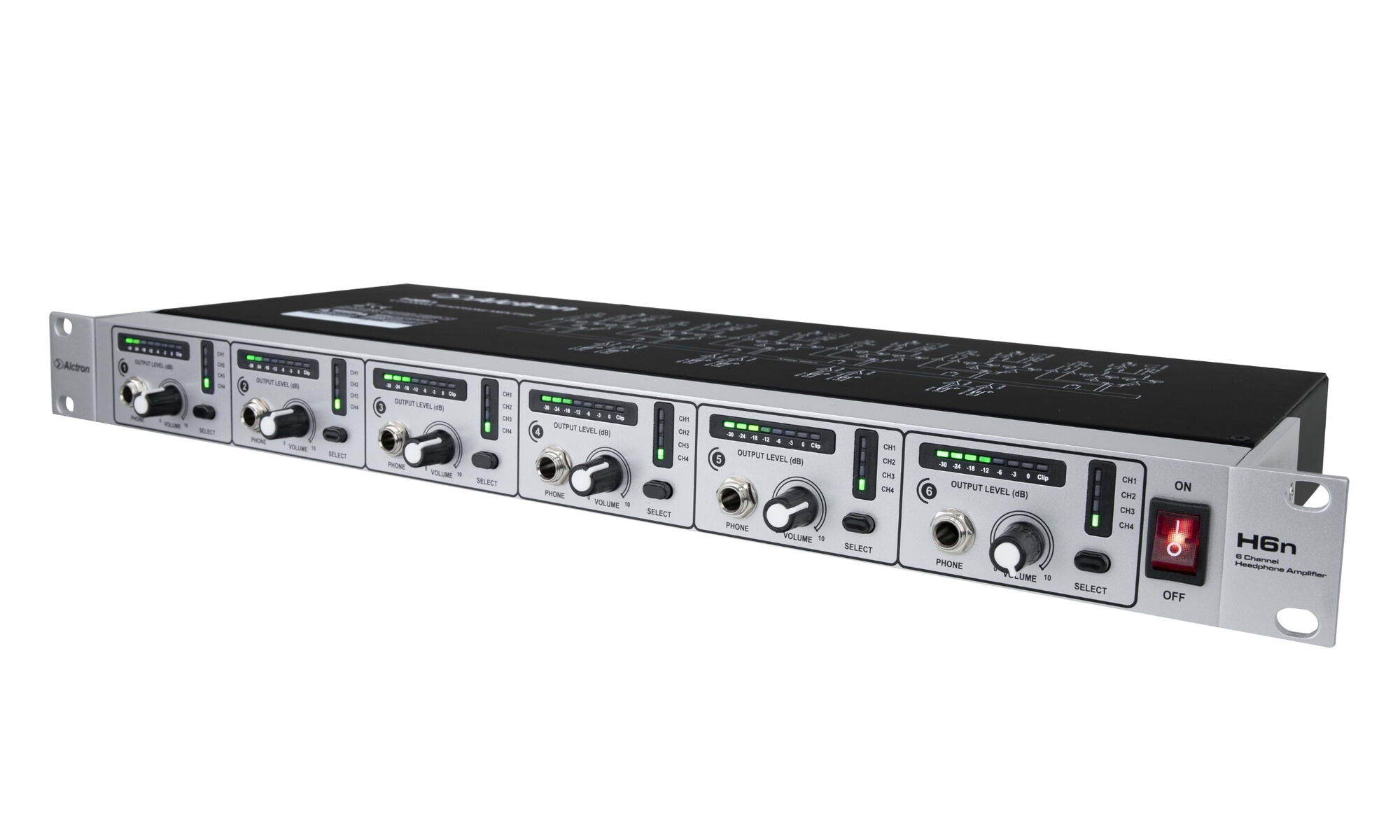

The Alctron H6n features 7-level indicator of the output volume for each headphone output. This 1U heavy duty unit has 4 individual channels of stereo input, 6 channels stereo output and 6 channels line output. Separate volume control for each channel adjusts the level to both headphone and parallel line outputs. Each channel has a select switch, so you can monitor the signal of a separate channel. The switch also has the function of mute. Perfect circuit design and extremely low noise components are adopted to make the sound transparent and clear. It is a perfect device for stage or studio. The inputs of the H6n handle a 4 dBu signal, and the maximum input signal (in dBu) that the unit can handle is +14dBu.

Features:

  • 1U rack size design
  • High-quality steel plate by CNC stamping

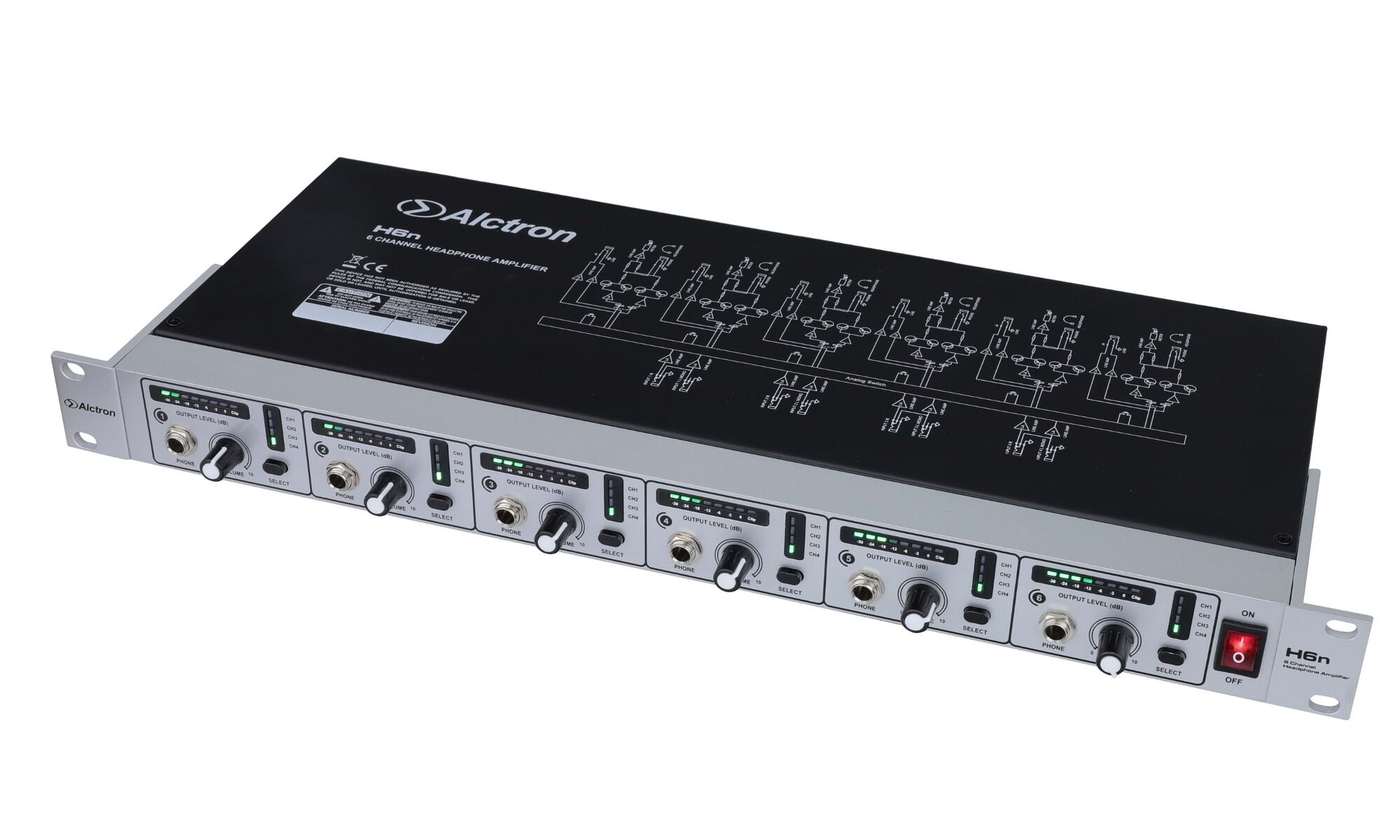

  • The working principle diagram at the top is well integrated with the product
  • Dust-free plastic spraying, elegant black surface
  • Button-type selection switch design, to select input for monitoring
  • Multiple high-quality JRC operational amplifier chips to amplify the details of each signal multiple times, so that the signal distortion is lower and the noise is lower
  • Four sets of independent amplification circuits, reject mutual interference and sound mixing, and maintain the innocent input of each signal
  • Volume control knob and 8-segment dynamic LED lights on each output
  • 6 groups of independent high-power stereo headphone output/line output, each group has 2 1/4” (6.35mm) ports, which can pass through
  • The input signal switch is assigned to each headphone output or line output

Specifications:

Connectors 1/4’’TS
Type unbalanced\
Impedance 47KΩ
Max output level 350mV@47Ω
Output impedance 22Ω
Gain 12.5dB
Distortion 0.02%
Frequency response 20hz-20khz
 S/N ratio >80dB
Crosstalk rejection >68dB@1khz; 20dB input
Volume per channel, variable
Signal selector per channel, variable
 AC requirements  selectable, 100-120V AC, 200-240V AC, 50-60HZ
Fuse 100-120V AC:1000mA;200-240V AC:500mA
 Power cord connector standard IEC receptacle with built-in fuse holder
Size 44.5mm x 482.6mm x 217mm



View PDF brochure for Alctron H6n 6-Channel Headphone Amplifier
